Page 1
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as
manufactured is free from defects in materials and workmanship. For a period of one (1)
year from date of purchase by the original consumer purchaser, we will repair or replace,
at our option, without charge for parts or labor incurred in replacing parts, any part which
we find to be defective due to materials or workmanship. This Warranty is subject to the
following limitations and exclusions.
1. This warranty does not apply to the engine. Please refer to the applicable
manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment
are the responsibility of the purchaser. Transportation charges for any parts submitted
for replacement under this warranty must be paid by the purchaser unless such return is
requested by Frigidaire Home Products (Poulan/Weed Eater).
3. The Warranty period for any products used for rental or commercial purposes is limited
to 45 days from the date of original purchase.
4. This Warranty applies only to products which have been properly assembled, adjusted,
operated, and maintained in accordance with the instructions furnished. This Warranty
does not apply to any product which has been subjected to alteration, misuse, abuse,
improper assembly or installation, delivery damage, or to normal wear of the product.
5. Exclusions: Excluded from this Warranty are belts, rotating lines, rotating line adapters,
normal wear, normal adjustments, standard hardware and normal maintenance.
6. In the event you have a claim under this Warranty, you must return the product to an
authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
Frigidaire Home Products
Outdoor Products Customer Service Dept.
250 Bobby Jones Expressway
Augusta, GA 30909 USA
giving the model number, serial number and date of purchase of your product and the
name and address of the authorized dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME
TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.
Some areas do not allow the limitation of consequential damages or limitations of
how long an implied Warranty may last, so the above limitations or exclusions
may not apply to you. This Warranty gives you specific legal rights, and you may
have other rights which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the
Magnuson-Moss Act of 1975.
In Canada contact:
Frigidaire Home Products
7075 Ordan Drive
Mississauga, Ontario
L5T 1K6
REPAIR PARTS MANUAL
MODEL NO.WT4000A
WHEELED WEEDTRIMMER
®
174725 Rev.2 06.28.00 VB/rad
Printed in U.S.A.
Page 2

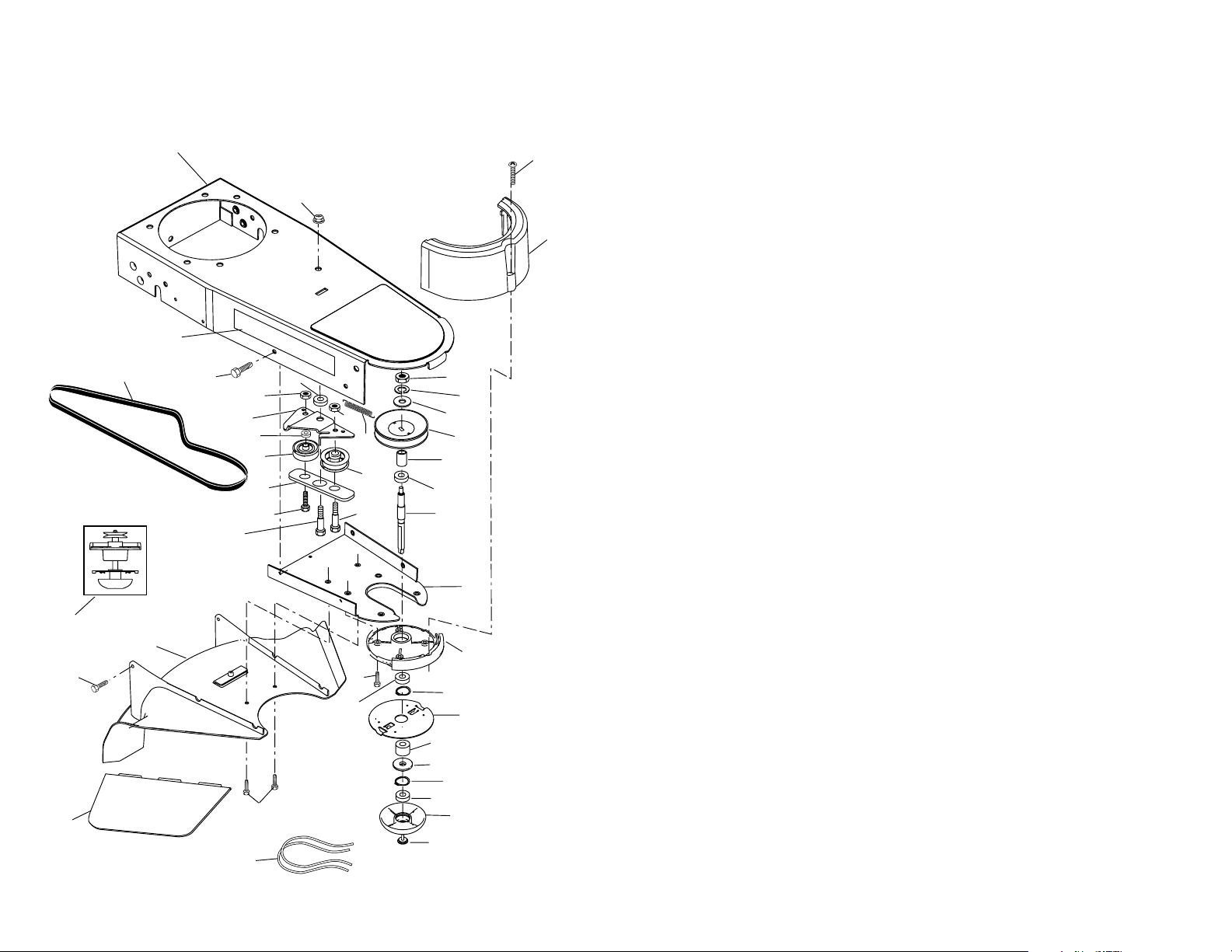

REPAIR PARTS
WEEDTRIMMER - - MODEL NO. WT4000A
19
SERVICE NOTES
6
29
30
5
21
20
16
10
17
27
12
17
26
28
21
11
8
9
23
11
18
12
31
7
1
25
26
27
9
23
24
31
25
24
22
2
4
3
2
7
Page 3
SERVICE NOTES
REPAIR PARTS
WEEDTRIMMER - - MODEL NO. WT4000A
KEY PART
NO. NO. DESCRIPTION
1 - - - - - Engine Model No. LEV115
2 150406 Engine Bolt 3/8-16
3 169791 Engine Pulley (Includes setscrew)
4 STD502502 Setscrew, Pulley
5 174317 Engine Cover w/screen
6 174274 Engine Cover Knob
7 174030 Engine Cover Stud
8 169821X479 Lower Handle
9 150078 Screw Hx Wshd 5/16-18 x .75
10 169797X479 Upper Handle
11 131959 Handle Bolt
12 136376 Handle Knob
16 153638 Rope Guide
17 STD541025 Locknut 1/4 x 20
18 66426 Wire Tire
19 171449 Control Bar
20 174038 Throttle Control
21 158755 Hex Washer Screw
22 169787 Axle Shaft
23 150078 Screw hex Wshd 5/16-18 x .75
24 169789 Axle Spacer
25 57143 Wave Washer
26 174721 Wheel 10 x 1.75
27 83923 Hex Flange Locknut 3/8-16
28 174037 Drive Control
29 174034 Decal - Warning
30 174723 Decal - Engine Cover
31 172221 Bracket - Axle Support
- - 169803 Safety Goggles (Not Shown)
- - 174724 Operator’s Manual
- - 174725 Repair Parts Manual
(Order parts from engine manufacturer)
6
3
Page 4
REPAIR PARTS
WEEDTRIMMER - - MODEL NO. WT4000A
REPAIR PARTS
WEEDTRIMMER - - MODEL NO. WT4000A
40
18
1
14
43
4
17
5
41
8
6
45
12
22
23
11
15
24
25
26
9
7
10
27*
28
13
29
16
30*
3
27
31
34
21
20
KEY PART
NO. NO. DESCRIPTION
1 174024X459 Chassis Assembly
2 174040 Trimmer Line .130 Dia x 16.75
- - 175085 Trimmer Line (Pack of 12 Strings .130 Dia.)
3 173715 Screw 5/16-18 x 1 Self Tapping
4 169790 Belt V
5 172145X004 Idler Bracket
6 166042 Idler Pulley V-Groove
7 173716 Hex Bolt 3/8-16 x 1.25
8 751592 Hex Locknut 3/8-16
9 166043 Idler Pulley-Flat
10 160829 Shoulder Bolt
11 155552 Locknut 5/16-18
12 173717 Spacer
13 174719 Shoulder Bolt
14 145212 Flange Locknut
15 173811 Return Spring
16 170552 Debris Shield
17 57808 Screw 1/4-20 x 1/2
18 85768 Screw #10-24 x 3/4
19 169800 Skirt
20 169764 Chassis Cover - Top
21 149746 Screw #10-24 x 1-3/4
22 STD541137 Nut 3/8-24UNF
23 STD551137 Lockwasher 3/8
24 STD551037 Flatwasher 3/8
25 169792 Pulley - Driven
26 172551 Spacer - Pulley
27 174549 Bearing
28 172603 Jackshaft
29 169766X459 Cover, Bottom
30 174543 Spindle Hsg. Asm. (* Includes Upper Bearing Key No. 27)
31 174581 Retaining Ring 17mm External
34 173531 Carrier Plate Assembly (Fixed)
35 172635 Spacer
36 172516 Cover, Bearing
37 174580 Retaining Ring 40mm Internal
38 172523 Mow Ball
39 172636 Bolt, Mow Ball
40 173619 Head Assembly Complete (Includes Key Nos. 22-39)
41 174029 Spacer
43 174036 Decal - Instruction
45 174596X479 Bottom Belt Keeper
19
35
36
37
27
17
38
39
2
4
5
