Ayp WP2050A PARTS LIST

WP2050A (1992) Page 1 of 24

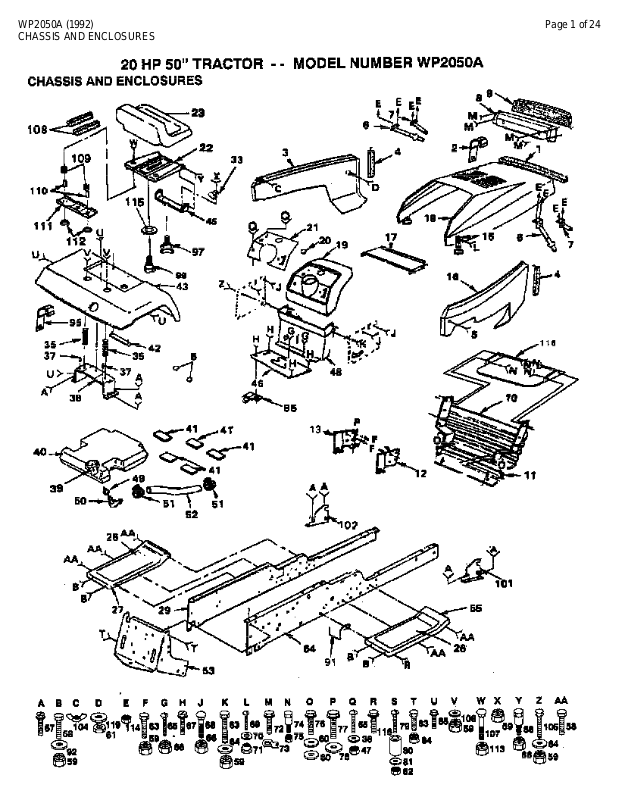

CHASSIS AND ENCLOSURES

WP2050A (1992) Page 2 of 24
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

1 109458X FOAM STRIP T
2 128146 SUB= 532128146
3 132638X505 SUB= 150302X505
4 106088X FOAM STRIP T
5 124238X CAP SPRING
6 106784X SUB= 155013
7 104618X SUB= 155013
8 124392X417 SUB= 147717

9 106395X LENS LT
10 122100X GRILL ASSY
11 105419X505 GRILL STRAP
12 110854X SUPPORT RH YTH
13 110855X SUPPORT LH YTH
15 109808X HOOD LATCH T
16 132639X505 "PANEL,SIDE RH "
17 7985J SUB= 140229
18 132635X505 SUB= 150301X505
19 124252X SUB= 140398
20 8022J PLUG-DASH T
21 123952X013 DASHPLATE
22 131451 SUB= 155925
23 127514 SUB= 140121
26 133671 FOOTREST PAD
27 105465X505 SUB= 145244X505
29 110893X SUB= 151630
33 2751R CLIP T
35 124181X SPRING COMPRESSIO
36 19111116 WASHER
37 105531X NUT-PUSH YT
38 105509X SUB= 137113
39 123549X SUB= 158990
40 106020X SUB= 151346
41 106082X PAD-SPACER LT
42 105511X SUB= 140675
43 121642X505 FENDER
45 126656X SUB= 140551
46 106042X016 CVR GATE SHIFT
47 73510500 NUT
48 104608X DASH ASSEMBLY
49 3645J BUSHING OUTLET T
50 8710J FUEL TANK STEM GT
51 123487X HOSE CLAMP
52 7834R SUB= 8542R
53 7982J SUB= 140506
54 110892X SUB= 150383
55 105464X505 SUB= 145243X505
57 17490612 SCREW
58 74760612 SUB= 74780612
59 73680600 SUB= 73690600
60 19091216 WASHER PM
61 73220400 SUB= 50675
63 74760616 BOLT
64 19131316 WASHER
65 74180512 SCREW
66 73680500 SUB= 73690500
67 17720408 SCREW
68 72140506 BOLT
69 74191008 SCREW

WP2050A (1992) Page 3 of 24
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

70 10071000 LOCKWASHER
71 2029J WELDNUT
72 17211010 SCREW LT
73 104755X """J"" FASTENER LT"
74 123481X SUB= 7605J
75 73680400 SUB= 73690400
76 17190412 SCREW
77 17490512 SCREW
78 19111212 WASHER
79 74981020 SCREW
80 7206J SPACER LT
81 19070818 WASHER
82 73731000 NUT
83 74760716 BOLT
84 73680700 NUT GTV
85 17490608 SCREW LT
88 105529X SUB= 139888
91 105500X BELT RETAINER GT
92 19131312 WASHER
95 4171R CLIP T
97 120068X "KNOB 1/2"" YT"
99 127018X "BOLT,SHOULDER"

101 110853X SUPPORT RH YTH
102 110852X SUPPORT LH YTH
104 123198X SUB= 146525
105 74760620 SUB= 74780620
106 19131614 WASHER
107 72050411 SUB= 872050411
108 121251X STRIP FORM
109 123740X SPRING COMPRESSED
110 121249X SPACER SPLIT
111 121246X BRKT SWITCH
112 121248X BUSHING
113 123976X SUB= 73900400
114 73510400 NUT
115 19171912 WASHER
116 17490616 SCREW GTV
118 127637 "SHIELD,HEAT"
119 19091016 WASHER

WP2050A (1992) Page 4 of 24
DECALS

WP2050A (1992) Page 5 of 24
DECALS

Ref # Part Number Qty Description

1 135864 DECAL.HOOD.LH

2 135865 DECAL.HOOD.RH

3 135820 NLA

4 135842 DECAL, LOGO, FENDER

5 133796 DECAL

6 4900J DECAL T

7 121343X DECAL WARING

8 3713J DECAL INSTRUCTION CAUTION

9 108456X SUB= 138955
10 123246X DECAL ADJ
11 135845 DECAL, INSERT

136114 MANUAL

WP2050A (1992) Page 6 of 24
ELECTRICAL

WP2050A (1992) Page 7 of 24
ELECTRICAL

Ref # Part Number Qty Description

1 110882X STOP T

2 10040600 LOCKWASHER

3 74780612 BOLT

4 71130724 SUB= 871130724

5 126197X WASHER

6 127170X SUB= 133501

7 10040700 LOCKWASHER

8 128224 SPACER-CLUTCH

9 4206J CABLE-BATTERY T
10 109081X SUB= 146154
11 4171R CLIP T
12 121264X "CAP,BATTERY "
13 129458 "CABLE,STARTER T"
14 127385X SENSOR LOW VOLT T
15 110712X SWITCH LT
16 131563 SUB= 154336
17 7662J SUB= 4152J
18 127441X SUB= 136850
20 123198X SUB= 146525
22 102476X SUB= 150109
23 121537X SUB= 123899X
24 4207J CABLE T
26 7603J "TRAY T, BATTERY"
27 72240460 BOLT
28 100541K SUB= 7697J
29 109596X HOSE CLAMP T
30 100207K CLIP GTV
31 109553X SWITCH INTERLOCKT
32 126018X SUB= 532126018
33 4022J HEX NUT T
34 108824X FUSE HYT
35 73951000 "NUT,KEPS"
38 121305X SWITCH SEAT
39 122147X KEY
40 124211X NUT IGNITION
41 123620X SUB= 141226
42 4406R SUB= STD365402
43 74641008 SUB= 71031008
44 132643 HARNESS
45 7192J WIRE TIE
46 109555X INDICATORLIGHTT
47 10090400 SUB= 10040400
48 73350400 NUT
49 17190408 SCREW ST
50 74760412 BOLT LT
51 19091016 WASHER
52 10040400 LOCKWASHER
53 73220400 SUB= 50675
54 71031008 SCREW
55 110940X HOUR METER T
56 17011008 SCREW
57 109748X RELAY ASSY T
59 11050600 LOCKWASHER

WP2050A (1992) Page 8 of 24
