Ayp WP1842A PARTS LIST

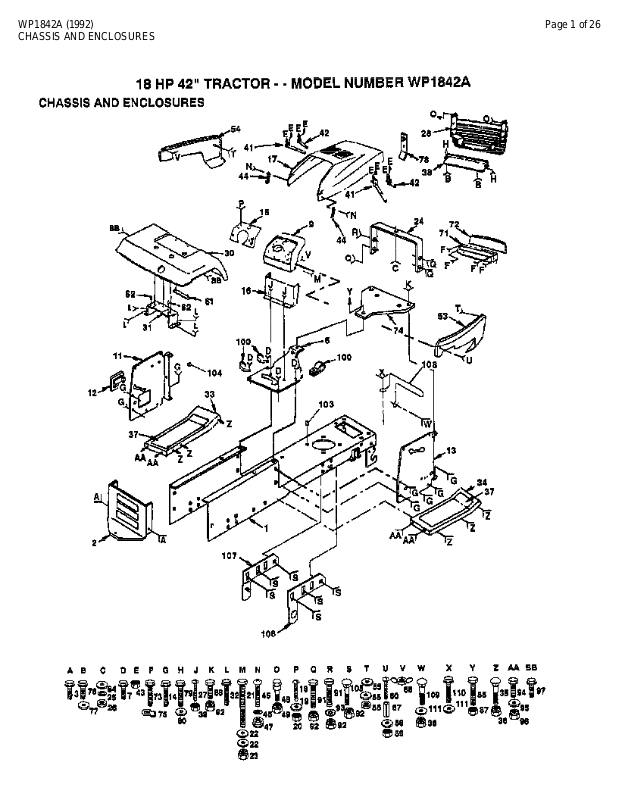

WP1842A (1992) Page 1 of 26
CHASSIS AND ENCLOSURES

WP1842A (1992) Page 2 of 26
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

1 135034 SUB= 145501
2 130805 SUB= 145009
3 17490612 SCREW
6 131005X020 SADDLE SILKSCREEN 6D ENG YT LH
7 17490608 SCREW LT

9 124252X SUB= 140398
11 132178 DASH PANEL LH
13 132069 SUB= 532132069
14 17490612 SCREW
15 135040X011 DASH PLATE
16 132177 LOWER DASH
17 132635X505 SUB= 150301X505
18 74180512 SCREW
19 19111116 WASHER
20 73510500 NUT
21 74760620 SUB= 74780620
22 19131312 WASHER
23 73680600 SUB= 73690600
24 124130X SUPPORT ASS'Y
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 74180512 SCREW
28 131716 SUB= 532131716
30 121642X505 FENDER
31 105509X SUB= 137113
32 17490612 SCREW
33 105465X505 SUB= 145244X505
34 105464X505 SUB= 145243X505
35 72110606 BOLT
36 73680600 SUB= 73690600
37 133671 FOOTREST PAD
38 105419X505 GRILL STRAP
39 73510500 NUT
41 106784X SUB= 155013
42 104618X SUB= 155013
43 73510400 NUT
44 109808X HOOD LATCH T
45 74191008 SCREW
46 1007100 WASHER LOCK #10
47 2029J WELDNUT
48 123481X SUB= 7605J
49 73680400 SUB= 73690400
53 132636X505 "PANEL,SIDE RH"
54 132637X505 "PANEL,SIDE LH"
55 19091216 WASHER PM
56 73220400 SUB= 50675
57 7206J SPACER LT
58 19070818 WASHER
59 73731000 NUT
60 74981020 SCREW
61 105511X SUB= 140675
62 105531X NUT-PUSH YT
66 123198X SUB= 146525
71 124392X417 SUB= 147717
72 106395X LENS LT
73 17211010 SCREW LT
74 106965X SUB= 140181
75 104755X """J"" FASTENER LT"

WP1842A (1992) Page 3 of 26
CHASSIS AND ENCLOSURES

Ref # Part Number Qty Description

76 17490512 SCREW
77 19131210 WASHER
78 132644 SUB= 532132644
79 17490412 SCREW HEX CRT
80 19091016 WASHER
84 19091216 WASHER PM
85 74760512 BOLT
87 73510500 NUT
88 74760620 SUB= 74780620
91 74760612 SUB= 74780612
92 73680600 SUB= 73690600
93 11050600 LOCKWASHER
94 74760612 SUB= 74780612
95 19131312 WASHER
96 73680600 SUB= 73690600
97 17490608 SCREW LT

100 2751R CLIP T
103 9151R SNAP BUSHING T
104 110436X SUB= 9151R
105 72140606 BOLT
106 134775 PIVOT BRKT RH
107 134774 PIVOT BRKT LH
108 135029 MUFFLER GUARD
109 72110608 BOLT D
110 17490616 SCREW GTV
111 19131316 WASHER

WP1842A (1992) Page 4 of 26
DECALS

WP1842A (1992) Page 5 of 26
DECALS

Ref # Part Number Qty Description

1 108456X SUB= 138955

2 135845 DECAL, INSERT

3 135865 DECAL.HOOD.RH

4 135864 DECAL.HOOD.LH

5 3713J DECAL INSTRUCTION CAUTION

6 135847 DECAL, MODEL HOOD

7 121343X DECAL WARING

8 133796 DECAL

9 4900J DECAL T
11 135842 DECAL, LOGO, FENDER

132704 MANUAL, OPERATOR'S
136142 "MANUAL,PARTS"

WP1842A (1992) Page 6 of 26
DRIVE

WP1842A (1992) Page 7 of 26
DRIVE

Ref # Part Number Qty Description

1 131965 SUB= 137367

2 110422X SUB= 146682

3 123667X "PULLEY,TRANSAXLE"

4 12000028 SUB= 2267J

5 121520X STRAP TORQUE

6 17490512 SCREW

7 130802 SUB= 162240

8 131679 SHIFT ROD

9 19151216 WASHER
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19091210 WASHER LT
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74760540 BOLT
16 73680500 SUB= 73690500
17 121520X STRAP TORQUE
18 74760612 SUB= 74780612
19 73680600 SUB= 73690600
20 17490512 SCREW
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 133261 BRAKE PARK ROD
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127289 "KEEPER,BELT LH"
32 74760512 BOLT
33 73680500 SUB= 73690500
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73680600 SUB= 73690600
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 131006 BELT-V
58 127290 "KEEPER,BELT RH"

WP1842A (1992) Page 8 of 26
DRIVE

Ref # Part Number Qty Description

59 104777X SUB= 140312
60 19131312 WASHER
61 17490612 SCREW
62 8883R PEDAL COVER T
63 134825 SUB= 136004
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
83 2228M SUB= 2228M1
84 17490612 SCREW
85 2751R CLIP T
