WP14H38A (1992) Page 1 of 25
AGRI-FAB TRANSAXLE
WP14H38A (1992) Page 2 of 25
AGRI-FAB TRANSAXLE
Ref # Part Number Qty Description
1 122614X HSG HALF LH-44077
2 122615X HSG HALF RH-44076
3 122616X AXLE LH -44273
4 122620X AXLE RH-44272
5 122621X BEARING.44121.AGR
6 122622X WASHER -44008
7 122623X GEAR MITER -44096
8 122624X GEAR MITER -44097
9 122625X NUT -44133
10 122626X SHAFT CROSS
11 122688X SCREW-STUD -44271
12 122629X SNAP RING -44146
13 122631X "THRUST, BEARING -44128"
14 122633X HOUSING.ASM.DIFF.-62590
15 122634X "FLANGE, BEARING-44129"
16 122640X GEAR
17 122641X BOLT -44126
18 122642X SHAFT INPUT-44270
19 122643X SNAP RING -44145
20 122644X RET RING (44144)
21 122645X SUB= 155892
22 122646X "NEEDLE, BEARING 44099"
23 122647X BEARING.NEE.44139
24 122648X WASHER-44109
25 122649X KEY.44136.HYDRO
26 122650X SCREW
27 122651X SUB= 155892
28 123061X WASHER -44371
122678X NLA
122654X WASHER-44151
29 122656X PIN COTTER -44101
30 122658X NUT -44142
31 122659X WASHER FLAT -44130
32 122660X ARM BRAKE 23710
33 122662X PIN BRAKE ACTUATO -44127
34 122663X BRAKE YOKE
35 122664X DISC BRAKE -(44090)
36 123065X KEY -44143
37 122666X SCREW -44277
38 122667X PLATE PUCK -44134
39 122668X SUB= 142883
40 123066X SCREW -44300
41 122670X SCREW -44123
42 122671X SCREW -44124
43 126982X SUB= 122672X
44 122673X "BALL, BEARING -44232"
45 122674X SHAFT PINION 44083
46 122675X SHAFT DRIVE-44080
47 123059X NEEDLE BEARING -44342
48 123060X THRUST.BRONZE -44343
49 123061X WASHER -44371
122654X WASHER-44151
50 122689X SPACER -23711
51 121839X COUPLING- 44084
52 126975X GEAR.60/17.44523
53 122682X NUT -43178
54 122683X PINION-DR.44079
55 122684X BOLT SQ HD
WP14H38A (1992) Page 3 of 25
AGRI-FAB TRANSAXLE
Ref # Part Number Qty Description
56 122685X WASHER -44278
57 122686X WASHER -44137
58 122687X PIN ROLL-44269
59 122652X WASHER -44125
60 123062X DOWEL PIN -44346
61 123063X SEAL GREASE -44394
62 126977X WASHER.43177.AGRI
63 126980X ASS'Y GEAR REDUCT
64 126981X SUB= 122642X
65 126976X GREASE.50416.10OZ
121431X TRANSAXLE.AGRIFAB
WP14H38A (1992) Page 4 of 25
CHASSIS AND ENCLOSURES
WP14H38A (1992) Page 5 of 25
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 127424X SUB= 140121
2 131451 SUB= 155925
3 126656X SUB= 140551
4 19091216 WASHER PM
5 121642X505 FENDER
7 124392X417 SUB= 147717
8 17211010 SCREW LT
9 105511X SUB= 140675
10 124181X SPRING COMPRESSIO
11 105531X NUT-PUSH YT
12 105509X SUB= 137113
13 106082X PAD-SPACER LT
14 123549X SUB= 158990
15 106020X SUB= 151346
16 3645J BUSHING OUTLET T
17 8710J FUEL TANK STEM GT
18 123487X HOSE CLAMP
19 5277J SUB= 8543R
20 73951000 "NUT,KEPS"
21 124118X PANEL DASH LH
22 74641008 SUB= 71031008
23 121250X SPRING
24 105465X505 SUB= 145244X505
25 121251X STRIP FORM
26 72050411 SUB= 872050411
27 133671 FOOTREST PAD
28 127866 DRAWBAR LT/YT
29 121249X SPACER SPLIT
30 74180512 SCREW
31 135034 SUB= 145501
32 105464X505 SUB= 145243X505
33 133748 DASH PANEL RH
34 4171R CLIP T
35 UNKNOWN
36 UNKNOWN
37 121195X014 SADDLE
38 1554J SUB= 155108
39 121246X BRKT SWITCH
40 104805X LOWER DASH
41 124252X SUB= 140398
42 2029J WELDNUT
43 121723X014 PLATE DASH
44 123976X SUB= 73900400
45 121248X BUSHING
46 132638X505 SUB= 150302X505
47 17190412 SCREW
48 17490512 SCREW
49 11050400 LOCKWASHER
50 106784X SUB= 155013
51 104618X SUB= 155013
52 132635X505 SUB= 150301X505
54 124130X SUPPORT ASS'Y
55 106965X SUB= 140181
56 123198X SUB= 146525
57 132639X505 "PANEL,SIDE RH "
58 122100X GRILL ASSY
59 106395X LENS LT
60 104755X """J"" FASTENER LT"
WP14H38A (1992) Page 6 of 25
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
62 19131614 WASHER
63 110855X SUPPORT LH YTH
64 110854X SUPPORT RH YTH
65 105529X SUB= 139888
66 73680500 SUB= 73690500
67 11050600 LOCKWASHER
68 105419X505 GRILL STRAP
69 19171912 WASHER
70 73680600 SUB= 73690600
71 17490608 SCREW LT
72 17490612 SCREW
73 120068X "KNOB 1/2"" YT"
74 72110606 BOLT
75 17431008 SUB= 98000165
76 74760616 BOLT
77 121794X COVER ACCESS
78 110852X SUPPORT LH YTH
79 73510400 NUT
80 73510500 NUT
81 73220400 SUB= 50675
82 74760532 BOLT
83 73510500 NUT
84 110853X SUPPORT RH YTH
85 121236X SPACER
86 127018X "BOLT,SHOULDER"
87 2751R CLIP T
88 123481X SUB= 7605J
89 73680400 SUB= 73690400
90 74191008 SCREW
91 10071000 LOCKWASHER
92 19111116 WASHER
93 19131312 WASHER
94 19111212 WASHER
96 74760612 SUB= 74780612
97 74981020 SCREW
98 109808X HOOD LATCH T
99 73731000 NUT
100 7206J SPACER LT
101 19070818 WASHER
102 19091016 WASHER
104 128953 HEAT SHIELD
105 124238X CAP SPRING
106 17021008 SCREW
110 134618 BRKT ASM PIVOT LH
111 134617 BRKT ASM PIVOT RH
112 72140606 BOLT
WP14H38A (1992) Page 7 of 25
DECALS
WP14H38A (1992) Page 8 of 25
DECALS
Ref # Part Number Qty Description
1 125927X NLA
2 134999 "DECAL,ENVIRO DECK"
3 135864 DECAL.HOOD.LH
4 135865 DECAL.HOOD.RH
8 135842 DECAL, LOGO, FENDER
11 3713J DECAL INSTRUCTION CAUTION
14 121343X DECAL WARING
16 108456X SUB= 138955
17 4900J DECAL T
20 133796 DECAL
132704 MANUAL, OPERATOR'S
136159 MANUAL
WP14H38A (1992) Page 9 of 25
DRIVE
WP14H38A (1992) Page 10 of 25
DRIVE
Ref # Part Number Qty Description
1 108373X MUFFLER HYT
2 4497H RETAINER M
3 REFER TO IMAGE
4 73350600 NUT
5 121749X WASHER
6 REFER TO IMAGE
7 100229L EXHAUST TUBE T
8 8545J SUB= 272250
9 19131316 WASHER
10 73680500 SUB= 73690500
11 72140506 BOLT
12 132763 THROTTLE CONTROL
14 123461X SUB= TH4H810
15 2751R CLIP T
16 121187X PLATE TRANS SUPT
17 126649X BRKT TRANSAXLE
18 123583X SQUARE KEY
20 121189X U BOLT
21 121199X SPACER SPLIT
22 121748X WASHER
23 106108X361 SUB= 106108X417
24 12000001 E-RING LT
25 104757X HUB CAP
27 65139 VALVE STEM LT
28 59192 VALVE CAP
29 71170768 SUB= 150280
31 10040700 LOCKWASHER
32 108218X SUB= 142600
33 109841X SUB= 136905
34 110422X SUB= 146682
35 74760644 BOLT
36 4859J SUB= 123674X
37 4470J SPACER T
38 19131312 WASHER
39 109070X BELT KEEPER LT
41 109169X SUB= 109172X
42 129921 KEEPER.BELT.ENG.L
43 17021008 SCREW
44 106888X SPRING ROD LT
45 132654 SUB= 532132654
46 8883R PEDAL COVER T
47 120183X NYLON BEARING
48 122424X SUB= 149001
49 1572H SUB= 2882J
50 71673 PLUNGER CAP T
51 133261 BRAKE PARK ROD
52 105710X "LINK, CLUTCH T"
53 73680600 SUB= 73690600
54 123205X RETAIN BELT
55 12000039 KLIP RING
56 110812X WASHER LT
57 123789X ARM IDLER
58 105709X "SPRING, RETURN LT"
59 108236X BRACKET LT
60 74760624 SUB= 74930624
61 127783 SUB= 139245
62 105706X "LY, BEARING"
63 19211616 WASHER LT
WP14H38A (1992) Page 11 of 25
DRIVE
Ref # Part Number Qty Description
64 73800600 NUT
65 17720410 SCREW LT
66 17490624 SCREW LT
67 11050600 LOCKWASHER
68 74760612 SUB= 74780612
69 74760616 BOLT
70 7152J TUBE.18X9.5-8
71 76020412 COTTER PIN
72 17490612 SCREW
73 106268X SUB= 122074X
77 13280336 PIPE NIPPLE LT
79 13200300 ELBOW
82 74780412 SUB= 74780414
83 10040400 LOCKWASHER
86 126197X WASHER
87 132781 CHOKE CONTROL
88 73610600 SUB= 7810H
89 134683 KEEPER BELT ENG
90 19132012 WASHER
WP14H38A (1992) Page 12 of 25
ELECTRICAL
WP14H38A (1992) Page 13 of 25
ELECTRICAL
Ref # Part Number Qty Description
1 123198X SUB= 146525
2 19091016 WASHER
3 102476X SUB= 150109
4 72240460 BOLT
5 121265X SUB= 123899X
6 7603J "TRAY T, BATTERY"
7 136264 "HARNESS,IGN."
8 127441X SUB= 136850
9 7662J SUB= 4152J
10 100541K SUB= 7697J
11 7192J WIRE TIE
12 109553X SWITCH INTERLOCKT
13 4206J CABLE-BATTERY T
14 102972X SUB= 918102972X
15 124211X NUT IGNITION
16 122147X KEY
17 109081X SUB= 146154
18 110712X SWITCH LT
20 131563 SUB= 154336
21 4207J CABLE T
22 17021008 SCREW
23 109748X RELAY ASSY T
24 2751R CLIP T
25 109596X HOSE CLAMP T
26 10090400 SUB= 10040400
27 73350400 NUT
28 74780408 BOLT
29 73510400 NUT
30 74760412 BOLT LT
31 73220400 SUB= 50675
32 11050400 LOCKWASHER
33 10040400 LOCKWASHER
34 108824X FUSE HYT
35 9433R AMMETER T
36 131708 SUB= 532131708
37 10101000 SUB= 10071000
38 73911000 NUT
39 19070818 WASHER
41 235R CLIPT
42 4022J HEX NUT T
43 126016X SUB= 4021J
44 123620X SUB= 141226
45 121305X SWITCH SEAT
46 121264X "CAP,BATTERY "
47 135665 DIODE ASM.
WP14H38A (1992) Page 14 of 25
MOWER
WP14H38A (1992) Page 15 of 25
MOWER
Ref # Part Number Qty Description
1 129365 SUB= 145775
2 73680500 SUB= 73690500
3 72140506 BOLT
4 7631J RUNNER-LH M
5 110485X BEARING
6 128774 HSG ASM MANDREL
7 129895 BEARING.BALL
8 133172 SUB= 137646
9 127842 SUB= 138497
10 129962 WASHER BLADE
11 10030600 SUB= 10040600
12 850857 BLADE BOLT
13 128961 SUB= 140329
14 106736X DEFLECTOR-SHLD T
15 106735X ROD-HINGE T
16 105896X SUB= 137607
17 105304X CAP-SLEEVE LT
18 106734X SUB= 123713X
19 19111016 WASHER
20 110452X NUT PUSH M
21 128772 RUNNER RH
22 19111216 WASHER M
23 78158 SUB= 17580520
24 4939M SUB= 85902
25 74600636 BOLT
26 19131612 WASHER GT
27 127218 LINK.FRONT
28 73350800 NUT
29 130171 TRUNION
30 73800800 NUT.LK.W/WSH.1/2.
31 135388 LIFT LINK RH
32 135563 "PIN,SPRING"
33 130832 SUB= 130833
34 134619 LINK LIFT LH
38 133840 IDLER ARM ASSY
39 129963 WASHER
40 129206 SUB= 153532
41 73050900 SUB= 139729
42 131494 FLAT IDLER PULLEY
43 122052X SPACER RETAINER
44 19131316 WASHER
45 73680600 SUB= 73690600
46 131290 BELT-V.88.12.MW
47 12000022 E-RING
48 19292016 WASHER
49 131925 LIFT SHAFT ASM
50 74780624 "BOLT,HEX"
51 121002X SUB= 123096X
52 109413X GRIP
53 124526X SUB= 125925X
54 122364X SUB= 125925X
55 2876H SPRING T
56 121006X LEVER ROD LT
57 74760644 BOLT
58 132823 SUB= 532132823
59 131950 SPRING.EXTENSION
60 110810X TRUNION LT
61 19151216 WASHER
WP14H38A (1992) Page 16 of 25
MOWER
Ref # Part Number Qty Description
62 12000037 KLIP RING
63 110807X NUT T
64 19131016 WASHER
65 76020308 SUB= 3145
66 73350600 NUT
67 110729X ROD LIFT LT
68 100734K SUB= 138057
133415 SUB= 136262
130794 MANDREL ASM
WP14H38A (1992) Page 17 of 25
PUMP ASSEMBLY
WP14H38A (1992) Page 18 of 25
PUMP ASSEMBLY
Ref # Part Number Qty Description
1 122756X SHAFT.PU.2003022
2 12716X RING, RETAINING
3 122745X BALL BEARING
4 122715X SPACER
5 122700X SEAL LIP
6 122699X RING.RET.2003052
8 122767X CRADLE BEARING (2003023)
11 122747X BEARING
12 122717X SEAL.9008000-0126
13 122748X TRUNION ARM (2003005)
14 122749X GUIDE.2000015.HYD
15 127146X SUB= 121430X
17 122770X SUB= 142936
18 122771X PLUG PIPE
19 127147X "KIT,CTR SECTION (2513007)"
20 122773X NEEDLE BEARING
21 122722X LIP SEAL-9008000-0127
22 122750X SHAFT
25 127148X "SWASHPLATE,VARIAB"
30 122723X SEAL LIP
31 127149X "KIT,BLOCK CYLINDE"
36 127151X "PLUG,PLASTIC 9005200-8700"
37 122786X PIN
38 122718X GASKET.20030600
39 122731X FILTER
40 122730X WASHER (2000011)
41 122728X SPRING
42 127152X KIT.VALVE.2513014
46 122787X PLUG
47 122752X SCREW9007314-0808
50 122788X WASHER
51 122789X PIN
52 122754X PLUG
55 127153X "KIT,BYPASS VALVE"
58 122790X PLUG
59 127154X "KIT,OVERHEAD SEAL -2513013"
60 121430X PUMP.BDU-10S-114
61 UNKNOWN
WP14H38A (1992) Page 19 of 25
SCHEMATIC
WP14H38A (1992) Page 20 of 25
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
WP14H38A (1992) Page 21 of 25

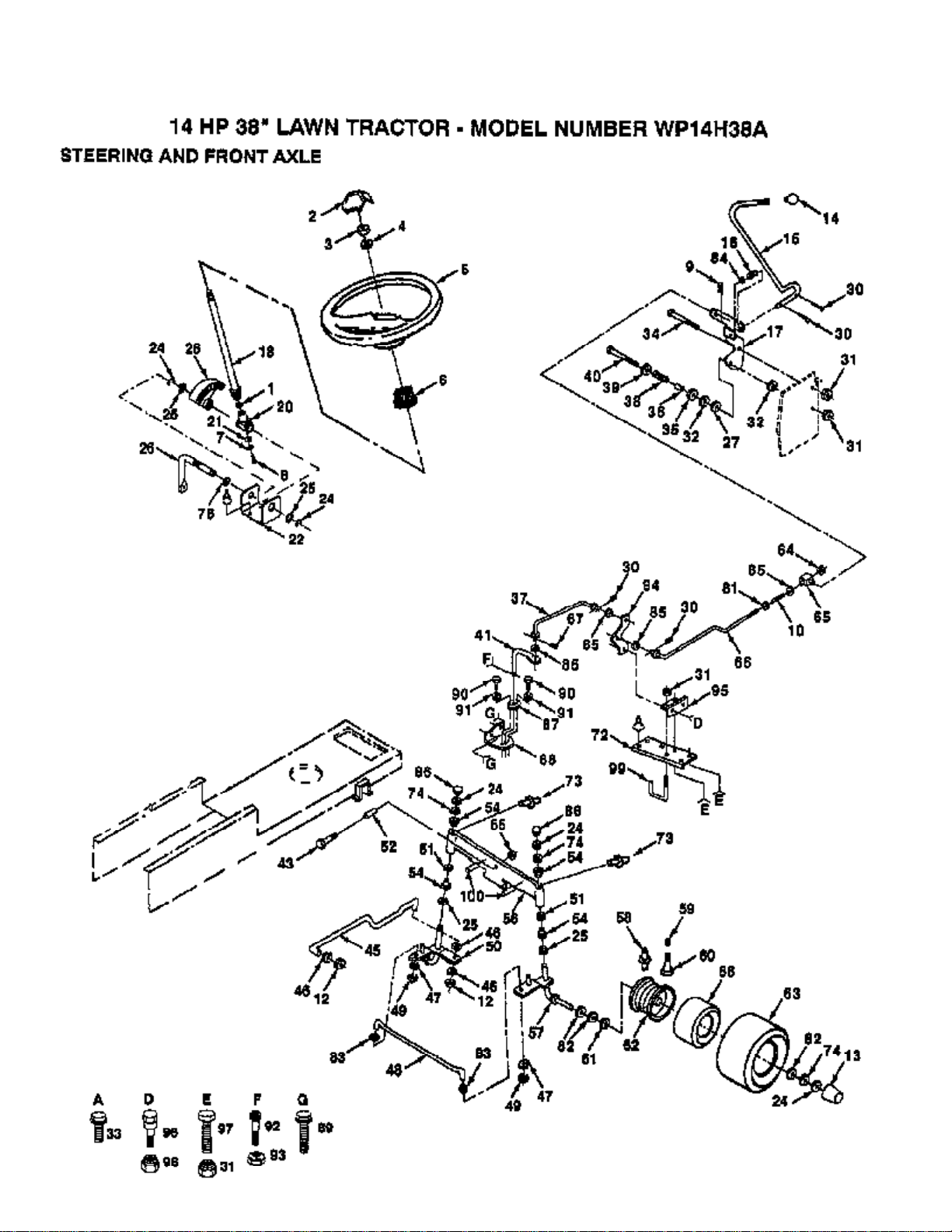

STEERING AND FRONT AXLE
WP14H38A (1992) Page 22 of 25
STEERING AND FRONT AXLE
Ref # Part Number Qty Description
1 57079 THRUST WASHER
2 126805X "INSERT,STR WHEEL"
3 73940800 SUB= 73360800
4 100712K WASHER
5 121472X SUB= 150546
6 100711L ADAPTER LT
7 10040400 LOCKWASHER
8 71070410 "SCREW,SPECIAL"
9 4921H SPRING.RETAINER
10 102670X SPRING GTV
12 73610600 SUB= 7810H
13 104757X HUB CAP
14 121274X KNOB.DUCKHEAD.1/2
15 110845X ROD.YTH
16 121631X SPRING TORSION
17 108196X BRKT CONTROL HYT
18 128762X SUB= 128762
20 124035X SUPPORT.SHAFT
21 126684X SUB= 532126684
22 124036X "BRKT,STEERING"
24 12000029 RING
25 6266H WASHER .T
26 127501 SUB= 918127501
27 108972X WASHER HYT
28 124034X SUB= 136874
30 76020412 COTTER PIN
31 73680600 SUB= 73690600
32 108200X WASHER FRIC HYT
33 17490612 SCREW
34 108518X BOLT HYT
35 19212016 WASHER D
36 108201X SPACER HYT
37 121202X LINK CONTROL
38 108844X SPRING HYT
39 19132012 WASHER
40 74760648 BOLT - HEX 3/8 - 16 X 3
41 121209X ARM ASM PUMP
43 74011056 BOLT HEX 5/8-11
45 130468 SUB= 532130468
46 10040600 LOCKWASHER
47 10040500 LOCKWASHER
48 130467 TIE ROD
49 73810500 NUT.LOCK.5/16-24
50 135227 SPINDLE LH
51 19272016 WASHER
52 110438X BEARING
54 3366R COL. SRTG. BEAR.
55 73601000 SUB= 73901000
56 133988 SUB= 142033
57 135228 SPINDLE RH
58 278H FITTING LT
59 65139 VALVE STEM LT
60 59192 VALVE CAP
61 9040H "FLANGE, BEARING"
62 106732X361 SUB= 106732X417
63 106222X SUB= 122073X
64 73800600 NUT
65 108212X TRUNION HYT
WP14H38A (1992) Page 23 of 25
STEERING AND FRONT AXLE
Ref # Part Number Qty Description
66 121750X ROD ADJ CONTROL
67 4497H RETAINER M
68 59904 TUBE.5.3/4.5/6
72 123186X BRACKET
73 6855M ZERK M
74 121748X WASHER
78 109816X NYLINER T
81 19131212 WASHER T
82 121749X WASHER
83 19111216 WASHER M
84 19151516 WASHER
85 110739X WASHER T
86 121232X CAP
87 121217X GUIDE CONTROL
88 121216X BRKT
89 17490512 SCREW
90 17021010 SUB= 817021010
91 19070816 WASHER
92 74561014 SCREW
93 69180 LOCKNUT
94 121204X BELLCRANK
95 121206X BRKT BELLCRANK
96 100536K SHOULDER BOLT LT
97 74760616 BOLT
98 73680500 SUB= 73690500
99 121190X KEEPER
100 132624 AXLE PIN
WP14H38A (1992) Page 24 of 25
TRANSAXLE AND PUMP
WP14H38A (1992) Page 25 of 25
TRANSAXLE AND PUMP
Ref # Part Number Qty Description
1 123634X CONTROL ASSY
4 121188X BRACKET
5 74780412 SUB= 74780414
6 121186X FAN
7 121180X PULLEY TRANSAXLE
8 121211X STANDOFF
9 121182X GUARD ASSY
10 121431X TRANSAXLE.AGRIFAB
11 121430X PUMP.BDU-10S-114
12 74760572 BOLT
13 121323X PUMP.2003081.
14 73680500 SUB= 73690500
15 121250X SPRING
16 74760612 SUB= 74780612
17 73680600 SUB= 73690600
18 10040500 LOCKWASHER
19 71673 PLUNGER CAP T
20 7605J BOLT T
21 120529X WASHER T
22 73680400 SUB= 73690400
23 19092016 WASHER
24 10040400 LOCKWASHER
Loading...
