Ayp WP145H42E PARTS LIST

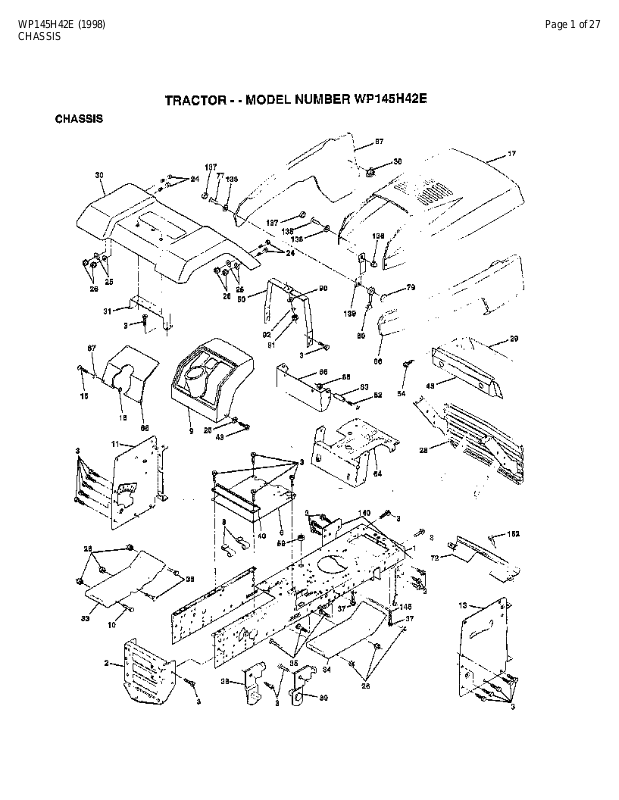

WP145H42E (1998) Page 1 of 27
CHASSIS

WP145H42E (1998) Page 2 of 27
CHASSIS

Ref # Part Number Qty Description

1 160393 CHASSIS
2 140356 SUB= 145009
3 17490612 SCREW
6 155923 SADDLE
8 126471X "CLIP,INSULATOR"

9 140398 DASHBOARD BLACK
10 72140608 SUB= 72110608
11 145218 PANEL.DASH.LH.
13 145217 PANEL.DASH.RH.
15 74180512 SCREW
16 73510500 NUT
17 150301X505 HOOD ASM
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 150196 GRILLE ASM PNT
29 146959 PANEL.DASH.RH
30 162454X505 FENDER.PNT.ASSY
31 139976 BRACKET SUPT FEND
33 145244X505 FOOTREST.LH.LT/GT
34 145243X505 FOOTREST.RH.LT/GT
35 72110606 BOLT
36 108067X PAL NUT LT
37 CHECK WITH SUPPLIER
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
43 17490616 SCREW GTV
45 147717X417 BEZEL.1 PC
50 145205 DASH.SUPT.YP/HUSQ
54 161464 SCREW.HEX.WS.HD
59 CHECK WITH SUPPLIER
56 150271 EXT DASH LTYT
64 150272 DASH.LOWER.LT
66 156285X011 "PLATE-DASH,SLSCR"
67 19111116 WASHER
72 144916X505 STRAP.GRILLE.PNT.
77 74191008 SCREW
79 2029J WELDNUT
80 109808X HOOD LATCH T
82 74981020 SCREW
83 7206J {85}
85 73731000 NUT
86 150432X505 PANEL SIDE RH
87 150431X505 "PANEL SIDE,LH"
90 19091216 WASHER PM
91 73220400 SUB= 50675
92 10040400 LOCKWASHER

135 74291006 SCREW.10-24X3/8.
136 60867 ACORN NUT RB
137 110356X SNAP CAP LT
138 110357X WASHER LT
139 150195 BKT.SPT.HOOD/PANL
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
152 17720408 SCREW

121794X COVER ACCESS
8022J PLUG-DASH T

WP145H42E (1998) Page 3 of 27
CHASSIS

Ref # Part Number Qty Description

5479J PLUG BUTTON T

WP145H42E (1998) Page 4 of 27
DECALS

WP145H42E (1998) Page 5 of 27
DECALS

Ref # Part Number Qty Description

1 156835 "DECAL-INST,OPER"

2 160396 "DECAL-SCHEM,BELT"

4 135841 DECAL, FENDER LOGO

5 140837 DECAL BRAK PARK

6 157002 "DECAL DANGER,FEND"

7 4900J DECAL T

8 142341 DECAL DRAWBAR LH
10 135865 DECAL.HOOD.RH
11 145005 DECAL.BATRY.3-3908
12 141801 DECAL CHAS 42 HYD
13 149213 DECAL.WP145H42A
14 272991 DECAL, ENGINE
15 135864 DECAL.HOOD.LH
17 135845 DECAL, INSERT

138311 DECAL HANDLE LIFT
133671 FOOTREST PAD
158124 MANUAL.GENERIC.42
1638886 MANUAL PARTS ENG.
C42 GRASS CATCHER
MK420 MULCHING KIT W/BLADES

WP145H42E (1998) Page 6 of 27
DRIVE

WP145H42E (1998) Page 7 of 27
DRIVE

Ref # Part Number Qty Description

2 142431 SPRING RET BRAKE

3 143995 PULLEY.TRANSAXLE

8 141003 ROD SHIFT FEND LT

9 145028 CLUTCH.ELECT.EVX.
10 76020416 PIN COTTER 1/8
16 73800500 NUT
18 74780616 BOLT
19 73800600 NUT
20 150280 BOLT.7/16-20X4.25
21 106933X KNOB T (1/2-HOLE)
22 145627 ROD.BRAKE.HYDRO.
23 154978 BRACKET.CLUT.MTG.
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
32 74760512 BOLT
33 72140506 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 154777 SUB= 165692
42 19131312 WASHER
47 127783 SUB= 139245
48 154407 BELLCRANK.CLUTCH
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 161588 V-BELT.GROUND.HYD
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 161400 PULLEY.ENGINE
65 10040700 LOCKWASHER
66 161488 ENGINE BELT KEEPR
69 142432 SCREW HEXWSH H-L
71 140158 STRAP TORQ LH HYD
72 19132012 WASHER
73 156347 "STRAP-TORQUE,RH"
74 121199X SPACER SPLIT
75 CHECK WITH SUPPLIER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
81 161079 SHAFT.ASM.CROSS
82 123782X "SPRING,TORSION"
83 19171216 WASHER

WP145H42E (1998) Page 8 of 27
DRIVE

Ref # Part Number Qty Description

84 161901 ROD.TIE
86 157480 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 151147 SUB= 164893
93 142564 "LINE FUEL HYD 4"""
94 140462 "FAN 7"" HYDRO"
95 144643 SUB= 918144643
96 CHECK WITH SUPPLIER
97 140469 BOLT KEEPER RH
98 73510600 NUT

100 19111216 WASHER M
102 141322 WASHER BELLEVILLE
103 73940800 SUB= 73360800
104 140156 ARM CONTROL HYDRO
105 71070516 SCREW CAP 5/16-18
106 74780520 BOLT
144 19111016 WASHER
145 74490540 BOLT.HEX.FLGHD
146 74490536 BOLT.HEX.FLGHD.
147 74490524 BOLT.HEX.FLGHD
148 159103 SPACER
149 122052X SPACER RETAINER
150 150935 BUSHING.NYLON
151 19133210 WASHER

WP145H42E (1998) Page 9 of 27
ELECTRICAL
