Ayp WET670MA PARTS LIST

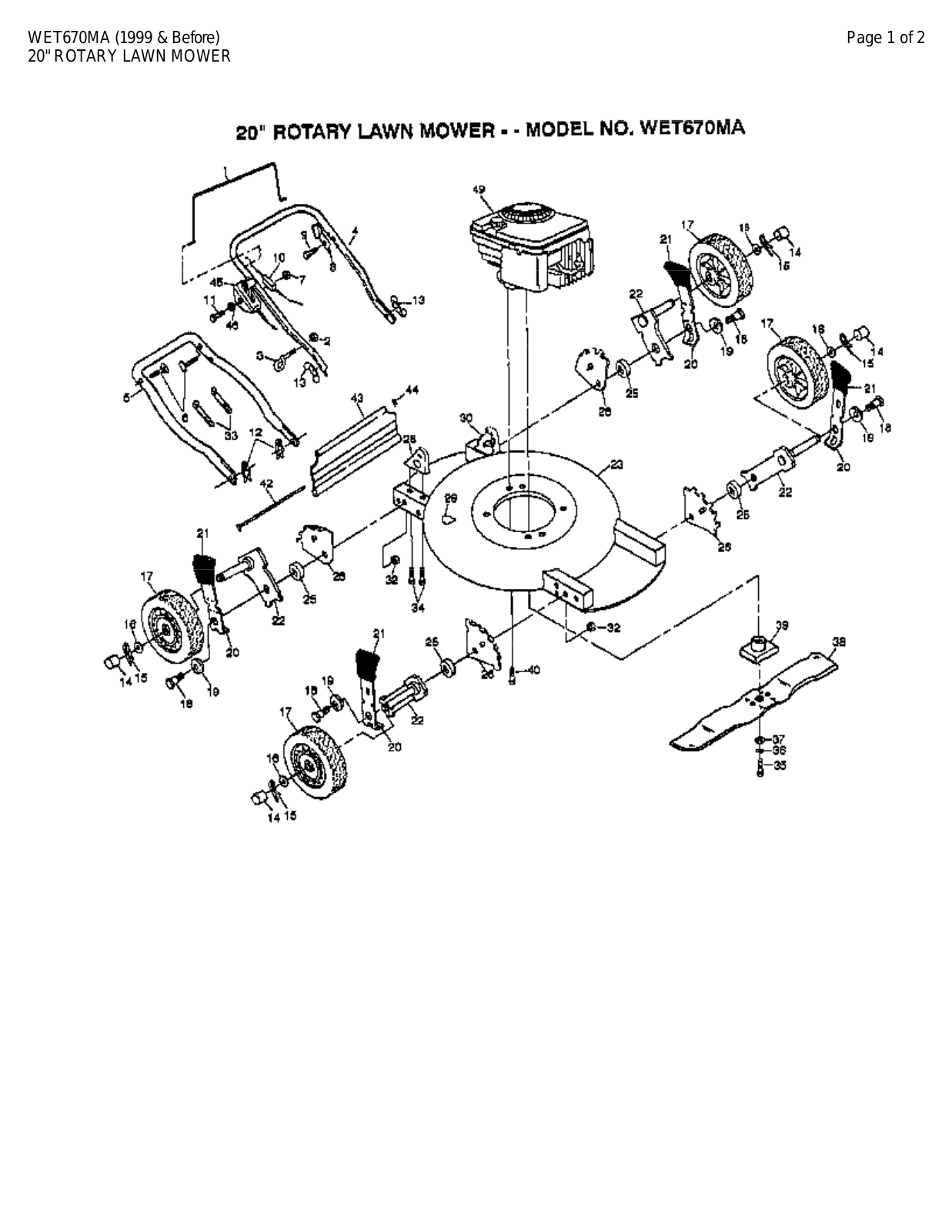

WET670MA (1999 & Before) Page 1 of 2
20" ROTARY LAWN MOWER

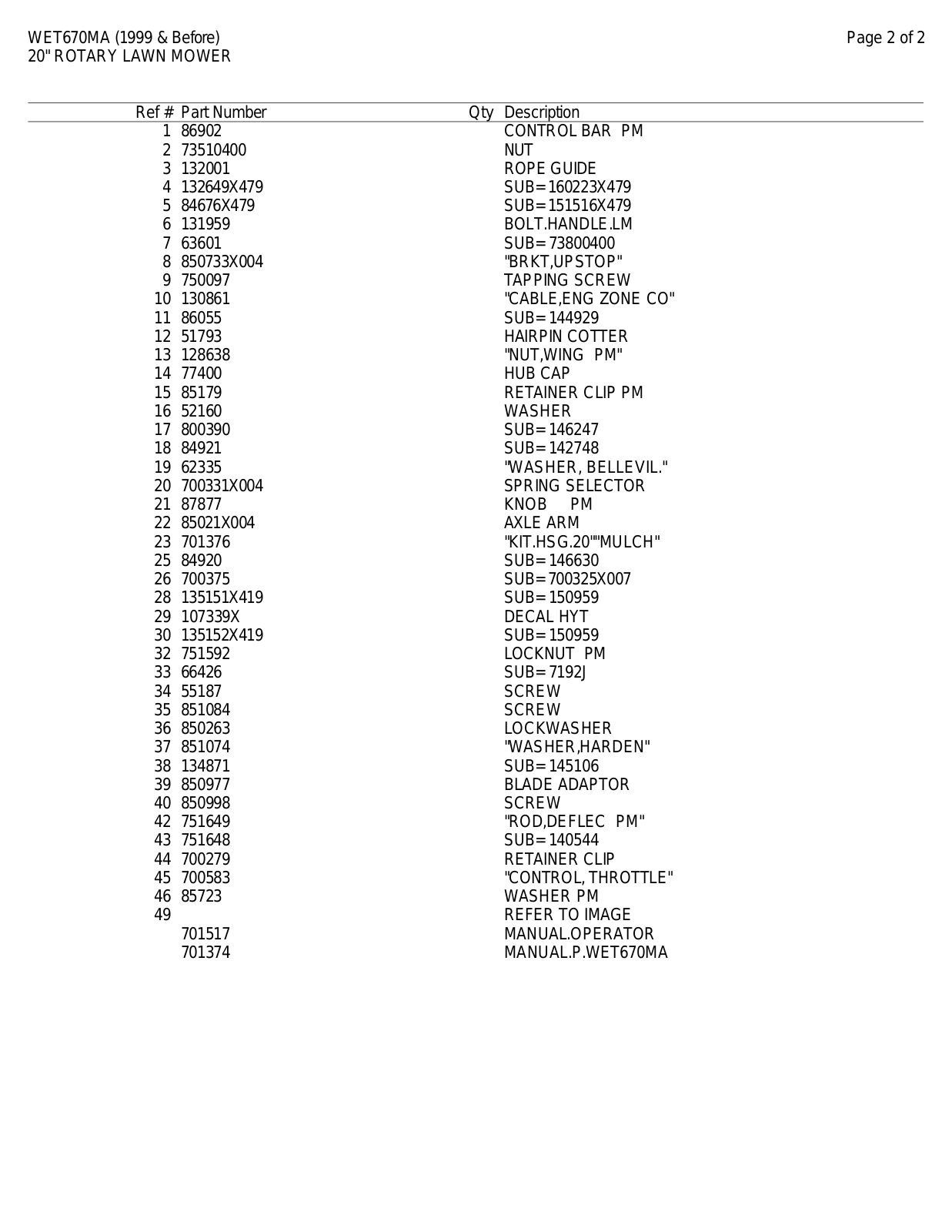

WET670MA (1999 & Before) Page 2 of 2
20" ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 86902 CONTROL BAR PM
2 73510400 NUT
3 132001 ROPE GUIDE
4 132649X479 SUB= 160223X479
5 84676X479 SUB= 151516X479
6 131959 BOLT.HANDLE.LM
7 63601 SUB= 73800400
8 850733X004 "BRKT,UPSTOP"
9 750097 TAPPING SCREW
10 130861 "CABLE,ENG ZONE CO"
11 86055 SUB= 144929
12 51793 HAIRPIN COTTER
13 128638 "NUT,WING PM"
14 77400 HUB CAP
15 85179 RETAINER CLIP PM
16 52160 WASHER
17 800390 SUB= 146247
18 84921 SUB= 142748
19 62335 "WASHER, BELLEVIL."
20 700331X004 SPRING SELECTOR
21 87877 KNOB PM
22 85021X004 AXLE ARM
23 701376 "KIT.HSG.20""MULCH"
25 84920 SUB= 146630
26 700375 SUB= 700325X007
28 135151X419 SUB= 150959
29 107339X DECAL HYT
30 135152X419 SUB= 150959
32 751592 LOCKNUT PM
33 66426 SUB= 7192J
34 55187 SCREW
35 851084 SCREW
36 850263 LOCKWASHER
37 851074 "WASHER,HARDEN"
38 134871 SUB= 145106
39 850977 BLADE ADAPTOR
40 850998 SCREW
42 751649 "ROD,DEFLEC PM"
43 751648 SUB= 140544
44 700279 RETAINER CLIP
45 700583 "CONTROL, THROTTLE"
46 85723 WASHER PM
49 REFER TO IMAGE
701517 MANUAL.OPERATOR
701374 MANUAL.P.WET670MA
