WER500J (1998) Page 1 of 14
DECALS
WER500J (1998) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 162846 DECAL.LOGO
2 162878 DECAL.DESCRIPTION
3 162847 DECAL.LOGO
4 110678X NLA
5 110614X DECAL TI
6 102180X DECAL CRT
7 162384 DECAL.CAUTION
8 271948 DECAL, BRIGGS & STRATTON
9 120076X SUB= 120075X
10 156199 DECAL REVERSE
11 273721 DECAL, 5HP
162905 MANUAL.O.WER500J
162906 MANUAL.O.WER500J.F
WER500J (1998) Page 3 of 14
HANDLE ASSEMBLY
WER500J (1998) Page 4 of 14
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 8389J GRIP TI
2 121248X BUSHING
3 71191008 SCREW.PNHD.10-24
4 126949X550 BRACKET.HDLE.TILL
5 72110514 BOLT CARRIAGE CRT
6 108281X ROD SHIFT CRT
7 72110608 BOLT D
8 CHECK WITH SUPPLIER
9 109229X LOCK CRT
10 73930600 LOCKNUT
11 19131611 WASHER CRT
12 109228X LEVER LOCK CRT
13 150217 HANDLE
14 159232 "CABLE, CLUTCH"
15 145821 BRACKET.CLUTCH.CA
17 102604X GRIP BAR CRT
18 150696 BOLT PIVOT
21 159227 BAR CONTROL
22 150744 "GRIP,HANDLE"
24 73731000 NUT
25 127012X "CONT,THROTTLE"
26 146480 GROMMET.HANDLE.V27 10040500 LOCKWASHER
28 73800500 NUT
WER500J (1998) Page 5 of 14
MAINFRAME, LEFT SIDE
WER500J (1998) Page 6 of 14
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930568 BOLT TI
5 154734 "SCREW-LEVER,SHI"
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 120938X SPACER
15 19111116 WASHER
16 145102 SHEAVE.TRANS.
17 73220500 NUT.HEX.5/16-18
19 12000028 SUB= 2267J
20 110653X GUARD CRT
21 145216 SPACER.SPLIT
22 104214X NUT TI
23 102190X TIRE.CHV.13X5.0-6
23 150750 SUB= 150750X427
23 795R SUB= 65139
24 126875X RIVET.DRILL.1.75
25 CHECK WITH SUPPLIER
26 131159X550 GUARD.BELT.PNT.
27 132672 BELT-V
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 159229 BRACKET ASM IDLER
31 102384X BOLT CRT
32 102141X SHIFT ARM CRT
33 74760616 BOLT
34 102383X COUNTERWEIGHT CRT
35 74760524 BOLT.HEX.5/16-1.5
36 102331X BRACKET LH CRT
37 130816 ENGINE SHEAVE
38 145822 STUD.GUARD.BELT
39 140062 CAP PLUNGER BLACK
41 19111610 WASHER
42 69180 LOCKNUT
WER500J (1998) Page 7 of 14
MAINFRAME, RIGHT SIDE
WER500J (1998) Page 8 of 14
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 CHECK WITH SUPPLIER
8 126875X RIVET.DRILL.1.75
9 102190X TIRE.CHV.13X5.0-6
9 150750 SUB= 150750X427
9 795R SUB= 65139
10 CHECK WITH SUPPLIER
WER500J (1998) Page 9 of 14
TINE ASSEMBLY
WER500J (1998) Page 10 of 14
TINE ASSEMBLY
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 132673 PIN.CLEVIS.SHEAR
3 6554J "TINE.LH.12"""
4 3146R RETAINER.SPRING
5 132727 HUB&PLATE ASM LH
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 4460J SUB= 6555J
10 132728 HUB&PLATE ASM RH
11 6555J "TINE.RH.12"""
WER500J (1998) Page 11 of 14
TINE SHIELD
WER500J (1998) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 161415X550 SHIELD.SIDE.OUTER.LH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72140506 BOLT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 102326X550 SHIELD.TINE.PNT.
10 104085X550 SHIELD.SD.INNER
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 161414X550 SHIELD.SIDE.OUTER.RH
16 73510400 NUT
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X550 SHIELD.LEVELING
28 120588X PIN HINGE
WER500J (1998) Page 13 of 14

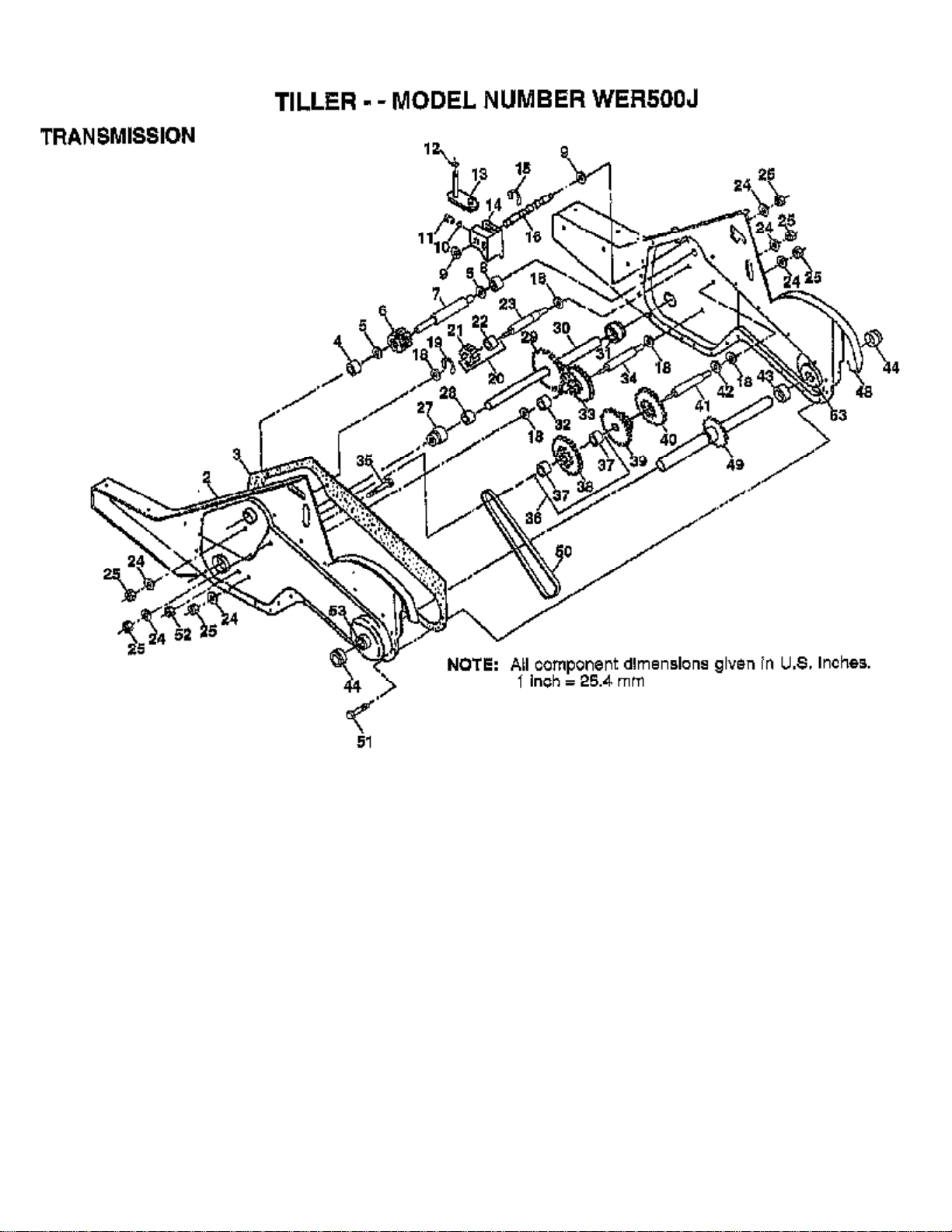

TRANSMISSION
WER500J (1998) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
1 154354 SUB= 165805
2 150698 GEARCASE LH W/BRG
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 137335 GEAR PINION INPUT
7 145101 "SHAFT.INPUT.""D"""
8 4895H "TI, BEARING"
9 154467 WASHER SEAL
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 142145 BRACKET ASM SHIFT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 154466 SHAFT.SHIFTER
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
27 143009 BEARING.SHAFT.LH.
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 150737 GROUND SHAFT ASSY
31 143008 BEARING.SHAFT.RH.
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 154355 SPROCKET.ASM.W/BR
37 4422J BEARING
38 154356 SUB= 154355
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 155236 SEAL ASM-OIL
48 150700 GEARCASE RH W/BRG
49 132688 TINE SHAFT
50 106147X CHAIN.50 LINK TI
51 17720408 SCREW
52 73220500 NUT.HEX.5/16-18
53 122204X SUB= 918122204X
6066J GREASE PREMIUM-1
