WEG14PL42A (1994) Page 1 of 27
14HP 42" TRACTOR-42" MOWER DECK
WEG14PL42A (1994) Page 2 of 27
14HP 42" TRACTOR-42" MOWER DECK
Ref # Part Number Qty Description
1 140081 SUB= 144393
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
4A 132827 BOLT SHD 5/16-18
5 4939M SUB= 85902
6 130832 SUB= 130833
7 73800500 NUT
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 134149 "BLADE.42"" MULCHER"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 73800500 NUT
20 136888 SUB= 918136888
21 73800500 NUT
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 138776 SUB= 157722
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73800600 NUT
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 133940 SUB= 151785
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845 BRAKE PAD ARM ASM
54 133943 HARDENED WASHER
55 140084 SUB= 151785
56 122052X SPACER RETAINER
57 140090 KEEPER BELT LH 42
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
68 140067 BELT-V MWR 82.625
71 142427 ROD CLUTCH 38/42
WEG14PL42A (1994) Page 3 of 27
14HP 42" TRACTOR-42" MOWER DECK
Ref # Part Number Qty Description
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 140179 LEVER ASM CLT PRM
79 127498 BUSHING
80 128759 SUB= 918128759
81 73350600 NUT
82 142028 TRUNION ADJ
83 106933X KNOB T (1/2-HOLE)
130794 MANDREL ASM
140475 SUB= 145411
WEG14PL42A (1994) Page 4 of 27
14HP 42" TRACTOR-CHASSIS/ENCLOSURES
WEG14PL42A (1994) Page 5 of 27
14HP 42" TRACTOR-CHASSIS/ENCLOSURES
Ref # Part Number Qty Description
1 140341 SUB= 145501
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 11050600 LOCKWASHER
6 140169 SUB= 145206X431
8 126471X "CLIP,INSULATOR"
9 140072 SUB= 532142465
10 72140608 SUB= 72110608
11 140815 SUB= 146965
13 140178 SUB= 146959
14 17490608 SCREW LT
16 73510400 NUT
17 139394X550 SUB= 159639X550
20 140281 SUB= 140281X431
23 124028X SUB= 532124028
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 140141 SUB= 157373
29 140273 LENS GRILLE
30 140001X550 FENDER PNT
31 139976 BRACKET SUPT FEND
33 105465X550 SUB= 145244X550
34 105464X550 SUB= 145243X550
35 72110606 BOLT
37 17490512 SCREW
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
41 139978 PLATE EXTEN FEND
43 19171416 WASHER
48 138096 RIVET.PUSH.PLATE
49 17490412 SCREW HEX CRT
50 142779 BRACE SUPT DASH
51 73800400 NUT
52 19091416 WASHER
53 140219 HING PICK-OFF HD
54 17030814 SUB= 91817030814
55 143007 BRACKET GRILLE
56 74760412 BOLT LT
57 74780412 SUB= 74780414
58 140806 DUCT AIR 12-15H
5479J PLUG BUTTON T
134014 PLUG DOME
WEG14PL42A (1994) Page 6 of 27
14HP 42" TRACTOR-DECALS
WEG14PL42A (1994) Page 7 of 27
14HP 42" TRACTOR-DECALS
Ref # Part Number Qty Description
REFER TO IMAGE
1 140820 DECAL DASH INS OP
3 144514 DECAL.HD.RH.B&S
4 138804 DECAL.FEND.QUICKS
5 144521 DECAL ENGINE
6 133795 DECAL CAUTION
7 101892X DECAL T
8 144515 DECAL.HD.LH.B&S
9 131864 "PAD,FOOTREST"
10 143764 DECAL.PANEL.SIDE
11 137259 "DECAL, WARNING"
12 139376 DECAL.MOWER
13 137042 DECAL.WHL.STRG.
14 121549X DECAL
15 136830 DECAL.V.BELT
16 137043 DECAL.FENDER
138311 DECAL HANDLE LIFT
144178 MANUAL.P.WEG14PL140718 MANUAL OPERATORS
LBD48 SNOW BLADE
C42 GRASS CATCHER
LC05 WHEEL WTS.
CH208 TIRE CHAINS
LSB42 SNOW THROWER
MP42 SUB= MP42A
WEG14PL42A (1994) Page 8 of 27
14HP 42" TRACTOR-DRIVE
WEG14PL42A (1994) Page 9 of 27
14HP 42" TRACTOR-DRIVE
Ref # Part Number Qty Description
1 142607 SUB= 145605
2 110422X SUB= 146682
3 123666X PULLEY TRANS
4 12000028 SUB= 2267J
5 121520X STRAP TORQUE
6 17490512 SCREW
8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
11 105701X WASH-SHFT PLT LT
12 19151216 WASHER
13 71040412 SUB= 74550412
14 10040400 LOCKWASHER
15 74780544 BOLT HEX
16 73800500 NUT
17 121520X STRAP TORQUE
18 74780616 BOLT
19 73800600 NUT
20 17490512 SCREW
21 106933X KNOB T (1/2-HOLE)
22 130804 BRAKE ROD
23 73800600 NUT
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 140448 ROD PARK BRAKE
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
31 127275X "KEEPER,BELT LH T"
32 74760512 BOLT
33 73800500 NUT
34 122424X SUB= 149001
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 109070X BELT KEEPER LT
42 19131312 WASHER
43 73800600 NUT
44 105706X "LY, BEARING"
45 110812X WASHER LT
46 12000039 KLIP RING
47 127783 SUB= 139245
48 123789X ARM IDLER
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 19131316 WASHER
53 105710X "LINK, CLUTCH T"
54 76020412 COTTER PIN
55 105709X "SPRING, RETURN LT"
56 76020412 COTTER PIN
57 130801 SUB= 138255
58 127274X "KEEPER,BELT RH T"
59 140312 KEEPER BELT CNTSP
60 19131312 WASHER
WEG14PL42A (1994) Page 10 of 27
14HP 42" TRACTOR-DRIVE
Ref # Part Number Qty Description
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 129921 KEEPER.BELT.ENG.L
67 74760616 BOLT
68 19131312 WASHER
69 73680600 SUB= 73690600
70 134683 KEEPER BELT ENG
71 74760616 BOLT
72 19132012 WASHER
73 73680600 SUB= 73690600
74 109502X SPACER LT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
80 131487 ARM SHIFT TRANS
81 136933 SHAFT ASM.SHIFT
82 123782X "SPRING,TORSION"
83 19171216 WASHER
84 132183 TIE ROD
85 73530400 NUT 1/4-28
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 139964 SUB= 918139964
90 124346X NUT
95 17490612 SCREW
100 19111216 WASHER M
WEG14PL42A (1994) Page 11 of 27
14HP 42" TRACTOR-ELECTRICAL
WEG14PL42A (1994) Page 12 of 27
14HP 42" TRACTOR-ELECTRICAL
Ref # Part Number Qty Description
REFER TO IMAGE
1 121265X SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
5 121264X "CAP,BATTERY "
6 73220400 SUB= 50675
7 109238X TUBE T
8 129965 SUB= 156417
9 109596X HOSE CLAMP T
18 140407 CLIP PUSH - IN
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
23 11150400 LOCKWASHER
24 132202 SUB= 146147
25 4799J "CABLE T, BATTERY"
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 140301 SWITCH IGN 4POS
31 124211X NUT IGNITION
32 141226 COVER KEY SWITCH
33 122147X KEY
35 108236X BRACKET LT
36 17021008 SCREW
37 104445X SWITCH-INTER. GT
38 140336 BRACKET SWITCH IN
39 109553X SWITCH INTERLOCKT
40 140707 HARNESS IGN B&S
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 138406 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
45 140844 ADAPTER AMMETER
46 141940 PROTECTION LOOP
69 140660 ADAPTER.HARN.SERV
70 141164 HARNESS ENGINE
71 140710 HARNESS DASH LT
72 141360 CLIP PUSHIN SPRIN
73 140408 CLIP PUSH IN
WEG14PL42A (1994) Page 13 of 27
14HP 42" TRACTOR-ENGINE
WEG14PL42A (1994) Page 14 of 27
14HP 42" TRACTOR-ENGINE
Ref # Part Number Qty Description
1 140310 CONTROL THROTTLE
2 17720410 SCREW LT
3 CHECK WITH SUPPLIER
6 125593X SUB= 272293
11 10040500 LOCKWASHER
12 71070512 SCREW
13 137352 MUFFLER
14 13280324 PIPE NIPPLE
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490620 SCREW
18 136718 SHIELD HEAT
19 105839X RECEPTACLE LT
20 105838X RETAINER LT
21 19091016 WASHER
22 123650X STUD.1/4.TURN
23 128953X SUB= 128953
24 17021008 SCREW
29 137180 SUB= 532137180
30 127057X SUB= 532127057
31 109202X TANK.FUEL.LT.
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
34 124028X SUB= 532124028
35 17490412 SCREW HEX CRT
36 19091416 WASHER
37 137040 LINE FUEL
38 CHECK WITH SUPPLIER
WEG14PL42A (1994) Page 15 of 27
14HP 42" TRACTOR-LIFT
WEG14PL42A (1994) Page 16 of 27
14HP 42" TRACTOR-LIFT
Ref # Part Number Qty Description
1 136973 WIRE ASM
2 140278 HANDLE.LIFT.LH.
3 138284 PIN GROOVE
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73810600 NUT.LOCK.3/8-24
WEG14PL42A (1994) Page 17 of 27
14HP 42" TRACTOR-SCHEMATIC
WEG14PL42A (1994) Page 18 of 27
14HP 42" TRACTOR-SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
WEG14PL42A (1994) Page 19 of 27
14HP 42" TRACTOR-SEAT
WEG14PL42A (1994) Page 20 of 27
14HP 42" TRACTOR-SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 140407 CLIP PUSH - IN
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 140552 SUB= 155925
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 139888 BOLT.SHLD.5/16-18
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
WEG14PL42A (1994) Page 21 of 27

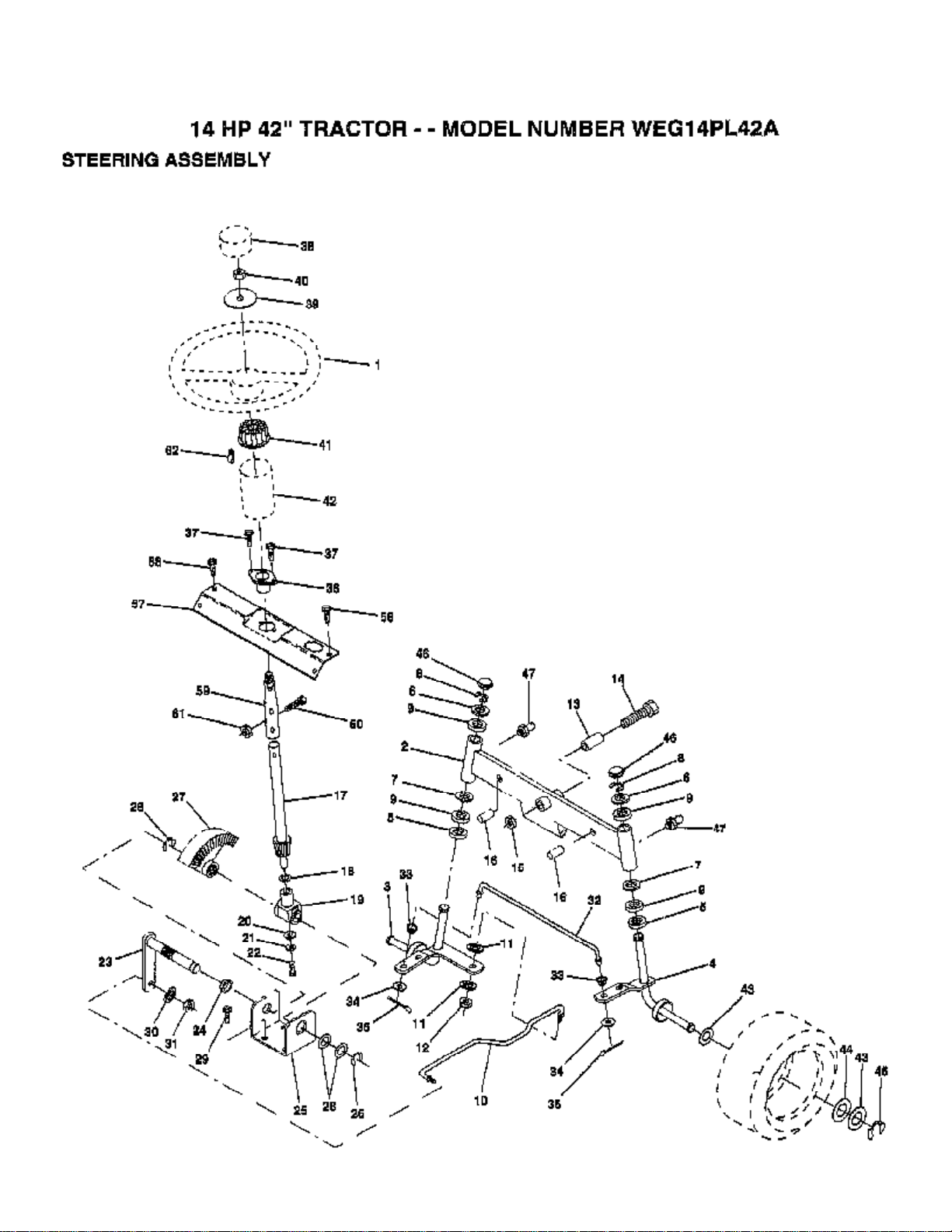

14HP 42" TRACTOR-STEERING
WEG14PL42A (1994) Page 22 of 27
14HP 42" TRACTOR-STEERING
Ref # Part Number Qty Description
1 133741 SUB= 150547
2 142033 AXLE ASM FRONT
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 140176 SHAFT ASM STEERIN
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 136874 GEAR SECTOR
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130465 TIE ROD
33 126847X BUSHING.DRAGLINK
34 19131416 WASHER
35 76020412 COTTER PIN
36 102803X SUB= 918102803X
37 17431008 SUB= 98000165
38 133742 ST WHL INSERT CAP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 104820X ADAPTER-WHEEL LT
42 140216 BOOT SHAFT STEER
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M
57 140172 SUPPORT SHAFT STR
58 17490412 SCREW HEX CRT
59 140171 SHAFT EXT STEER
60 74780520 BOLT
61 73800500 NUT
62 140285 CLIP TINNERMAN
WEG14PL42A (1994) Page 23 of 27
14HP 42" TRACTOR-TRANSAXLE
WEG14PL42A (1994) Page 24 of 27
14HP 42" TRACTOR-TRANSAXLE
Ref # Part Number Qty Description
1 5305D HOUSING, UPPER
2 1919 SCREW
3 5112 BALL, DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4604 KIT, SHIFTER ASSEMBLY
7 5024 BOOT, SHIFTER
8 3907 PUCK, FRICTION
9 5131 SCREW TAPPING WITH SEALER
10 1106 RING, RETAINING
11 4689 ASSY, KIT, SHIM .625 SHAFT
12 5406 GEAR, SPUR, 15T
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1746 KEY, WOODRUFF, #9
15 4171 ASSY KIT INPUT SHAFT
16 3725 PINION BEVEL 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 5402 GEAR, SPUR, 14 TEETH
21 5303 COLLAR, CLUTCH
22 4759 ASSY, KIT, CLUTCH KEYS
23 5415 BEARING, FLANGE
24 5403 SHAFT, INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 5365 GEAR, SPUR, 37 TEETH
30 5407 GEAR, SPUR, 35T
31 3867 GEAR, SPUR, 30 TEETH
32 3783 GEAR, SPUR, 25 TEETH
33 3869 GEAR, SPUR, 22 TEETH
34 5202 GEAR, SPUR, 19 TEETH
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3967 SHAFT, IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3589 GEAR, BEVEL, 42 TEETH
43 4691 ASSY, KIT, SHIM .750 SHAFT
44 3882 SHAFT, DRIVE
45 3724 SCREW TAPPING
46 5364 GEAR SPUR, 12 TEETH
47 3866 GEAR, SPUR, 20 TEETH
48 3719 GEAR, SPUR, 25 TEETH
49 3868 GEAR, SPUR, 28 TEETH
50 3683 GEAR, SPUR, 31 TEETH
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 5130 WASHER, NEOPRENE
53 3184 WASHER, PLAIN .758 X 1.25 X .031
54 3880 AXLE LEFT HAND
55 3871 GEAR MITER 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
WEG14PL42A (1994) Page 25 of 27
14HP 42" TRACTOR-TRANSAXLE
Ref # Part Number Qty Description
59 3726 GEAR, MITER, 15 TEETH
60 3881 AXLE, R.H.
61 5304E HOUSING, LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 5120 SCREW, SELF-TAPPING
68 5285 LEVER ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 3847 LOCKNUT 5/16-24
72 5416 SEAL, OIL
73 4300 GREASE
WEG14PL42A (1994) Page 26 of 27
14HP 42" WHEELS
WEG14PL42A (1994) Page 27 of 27
14HP 42" WHEELS
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X473 "RIM.ASM.6""FRONT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X473 "RIM.ASM.8""REAR"
9 139468 DECAL.PNL.SIDE
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
Loading...
