AYP WEF550H Parts List

WEF550H (1997) Page 1 of 12

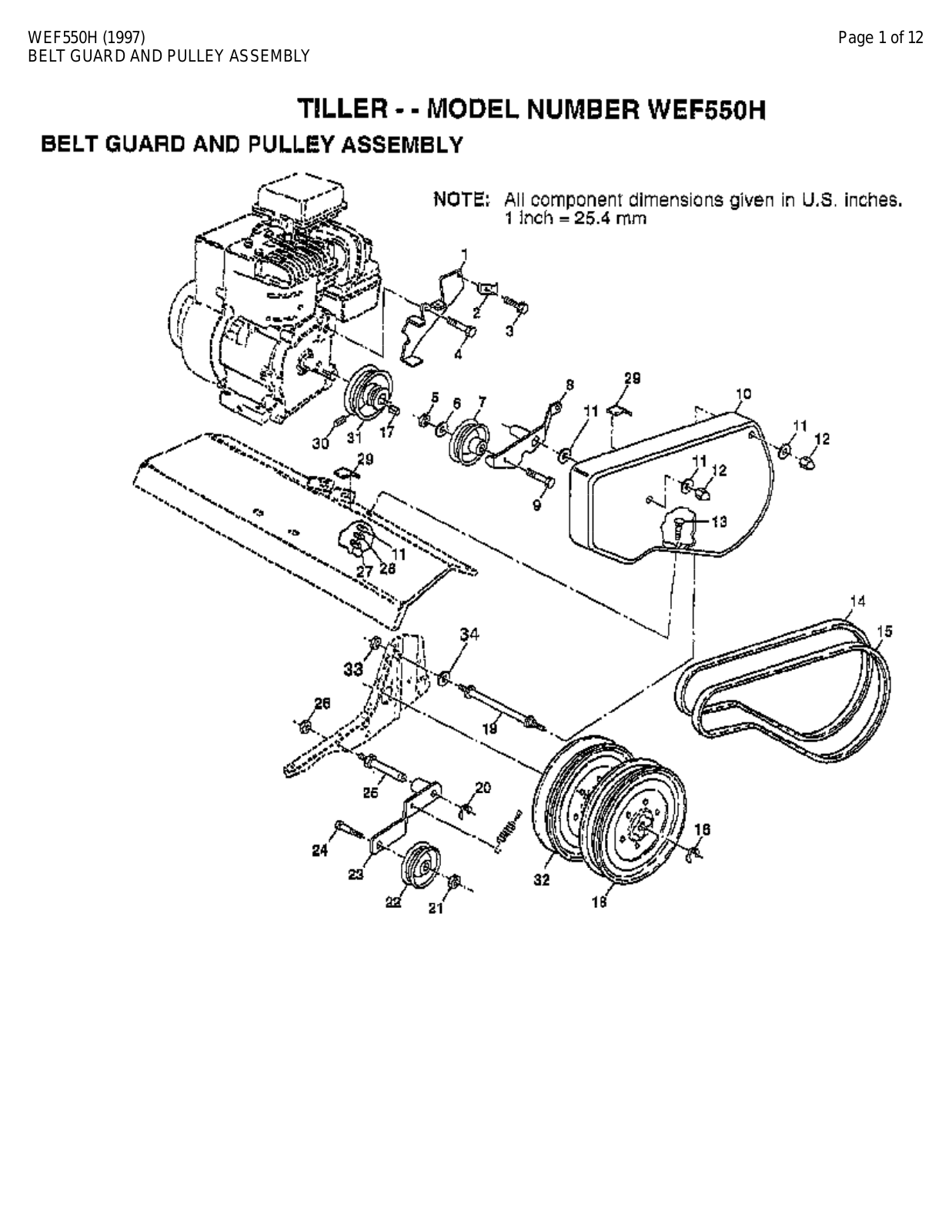

BELT GUARD AND PULLEY ASSEMBLY

WEF550H (1997) Page 2 of 12
BELT GUARD AND PULLEY ASSEMBLY

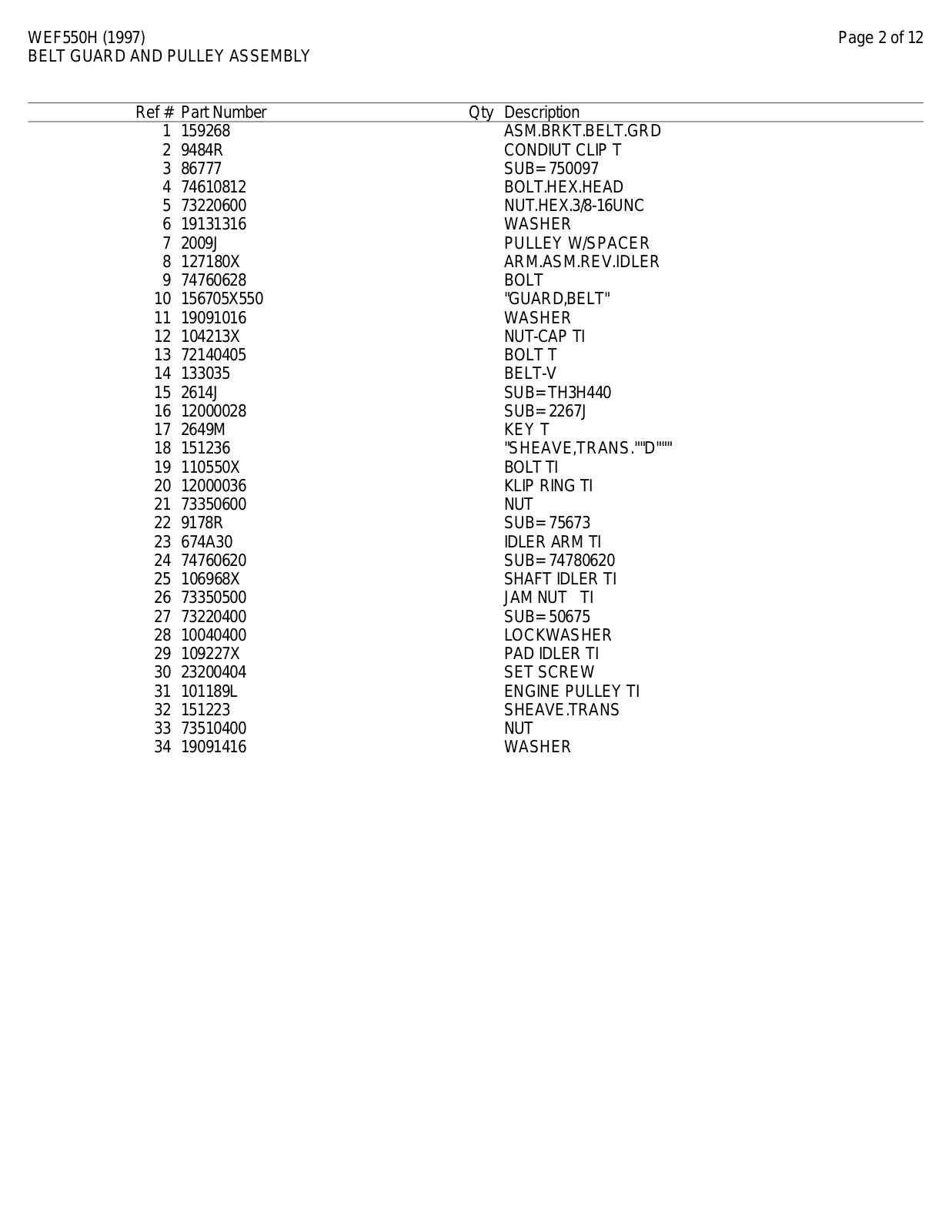

Ref # Part Number Qty Description

1 159268 ASM.BRKT.BELT.GRD
2 9484R CONDIUT CLIP T
3 86777 SUB= 750097
4 74610812 BOLT.HEX.HEAD
5 73220600 NUT.HEX.3/8-16UNC
6 19131316 WASHER
7 2009J PULLEY W/SPACER
8 127180X ARM.ASM.REV.IDLER

9 74760628 BOLT
10 156705X550 "GUARD,BELT"
11 19091016 WASHER
12 104213X NUT-CAP TI
13 72140405 BOLT T
14 133035 BELT-V
15 2614J SUB= TH3H440
16 12000028 SUB= 2267J
17 2649M KEY T
18 151236 "SHEAVE,TRANS.""D"""
19 110550X BOLT TI
20 12000036 KLIP RING TI
21 73350600 NUT
22 9178R SUB= 75673
23 674A30 IDLER ARM TI
24 74760620 SUB= 74780620
25 106968X SHAFT IDLER TI
26 73350500 JAM NUT TI
27 73220400 SUB= 50675
28 10040400 LOCKWASHER
29 109227X PAD IDLER TI
30 23200404 SET SCREW
31 101189L ENGINE PULLEY TI
32 151223 SHEAVE.TRANS
33 73510400 NUT
34 19091416 WASHER

WEF550H (1997) Page 3 of 12

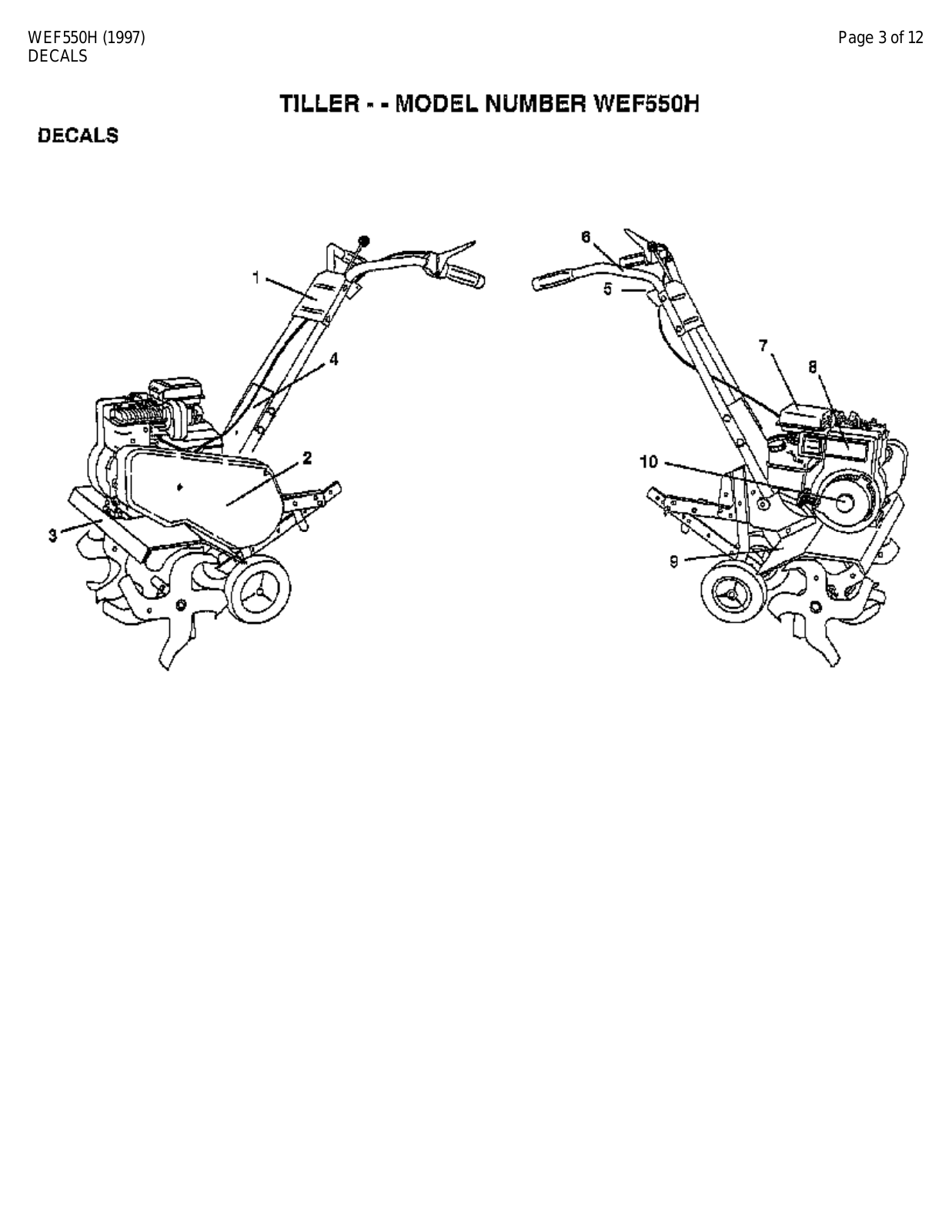

DECALS

WEF550H (1997) Page 4 of 12
DECALS

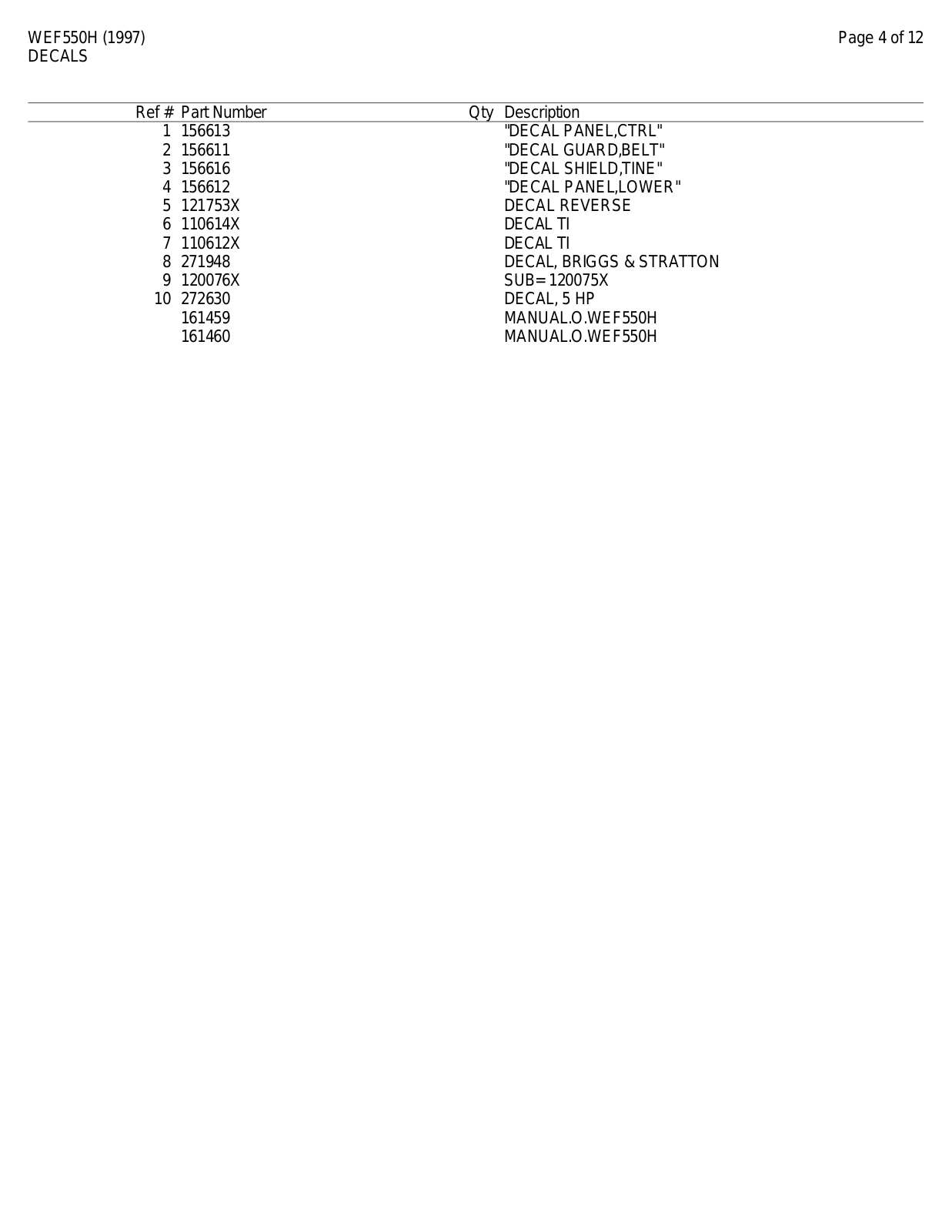

Ref # Part Number Qty Description

1 156613 "DECAL PANEL,CTRL"

2 156611 "DECAL GUARD,BELT"

3 156616 "DECAL SHIELD,TINE"

4 156612 "DECAL PANEL,LOWER"

5 121753X DECAL REVERSE

6 110614X DECAL TI

7 110612X DECAL TI

8 271948 DECAL, BRIGGS & STRATTON

9 120076X SUB= 120075X
10 272630 DECAL, 5 HP

161459 MANUAL.O.WEF550H
161460 MANUAL.O.WEF550H
