Page 1
WEF550F (1996) Page 1 of 12

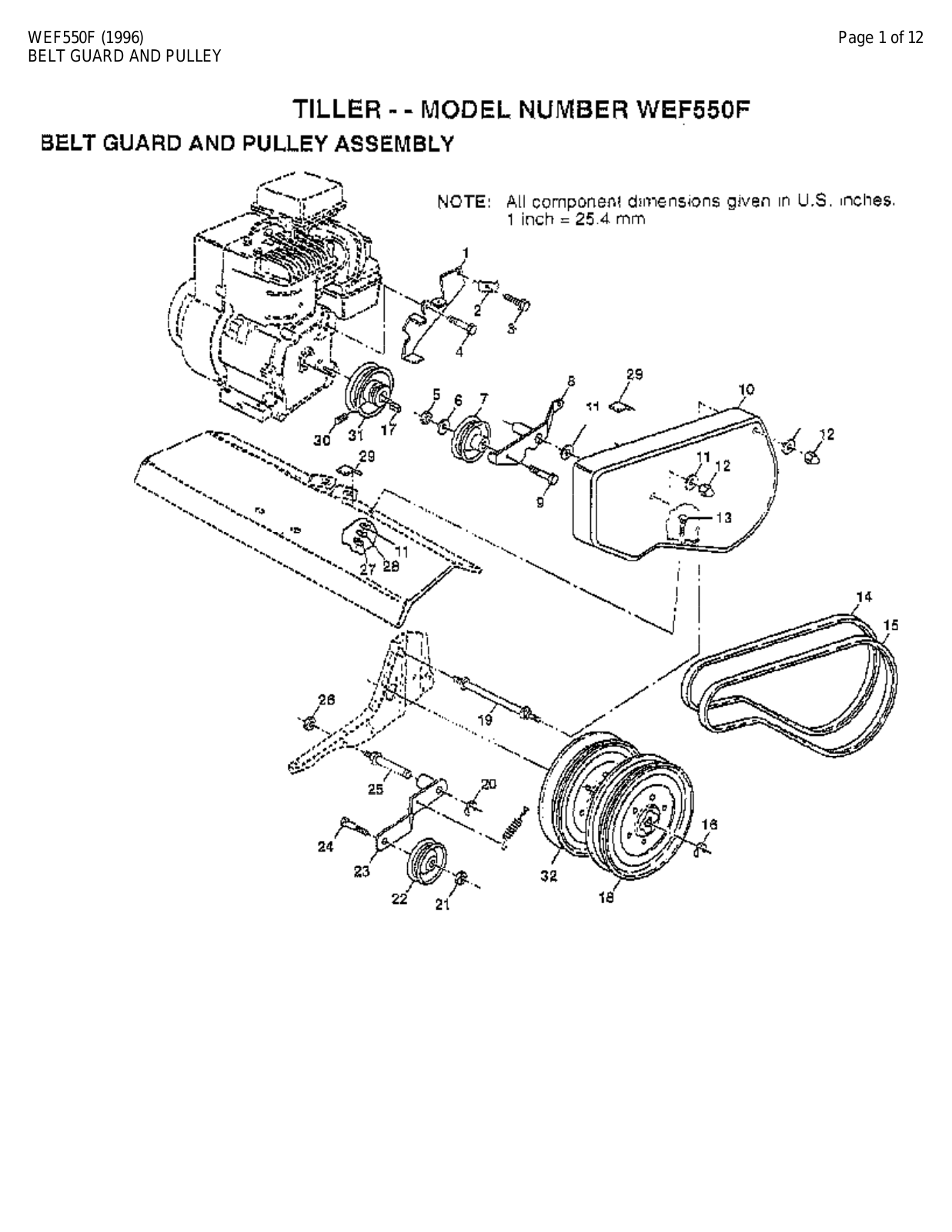

BELT GUARD AND PULLEY
Page 2

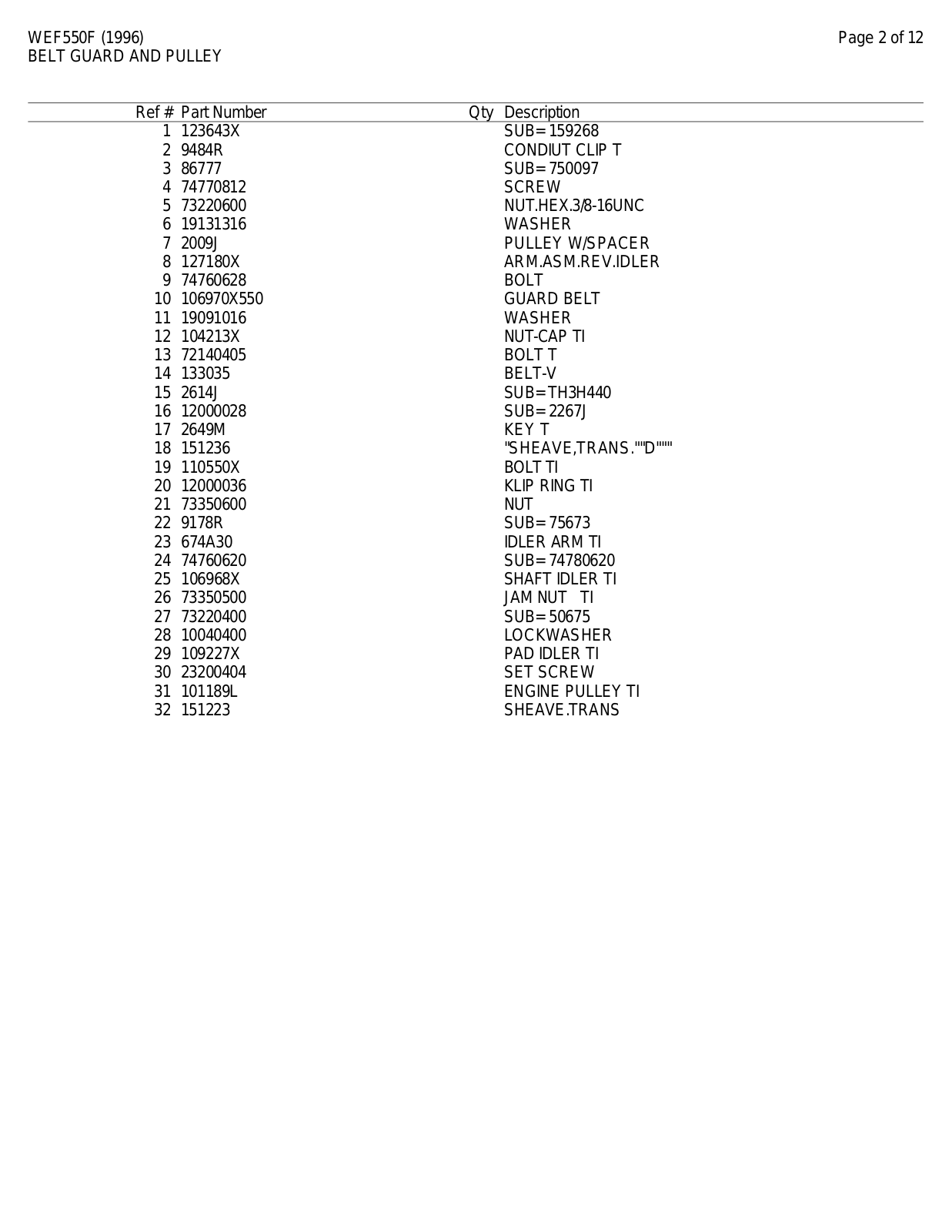

WEF550F (1996) Page 2 of 12
BELT GUARD AND PULLEY
Ref # Part Number Qty Description
1 123643X SUB= 159268
2 9484R CONDIUT CLIP T
3 86777 SUB= 750097
4 74770812 SCREW
5 73220600 NUT.HEX.3/8-16UNC
6 19131316 WASHER
7 2009J PULLEY W/SPACER
8 127180X ARM.ASM.REV.IDLER
9 74760628 BOLT
10 106970X550 GUARD BELT
11 19091016 WASHER
12 104213X NUT-CAP TI
13 72140405 BOLT T
14 133035 BELT-V
15 2614J SUB= TH3H440
16 12000028 SUB= 2267J
17 2649M KEY T
18 151236 "SHEAVE,TRANS.""D"""
19 110550X BOLT TI
20 12000036 KLIP RING TI
21 73350600 NUT
22 9178R SUB= 75673
23 674A30 IDLER ARM TI
24 74760620 SUB= 74780620
25 106968X SHAFT IDLER TI
26 73350500 JAM NUT TI
27 73220400 SUB= 50675
28 10040400 LOCKWASHER
29 109227X PAD IDLER TI
30 23200404 SET SCREW
31 101189L ENGINE PULLEY TI
32 151223 SHEAVE.TRANS
Page 3

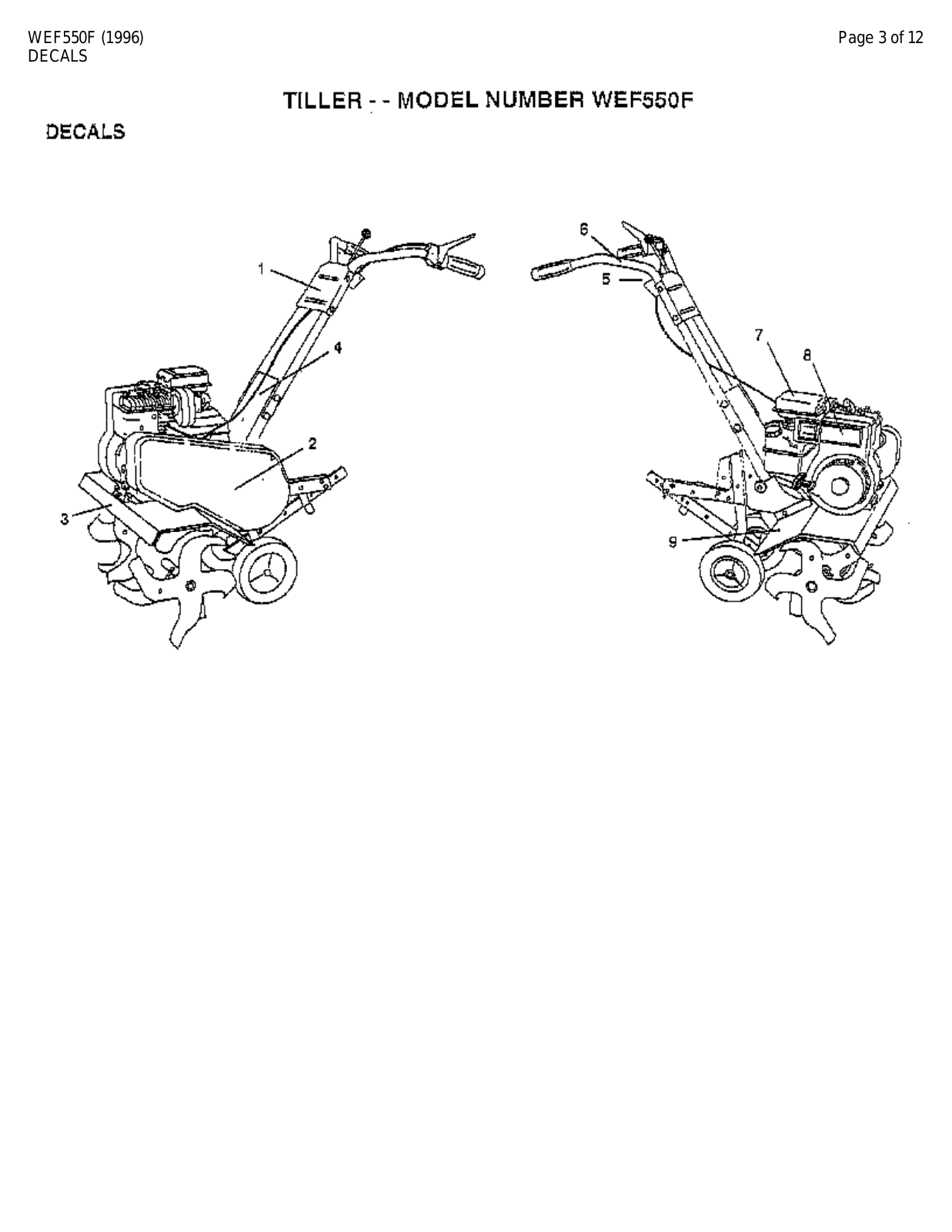

WEF550F (1996) Page 3 of 12
DECALS
Page 4
WEF550F (1996) Page 4 of 12

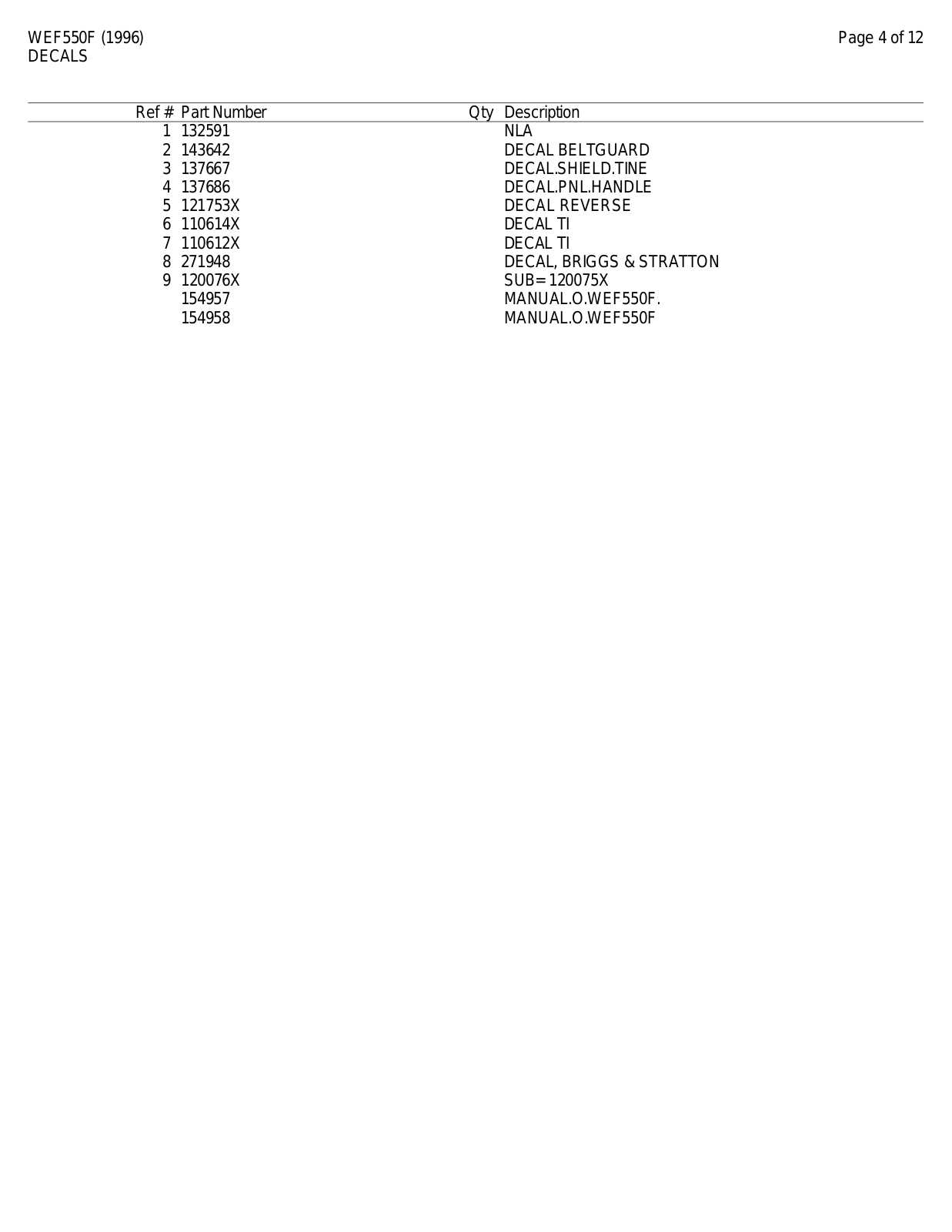

DECALS
Ref # Part Number Qty Description
1 132591 NLA
2 143642 DECAL BELTGUARD
3 137667 DECAL.SHIELD.TINE
4 137686 DECAL.PNL.HANDLE
5 121753X DECAL REVERSE
6 110614X DECAL TI
7 110612X DECAL TI
8 271948 DECAL, BRIGGS & STRATTON
9 120076X SUB= 120075X
154957 MANUAL.O.WEF550F.
154958 MANUAL.O.WEF550F
Page 5
WEF550F (1996) Page 5 of 12

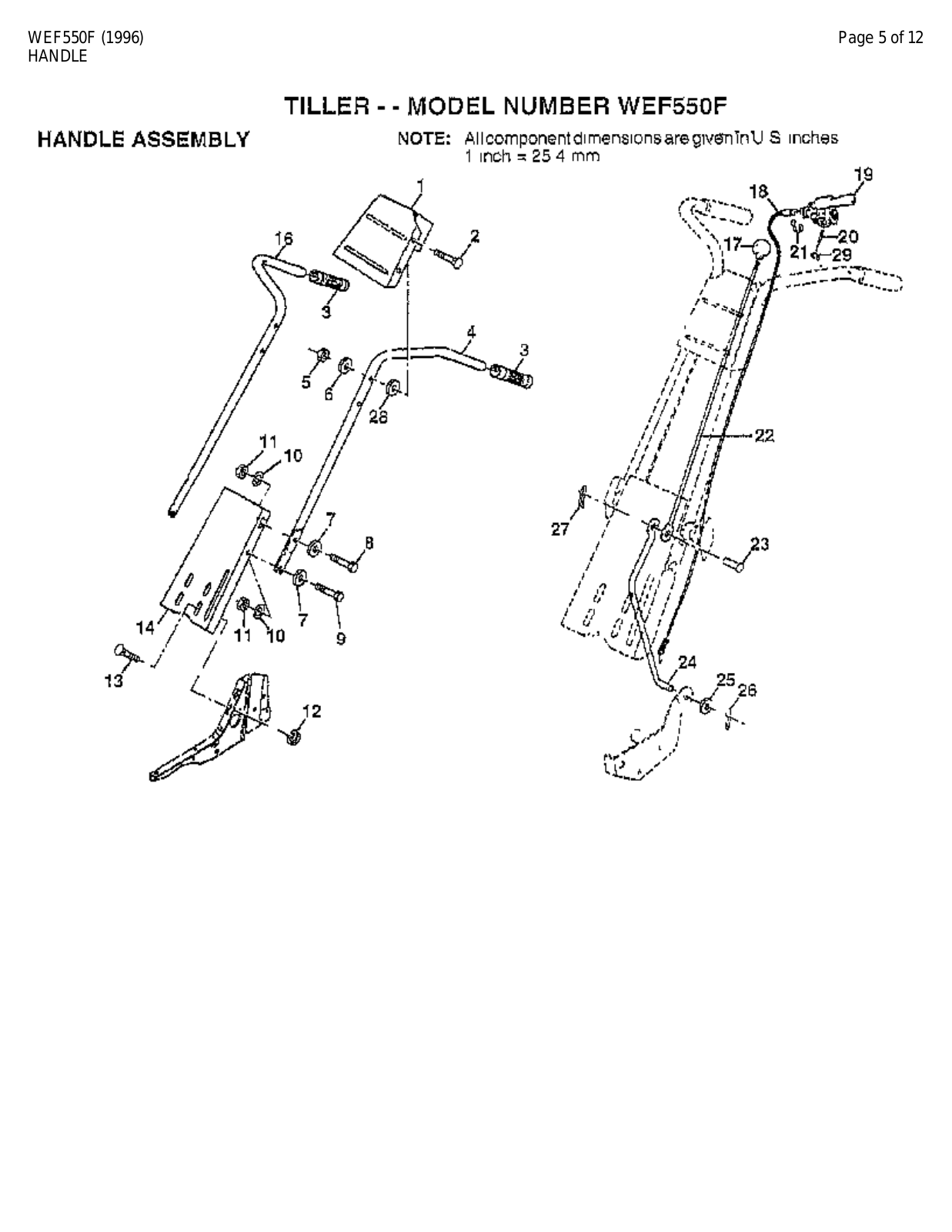

HANDLE
Page 6

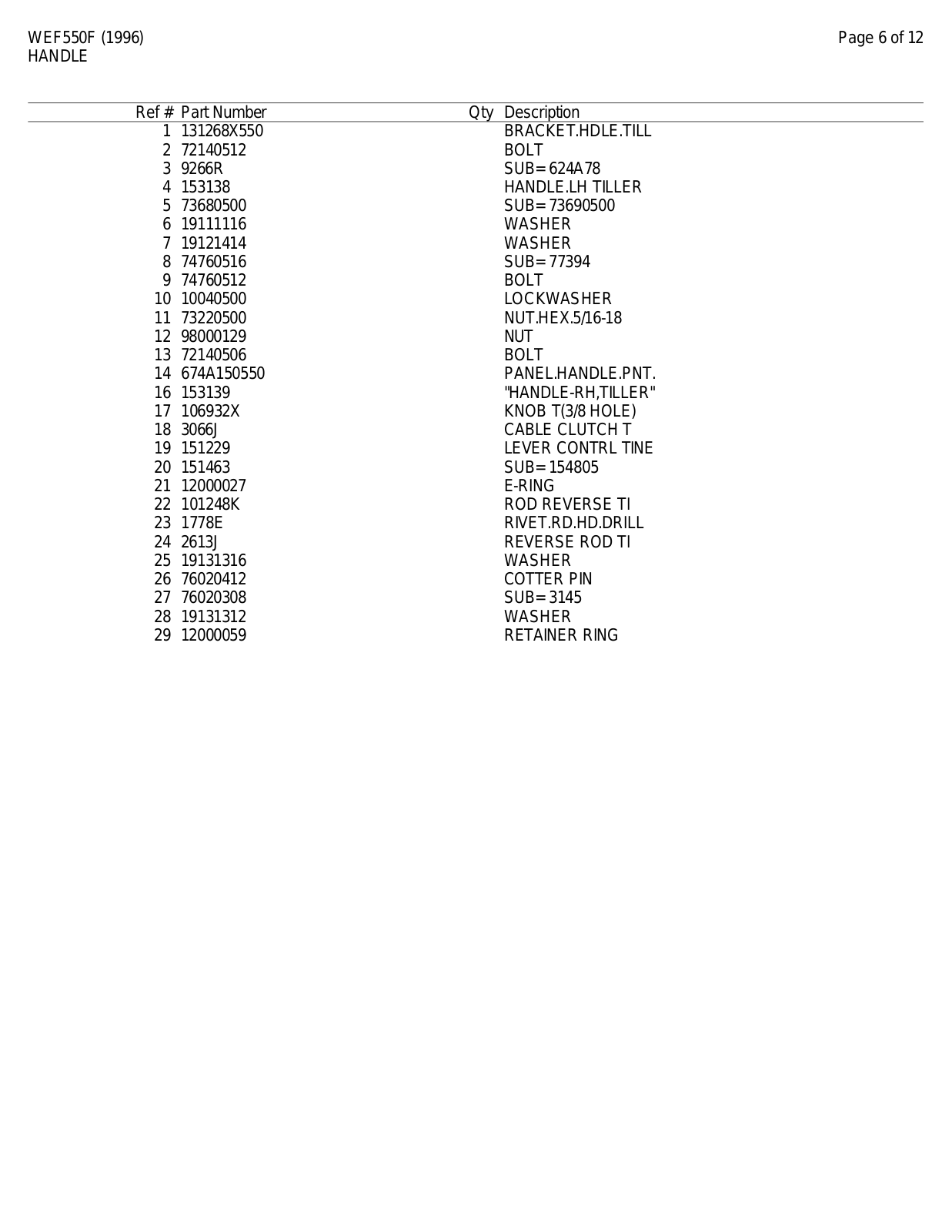

WEF550F (1996) Page 6 of 12
HANDLE
Ref # Part Number Qty Description
1 131268X550 BRACKET.HDLE.TILL
2 72140512 BOLT
3 9266R SUB= 624A78
4 153138 HANDLE.LH TILLER
5 73680500 SUB= 73690500
6 19111116 WASHER
7 19121414 WASHER
8 74760516 SUB= 77394
9 74760512 BOLT
10 10040500 LOCKWASHER
11 73220500 NUT.HEX.5/16-18
12 98000129 NUT
13 72140506 BOLT
14 674A150550 PANEL.HANDLE.PNT.
16 153139 "HANDLE-RH,TILLER"
17 106932X KNOB T(3/8 HOLE)
18 3066J CABLE CLUTCH T
19 151229 LEVER CONTRL TINE
20 151463 SUB= 154805
21 12000027 E-RING
22 101248K ROD REVERSE TI
23 1778E RIVET.RD.HD.DRILL
24 2613J REVERSE ROD TI
25 19131316 WASHER
26 76020412 COTTER PIN
27 76020308 SUB= 3145
28 19131312 WASHER
29 12000059 RETAINER RING
Page 7

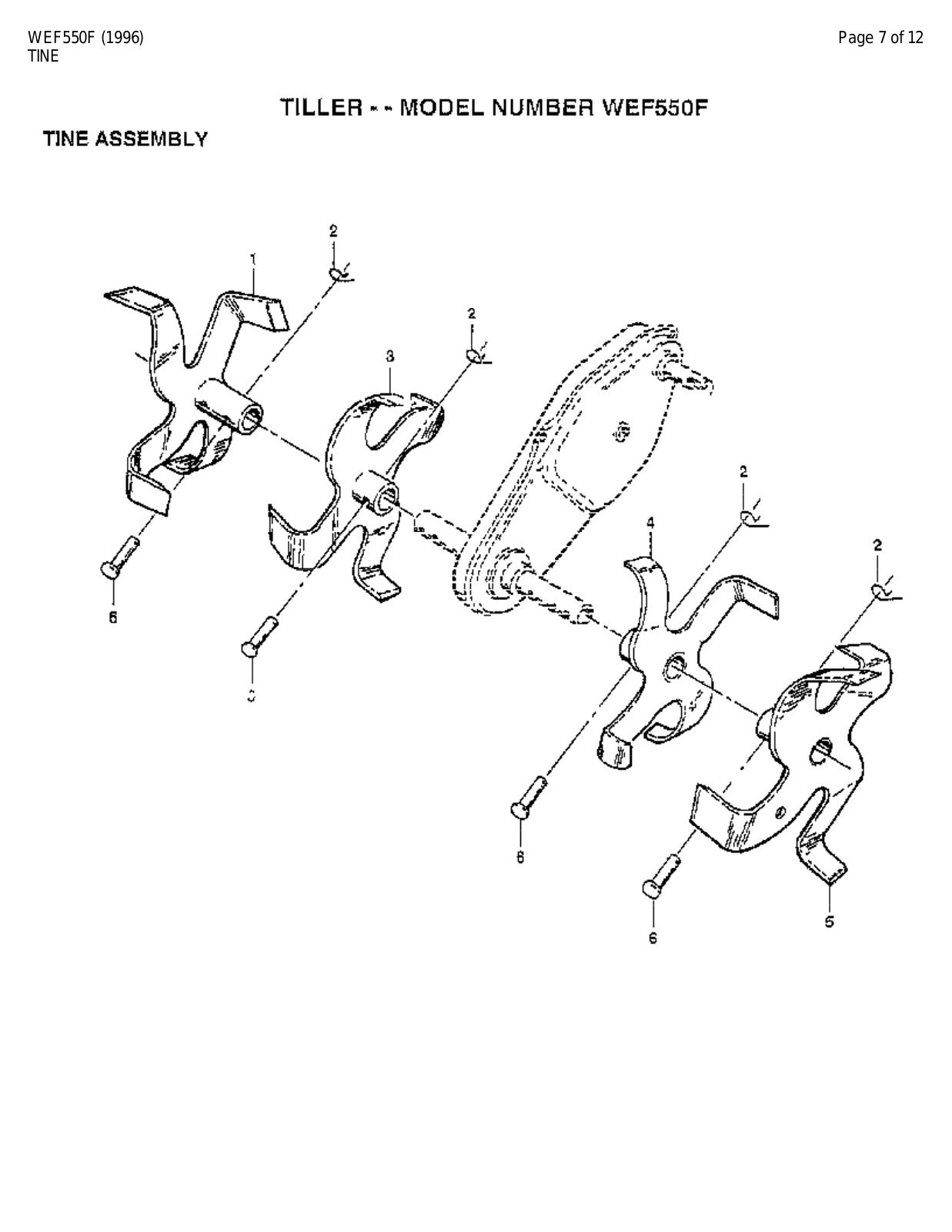

WEF550F (1996) Page 7 of 12
TINE
Page 8
WEF550F (1996) Page 8 of 12

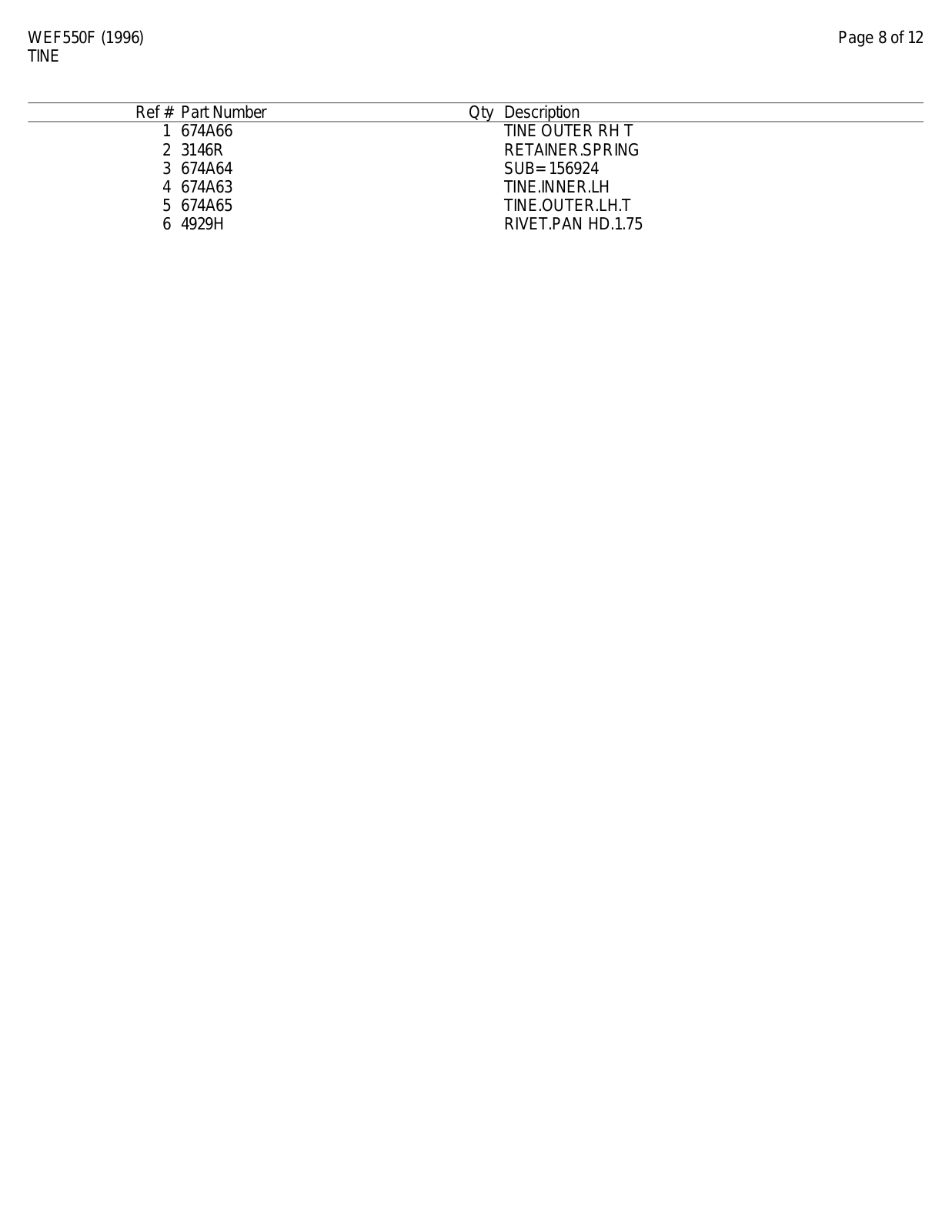

TINE
Ref # Part Number Qty Description
1 674A66 TINE OUTER RH T
2 3146R RETAINER.SPRING
3 674A64 SUB= 156924
4 674A63 TINE.INNER.LH
5 674A65 TINE.OUTER.LH.T
6 4929H RIVET.PAN HD.1.75
Page 9
WEF550F (1996) Page 9 of 12

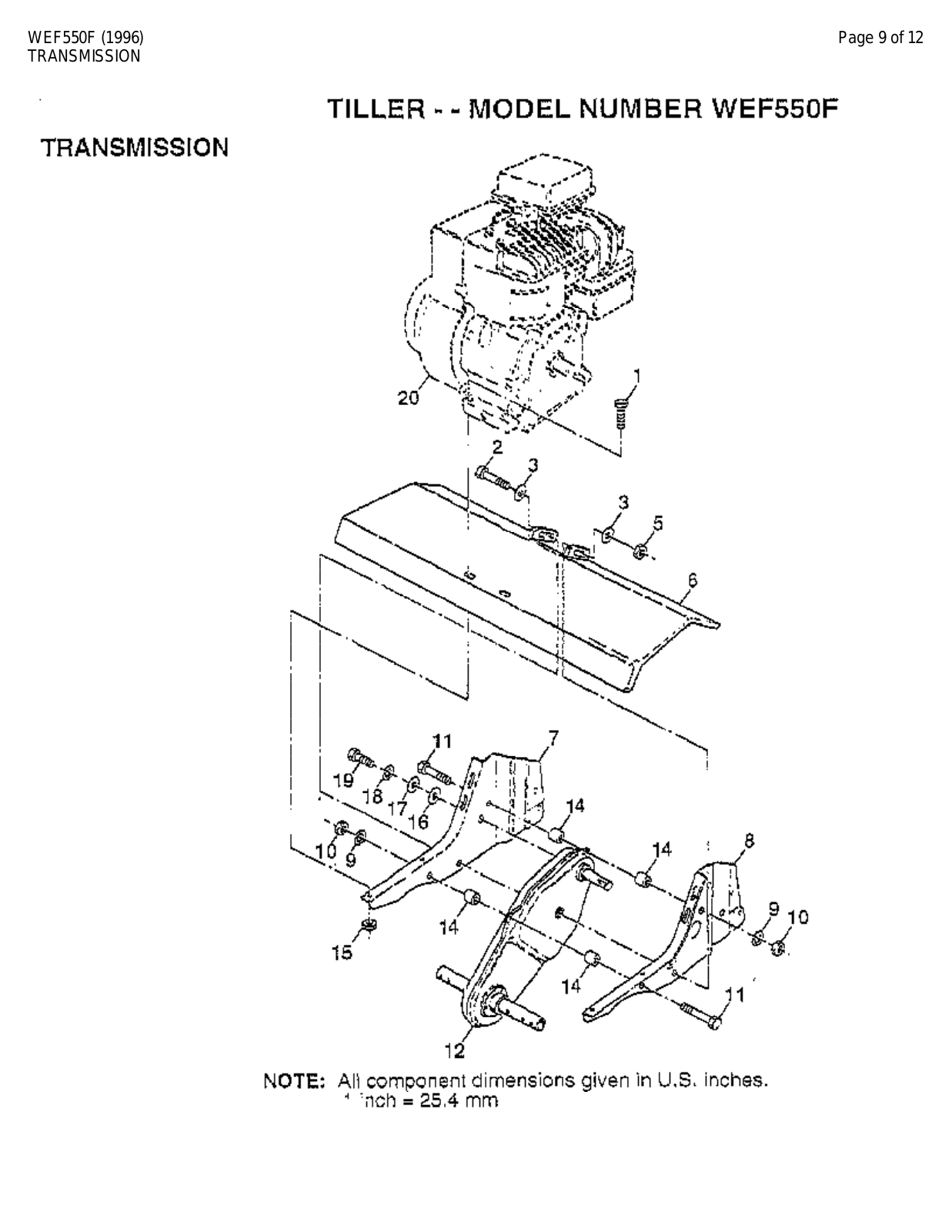

TRANSMISSION
Page 10
WEF550F (1996) Page 10 of 12

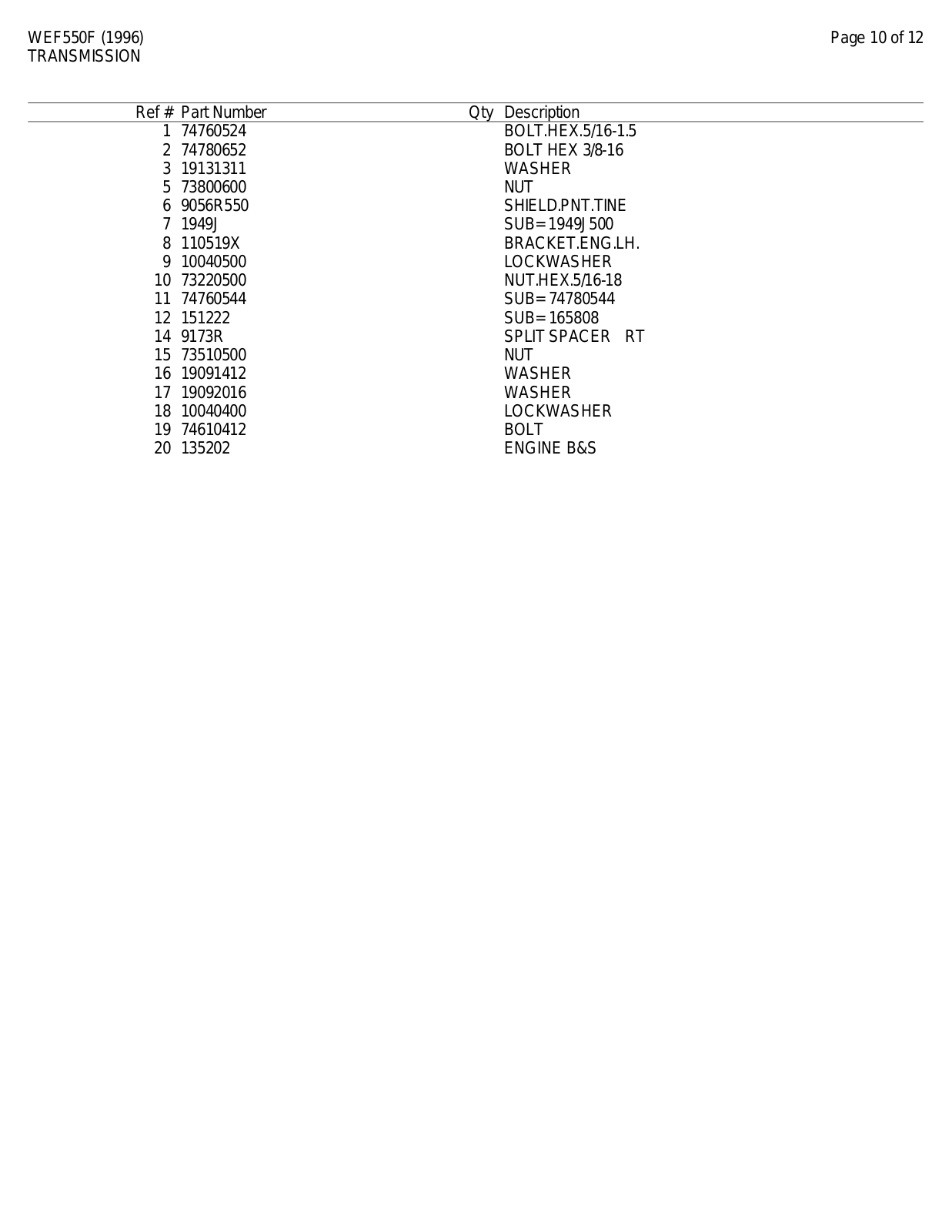

TRANSMISSION
Ref # Part Number Qty Description
1 74760524 BOLT.HEX.5/16-1.5
2 74780652 BOLT HEX 3/8-16
3 19131311 WASHER
5 73800600 NUT
6 9056R550 SHIELD.PNT.TINE
7 1949J SUB= 1949J500
8 110519X BRACKET.ENG.LH.
9 10040500 LOCKWASHER
10 73220500 NUT.HEX.5/16-18
11 74760544 SUB= 74780544
12 151222 SUB= 165808
14 9173R SPLIT SPACER RT
15 73510500 NUT
16 19091412 WASHER
17 19092016 WASHER
18 10040400 LOCKWASHER
19 74610412 BOLT
20 135202 ENGINE B&S
Page 11
WEF550F (1996) Page 11 of 12

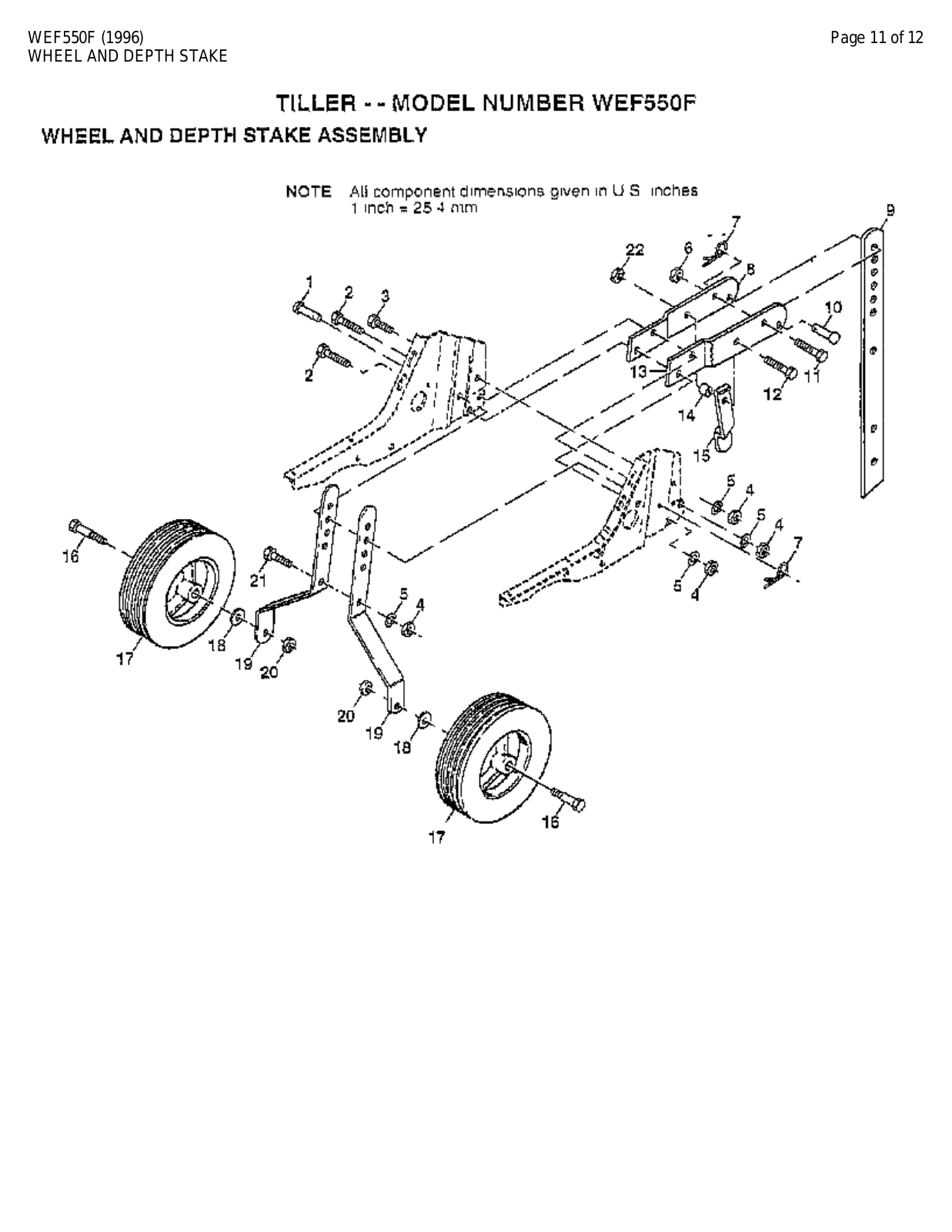

WHEEL AND DEPTH STAKE
Page 12
WEF550F (1996) Page 12 of 12

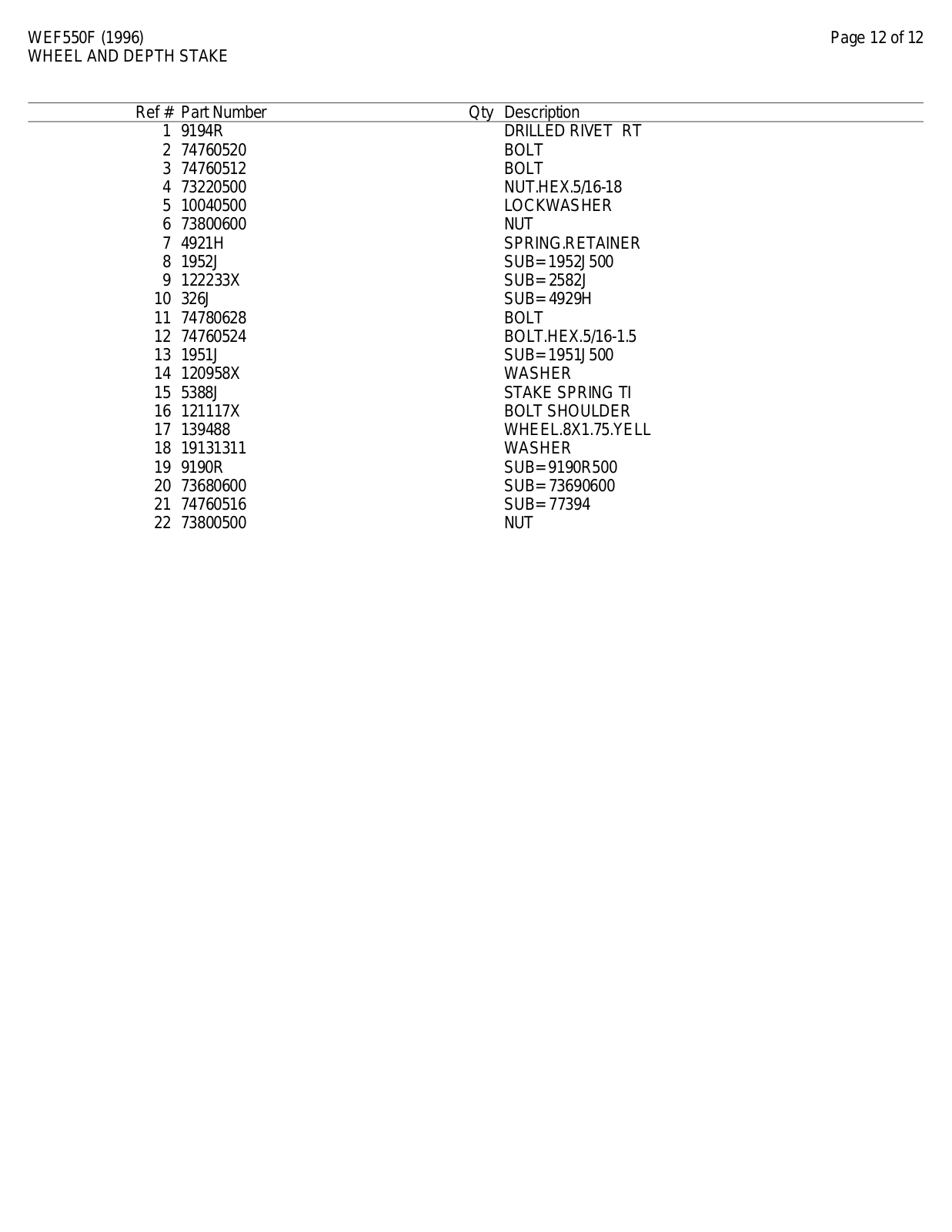

WHEEL AND DEPTH STAKE
Ref # Part Number Qty Description
1 9194R DRILLED RIVET RT
2 74760520 BOLT
3 74760512 BOLT
4 73220500 NUT.HEX.5/16-18
5 10040500 LOCKWASHER
6 73800600 NUT
7 4921H SPRING.RETAINER
8 1952J SUB= 1952J500
9 122233X SUB= 2582J
10 326J SUB= 4929H
11 74780628 BOLT
12 74760524 BOLT.HEX.5/16-1.5
13 1951J SUB= 1951J500
14 120958X WASHER
15 5388J STAKE SPRING TI
16 121117X BOLT SHOULDER
17 139488 WHEEL.8X1.75.YELL
18 19131311 WASHER
19 9190R SUB= 9190R500
20 73680600 SUB= 73690600
21 74760516 SUB= 77394
22 73800500 NUT
