AYP WEF550D Parts List

WEF550D (1995) Page 1 of 12

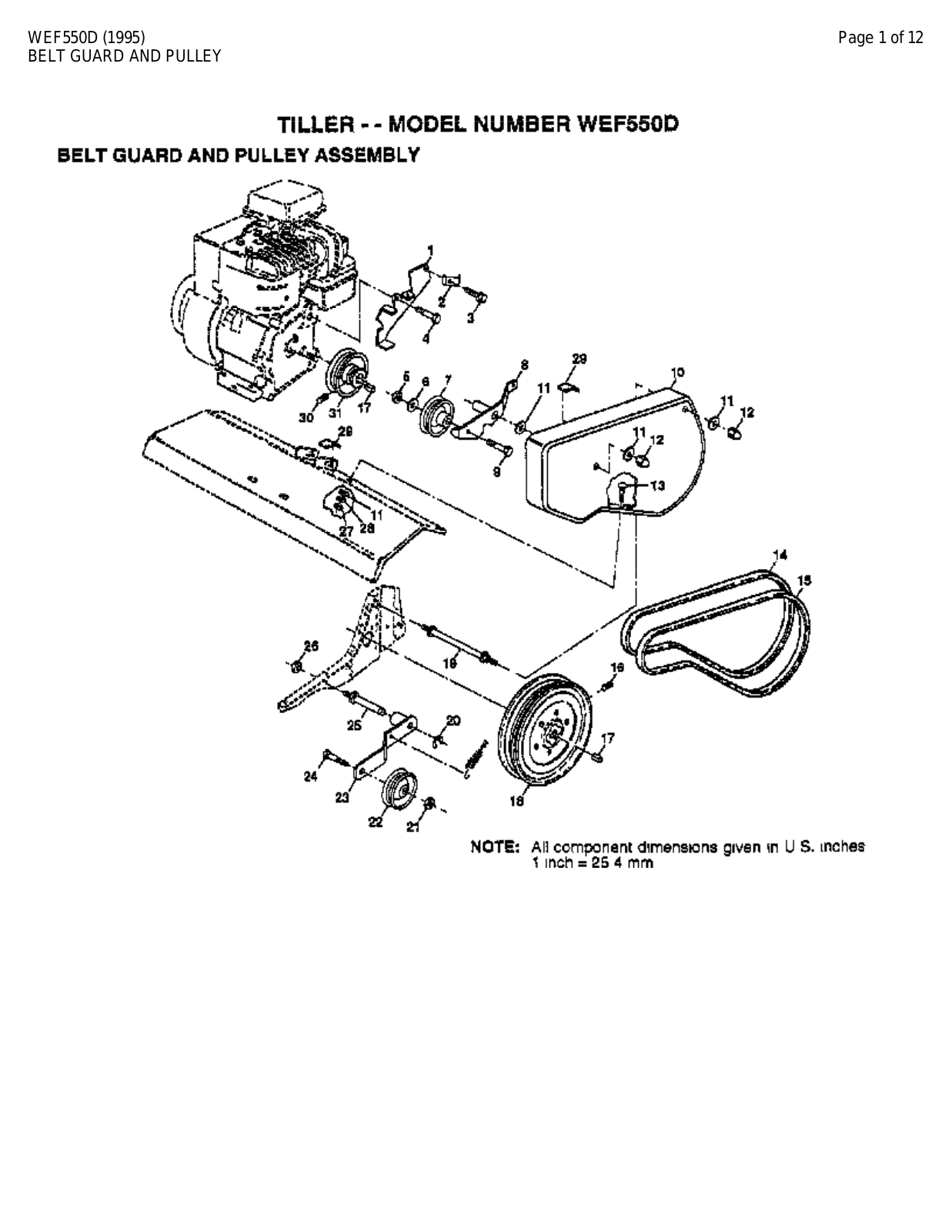

BELT GUARD AND PULLEY

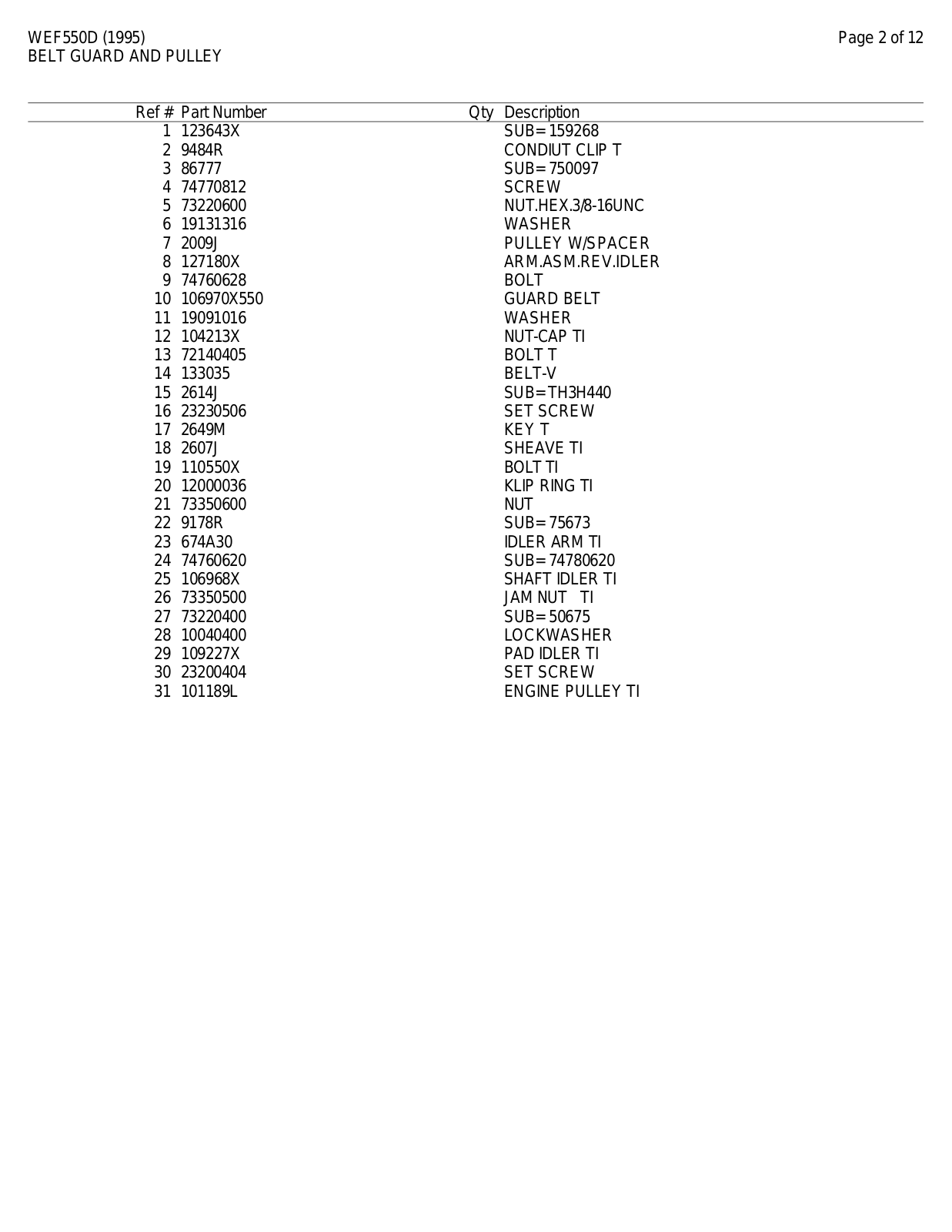

WEF550D (1995) Page 2 of 12
BELT GUARD AND PULLEY

Ref # Part Number Qty Description

1 123643X SUB= 159268
2 9484R CONDIUT CLIP T
3 86777 SUB= 750097
4 74770812 SCREW
5 73220600 NUT.HEX.3/8-16UNC
6 19131316 WASHER
7 2009J PULLEY W/SPACER
8 127180X ARM.ASM.REV.IDLER

9 74760628 BOLT
10 106970X550 GUARD BELT
11 19091016 WASHER
12 104213X NUT-CAP TI
13 72140405 BOLT T
14 133035 BELT-V
15 2614J SUB= TH3H440
16 23230506 SET SCREW
17 2649M KEY T
18 2607J SHEAVE TI
19 110550X BOLT TI
20 12000036 KLIP RING TI
21 73350600 NUT
22 9178R SUB= 75673
23 674A30 IDLER ARM TI
24 74760620 SUB= 74780620
25 106968X SHAFT IDLER TI
26 73350500 JAM NUT TI
27 73220400 SUB= 50675
28 10040400 LOCKWASHER
29 109227X PAD IDLER TI
30 23200404 SET SCREW
31 101189L ENGINE PULLEY TI

WEF550D (1995) Page 3 of 12

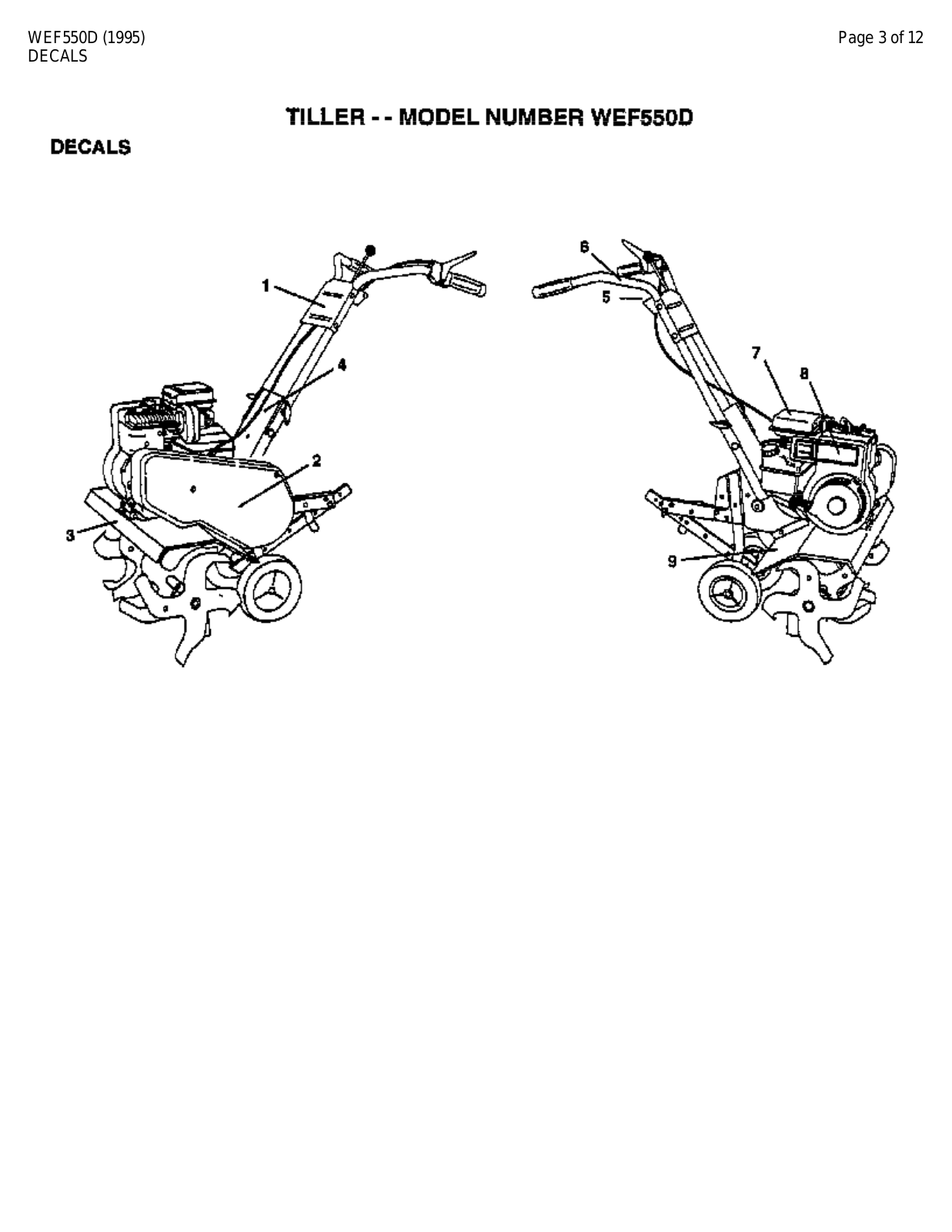

DECALS

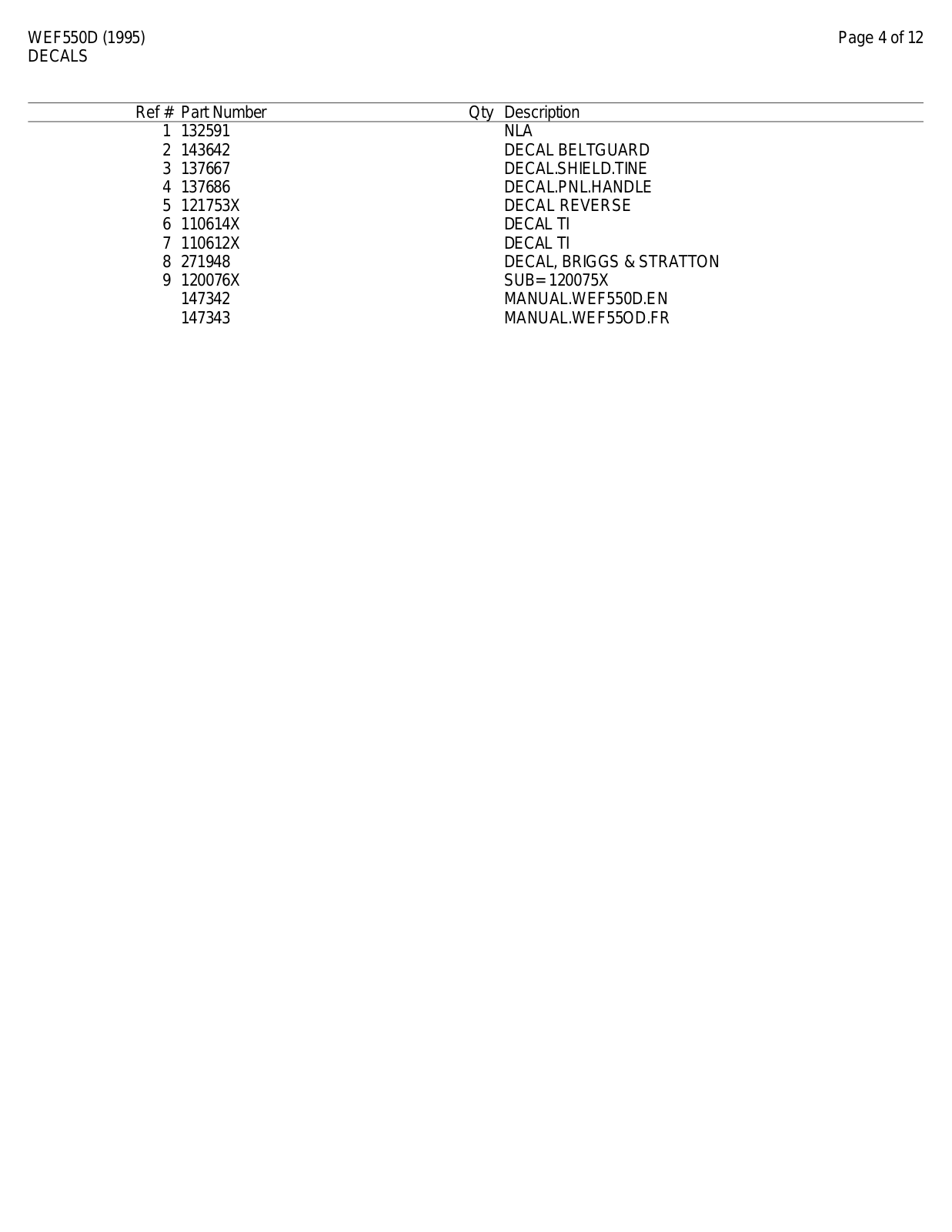

WEF550D (1995) Page 4 of 12
DECALS

Ref # Part Number Qty Description

1 132591 NLA

2 143642 DECAL BELTGUARD

3 137667 DECAL.SHIELD.TINE

4 137686 DECAL.PNL.HANDLE

5 121753X DECAL REVERSE

6 110614X DECAL TI

7 110612X DECAL TI

8 271948 DECAL, BRIGGS & STRATTON

9 120076X SUB= 120075X

147342 MANUAL.WEF550D.EN
147343 MANUAL.WEF55OD.FR
