AYP WEF550A Parts List

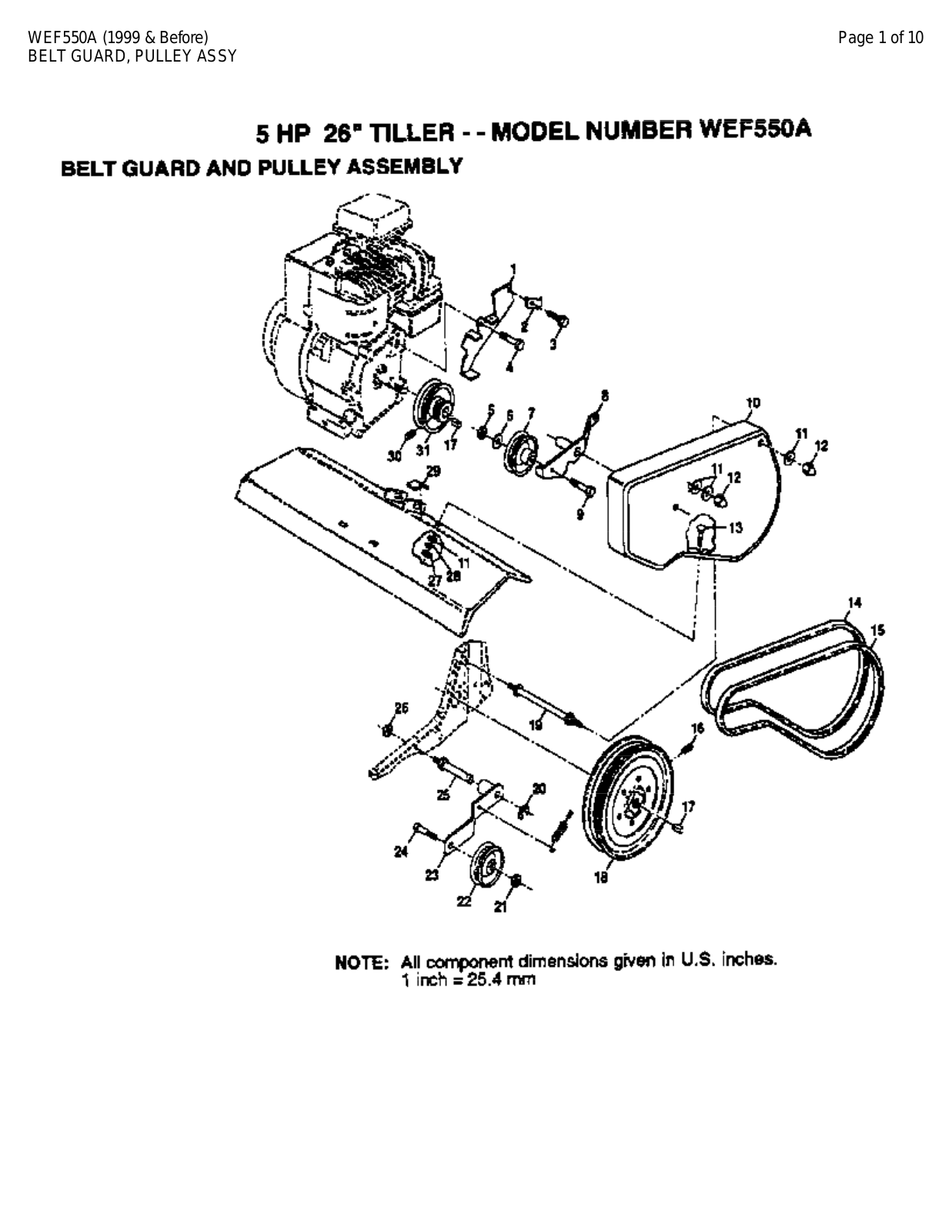

WEF550A (1999 & Before) Page 1 of 10
BELT GUARD, PULLEY ASSY

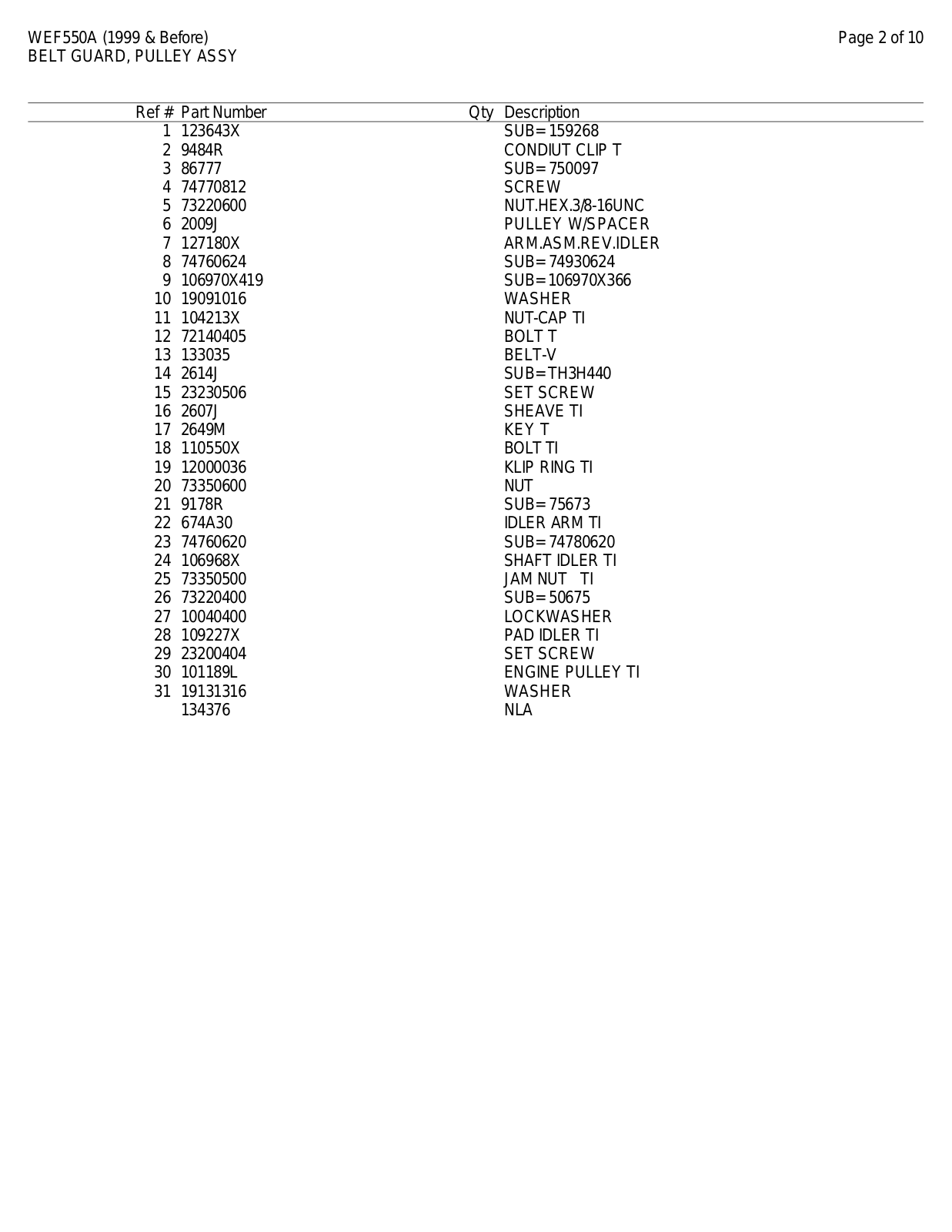

WEF550A (1999 & Before) Page 2 of 10
BELT GUARD, PULLEY ASSY

Ref # Part Number Qty Description

1 123643X SUB= 159268
2 9484R CONDIUT CLIP T
3 86777 SUB= 750097
4 74770812 SCREW
5 73220600 NUT.HEX.3/8-16UNC
6 2009J PULLEY W/SPACER
7 127180X ARM.ASM.REV.IDLER
8 74760624 SUB= 74930624

9 106970X419 SUB= 106970X366
10 19091016 WASHER
11 104213X NUT-CAP TI
12 72140405 BOLT T
13 133035 BELT-V
14 2614J SUB= TH3H440
15 23230506 SET SCREW
16 2607J SHEAVE TI
17 2649M KEY T
18 110550X BOLT TI
19 12000036 KLIP RING TI
20 73350600 NUT
21 9178R SUB= 75673
22 674A30 IDLER ARM TI
23 74760620 SUB= 74780620
24 106968X SHAFT IDLER TI
25 73350500 JAM NUT TI
26 73220400 SUB= 50675
27 10040400 LOCKWASHER
28 109227X PAD IDLER TI
29 23200404 SET SCREW
30 101189L ENGINE PULLEY TI
31 19131316 WASHER

134376 NLA

WEF550A (1999 & Before) Page 3 of 10

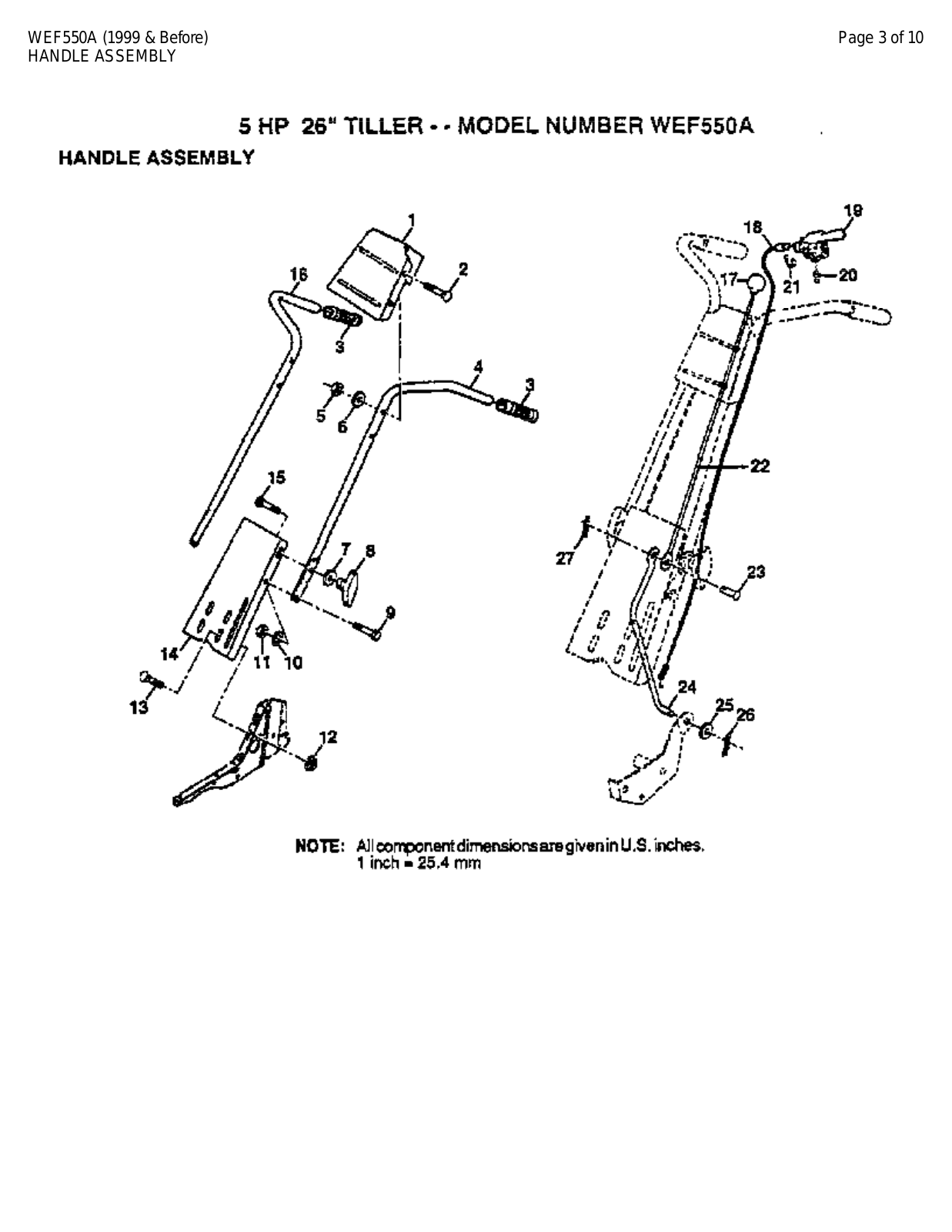

HANDLE ASSEMBLY
