REPAIR PARTS

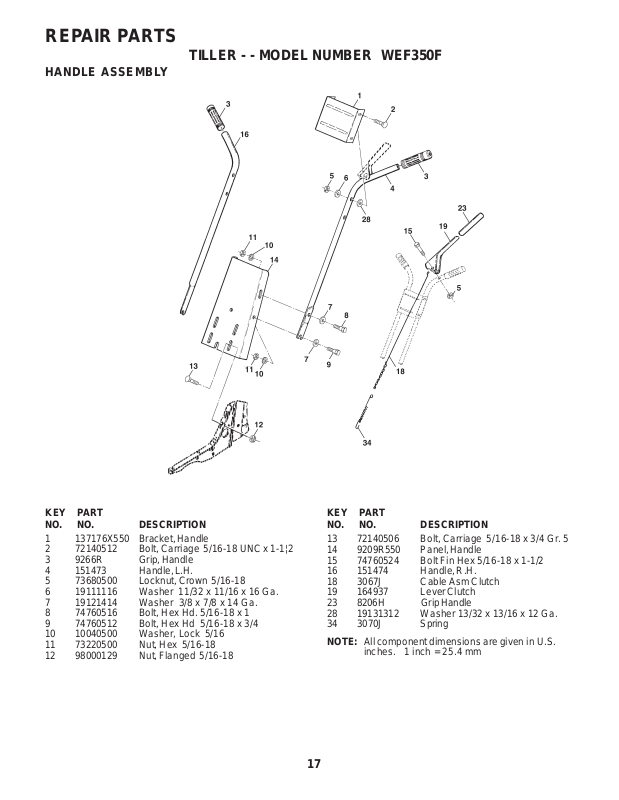

HANDLE ASSEMBLY
TILLER - - MODEL NUMBER WEF350F
KEY P ART
NO . NO . DESCRIPTION
1 137176X550 Bracket, Handle
2 72140512 Bolt, Carriage 5/16-18 UNC x 1-1¦2
3 9266R Grip, Handle
4 151473 Handle, L.H.
5 73680500 Locknut, Crown 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 74760516 Bolt, Hex Hd. 5/16-18 x 1
9 74760512 Bolt, Hex Hd 5/16-18 x 3/4
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Flanged 5/16-18
KEY P ART
NO . NO . DESCRIPTION
13 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
14 9209R550 Panel, Handle
15 74760524 Bolt Fin Hex 5/16-18 x 1-1/2
16 151474 Handle, R.H.
18 3067J Cable Asm Clutch
19 164937 Lever Clutch
23 8206H Grip Handle
28 19131312 Washer 13/32 x 13/16 x 12 Ga.
34 3070J Spring
NOTE: All component dimensions are given in U.S.
inches. 1 inch = 25.4 mm
17
REPAIR PARTS
TILLER - - MODEL NUMBER WEF350F
BELT GUARD AND PULLEY ASSEMBLY
KEY P AR T
NO . N O . DESCRIPTION
1 23230506 Screw, Set 5/16-18 x 3/8
2 130812 Sheave, Engine
4 74610812 Bolt, Hex 1/2-20 x 3/4
5 17490440 Bolt Thd Roller 1/4-20 X 2-1/2
6 165770 Shield Inner Guard Belt
7 165503 Screw Hex Wsh Hd #8-18 x 1/2
8 139155 Spacer Split .523 x .718 x 2
9 165768X550 Guard, Belt
10 109227X Pad, Idler
12 9180R V- Belt Drive
13 12000028 Ring, Retainer
14 151223 Sheave, Transmission
KEY PART
NO. NO. DESCRIPTION
15 165504 Nut J Clip #8
16 12000036 Ring, Klip
17 73350600 Nut, Hex, Jam 3/8-16
18 161806 Pulley, Idler
19 162290 Arm, Idler
20 74760620 Bolt, Hex 3/8-16 x 1-1/4
21 106968X Shaft, Idler Arm
25 73350500 Nut, Hex, Jam 5/16-18
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
18
REPAIR PARTS
TILLER - - MODEL NUMBER WEF350F
WHEEL AND DEPTH STAKE ASSEMBLY
KEY P ART
NO . N O. DESCRIPTION
1 9194R Pin, Clevis
2 74760520 Bolt, Hex 5/16-18 x 1-1/4
3 74760512 Bolt, Hex 5/16-18 x 3/4
4 73220500 Nut, Hex 5/16-18
5 10040500 Washer, Lock 5/16
7 4921H Clip, Hairpin
8 318J Support, Depth Stake, R.H.
9 9193R Stake, Depth
10 9551R Pin, Clevis
12 74760512 Bolt, Hex 5/16-18 x 3/4
13 317J Support, Depth Stake, L.H.
KEY P ART
NO . N O . DESCRIPTION
15 5388J Spring, Stake
16 121117X Bolt, Shoulder
17 9186R Wheel
18 19131311 Washer 13/32 x 13/16 x 11 Ga.
19 9190R Bracket, Wheel
20 73680600 Locknut, Crown 3/8-16
21 74760516 Bolt, Hex 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-18
23 74780524 Bolt, Fin Hex 5/16-18 UNC x 1-1/2
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
19
REPAIR PARTS
TINE ASSEMBLY
TILLER - - MODEL NUMBER WEF350F
KEY PART
NO. NO . DESCRIPTION
1 165774 Tine, Outer, R.H.
2 4921H Retainer, Spring
3 165772 Tine, Inner, R.H.
KEY PART
NO. NO. DESCRIPTION
4 165771 Tine, Inner, L.H.
5 165773 Tine, Outer, L.H.
6 9194R Pin, Clevis
20
REPAIR PARTS
TRANSMISSION
TILLER - - MODEL NUMBER WEF350F
KEY P ART
NO . NO. DESCRIPTION
1 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4
3 19131311 Washer 13/32 x 13/16 x 11
5 73800600 Locknut, Hex, w/washer 3/8-16
6 9056R550 Shield, Tine
7 165835 Bracket, Engine, R.H.
8 165834 Bracket, Engine, L.H.
9 10040500 Washer, Lock 5/16
10 73220500 Nut, Hex 5/16-18
11 74760544 Bolt, Hex 5/16-18 x 2-3/4
12 151937 Transmission
KEY PART
NO. NO. DESCRIPTION
14 9173R Spacer, Split
15 73510500 Nut, Keps 5/16
16 19091412 Washer 9/32 x 7/8 x 12 Ga.
17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
18 10040400 Washer, Lock 1/4
19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5
2 0 - - - - - - - Engine, Briggs Model 94202(Order
parts from engine Manufacturer)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
REPAIR PARTS
DECALS
TILLER - - MODEL NUMBER WEF350F
4
1
5
2
7
8
9
10
3
KEY PART
NO. NO . DESCRIPTION
1 162413 Decal, Logo Control Panel
2 166803 Decal, Logo Belt Guard
3 162384 Decal, Warn. Till.
4 110613X Decal, Tine Control
5 110614X Decal, Hand Placement
7 120076X Decal, Warning, Rotating Tines
8 165327 Decal, Speed Control
9 171806 Decal, 3.5 HP
10 171803 Decal, Briggs & Stratton
- - 174306 Manual, Owner’s (English)
- - 174307 Manual, Owner’s (French)
22
