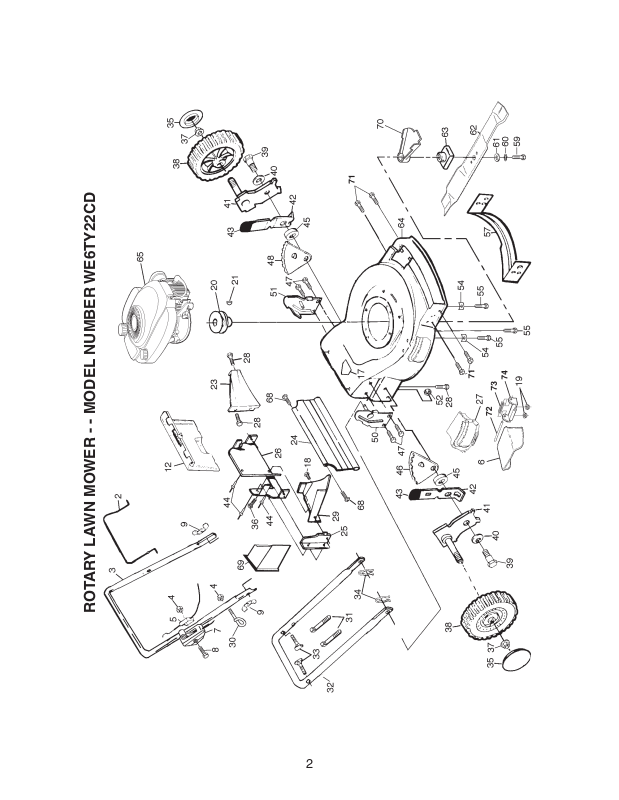

ROTARY LAWN MOWER - - MODEL NUMBER WE6TY22CD

2

KEY PART

NO. NO. DESCRIPTION

43 87877 Selector Knob

44 128415 Pop Rivet

45 146630 Spacer

46 700327X007 Wheel Adjusting Bracket

ROTARY LAWN MOWER - - MODEL NUMBER WE6TY22CD

47 150078 Self-tapping Screw 5/16-18 x 3/4

48 700326X007 Wheel Adjusting Bracket

50 151588X479 Handle Bracket (Right)

51 151589X479 Handle Bracket (Left)

52 751592 Locknut 3/8-16

54 851201X004 Engine Washer

55 150406 Hex Head Thread Rolling Screw

3/8-16 x 1-1/8

57 170557 Front Bafﬂ e

59 851084 Hex Head Machine Screw

3/8-24 x 1-3/8 Gr. 8

60 850263 Helical Lock Washer

61 851074 Hardened Washer

62 141114 Blade 22"

63 184590 Blade Adapter

64 170586 Lawn Mower Housing Kit (Includes Key No. 17)

65 - - - Engine, Tecumseh, Model No. LEV120

(Order parts from engine manufacturer)

68 88652 Hinge Screw

69 166649 Mulcher Plug

70 186063 Debris Shield

71 17600406 Screw

72 147286 Hinge Rod

73 152186 Hinge Spring

74 147775 Hinge Bracket

- - 162300 Warning Decal (Not Shown)

- - 172787 Operator’s Manual (English)

- - 172788 Operator’s Manual (French)

- - 186964 Repair Parts Manual

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

2 146771 Control Bar

3 166860X479 Upper Handle

4 132004 Locknut

5 851671 Engine Zone Control Cable

6 145285 Clip-on Discharge Deﬂ ector

7 163054 Throttle Control

8 144929 Hex Washer Head Screw 1/4-20 x 2-1/8

9 128638 Wing Nut

12 151023 Rear Door Kit

17 107339X Danger Decal

18 150050 Screw

19 63601 Locknut

20 184941 Engine Pulley

21 850848 Hi Pro Key #505

23 133040X479 Bafﬂ e, Rear

24 140540 Rear Skirt

3

25 700365X479 Side Bafﬂ e

26 156380X479 Back Plate

27 145281 Mulcher Door Kit

28 54583 Screw Hex Head 1/4-20 x 1/2

29 176041X479 Discharge Bafﬂ e

30 179585 Rope Guide

31 66426 Wire Tie

32 151721X479 Lower Handle

33 131959 Handle Bolt

34 51793 Hairpin Cotter

35 77400 Hubcap

36 54583 Hex Head Self-tapping Screw

with sems 1/4-20 x 1/2

37 83923 Flanged Locknut

38 146247 Wheel & Tire Assembly

39 142748 Shoulder Bolt

40 62335 Belleville Washer

41 145935X004 Axle Arm

42 700331X004 Selector Spring

ROTARY LAWN MOWER - - MODEL NUMBER WE6TY22CD

4

ROTARY LAWN MOWER - - MODEL NUMBER WE6TY22CD

28 137081 Drive Cover

31 132010 Locknut

32 137052 Drive Pulley

35 151521 Kit, Wheel Adjuster, LH

KEY PART

NO. NO. DESCRIPTION

(Includes Knob and Bearing)

36 702511 Gear Case Assembly

37 137090 Spring

38 63601 Locknut

40 75192 Spring

41 151520 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

54 158830 Grass Bag

55 86012 Drive Shaft Cover

57 149555 Catcher Frame

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 184596 Drive Control

2 167387 Bearing, Wheel Adjuster

3 751152 Locknut #10-24

4 158755 Pan Head Machine Screw #10-24 x 2

5 146527 V-Belt

6 150495 Spring Retainer

7 149746 Pan Head Tapping Screw #10-24 x 1-3/4

8 77400 Hubcap

9 145212 Flanged Locknut

11 180776 Wheel & Tire Assembly

12 12000058 E-ring

5

13 137054 Pinion

14 180504 Dust Cover

16 67725 Washer 1/2 x 1-1/2 x .134

18 87877 Selector Knob

26 146072 Pan Head Tapping Screw #10-24 x 2-3/4

ROTARY LAWN MOWER - - MODEL NUMBER WE6TY22CD

GEAR CASE ASSEMBLY - PART NUMBER 702511

TONDEUSE À GAZON ROTATIVE - - NUMÉRO DE MODÉLE WE6TY22CD

ENSEMBLE DE LA BOÎTE DE VITESSE - - NUMÉRO DE PIÈCE 702511

KEY PART NO. NO. DESCRIPTION DESCRIPTION

1 17490416 Tapping Screw 1/4-20 x 1-1/4 Vis 1/4-20 x 1-1/4 2 137055X004 Engagement Bracket Support de Engagement 3 137053 Shifter Changement de Vitese 4 57072 Seal Joint d'étanchéité 6 48373 Gear Case Halves Kit Jeu, Moitiés, Boîte de Vitesse (Includes Key Numbers 4 and 7) (Y compris le no. de réf. 4 et 7) 7 77881 Bearing Palier 8 137051 Worm Shaft Arbre à Vis Sans Fin 9 137074 Drive Shaft Arbre d'entraînement 10 57079 Hardened Washer Rondelle Durcie 11 131484 Clutch Yoke Joug de l'embrayage 12 700343 Bushing Douille 13 86447 Plug Bouchon 14 137050 Helical Gear Engrenage Hélicoïdale 15 750436X Clutch Jaw Mâchoire de Serrage de l'embrayage 16 750369 Grease Graisse 17 12000003 E-Ring Bague en E 18 850848 Hi-Pro Key Clé, Hi-pro 19 81585X004 Spring Bracket Support de Ressort

- - 48367 Kit, Gearcase Jeu, Boîte de Vitesse (Includes Instructions) (Y compris le instructions)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm composant sont données en pouces É.-U.

1 pouce = 25,4 mm.

REMARQUE: Toutes les dimensions de
