AYP WE5TY22SA User Manual

CONGRATULATIONS on your purchase of a new lawn mower. Your lawn mower has

been designed, engineered and manufactured to give you the best possible depend­ability and performance.

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufac­tured is free from defects in materials and workmanship. For a period of two (2) years from date
of purchase by the original consumer purchaser, we will repair or replace, at our option, without
charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than FHP (Poulan/Weed Eater) manufac­tured transaxle/transmission components, battery (except as noted below) or components
parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. Transportation charges for any parts submitted for replace­ment under this warranty must be paid by the purchaser unless such return is requested by
Frigidaire Home Products (Poulan/Weed Eater).

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to
you, any battery which we find to be defective in manufacture, during the first ninety (90) days
of ownership. After ninety (90) days, we will exchange the Battery, charging you 1/12 of the
price of a new Battery for each full month from the date of the original sale. Battery must be
maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 45
days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted,
operated, and maintained in accordance with the instructions furnished. This Warranty does
not apply to any product which has been subjected to alteration, misuse, abuse, improper
assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear,
normal adjustments, standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an
authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

REPAIR PARTS MANUAL

Frigidaire Home Products
Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway
Augusta, GA 30909 USA

giving the model number, serial number and date of purchase of your product and the name
and address of the authorized dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do
not allow the limitation of consequential damages or limitations of how long an implied
Warranty may last, so the above limitations or exclusions may not apply to you. This
Warranty gives you specific legal rights, and you may have other rights which vary from
locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson­Moss Act of 1975.

In Canada contact:
Frigidaire Home Products

7075 Ordan Drive
Mississauga, Ontario
L5T 1K6

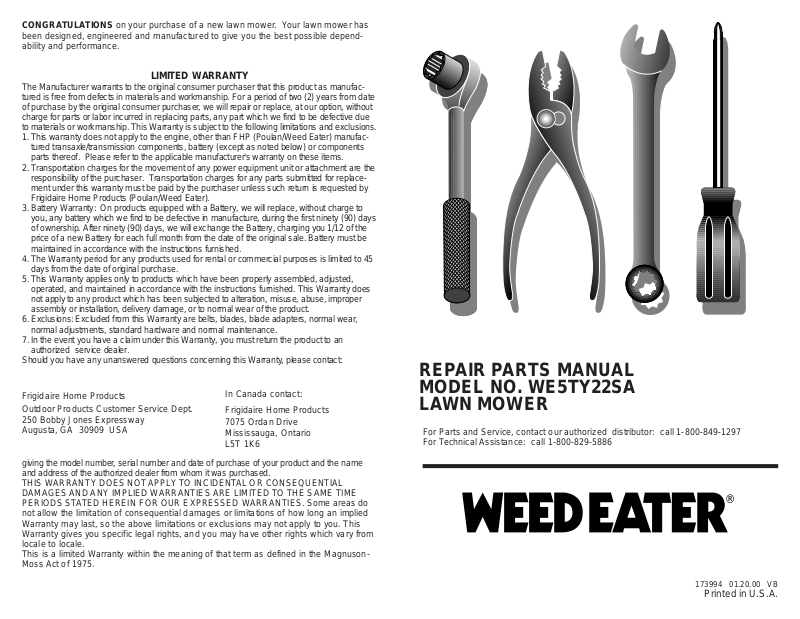

MODEL NO. WE5TY22SA
LAWN MOWER

For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886

®

173994 01.20.00 VB

Printed in U.S.A.

REPAIR PARTS

2

ROTARY LAWN MOWER - - MODEL NO. WE5TY22SA

7

REPAIR PARTS

ROTARY LAWN MOWER - - MODEL NO. WE5TY22SA

(Order parts from engine manufacturer)

KEY PART
NO. NO. DESCRIPTION

1 17490416 Screw, Tapping
2 137055 Bracket, Adjusting

3 137053 Shifter
4 57072 Seal
6 48373 Gear Case Halves,

7 77881 Bearing
8 137051 Shaft, Worm

1/4-20 x 1-1/4

Upper and Lower
(Includes Key #4, and 7)

KEY PART
NO. NO. DESCRIPTION

9 137074 Drive Shaft
10 57079 Washer, Hardened
11 131484 Yoke, Clutch
12 700343 Bushing
13 86447 Plug
14 137050 Gear, Helical
15 750436X Jaw, Clutch
16 750369 Grease
17 12000003 E-Ring
18 850848 Key, Hi-Pro
19 81585X004 Spring Bracket

48 751592 Locknut 3/8-16

49 63601 Locknut 1/4-20

KEY PART

52 851201X004 Washer

NO. NO. DESCRIPTION

53 134612 Debris Shield

54 150406 Hex Head Thread Rolling Screw 3/8-16 x 1

55 851084 Hex Head Screw 3/8-24 x 1-3/8 Grade 8

56 850263 Helical Lock Washer 3/8

57 851074 Hardened Washer

- - 134027X479 Rear Baffle (Not Shown)

58 141114 22" Blade

59 851514 Blade Adapter

61 170031 Front Baffle

66 85543 Engine Pulley

67 87677 Hi-Pro Key #HP 505

71 140540 Rear Skirt

72 750097 Self Tapping Screw #10-24 x 1

74 107339X Warning Decal

77 851671 MZR Cable

79 751772X479 Mulcher Plate

80 83923 Washer 17/32 x 1 x 21 Ga.

83 128415 Pop Rivet

- - - - - - - - Engine - Tecumseh- Model No. LEV115

- - 172787 Operator’s Manual (English)

85 17600406 Flat Head Machine Screw

86 174148 Throttle Control

87 144929 Screw

- - 173994 Repair Parts Manual

ROTARY LAWN MOWER - - MODEL NO. WE5TY22SA

1 145793 Control Bar

3 166862X479 Upper Handle

7 136376 Handle Knob

8 63601 Locknut 1/4-20

9 66426 WireClips

11 153638 Rope Guide

12 87584X004 Skirt Bracket

15 151721X479 Lower Handle

16 131959 Handle Bolt 5/16-18 x 1-3/4

17 51793 Hairpin Cotter

26 147286 Hinge Rod

27 87589 Torsion Spring

28 87593 Housing Bracket Assembly

29 750149 Discharge Guard

30 77400 Hubcap

33 146247 Wheel & Tire Assembly

34 142748 Shoulder Bolt 3/8-16 x 1

35 62335 Belleville Washer 1/2

36 145935X004 Axle Arm Assembly

37 87877 Selector Knob

38 700331X004 Selector Spring

40 146630 Spacer

42 700325X007 Wheel Adjusting Bracket

43 170346X479 Handle Bracket Assembly (Left)

44 170345X479 Handle Bracket Assembly (Right)

45 173995 Lawn Mower Housing (Incl. Ref. #63, 74)

KEY PART

NO. NO. DESCRIPTION

47 149741 Self Tapping Screw 5/16-18 x 3/4

6

REPAIR PARTS

3

REPAIR PARTS

4

ROTARY LAWN MOWER - - MODEL NO. WE5TY22SA

REPAIR PARTS

KEY PART
NO. NO. DESCRIPTION

1 145755 Cable Control Assembly
2 158755 Pan Head Machine Screw 1/4-20 x 2-3/

3 63601 Locknut
5 146527 V-Belt
6 750097 Screw
8 87877 Selector Knob

9 150495 Hex Head Bolt 1/4-20 x 2
10 151513 Wheel Adjuster Assembly (Left)
11 151514 Wheel Adjuster Assembly (Right)

5

12 88080 Dust Cover
13 137054 Pinion
14 12000058 E-Ring
15 700953 Wheel & Tire Assembly
19 77400 Hubcap

ROTARY LAWN MOWER - - MODEL NO. WE5TY22SA

KEY PART
NO. NO. DESCRIPTION

20 86012 Drive Shaft Cover

16

22 137090 Spring
23 702511 Gear Case Assembly
25 75192 Spring
26 67725 Washer
27 137052 Drive Pulley
28 132010 Locknut
32 137088 Drive Cover
34 146072 Pan Head Tapping Screw #10-24 x 2-3/4
36 145212 Locknut
38 751152 Nut
