AYP WE5T22SH4E User Manual

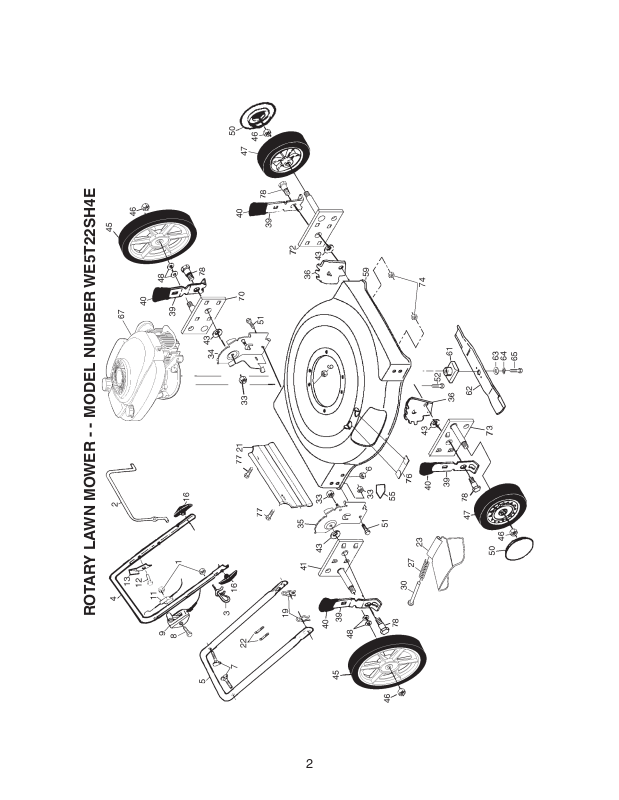

ROTARY LAWN MOWER - - MODEL NUMBER WE5T22SH4E

2

KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NUMBER WE5T22SH4E

46 83923 Locknut 1/16-18

47 146247 Wheel Assembly (Front)

48 57143 Washer

50 77400 Hubcap

51 74760514 Hex Head Bolt 5/16-18

52 150406 Hex Head Thread Rolling Screw 3/8-16 x 1

55 107339X Danger Decal

59 163326 Lawn Mower Housing (Incl. Key No. 55)

61 184590 Blade Adapter

62 141114 22" Blade

63 851074 Hardened Washer

64 850263 Helical Lockwasher 3/8

65 851084 Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8)

67 - - - Engine - Tecumseh Model No. LEV120

(Order parts from engine manufacturer)

70 180409X004 Axle Arm Assembly (LR)

72 167132X004 Axle Arm Assembly (LF)

73 167133X004 Axle Arm Assembly (RF)

74 166785 Nut

76 161622 Clip. Closeout

77 74760412 Screw

78 160828 Shoulder Bolt

- - 162300 Warning Decal (Not Shown)

- - 172782 Operator's Manual (English)

- - 186956 Replacement Parts Manual

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 132004 Locknut 1/4-20

2 86902 Control Bar

3 179585 Rope Guide

4 169709X479 Upper Handle

5 169708X479 Lower Handle

KEY PART

NO. NO. DESCRIPTION

6 73800400 Locknut 1/4-20

7 131959 Handle Bolt 5/16-18

8 144929 Hex Washer Head Screw 1/4-20 x 2-1/8

9 163054 Throttle Control

11 851671 Engine Zone Control Cable

12 750634 Hex Washer Head Screw #10-24 x 1/2

13 850733X004 Up-Stop Bracket

16 136376 Handle Knob

19 51793 Hairpin Cotter

3

21 165858 Rear Defl ector

22 66426 Wire Tie

23 160831 Discharge Guard

27 160832 Torsion Spring

30 160833 Hinge Rod

33 73800500 Locknut 5/16-18

34 170373X479 Wheel Bracket Support (Left)

35 170374X479 Wheel Bracket Support (Right)

36 160835X007 Wheel Bracket Adjuster

39 168360X004 Selector Spring

40 87877 Selector Knob

41 180410X004 Axle Arm Assembly (RR)

43 183901 Washer

45 180206 Wheel Assembly (Rear)
