AYP WE4TN22SHA RP Parts List

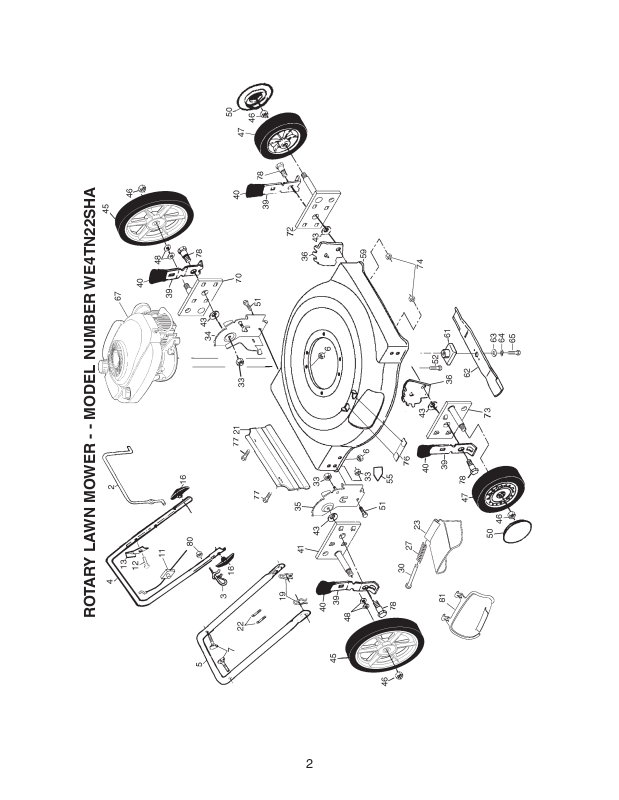

ROTARY LAWN MOWER - - MODEL NUMBER WE4TN22SHA

2

48 57143 Washer

KEY PART

50 77400 Hubcap

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NUMBER WE4TN22SHA

51 74760514 Hex Head Bolt 5/16-18

52 150406 Hex Head Thread Rolling Screw 3/8-16 x 1

55 141846 Danger Decal

59 161657 Lawn Mower Housing (Incl. Key Nos. 55)

61 184590 Blade Adapter

62 141114 22” Blade

63 851074 Hardened Washer

64 850263 Helical Lockwasher 3/8

65 851084 Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8)

67 - - - Engine, Tecumseh, Model Number LEV90

70 180409X004 Axle Arm Assembly (LR)

72 167132X004 Axle Arm Assembly (LF)

73 167133X004 Axle Arm Assembly (RF)

74 166785 Nut

76 161622 Clip. Closeout

77 74760412 Screw

(Order parts from engine manufacturer)

78 160828 Shoulder Bolt

80 132004 Nut, Hex 1/4-20

81 160830 Plate, Mulch

- - 172782 Operator’s Manual, English

- - 161058 Warning Decal (Not Shown)

- - 172784 Operator's Manual, Spanish

- - 186476 Repair Parts Manual

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 63601 Locknut 1/4-20

2 86902 Control Bar

3 179585 Rope Guide

4 169709X479 Upper Handle

KEY PART

NO. NO. DESCRIPTION

5 169708X479 Lower Handle

11 168552 Engine Zone Control Cable

6 63601 Locknut 1/4-20

7 131959 Handle Bolt 5/16-18

12 750634 Hex Washer Head Screw #10-24 x 1/2

13 850733X004 Up-Stop Bracket

16 136376 Handle Knob

19 51793 Hairpin Cotter

21 165858 Rear Defl ector

22 66426 Wire Tie

3

23 160831 Discharge Guard

27 160832 Torsion Spring

30 160833 Hinge Rod

33 63124 Locknut 5/16-18

34 170373X479 Wheel Bracket Support (Left)

35 170374X479 Wheel Bracket Support (Right)

36 160835X007 Wheel Bracket Adjuster

39 168360X004 Selector Spring

40 87877 Selector Knob

41 180410X004 Axle Arm Assembly (RR)

43 183901 Washer

45 180206 Wheel Assembly (Rear)

46 83923 Locknut 1/16-18

47 146247 Wheel Assembly (Front)
