AYP WE4E376A Parts List

WE4E376A (1996) Page 1 of 3

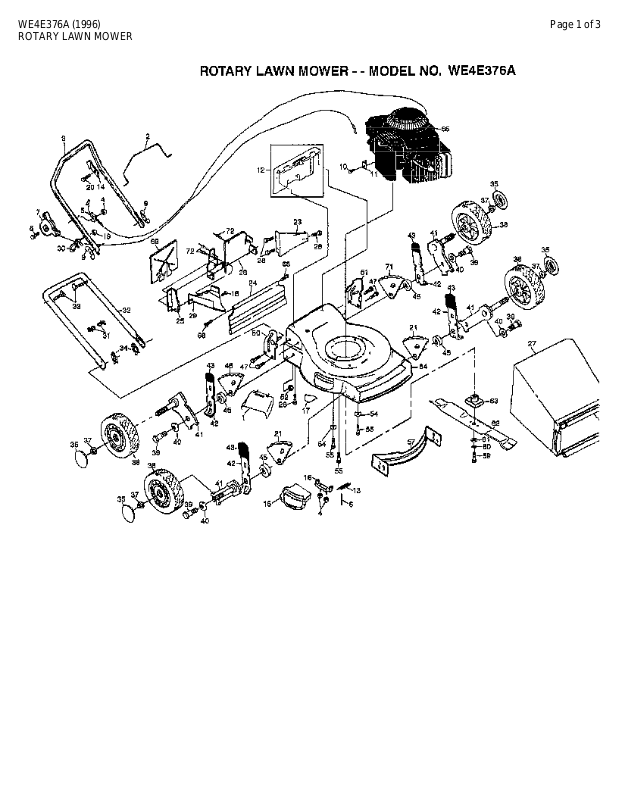

ROTARY LAWN MOWER

WE4E376A (1996) Page 2 of 3
ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 145285 GUARD.DISCH.CLIPO
2 140643 BAIL CTRL DLX YEL
3 153346X479 SUB= 166860X479
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
6 147286 ROD.HINGE.COMBI-C
7 700417 "CONTROL, THROTTLE"
8 144929 SCREW.HXHD.WASH.

9 128638 "NUT,WING PM"
10 83816 SCREW PM
11 213146 CABLE CLAMP
12 147612 KIT.DOOR.REAR.22
13 152186 SPRING.HINGE
14 850733X004 "BRKT,UPSTOP"
15 145281 DOOR.MULCH.COMBI
16 147775 BRACKET.HINGE.W/F
17 141846 DECAL DANGER E/S
18 150050 SCREW.HXTAP.10-24
19 73510400 NUT
20 750097 TAPPING SCREW
21 700325X007 BRACKET.ADJ.9POS.
23 133040X479 REAR BAFFLE
24 140540 SKIRT.REAR.FGD.22
25 700365X479 BAFFLE.SIDE
26 700360X479 PLATE.BACK
27 149688 GRASSBAG.250B1.BL
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 151517 SUB= 7192J
32 151721X479 LOWER HANDLE
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
37 83923 HEX FLANGE LOCKNT
38 149829 WHEEL.8X1.75.PR.
39 142748 BOLT SHLD 3/8-16
40 62335 "WASHER, BELLEVIL."
41 145935X004 ARM.AXLE.ASM.BZP.
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
45 146630 SPACER.HEIGHT.ADJ
46 700327X007 BRACKET.ADJ.9.RH
47 150078 SCREW.HXWS.5/16
48 149555 FRAME.CATCHER.2.5
50 151588X479 BRACKET.HDL.RH.
51 151589X479 BRACKET.HDL.LH.
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 150406 BOLT.ENG.3/8-16
57 132255X479 SUB= 144964
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 141114 "BLADE.MULCH.22"""
63 851514 ADAPTOR.BLADE.LM
64 149755 KIT HOUSING MOWER
65 CHECK WITH SUPPLIER
