AYP WE45TN20RC Parts List

WE45TN20RC (2002) Page 1 of 3

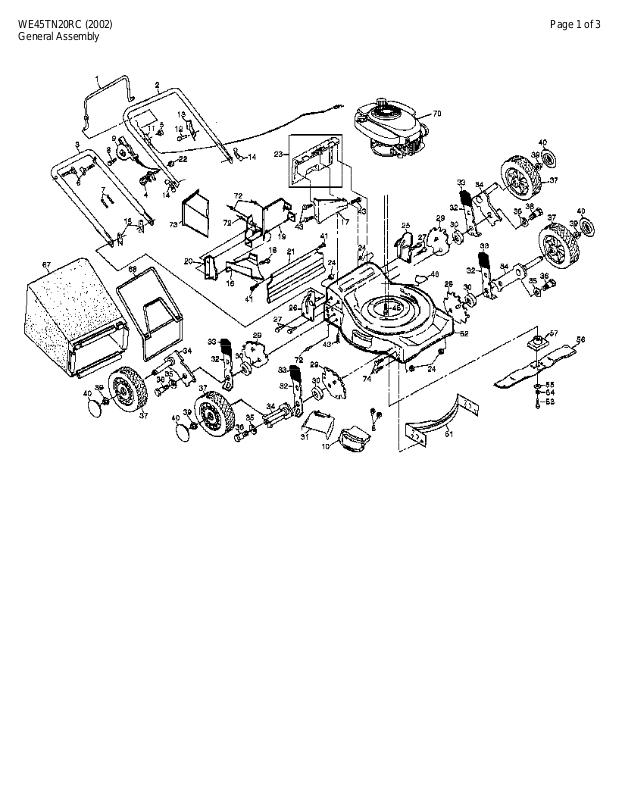

General Assembly

WE45TN20RC (2002) Page 2 of 3
General Assembly

Ref # Part Number Qty Description

1 131696 Control Bar
2 166860X479 Upper Handle
3 151590X479 Lower Handle
4 179585 Rope Guide
5 132004 Locknut 1/4-20
6 131959 Handle Bolt
7 66426 Wire Tie
8 144929 Hex Washer Head Screw 1/4-20 x 2-1/8

9 163054 Throttle Control
10 147738 Combi-cut Door
11 851671 Engine Zone Control Cable
12 750097 Hex Washer Head Screw #10-24 x 1/2
13 850733X004 Up-Stop Bracket
14 128638 Wing Nut
15 51793 Hairpin Cotter
16 133188X479 Discharge Baffle
17 169207X479 Rear Baffle
18 150050 Hex Head Screw #10-24 x 1/2
19 156445X479 Back Plate
20 700363X479 Side Baffle
21 140657 Rear Skirt
22 63601 Locknut 1/4-20
23 147613 Rear Door Assembly Kit
24 751592 Locknut 3/8-16
25 151589X479 Handle Bracket Assembly (Left)
26 151588X479 Handle Bracket Assembly (Right)
27 150078 Screw 5/16-18 x 3/4
29 700325X007 Wheel Adjusting Bracket
30 146630 Spacer
31 145285 Clip-on Discharge Guard
32 700331X004 Selector Spring
33 87877 Selector Knob
34 145935X004 Axle Arm Assembly
35 62335 Belleville Washer
36 142748 Shoulder Bolt 3/8-16
37 146247 Wheel Assembly
39 83923 Flanged Locknut
40 77400 Hubcap
41 88652 Hinge Screw
43 54583 Hex Tapping Screw 1/4-20 x 1/2
45 150406 Hex Head Thread Rolling Screw 3/8-16 x 1
46 107339X Danger Decal
51 170540 Front Baffle Kit
52 170539 Housing Assembly (Incl. Ref. #46)
53 851084 Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
54 850263 Helical Lockwasher
55 851074 Hardened Washer
56 145106 20" Blade
57 850977 Blade Adapter
67 158830 Grass Bag
68 149555 Catcher Frame
70 Engine, Tecumseh, Model Number LEV120 (Order parts

from engine manufacturer)

72 128415 Pop Rivet
73 166650 Mulcher Plug
74 17600406 Screw

162300 Warning Decal (Not Shown)
