AYP WE45N20CE User Manual
CONGRATULATIONS on your purchase of a new lawn mower. Your lawn mower has
been designed, engineered and manufactured to give you the best possible dependability and performance.
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as
manufactured is free from defects in materials and workmanship. For a period of two (2)
years from date of purchase by the original consumer purchaser, we will repair or replace,
at our option, without charge for parts or labor incurred in replacing parts, any part which
we find to be defective due to materials or workmanship. This Warranty is subject to the
following limitations and exclusions.
1. This warranty does not apply to the engine, other than FHP manufactured transaxle/
transmission components, battery (except as noted below) or components parts thereof.
Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment
are the responsibility of the purchaser. Transportation charges for any parts submitted
for replacement under this warranty must be paid by the purchaser unless such return is
requested by Frigidaire Home Products.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge
to you, any battery which we find to be defective in manufacture, during the first ninety
(90) days of ownership. After ninety (90) days, we will exchange the Battery, charging
you 1/12 of the price of a new Battery for each full month from the date of the original
sale. Battery must be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited
to 45 days from the date of original purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted,
operated, and maintained in accordance with the instructions furnished. This Warranty
does not apply to any product which has been subjected to alteration, misuse, abuse,
improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear,
normal adjustments, standard hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an
authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
Frigidaire Home Products
Outdoor Products Customer Service Dept.
250 Bobby Jones Expressway
Augusta, GA 30909 USA
THIS WARRANTY DOES NOT APPL Y TO INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME
TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.
In Canada contact:
Frigidaire Home Products
7075 Ordan Drive
Mississauga, Ontario
L5T 1K6

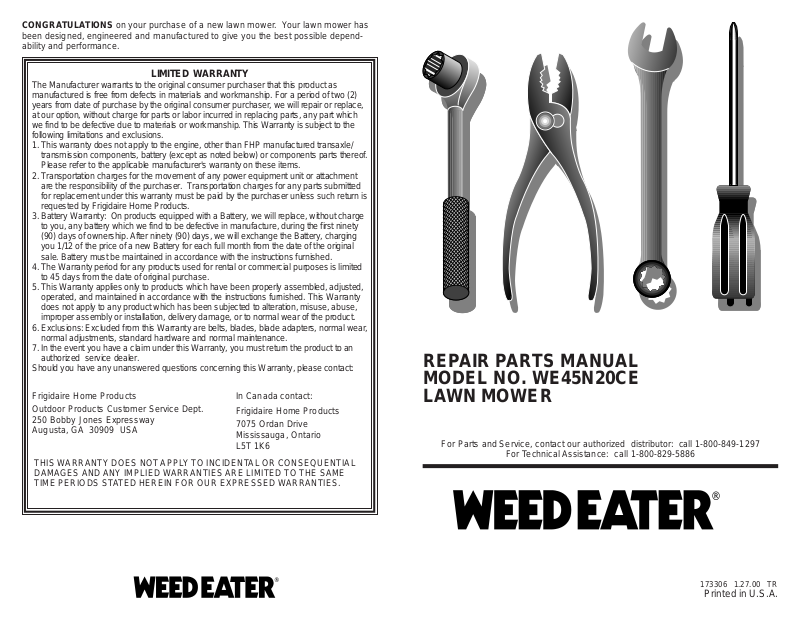

REPAIR PARTS MANUAL
MODEL NO. WE45N20CE
LAWN MOWER
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
®
®
173306 1.27.00 TR
Printed in U.S.A.
REPAIR PARTS
2
ROTARY LAWN MOWER - - MODEL NO. WE45N20CE
REP AIR PARTS
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 131696 Control Bar
2 166860X479 Upper Handle
3 151590X479 Lower Handle
4 132001 Rope Guide
5 63601 Locknut 1/4-20
6 131959 Handle Bolt
7 66426 Wire Tie
8 144929 Hex Washer Head Screw 1/4-20 x 2-1/8
9 700417 Throttle Control
10 147738 Combi-cut Door
11 130861 Engine Zone Control Cable
3
12 750097 Hex Washer Head Screw #10-24 x 1/2
13 850733X004 Up-Stop Bracket
14 128638 Wing Nut
15 51793 Hairpin Cotter
16 133188X479 Discharge Baffle
17 169207X479 Rear Baffle
18 150050 Hex Head Screw #10-24 x 1/2
19 156445X479 Back Plate
20 700363X479 Side Baffle
21 140657 Rear Skirt
22 63601 Locknut 1/4-20
23 147613 Rear Door Assembly Kit
24 751592 Locknut 3/8-16
25 151589X479 Handle Bracket Assembly (Left)
26 151588X479 Handle Bracket Assembly (Right)
27 150078 Screw 5/16-18 x 3/4
29 700325X007 Wheel Adjusting Bracket
30 146630 Spacer
31 145285 Clip-on Discharge Guard
32 700331X004 Selector Spring
33 87877 Selector Knob
ROTARY LAWN MOWER - - MODEL NO. WE45N20CE
KEY PART
NO. NO. DESCRIPTION
34 145935X004 Axle Arm Assembly
35 62335 Belleville Washer
36 142748 Shoulder Bolt 3/8-16
37 146247 Wheel Assembly
39 83923 Flanged Locknut
40 77400 Hubcap
41 88652 Hinge Screw
43 54583 Hex Tapping Screw 1/4-20 x 1/2
45 150406 Hex Head Thread Rolling Screw 3/8-16 x 1
46 107339X Danger Decal
51 170540 Front Baffle Kit
52 170539 Housing Assembly (Incl. Ref. #46)
53 851084 Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
54 850263 Helical Lockwasher
55 851074 Hardened Washer
56 145106 20'’ Blade
57 850977 Blade Adapter
65 83816 Screw #10 x 5/8
66 213146 * Cable Clamp
67 158830 Grass Bag
68 149555 Catcher Frame
70 - - - - - - * Engine - Briggs & Stratton, Model No. 12H802
72 128415 Pop Rivet
73 166650 Mulcher Plug
74 17600406 Screw
- - 162300 Warning Decal(Not Shown)
- - 172782 Operator’s Manual (English)
- - 172783 Operator’s Manual (French)
- - 173306 Replacement Parts Manual
* These parts must be purchased through an authorized Briggs ans Stratton delaer.
