AYP WE2E776A Parts List

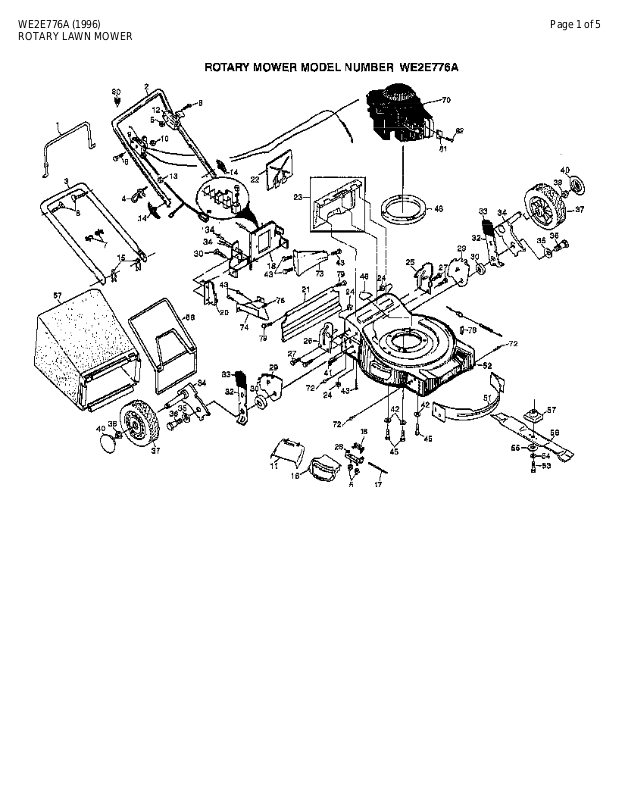

WE2E776A (1996) Page 1 of 5
ROTARY LAWN MOWER

WE2E776A (1996) Page 2 of 5
ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 146901 CONTROL BAR
2 149637X479 SUB= 154480X479
3 151590X479 HANDLE.LWR.DLX.20
4 132001 ROPE GUIDE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 151517 SUB= 7192J
8 144929 SCREW.HXHD.WASH.

9 148981 COMBI-KEY CONTROL
10 751152 LOCKNUT
11 145285 GUARD.DISCH.CLIPO
12 146392 CONTROL.DRV.20FBD
13 73510400 NUT
14 136376 KNOB HANDLE
15 51793 HAIRPIN COTTER
16 145281 DOOR.MULCH.COMBI
17 147286 ROD.HINGE.COMBI-C
18 152186 SPRING.HINGE
19 700355X479 "PLATE.BACK.20"""
20 700363X419 SUB= 700363X479
21 140657 SKIRT.PUSH.20RD
22 133169X479 MULCHER PLATE
23 147613 KIT.DOOR.RR.20STL
24 751592 LOCKNUT PM
25 151589X479 BRACKET.HDL.LH.
26 151588X479 BRACKET.HDL.RH.
27 150078 SCREW.HXWS.5/16
28 147775 BRACKET.HINGE.W/F
29 700325X007 BRACKET.ADJ.9POS.
30 146630 SPACER.HEIGHT.ADJ
32 700331X004 SPRING SELECTOR
33 87877 KNOB PM
34 145935X004 ARM.AXLE.ASM.BZP.
35 62335 "WASHER, BELLEVIL."
36 142748 BOLT SHLD 3/8-16
37 148444 WHEEL.8X2.RAD.YEL
38 83923 HEX FLANGE LOCKNT
40 77400 HUB CAP
42 53998 SUB= 19131216
43 54583 SCREW
45 850999 SCREW
46 141846 DECAL DANGER E/S
48 850988 ENGINE SPACER
51 132198X479 SUB= 144961
52 153068 HOUSING KIT
53 851084 SCREW
54 850263 LOCKWASHER
55 851074 "WASHER,HARDEN"
56 145106 BLADE.20.MULCH.AY
57 851514 ADAPTOR.BLADE.LM
67 149688 GRASSBAG.250B1.BL
68 149555 FRAME.CATCHER.2.5
70 REFER TO IMAGE
72 128415 BLIND RIVET
73 700063X479 REAR BAFFLE
74 133188X479 DISCHARGE GUARD
75 150050 SCREW.HXTAP.10-24
78 145669 GUIDE.CABLE.FWBD
