WE185H42C (1997) Page 1 of 29
CHASSIS AND ENCLOSURES
WE185H42C (1997) Page 2 of 29
CHASSIS AND ENCLOSURES
Ref # Part Number Qty Description
1 159530 CHASSIS ASM
2 140356 SUB= 145009
3 17490612 SCREW
4 19131216 WASHER
5 155272 BUMPER-HOOD/DASH
6 155923 SADDLE
8 155138 CLIP.RETAINER
9 147627X011 DASH.SILKSCREENED
10 72140608 SUB= 72110608
11 155927 "PANEL-DASH,LH"
12 145660 CLIP.TINNERMAN
13 155934X010 SUB= 169117X010
14 17490608 SCREW LT
15 74180512 SCREW
16 73510500 NUT
17 159639X550 HOOD.STEEL.ASSY
18 126938X SUB= 532126938
20 156437 "PLATE-MTG,BATT/FU"
23 124028X SUB= 532124028
24 74780616 BOLT
25 19131312 WASHER
26 73800600 NUT
28 157373 GRILLE-MS428
29 140273 LENS GRILLE
30 147310X550 FENDER
31 139976 BRACKET SUPT FEND
33 145244X550 FOOTREST.LH.LT/GT
34 145243X550 FOOTREST.RH.LT/GT
35 72110606 BOLT
37 17490508 SCREW LT
38 139886 BRACKET ASM LH
39 139887 BRACKET ASM RH
40 139977 SPACER FENDER LT
51 73800400 NUT
52 19091416 WASHER
53 144697 BRACKET.GRILLE.LH
54 17030814 SUB= 91817030814
55 144696 BRACKET.GRILLE.RH
57 74780412 SUB= 74780414
58 140547 DUCT.AIR.B&S.18HP
71 73680400 SUB= 73690400
140 158418 BRKT SUSPENSION
145 156524 "ROD POVOT,CHASSIS"
147 74760412 BOLT LT
5479J PLUG BUTTON T
WE185H42C (1997) Page 3 of 29
DANA TRANSAXLE
WE185H42C (1997) Page 4 of 29
DANA TRANSAXLE
Ref # Part Number Qty Description
1 132671 HARNESS.IGNITION
2 2274J SUB= 74760412
3 134400 SUB= 68003
4 105904X "SPRING, DETENT LT"
5 105905X "SCREW, SET LT"
6 138235 KIT SHIFTER ASM
7 134399 SHIFTER BOOT
8 120951X PUCK T
9 148266 SUB= 105911X
10 2225J RETAINING RING LT
11 134793 ASM KIT SHIM 4689
12 143679 PLUG.PLASTIC
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 106846X SUB= 167148
16 106095X SUB= 95-8060-6F
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 148267 CLUTCH.COL.5467
22 138237 KIT.ASM.CLUTCH KY
23 148268 BEARING.FLNG.5511
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 142681 GEAR SPUR 35 TTH
31 124644X GEAR SPUR 30T
32 108980X GEAR 25T LT
33 120406X GEAR SPUR 22 TT
34 134796 SPUR GEAR 19T
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 106605X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 106596X "SCREW, TAPPING LT"
46 142678 GEAR SPUR 12 TTH
47 120407X SUB= 124641X
48 106589X "GEAR, SPUR 25T LT"
49 120408X GEAR 28T T
50 105937X "GEAR, SPUR 31T LT"
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T
WE185H42C (1997) Page 5 of 29
DANA TRANSAXLE
Ref # Part Number Qty Description
59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120956X NLA
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 73810500 NUT.LOCK.5/16-24
72 148269 SEAL.OIL.DAN.5508
73 120416X SUB= 126976X
WE185H42C (1997) Page 6 of 29
DECALS
WE185H42C (1997) Page 7 of 29
DECALS
Ref # Part Number Qty Description
1 156868 "DECAL INST,SADDLE"
2 156604 "DECAL INS,STRG WH"
3 156609 "DECAL HOOD,RH"
4 156610 DECAL HOOD LH
5 159020 "DECAL GRILLE,LENS"
6 142341 DECAL DRAWBAR LH
7 159021 DECAL PANEL SIDE
9 156602 DECAL-FENDER
10 157002 "DECAL DANGER,FEND"
11 4900J DECAL T
14 160396 "DECAL-SCHEM,BELT"
16 145005 DECAL.BATRY.3-3908
17 158894 DECAL DECK
20 273063 DECAL, HP, ENGINE
138311 DECAL HANDLE LIFT
145246 PAD FOOTREST
145247 FASTNER.POPIN.(8)
158124 MANUAL.GENERIC.42
161377 MANUAL.P.WE185H42
C42 GRASS CATCHER
LSB42 SNOW THROWER
LC06 TIRE CHAINS
MK420 MULCHING KIT W/BLADES
LBD48 SNOW BLADE
LC05 WHEEL WTS.
WE185H42C (1997) Page 8 of 29
DRIVE
WE185H42C (1997) Page 9 of 29
DRIVE
Ref # Part Number Qty Description
1 150071 TRANSAXLE.3100650
2 142431 SPRING RET BRAKE
3 143995 PULLEY.TRANSAXLE
8 141003 ROD SHIFT FEND LT
10 76020416 PIN COTTER 1/8
15 74490544 BOLT.HX.FLG.5/16
16 73800500 NUT
18 74780616 BOLT
19 73800600 NUT
21 106933X KNOB T (1/2-HOLE)
22 145627 ROD.BRAKE.HYDRO.
24 73350600 NUT
25 106888X SPRING ROD LT
26 19131316 WASHER
27 76020412 COTTER PIN
28 145204 ROD.BRAKE.PARK.LT
29 71673 PLUNGER CAP T
30 130807 TRANSAXLE MTG BKT
32 74760512 BOLT
34 155071 SHAFT ASM-PEDAL F
35 120183X NYLON BEARING
36 19211616 WASHER LT
37 1572H SUB= 2882J
38 123674X PULLEY.IDLER.FLAT
39 74760644 BOLT
40 4470J SPACER T
41 154777 SUB= 165692
42 19131312 WASHER
47 127783 SUB= 139245
48 154604 BELLCRANK ASM
49 123205X RETAIN BELT
50 74760624 SUB= 74930624
51 73680600 SUB= 73690600
52 73680500 SUB= 73690500
53 105710X "LINK, CLUTCH T"
55 105709X "SPRING, RETURN LT"
56 74760620 SUB= 74780620
57 140294 "BELT.GD DRV 82"""
59 140312 KEEPER BELT CNTSP
61 17490612 SCREW
62 8883R PEDAL COVER T
63 140186 PULLEY.ENGINE
64 71170764 BOLT
65 10040700 LOCKWASHER
66 154778 KEEPER-BELT
69 142432 SCREW HEXWSH H-L
70 134683 KEEPER BELT ENG
71 140158 STRAP TORQ LH HYD
72 19132012 WASHER
73 156347 "STRAP-TORQUE,RH"
74 121199X SPACER SPLIT
75 121749X WASHER
76 12000001 E-RING LT
77 123583X SQUARE KEY
78 121748X WASHER
81 156046 SHAFT.CROS.20.HYD
82 123782X "SPRING,TORSION"
83 19171216 WASHER
WE185H42C (1997) Page 10 of 29
DRIVE
Ref # Part Number Qty Description
84 140548 ROD.TIE.BALL.4.75
86 71208 BUSHING
87 19212016 WASHER D
88 12000008 KLIP RING
89 151147 SUB= 164893
91 74780536 NLA
92 74780524 HEX BOLT
93 142564 "LINE FUEL HYD 4"""
94 140462 "FAN 7"" HYDRO"
95 144643 SUB= 918144643
96 4497H RETAINER M
97 140469 BOLT KEEPER RH
98 73510600 NUT
100 19111216 WASHER M
102 141322 WASHER BELLEVILLE
103 73940800 SUB= 73360800
104 140156 ARM CONTROL HYDRO
105 71070516 SCREW CAP 5/16-18
106 74780520 BOLT
116 72110610 BOLT RDHD 3/8-16
118 154774 SPACER-BELLCRANK
121 154419 NYLINER-CLUTCHING
WE185H42C (1997) Page 11 of 29

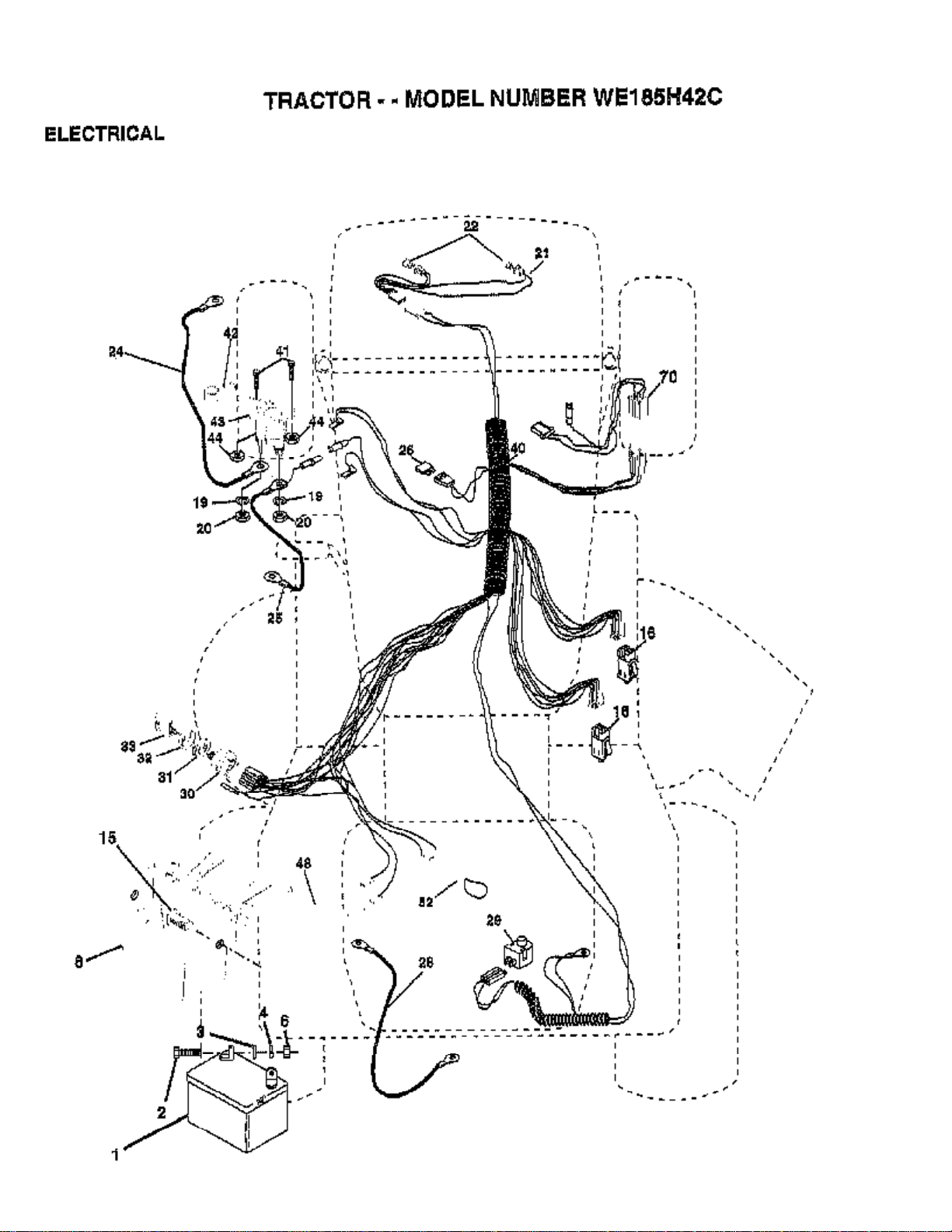

ELECTRICAL
WE185H42C (1997) Page 12 of 29
ELECTRICAL
Ref # Part Number Qty Description
1 144925 SUB= 123899X
2 74760412 BOLT LT
3 19091016 WASHER
4 10040400 LOCKWASHER
6 73220400 SUB= 50675
8 156417 "CASE,BATTERY.MECH"
15 147688 FASTNER.SNAP-IN
16 153664 SWITCH INTERLOCK
19 10090400 SUB= 10040400
20 73350400 NUT
21 136850 "HARNESS,LIGHT SOC"
22 4152J HEADLAMP BULB
24 4799J "CABLE T, BATTERY"
25 146147 CABLE.BTRY.6GA.RD
26 108824X FUSE HYT
28 4207J CABLE T
29 121305X SWITCH SEAT
30 140301 SWITCH IGN 4POS
31 124211X NUT IGNITION
32 141226 COVER KEY SWITCH
33 122147X KEY
40 156442 HARNESS-IGNITION
41 71110408 BOLT HXHD FIN
42 131563 SUB= 154336
43 145673 SUB= 146154
44 73640400 NUT HXKEP 1/4X20
48 140844 ADAPTER AMMETER
52 141940 PROTECTION LOOP
70 140413 HARNESS ENG DUAL
WE185H42C (1997) Page 13 of 29

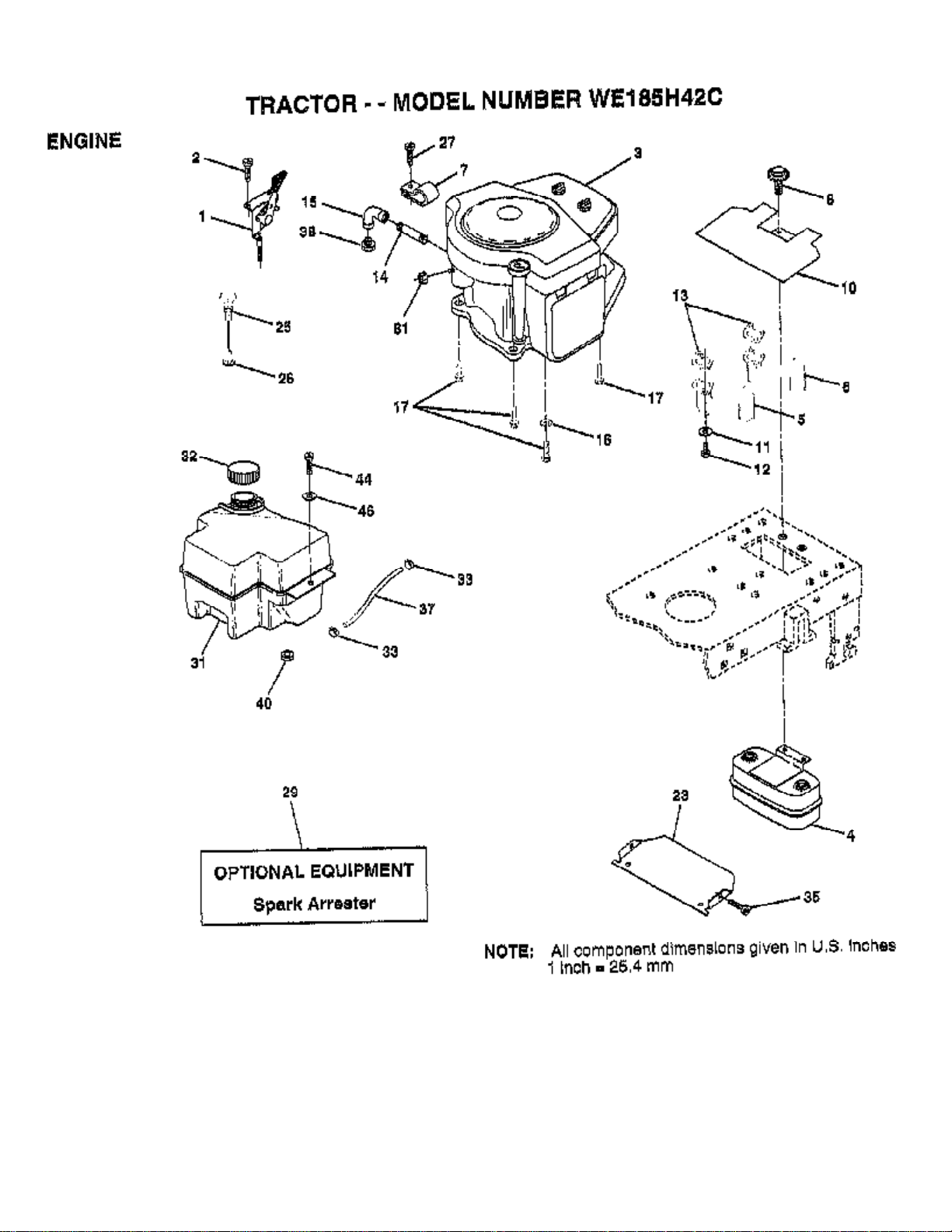

ENGINE
WE185H42C (1997) Page 14 of 29
ENGINE
Ref # Part Number Qty Description
1 141295 CONTROL THRT 35.5
2 17720410 SCREW LT
3 REFER TO IMAGE
4 149723 MUFFLER.TW.LOTONE
5 144069 EXHAUST.B&S.18.LH
6 144068 EXHAUST.B&S.18.RH
7 138129 CLAMP.TUBE.DBL.EN
8 150176 BOLT.5/16-18.UNC
10 145552 SHIELD.HEAT.
11 10040400 LOCKWASHER
12 74780412 SUB= 74780414
13 272250 GASKET MUFFLER
14 13280336 PIPE NIPPLE LT
15 13200300 ELBOW
16 11050600 LOCKWASHER
17 17490624 SCREW LT
23 156123 SHIELD-HEAT
25 145996 CONTROL.CHOKE.37
26 73920600 "NUT,KEPS 3/8-24IM"
27 152927 "SCREW-TT,10-32 FL"
29 137180 SUB= 532137180
31 140280 SUB= 161911
32 140527 CAP ASM FUEL
33 123487X HOSE CLAMP
35 17490512 SCREW
37 137040 LINE FUEL
38 REFER TO IMAGE
40 124028X SUB= 532124028
44 17490412 SCREW HEX CRT
46 19091416 WASHER
81 128861 NUT
WE185H42C (1997) Page 15 of 29

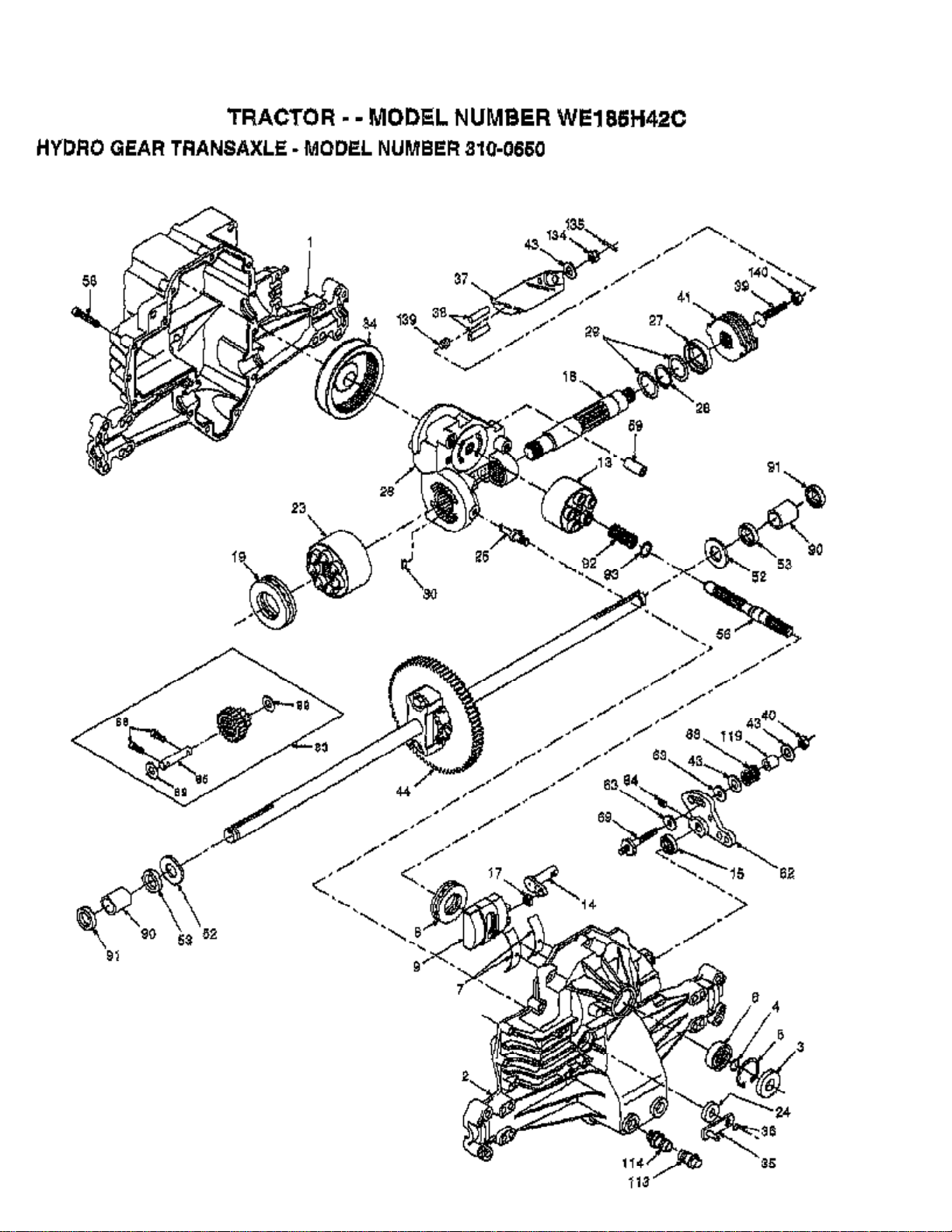

HYDRO GEAR TRANSAXLE
WE185H42C (1997) Page 16 of 29
HYDRO GEAR TRANSAXLE
Ref # Part Number Qty Description
1 142930 HOUSING.L.50074RM
2 142931 HOUSING.UP.70125
3 142932 SEAL.9008000-0128
4 142928 RING.RET.2003016.
5 142933 RING.RET.2003052.
6 142934 BEARING.(50552)42X68X16
7 142935 CRADLE- 2003023.
8 150771 BEARING.THU.50551
9 142937 SWASHPLT.2003087.
13 142938 BLOCK.CLYN.70079.
14 142939 ARM.TRUN.2003005.
15 142940 SEAL.9008000-0126
17 142941 GUIDE.2000015.
18 150772 SHAFT.MOTOR.50449
19 150773 BEARING.THU.50552
23 142944 BLOCK.CYLIN.70082
24 142945 SEAL.LIP.45074
25 142946 ACTUATOR.2003555
26 150774 KIT.CEN.SEC.70250
27 142948 SEAL.LIP.45075
28 142949 RING RETAIN 50007
29 142950 WASHER.44872
30 150787 PLATE.BYP.2003554
34 142951 ELEMENT.OIL.44964
35 142952 ARM.BYPASS.50270
36 142953 RING.RETAIN.44870
37 142954 ARM.ACTUAT.23710
38 142955 PIN.ACTUAT.44891
39 150777 BOLT.50316
40 150778 NUT.LOCK.HX.50317
41 142958 KIT.BRAKE.70135
43 142884 WASHER HYD 44130
44 150829 DIFFRENTIAL.70226
52 142991 WASHER.HYD.44875
53 142961 SEAL.HYDRO.45076
56 142963 SHAFT.INPUT.50005
58 142964 BOLT.1/4-20.44876
59 142965 PIN.HYDRO.50002
62 142966 ARM.CONTROL.50254
63 142967 PUCK.DAMPER.50281
64 142920 SCREW.SET.50018.
68 142969 SPRING.HYD.50277
69 144610 STUD.5/16-24.DANA
83 142971 JACKSHAFT/PINION GEAR.70132
85 150806 PIN.SHAFT 50559
88 142973 SCREW.CAP.50154.
89 142974 WASHER.HYD.50132
90 142975 BEARING.SLV.50118
91 142976 SEAL.WIPER.50941
92 142977 SPRING.2003014.
93 142978 WASHER.2003017
113 142917 CAP.VENT.70109
114 142918 O-RING.ASM.70110
119 142980 SPACER.HYD.50278
134 144607 NUT.CAS.HYD.44142
135 144608 PIN.COT.HYD.44101
139 150775 SPRING.COMP.50431
140 150776 NUT.HEX.50269
WE185H42C (1997) Page 17 of 29
MOWER DECK
WE185H42C (1997) Page 18 of 29
MOWER DECK
Ref # Part Number Qty Description
1 144393 DECK.WELD.42.
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
5 4939M SUB= 85902
6 130832 SUB= 130833
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 140296 WASHER.HARD.BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 140329 STRIPPER RND MWR
17 72110610 BOLT RDHD 3/8-16
18 72140505 BOLT
19 132827 BOLT SHD 5/16-18
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 157722 "SCREW-THD ROLL,WA"
31 129963 WASHER
32 153535 PULLEY.MANDREL.42
33 137266 SUB= 139729
34 72110614 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 133551 PIVOT ROD
43 140083 ROD CLUTCH W/NIBS
44 140088 GUARD MAND LH BLK
45 4497H RETAINER M
46 137729 SCREW.1/4-20X5/8
48 133944 HARD SMALL WASHER
49 155066 ROLLER ASM-CAM
50 131340 SHOULDER BOLT
51 69180 LOCKNUT
52 139888 BOLT.SHLD.5/16-18
53 131845X900 SUB= 131845
54 133943 HARDENED WASHER
55 155046 ARM-IDLER
56 122052X SPACER RETAINER
58 140086 SPRING TORSN BRAK
59 141043 GUARD IDLER TUV
67 106932X KNOB T(3/8 HOLE)
68 144959 BELT-V.SEC.46.KEL
71 142427 ROD CLUTCH 38/42
72 131870 RETURN SPRING
73 127847 CLUTCH ARM SECOND
WE185H42C (1997) Page 19 of 29
MOWER DECK
Ref # Part Number Qty Description
74 121748X WASHER
75 12000029 RING
76 128903 SHOULDER BOLT
77 127845 SPRING KEEPER
78 154809 LEVER ASM-CLUTCH
79 127498 BUSHING
80 153701 SPRING.CLUTCH.MWR
81 73350600 NUT
82 142028 TRUNION ADJ
84 158824 BRACKET ASM IDLER
92 73800600 NUT
111 155197 BRACKET.GWHL.LH.
112 155198 BRACKET.GWHL.RH.
113 17490512 SCREW
114 73510500 NUT
115 72110504 SUB= 872110504
116 4898H BOLT M
117 105455X WHEEL.GAGE.BLK.PL
118 73930600 LOCKNUT
119 19121414 WASHER
120 19171512 WASHER
121 143723 BRACKET.EXTRD.GWL
128 153390 WASHER.FELT.
132 19132203 WASHER GT
130794 MANDREL ASM
159469 SUB= 144783
WE185H42C (1997) Page 20 of 29
MOWER LIFT
WE185H42C (1997) Page 21 of 29
MOWER LIFT
Ref # Part Number Qty Description
1 159460 WIRE ASM W.SPRING
2 159471 "SHAFT ASM LIFT,RH"
3 105767X PIN-GROOVE LT
4 12000002 SUB= 2225J
5 19211621 WASHER
6 120183X NYLON BEARING
7 109413X GRIP
8 124526X SUB= 125925X
11 139865 SUB= 918139865
12 139866 SUB= 151140
13 4939M SUB= 85902
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 139868 ARM SUSP REAR
20 3146R RETAINER.SPRING
31 140302 BEARING PVT LH
32 73540600 NUT.CROWNLOCK.3/8
WE185H42C (1997) Page 22 of 29

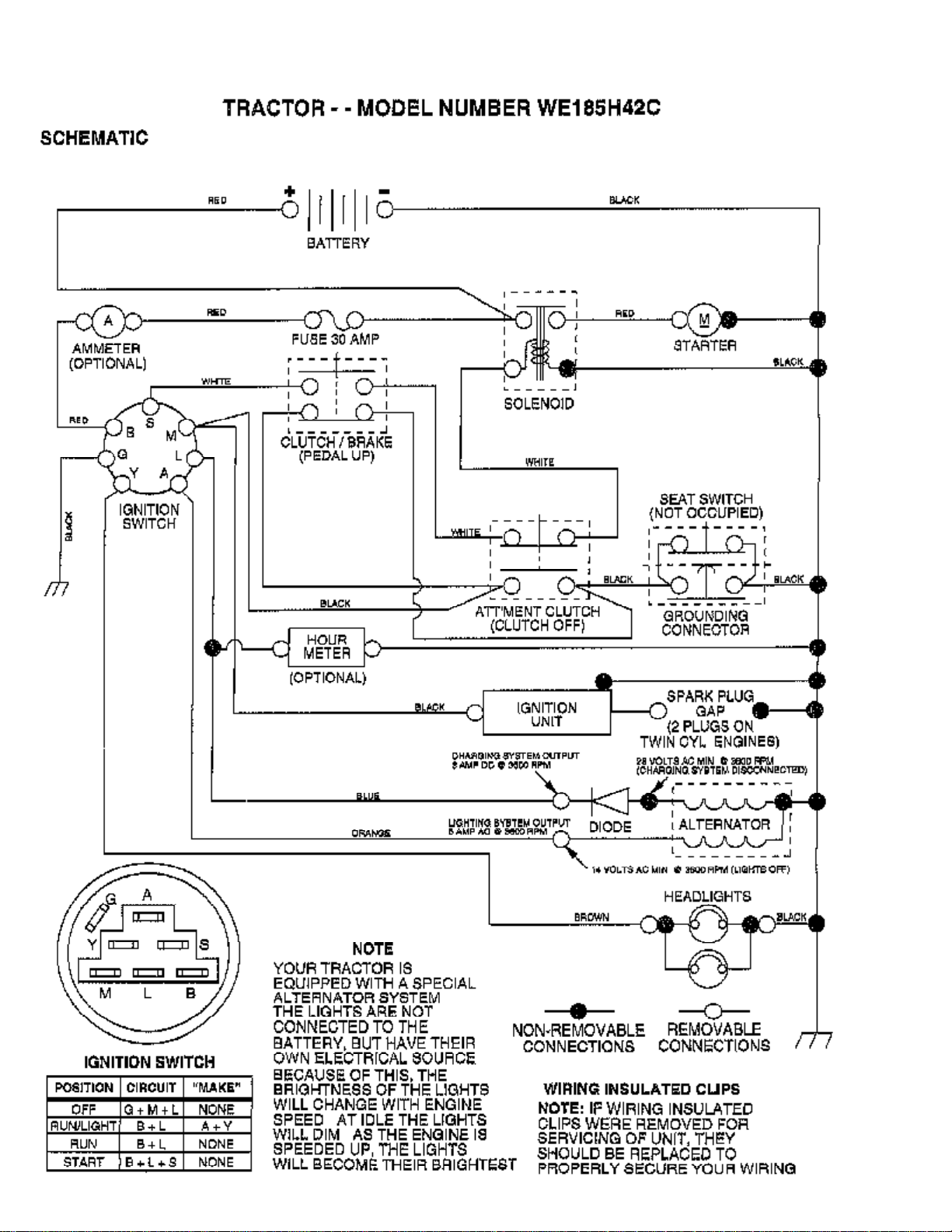

SCHEMATIC
WE185H42C (1997) Page 23 of 29
SCHEMATIC
Ref # Part Number Qty Description
REFER TO IMAGE
WE185H42C (1997) Page 24 of 29
SEAT ASSEMBLY
WE185H42C (1997) Page 25 of 29
SEAT ASSEMBLY
Ref # Part Number Qty Description
1 127428 SUB= 140119
2 140551 BRACKET PVT SEAT
3 74760616 BOLT
4 19131610 WASHER PM
5 145006 CLIP.PUSH-IN.HING
6 73800600 NUT
7 124181X SPRING COMPRESSIO
8 17490616 SCREW GTV
9 19131614 WASHER
10 155925 PAN-SEAT
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050412 BOLT-RD HD SQ NK
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
21 153236 "BOLT,SHOULDER"
22 73800500 NUT
23 74780814 BOLT
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 10040800 LOCKWASHER
WE185H42C (1997) Page 26 of 29
STEERING ASSEMBLY
WE185H42C (1997) Page 27 of 29
STEERING ASSEMBLY
Ref # Part Number Qty Description
1 140044 WHEEL STR AYP BLK
2 154427 AXLE ASM
3 156483 SPINDLE.ASM.LH
4 157473 "SPINDLE ASM,RH"
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 156438 DRAGLINK-STAMPED
11 10040600 LOCKWASHER
13 154779 BEARING AXLE
15 73901000 "NUT-LOC,FLANGE LT"
17 156546 SHAFT ASM STEERIN
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
22 71200410 SCREW HEX SOC1/423 127501 SUB= 918127501
25 154406 BRKT-STEERING
26 126847X BUSHING.DRAGLINK
27 136874 GEAR SECTOR
28 19131416 WASHER
29 17490612 SCREW
30 76020412 COTTER PIN
32 130465 TIE ROD
36 155099 BUSHING.STEERING
37 152927 "SCREW-TT,10-32 FL"
38 140045 CAP STEER AYP
39 19133808 WASHER T
40 7810H GRIPCO NUT
41 100711L ADAPTER LT
42 145054 BOOT.STEER.PL
43 121749X WASHER
44 153720 EXT SHAFT STEERIN
46 121232X CAP
47 6855M ZERK M
51 73800500 NUT
53 73680600 SUB= 73690600
54 74780520 BOLT
62 156594 KIT STEERING ASM
63 74780616 BOLT
65 154780 SPACER AXLE
66 154404 "BEARING-ARM,PITMA"
67 74781044 BOLT
68 154429 BRACE AXLE
69 160367 "SPACER BRCAE,AXLE"
70 74780636 BOLT.HEX.3/8-16X2
WE185H42C (1997) Page 28 of 29

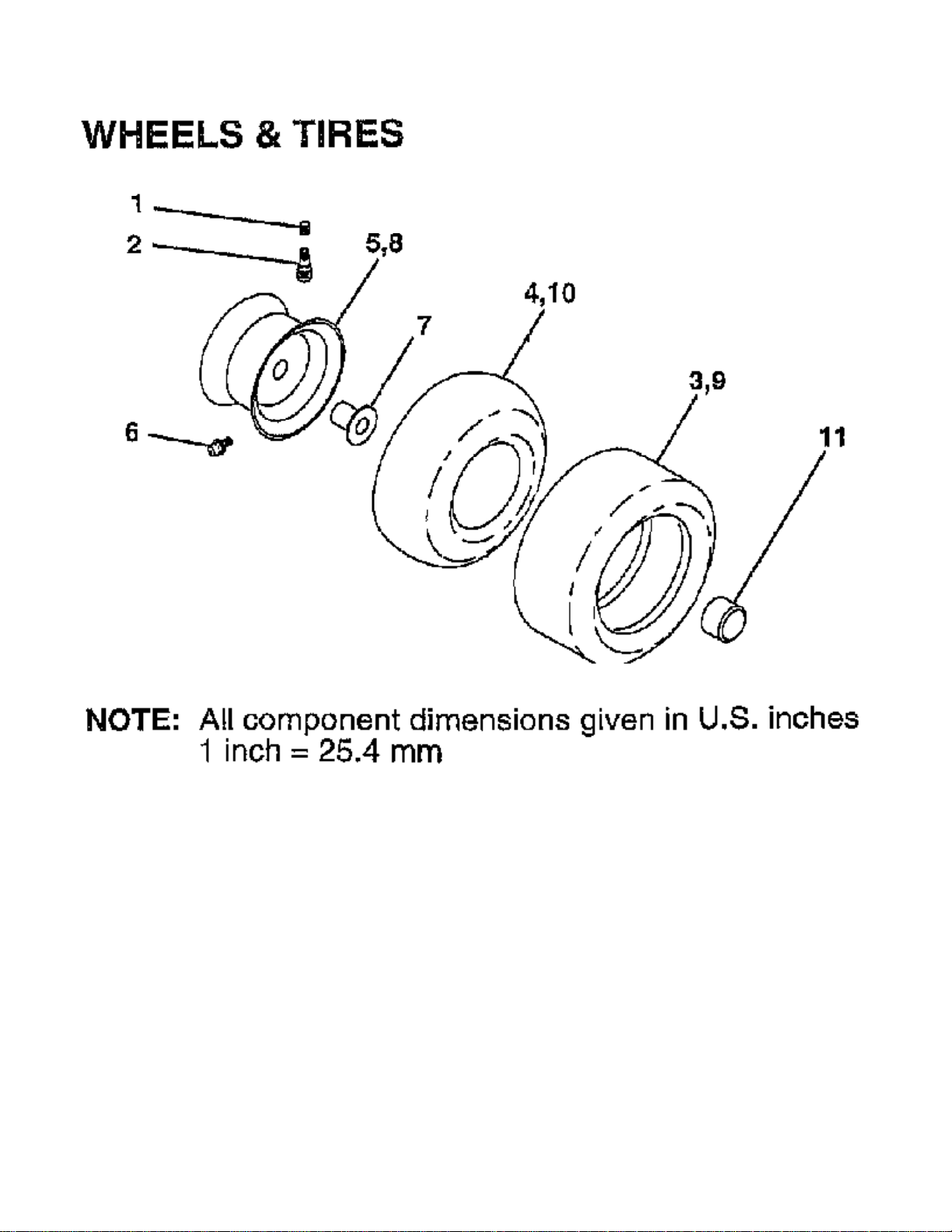

WHEELS AND TIRES
WE185H42C (1997) Page 29 of 29
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X427 "RIM ASM 6"" FRT"
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X427 "RIM AS 8"" REAR"
9 122082X SUB= 918122082X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
144334 SEALANT.TIRE 10 OZ. TUBE
Loading...
