Page 1
WE12536A (1991) Page 1 of 28
BRAKE AND REAR MOWER LIFT
Page 2
WE12536A (1991) Page 2 of 28
BRAKE AND REAR MOWER LIFT
Ref # Part Number Qty Description
1 123436X "ROD,PARK BRAKE"
2 123437X "BRKT,PARK BRAKE"
3 122504X "BRKT,CLU PEDAL LH"
4 8883R PEDAL COVER T
5 76020312 SUB= 3145
6 19131016 WASHER
7 17490508 SCREW LT
8 76020412 COTTER PIN
9 19131316 WASHER
10 124145X SUB= 139933
11 123543X "ROD,FRT BRAKE"
12 19251816 WASHER T
13 12000034 KLIP RING
14 126759X SUB= 131461
15 73350600 NUT
16 73800600 NUT
17 106888X SPRING ROD LT
18 19132012 WASHER
19 4921H SPRING.RETAINER
20 73930600 LOCKNUT
21 73680600 SUB= 73690600
22 106204X SUB= 132793
23 123672X "LINK.LIFT.3.5"""
24 123641X BRAKE PIVOT ARM
25 121978X "BRKT,LIFT SHAFT"
26 123394X "ROD,CLUTCH"
27 72110506 SUB= 72270506
28 73510500 NUT
29 123547X REAR MOWER LIFT
30 124236X CAP
Page 3
WE12536A (1991) Page 3 of 28
DASH
Page 4
WE12536A (1991) Page 4 of 28
DASH
Ref # Part Number Qty Description
1 122015X SUB= 141523
2 124540X SUB= 138392
3 123487X HOSE CLAMP
4 8548R FUEL LINE T
5 106809X SUB= 295J
6 17411310 SUB= 17521312
7 73510400 NUT
8 74760432 BOLT
9 2751R CLIP T
10 19091216 WASHER PM
11 19111116 WASHER
12 123494X SPACER SPLIT
13 2876H SPRING T
14 123493X HEIGHT ADJ
15 126115X KNOB
16 122023X ADJUSTER QUAD
17 124346X NUT
18 121789X SUPPORT DASH
19 122017X SNAP
20 72110404 BOLT
21 122016X "BRAKE,CROSS"
Page 5
WE12536A (1991) Page 5 of 28
ELECTRICAL
Page 6
WE12536A (1991) Page 6 of 28
ELECTRICAL
Ref # Part Number Qty Description
1 73510400 NUT
2 4560J SUB= 2957J
3 7662J SUB= 4152J
4 127441X SUB= 136850
5 110712X SWITCH LT
6 17021008 SCREW
7 108236X BRACKET LT
8 109553X SWITCH INTERLOCKT
9 104445X SWITCH-INTER. GT
10 17211008 SCREW
11 109310X KEY MOLDED T
12 123620X SUB= 141226
13 124211X NUT IGNITION
14 4406R SUB= STD365402
15 124083X COVER IGNITION SW
16 7192J WIRE TIE
17 121305X SWITCH SEAT
18 73510500 NUT
19 108824X FUSE HYT
20 596J SUB= 2955J
21 124190X HARNESS IGNITION
22 73350400 NUT
23 10090400 SUB= 10040400
24 74780408 BOLT
25 11050400 LOCKWASHER
26 719J SUB= 154336
27 109081X SUB= 146154
28 74760412 BOLT LT
29 19091016 WASHER
30 10040400 LOCKWASHER
31 121264X "CAP,BATTERY "
32 123198X SUB= 146525
33 102476X SUB= 150109
34 73220400 SUB= 50675
35 72240460 BOLT
36 7603J "TRAY T, BATTERY"
37 121265X SUB= 123899X
127661X SUB= 127661
MS-9250 OPERATING AND MAINTENANCE MANUAL
129503 NLA
101539X SHEET INSTR LT
Page 7
WE12536A (1991) Page 7 of 28
ENGINE AND THROTTLE
Page 8
WE12536A (1991) Page 8 of 28
ENGINE AND THROTTLE
Ref # Part Number Qty Description
1 17720408 SCREW
2 129447 CONT.THROTTLE
3 127690 ENGINE
4 73220500 NUT.HEX.5/16-18
5 71070512 SCREW
6 10040500 LOCKWASHER
7 125593X SUB= 272293
8 74760416 BOLT
9 10040400 LOCKWASHER
10 19101216 WASHER
11 124097X MUFFLER
12 101326L DEFLECTOR.222573
13 17030808 SUB= 17030814
14 7901J SHOULDER BOLT T
15 73510600 NUT
16 2751R CLIP T
17 121851X SUB= 532137180
18 11050600 LOCKWASHER
19 17490624 SCREW LT
20 126636X "KEEPER,DR BELT GR"
129057 SUB= 532129057
Page 9
WE12536A (1991) Page 9 of 28
FENDER AND CHASSIS
Page 10
WE12536A (1991) Page 10 of 28
FENDER AND CHASSIS
Ref # Part Number Qty Description
1 123650X STUD.1/4.TURN
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 122008X419 "DOOR,FENDER T"
6 17490508 SCREW LT
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126997X "CONSOLE,SHIFT CON"
10 127307X BAR SHIFT LOCK
11 1247346X NUT
12 123645X FRAME ASS'Y
13 73680500 SUB= 73690500
14 123379X "BRACE,DRAWBAR "
15 72140506 BOLT
16 74760512 BOLT
17 121904X DRAWBAR
18 126470X "CLIP,INSULATOR"
19 105839X RECEPTACLE LT
20 124332X419 "FENDER,FOOTREST T"
21 105838X RETAINER LT
129267 DECAL GRILL
106974X SUB= 133796
126712X SUB= 138272
Page 11
WE12536A (1991) Page 11 of 28

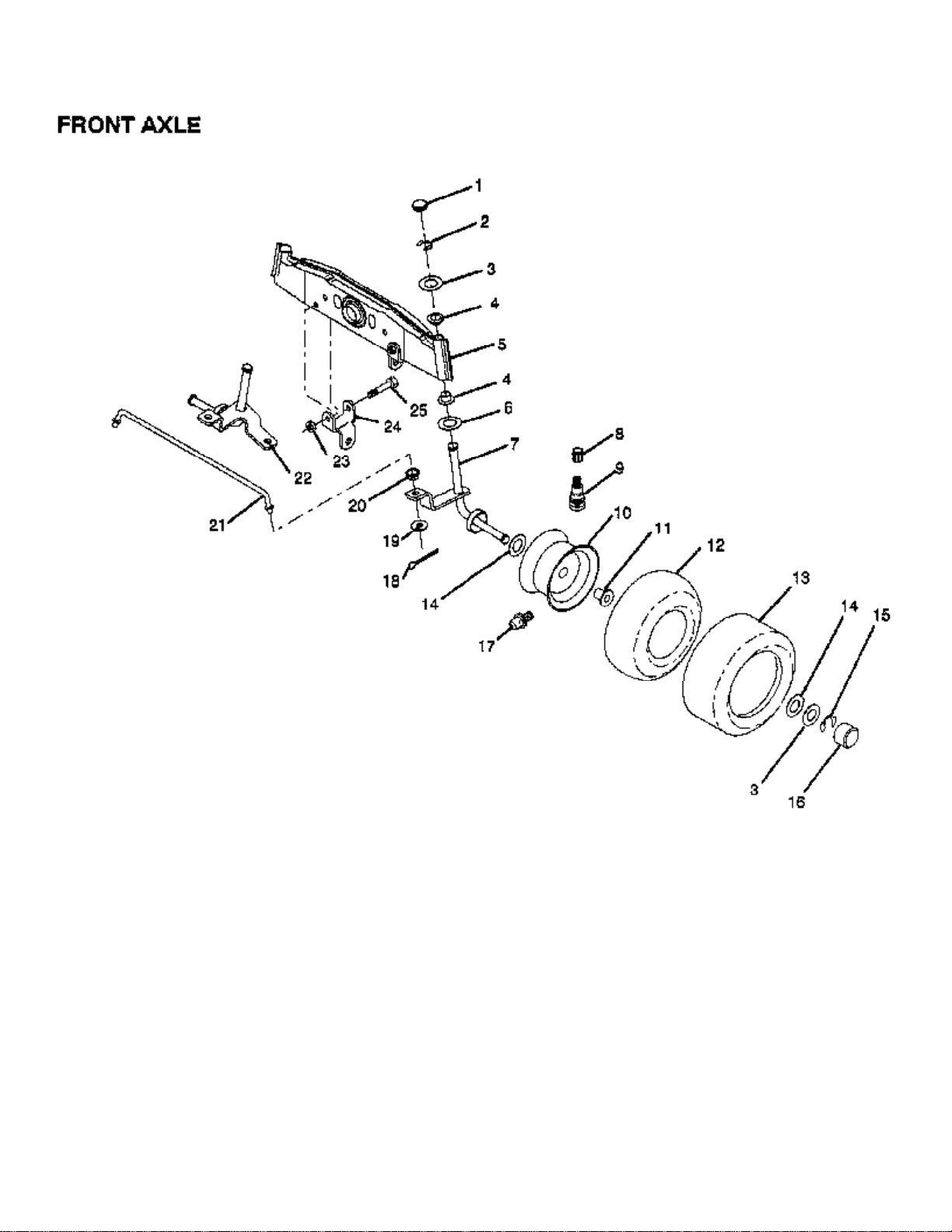

FRONT AXLE
Page 12
WE12536A (1991) Page 12 of 28
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 121922X NYLINER
5 121914X AXLE FRONT
6 6266H WASHER .T
7 121919X SPINDLE RH
8 59192 VALVE CAP
9 65139 VALVE STEM LT
10 122394X311 SUB= 137237X427
11 9040H "FLANGE, BEARING"
12 59904 TUBE.5.3/4.5/6
13 124142X SUB= 123410X
14 121749X WASHER
15 12000029 RING
16 104757X HUB CAP
17 278H FITTING LT
18 76020412 COTTER PIN
19 19131316 WASHER
20 126847X BUSHING.DRAGLINK
21 121924X ROD TIE
22 121916X SPINDLE LH
23 73680500 SUB= 73690500
24 121915X "BRKT,FRONT STAB"
25 74760540 BOLT
Page 13
WE12536A (1991) Page 13 of 28
GROUND DRIVE
Page 14
WE12536A (1991) Page 14 of 28
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 123448X KEEPER ENG BEL LH
4 123400X SUB= 135893
5 10040700 LOCKWASHER
6 71130720 BOLT
7 126520X V BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 123397X SUB= 131461
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 123402X KEEPER ENG DR RH
Page 15
WE12536A (1991) Page 15 of 28
HOOD
Page 16
WE12536A (1991) Page 16 of 28
HOOD
Ref # Part Number Qty Description
1 122032X017 SUB= 132918X419
2 127177X LIGHT BOX
3 127178 LENS T
4 127176X366 SUB= 134232X428
5 124346X NUT
6 122550X419 "STRAP,GRILL T"
7 73510400 NUT
8 19091016 WASHER
9 74780410 BOLT
10 124657X EXT SPRING
11 126675X SUB= 139888
12 74780412 SUB= 74780414
13 123693X "BRACE,HOOD"
14 123840X "DUCT,AIR"
15 120537X FOAM STRIP LT
16 122548X BRKT HOOD LH
17 122549X BRKT HOOD RH
18 17411310 SUB= 17521312
19 2751R CLIP T
129267 DECAL GRILL
Page 17
WE12536A (1991) Page 17 of 28

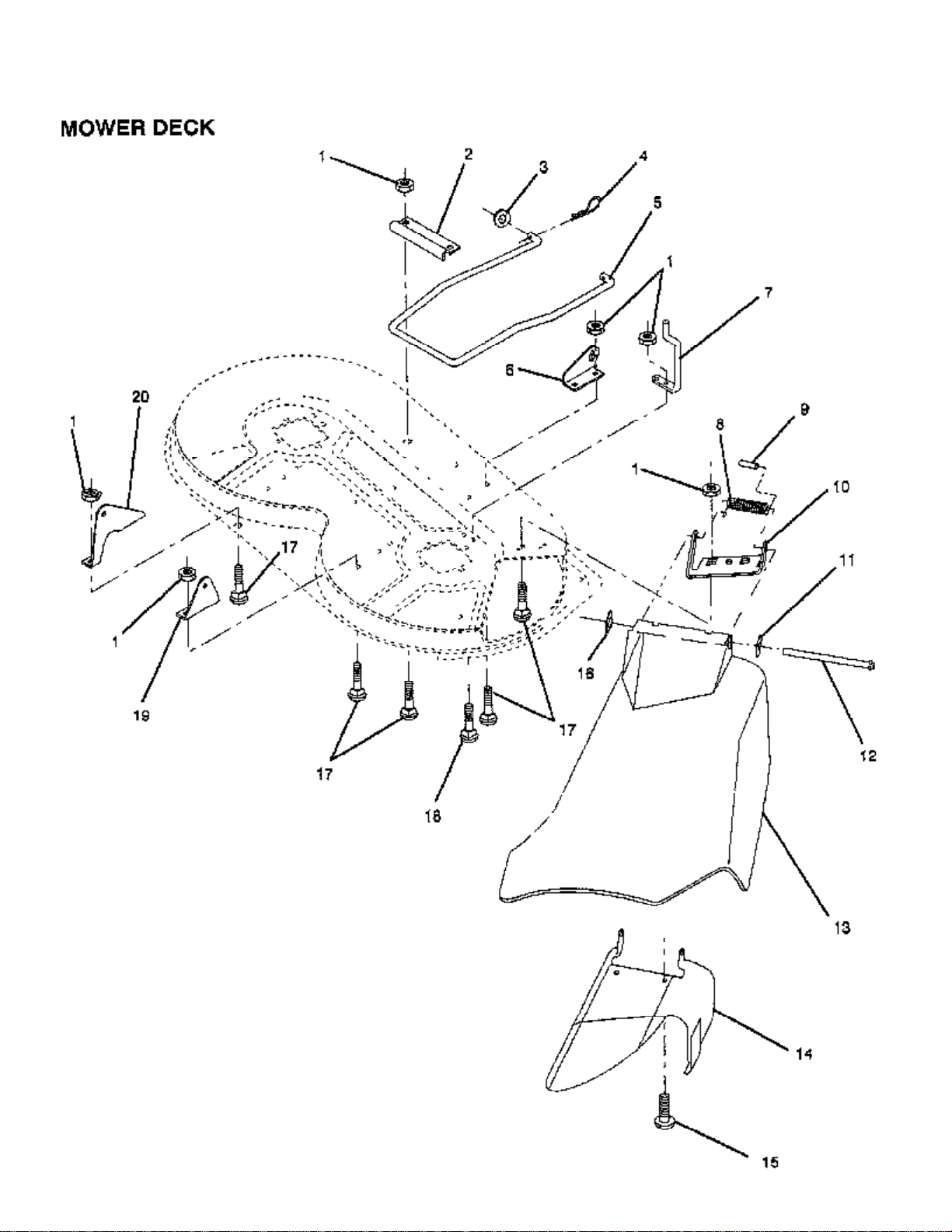

MOWER DECK
Page 18
WE12536A (1991) Page 18 of 28
MOWER DECK
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 122047X "BRKT,STAB LINK"
3 19171713 SUB= 146537
4 3146R RETAINER.SPRING
5 124636X STABILIZER MOWER
6 122045X "BRKT,FRT LIFT RH"
7 123661X "GUIDE,FRT MAN RH"
8 123713X SPRING TORSION
9 105304X CAP-SLEEVE LT
10 126361X SUB= 532136631
11 19111016 WASHER
12 121980X HINGE ROD
13 126370X SUB= 136244
14 125629X DEFL SUPT ASS'Y
15 17051007 SCREW PAN HD
16 110452X NUT PUSH M
17 72140505 BOLT
18 74760512 BOLT
19 122043X "BRKT,REAR LIFT RH"
20 122044X "BRKT,REAR LIFT LH"
3713J DECAL INSTRUCTION CAUTION
105814X DECAL.LT
121343X DECAL WARING
Page 19
WE12536A (1991) Page 19 of 28

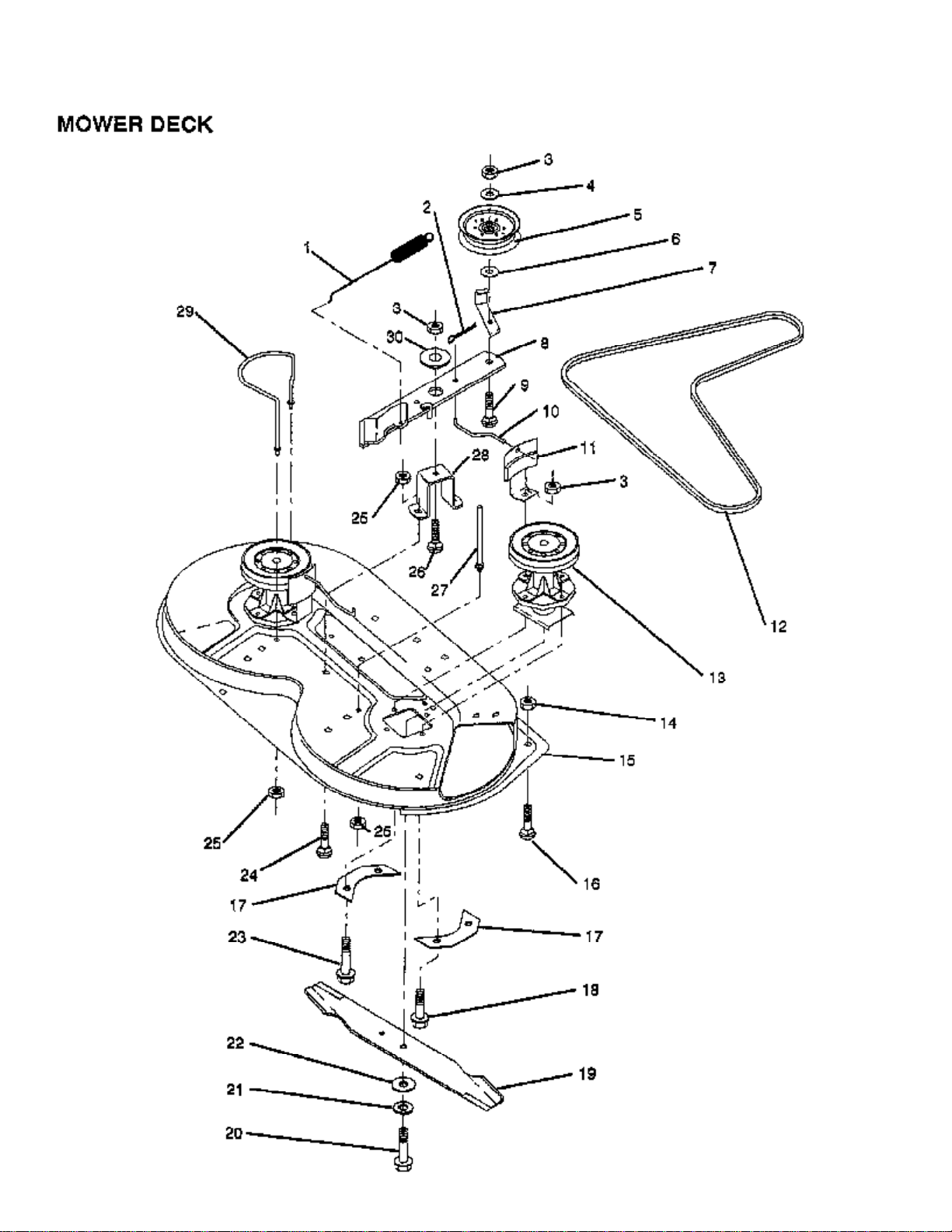

MOWER DECK
Page 20
WE12536A (1991) Page 20 of 28
MOWER DECK
Ref # Part Number Qty Description
1 122028X SUB= 140064
2 76020312 SUB= 3145
3 73680600 SUB= 73690600
4 19131412 WASHER
5 121316X PULLEY IDLER
6 19132203 WASHER GT
7 126756X GUIDE.BELT
8 123702X IDLER ARM ASS'Y
9 72110618 BOLT CARRIAGE
10 122049X ROD BRAKE
11 106578X BRAKE LT
12 124293X BELT.MOWER.79.75
13 124208X MANDREL ASS'Y
14 73680400 SUB= 73690400
15 126410X SUB= 144727
16 72140404 BOLT
17 100668L SUPPORT PLATE LT
18 17490614 SCREW
19 126338X "BLADE.36""HIGH LIF"
20 74610624 BOLT.3/8-24X1-1/2
21 10030600 SUB= 10040600
22 19132012 WASHER
23 17490620 SCREW
24 72140505 BOLT
25 73680500 SUB= 73690500
26 72110608 BOLT D
27 123439X "GUIDE,REAR BEL RH"
28 122051X "SUPT,IDLER ARM"
29 123673X GUIDE BELT LH
30 122052X SPACER RETAINER
Page 21
WE12536A (1991) Page 21 of 28

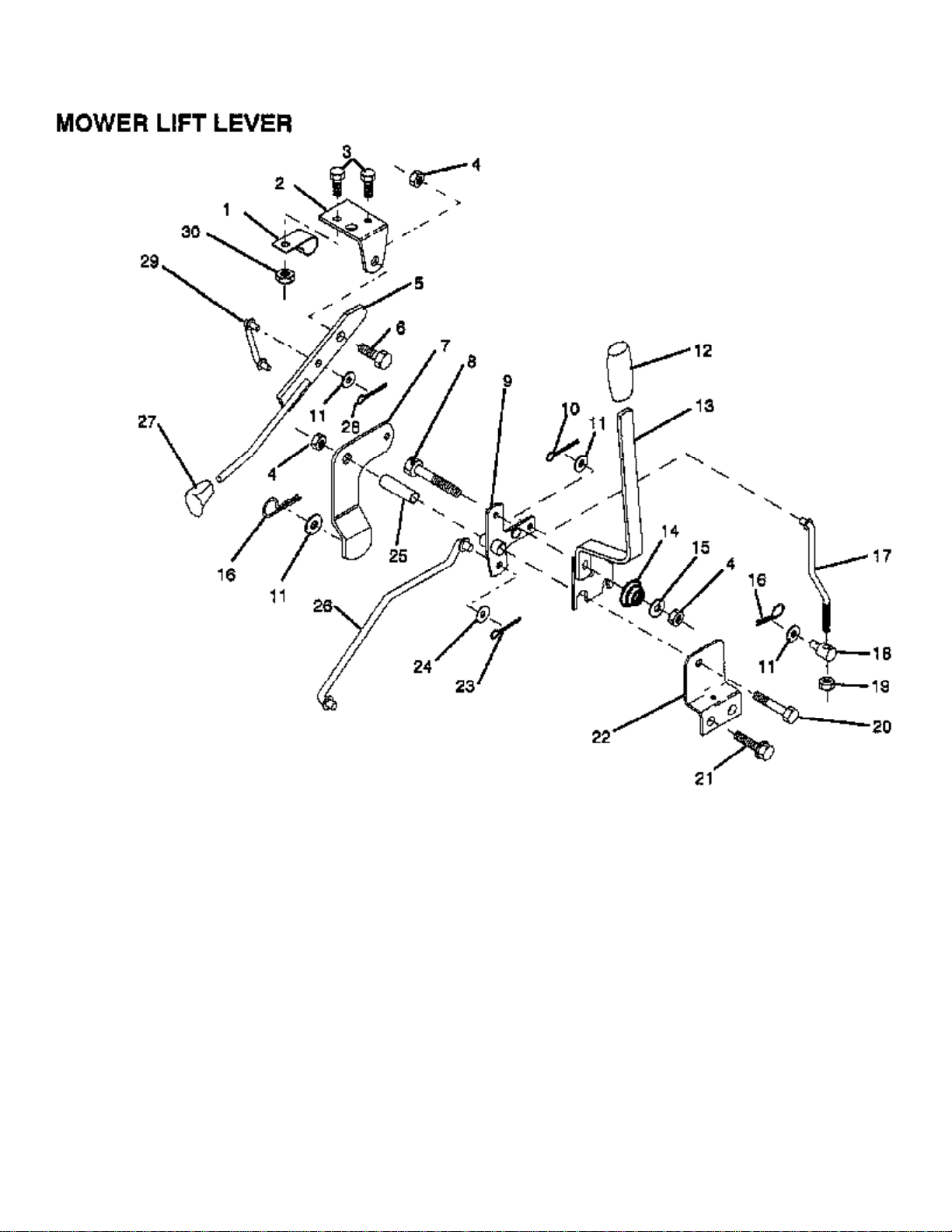

MOWER LIFT LEVER
Page 22
WE12536A (1991) Page 22 of 28
MOWER LIFT LEVER
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 74780408 BOLT
4 73680600 SUB= 73690600
5 123417X CLUTCH LEVER AS
6 106451X "BOLT, SHOULDER LT"
7 123491X CLUTCH ARM ASS'Y
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131316 WASHER
12 122027X GRIP HANDLE
13 127028 "HDLE,LIFT T"
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 4921H SPRING.RETAINER
17 123654X LINK FRT LIFT
18 7078J SUB= 142028
19 73350600 NUT
20 74760644 BOLT
21 17490508 SCREW LT
22 121929X "BRKT,MOWER HGT"
23 76020416 PIN COTTER 1/8
24 19171616 WASHER
25 121933X TUBE SPACER
26 121934X "ROD,MOWER LIFT "
27 121466X KNOB
28 76020312 SUB= 3145
29 123671X "LINK,MOWER LIFT"
30 73680400 SUB= 73690400
Page 23
WE12536A (1991) Page 23 of 28

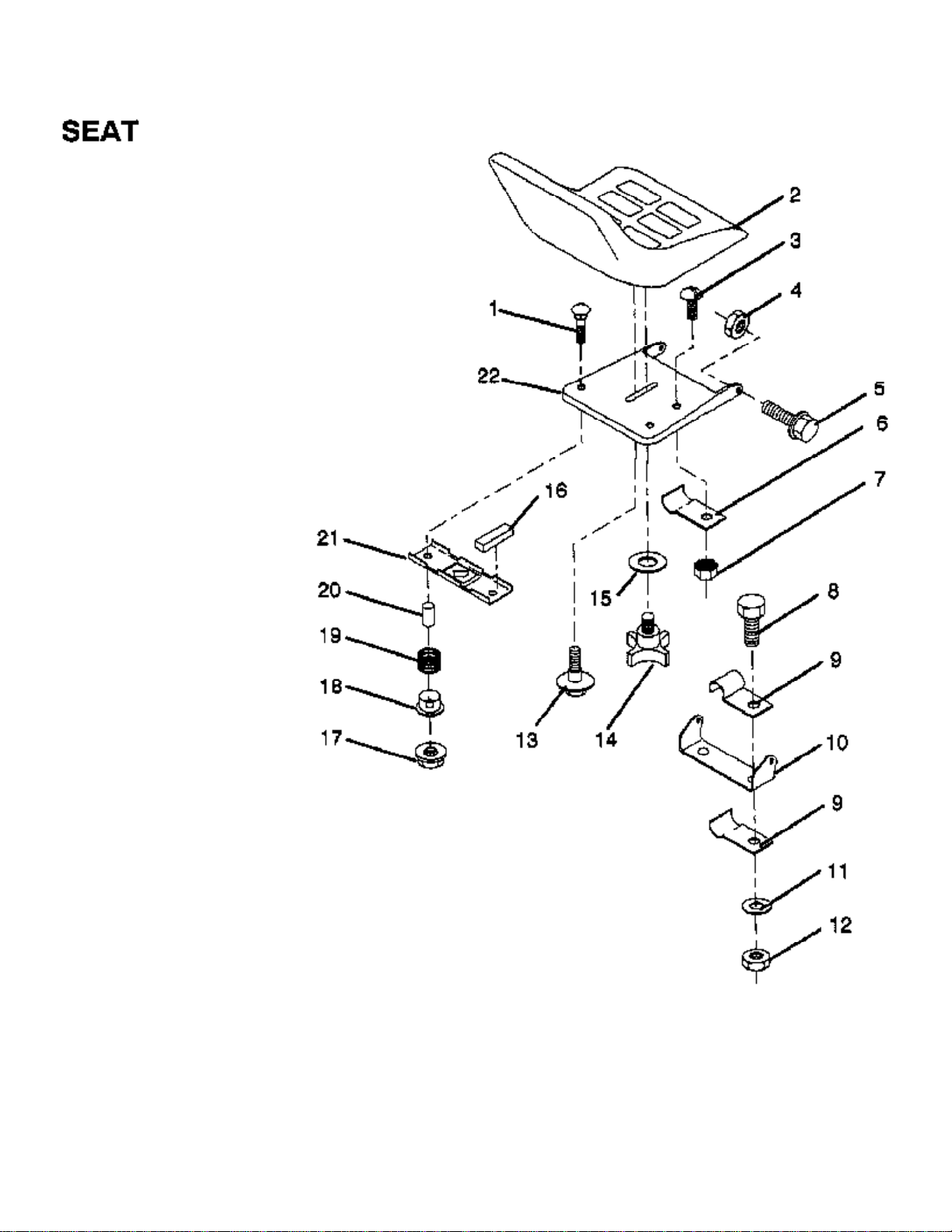

SEAT
Page 24
WE12536A (1991) Page 24 of 28
SEAT
Ref # Part Number Qty Description
1 72170410 BOLT
2 127423X SUB= 140119
3 74641008 SUB= 71031008
4 73680500 SUB= 73690500
5 105529X SUB= 139888
6 4171R CLIP T
7 73951000 "NUT,KEPS"
8 74760612 SUB= 74780612
9 126471X "CLIP,INSULATOR"
10 126656X SUB= 140551
11 19131210 WASHER
12 73680600 SUB= 73690600
13 127018X "BOLT,SHOULDER"
14 120068X "KNOB 1/2"" YT"
15 19171912 WASHER
16 121251X STRIP FORM
17 123976X SUB= 73900400
18 121248X BUSHING
19 121250X SPRING
20 121249X SPACER SPLIT
21 121246X BRKT SWITCH
22 124294X SUB= 155925
Page 25
WE12536A (1991) Page 25 of 28

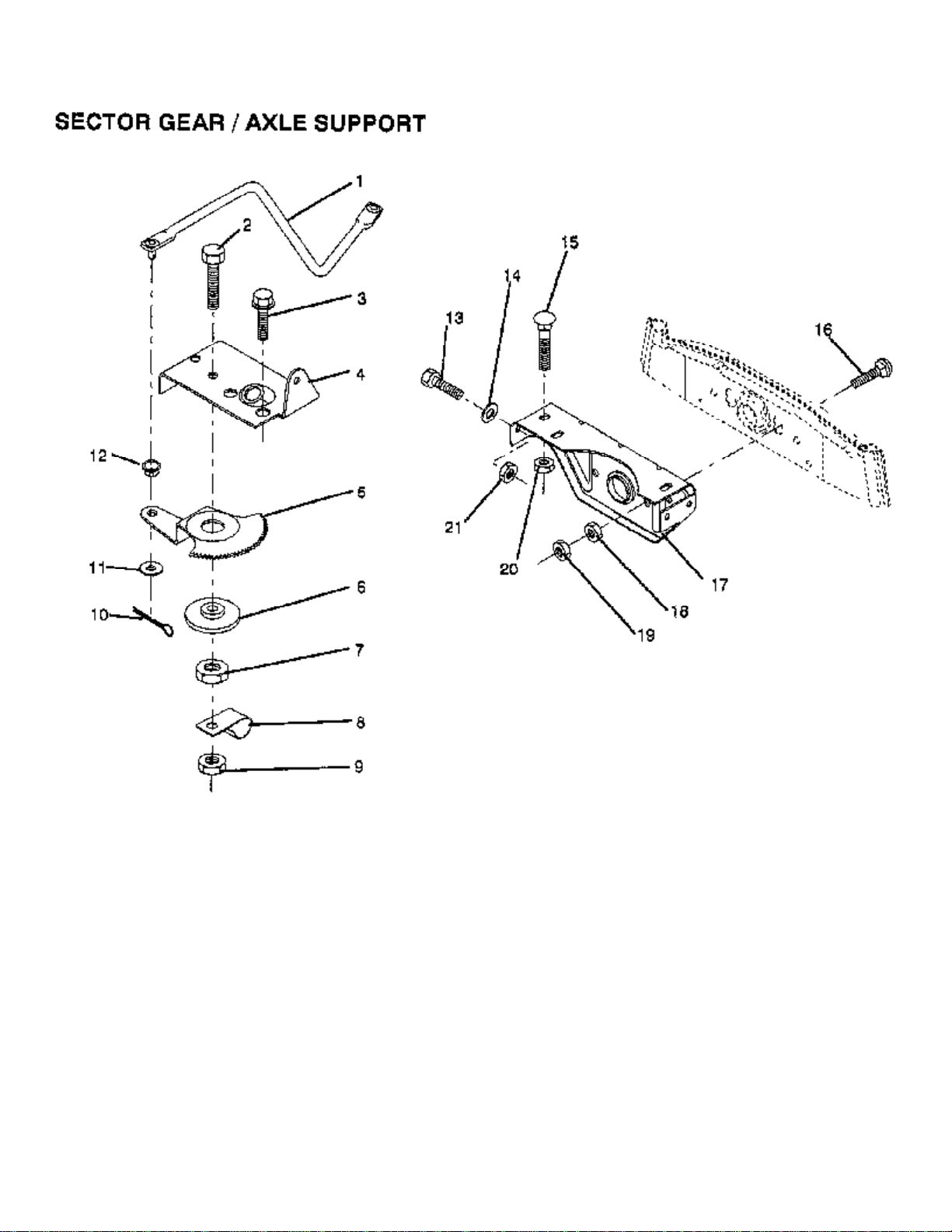

SECTOR GEAR AND AXLE SUPPORT
Page 26
WE12536A (1991) Page 26 of 28
SECTOR GEAR AND AXLE SUPPORT
Ref # Part Number Qty Description
1 124093X SUB= 132566
2 74780828 "BOLT,HEX"
3 17490508 SCREW LT
4 121925X "PLATE,STR SUPT"
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 72140622 BOLT
17 121912X "SUPT,FRT AXLE"
18 73220600 NUT.HEX.3/8-16UNC
19 73930600 LOCKNUT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500
Page 27
WE12536A (1991) Page 27 of 28
TRANSAXLE
Page 28
WE12536A (1991) Page 28 of 28
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 127053 TRANSAXLE PEERLESS 5 SPEED
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
8 17490508 SCREW LT
9 76020416 PIN COTTER 1/8
10 123393X EXT SPRING
11 126293X LINK SHIFT
12 10040400 LOCKWASHER
13 71040412 SUB= 74550412
14 19091210 WASHER LT
15 122011X "KNOB,SHT CONTROL"
16 123692X KNOB RETAINER
17 125976X SHIFT HANDLE ASSY
18 73510500 NUT
19 105701X WASH-SHFT PLT LT
20 126292X ARM SHIFT
21 73810500 NUT.LOCK.5/16-24
22 110422X SUB= 146682
23 59192 VALVE CAP
24 65139 VALVE STEM LT
25 8134H TUBE.16X6.5/7.5-8
26 124143X SUB= 122075X
27 121749X WASHER
28 121748X WASHER
29 12000001 E-RING LT
30 104757X HUB CAP
31 123412X311 SUB= 123412X427
32 123409X SPACER
33 123583X SQUARE KEY
34 74760540 BOLT
35 19111116 WASHER
36 123377X "BRKT,TRANSAXLE"
37 17490512 SCREW
