AYP UM1136E Parts List
Specifications and Main Features
- Engine: B&S model No 282707
- Item Number: UM1136E

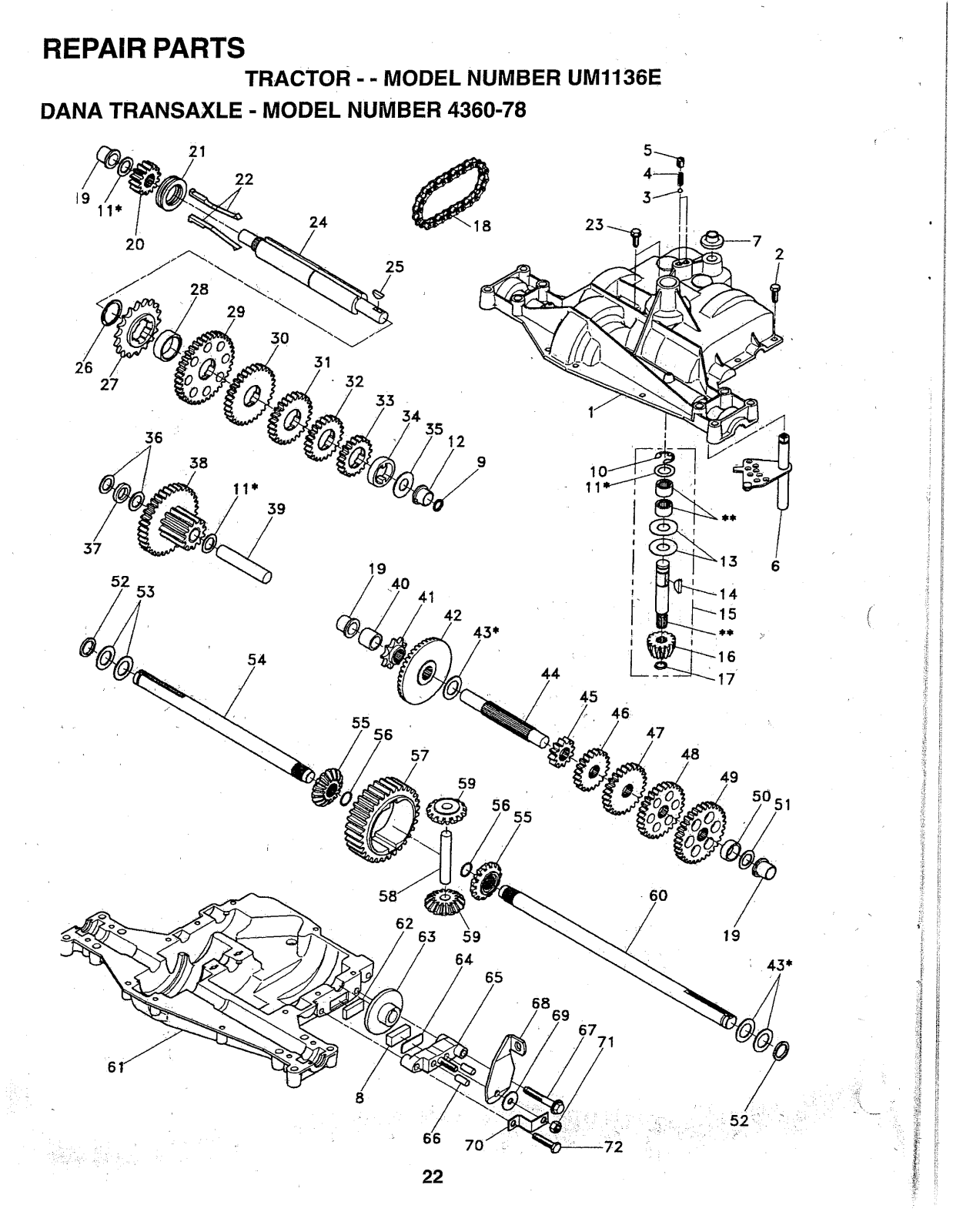

- Transaxle: 5-Speed dana model 4360-78
- Weight: Not specified
- Dimensions: All measurements are in U.S inches (1 inch = 25.4 mm)
- Major Parts:
- Battery assembly, cable assembly
- Ignition and interlock switches
- Nuts, bolts, washers, and screws of various types
- Clutch and brake assembly

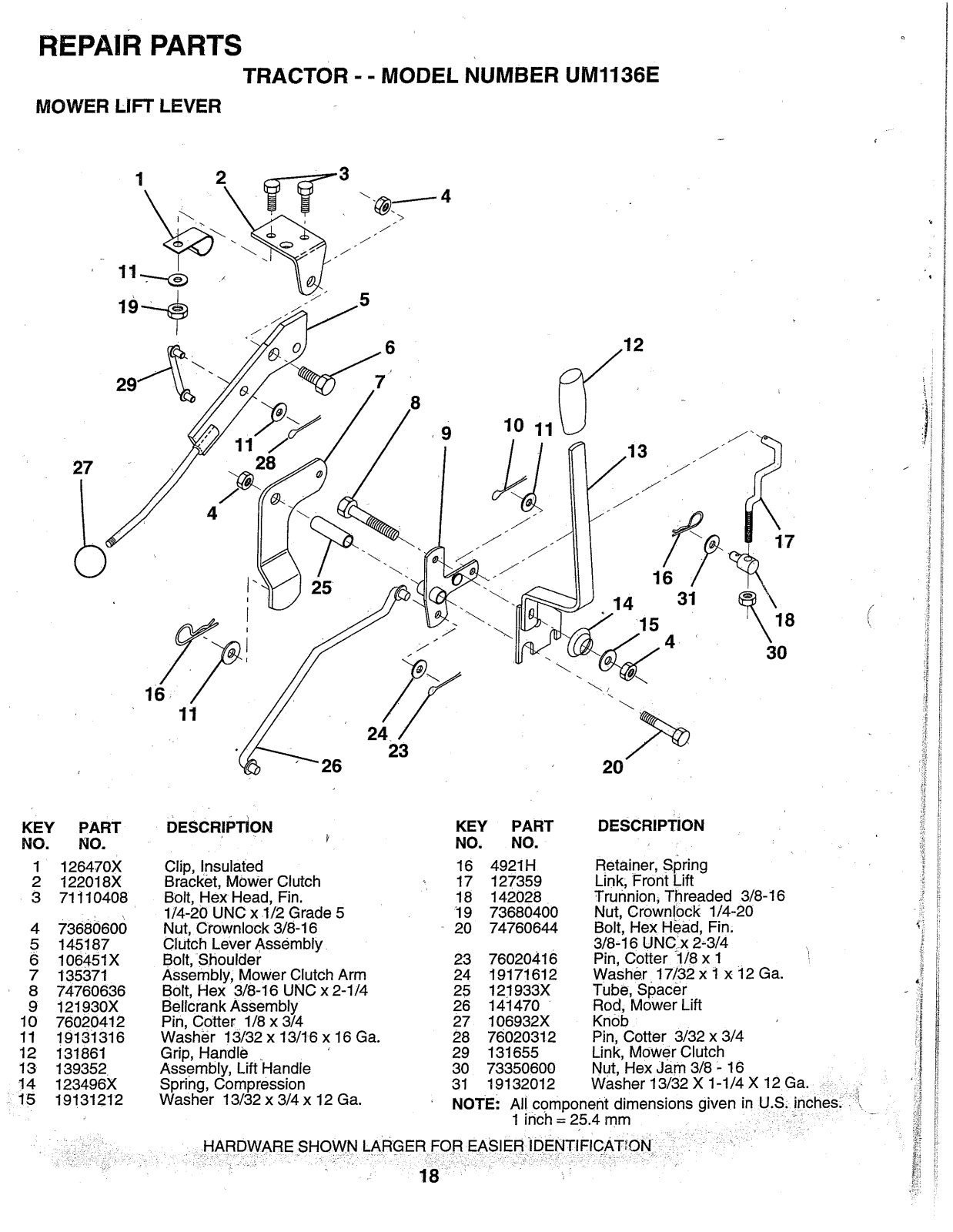

- Mower lift lever
- Deck and mower parts
- The steering system including the steering wheel and shaft
- Idler arms and pulleys
- Other Parts:
- Bagger (not included)
- Mulcher Kit (not included)
- Manual: Operator’s manual, parts manual are included
Frequently Asked Questions
Q: What engine is used in the UM1136E tractor?
A: The UM1136E tractor uses B&S Model No 282707.
Q: Type of transaxle fitted on the tractor?
A: The tractor fitted with Dana, 5 Speed transaxle, Model Number 4360-78.
Q: Do you recommend additional items that go well with your tractor, UM1136E?
A: Optional items that go well with the tractor include CE36 bagger and MK36 mulcher kit.
Q: What are the dimensions of the components as given in the manual?
A: The dimensions of the components are provided in U.S. inches with 1 inch being 25.4 mm.
Q: This model is in need of replacement parts, can these be ordered?
A: Indeed, the manual catalogs repair parts that can be swapped out.
Q: Is there an operator’s manual available?
A: Certainly, an operator and a parts manual is also a part of the package.
