TS821B (1999 & Before) Page 1 of 14
DECALS
TS821B (1999 & Before) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 143107 DECAL.PNL.CTRL.
2 143097 NAMEPLATE.HUSKEE
3 143105 DECAL.GUARD.BELT
4 143108 DECAL.BAR.USA.HUS
5 139384 DECAL.INST.PNL.CT
6 120431X DECAL TI
7 138546 DECAL.SHIFT.IND.
8 110593X SUB= 121858X
9 120075X DECAL TI
10 143103 DECAL.ENG.B&S.8HP
11 143104 DECAL.ENG.B&S.8HP
143662 MANUAL.O.TS821B
TS821B (1999 & Before) Page 3 of 14
HANDLE
TS821B (1999 & Before) Page 4 of 14
HANDLE
Ref # Part Number Qty Description
1 71191008 SCREW.PNHD.10-24
2 126951X "PANEL,CONT TI"
3 104164X TIE CABLE CRT
4 8206H GRIP T
5 4497H RETAINER M
6 81328 SHOULDER BOLT ST
7 109335X SHIFT HANDLE CRT
8 109313X GROMMET CRT
9 138400 ROD.SHIFT
10 72140608 SUB= 72110608
11 109229X LOCK CRT
12 73930600 LOCKNUT
13 19131611 WASHER CRT
14 109228X LEVER LOCK CRT
15 127013X505 SUB= 155117
16 10040400 LOCKWASHER
17 73220400 SUB= 50675
18 73731000 NUT
19 101251L CABLE-CLUTCH CRT
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 102744X SUB= 102744X431
24 105216X "ASSY CONTROL, BAR"
25 138305 CONTROL.THROTTLE
26 72140404 BOLT
27 140528 GRIP NUB SNGL HDL
28 138283 LOCK.HANDLE
TS821B (1999 & Before) Page 5 of 14
MAINFRAME, LEFT
TS821B (1999 & Before) Page 6 of 14
MAINFRAME, LEFT
Ref # Part Number Qty Description
1 106160X O-RING TI
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930572 BOLT TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 8382J SPACER TI
15 19111116 WASHER
16 100473M "SHEAVE 10"" CRT"
17 73220500 NUT.HEX.5/16-18
18 8381J SPACER TI
19 2649M KEY T
20 4914H KEY TI
21 139155 SPACER.SPLIT
22 104214X NUT TI
23 5015J TIRE TI
5014J WHEEL TI
795R SUB= 65139
24 4929H RIVET.PAN HD.1.75
25 4921H SPRING.RETAINER
26 102818X505 GUARD BELT RED
27 138399 BELT.DRIVE
28 104680X SUB= 4371J
29 12000032 KLIP RING
30 105611X SUB= 918105611X
31 74770844 BOLT1/2-20UNF2.75
32 139401 SHAFT.IDLER
33 19171616 WASHER
34 4368J SHEAVE CRT
35 140062 CAP PLUNGER BLACK
TS821B (1999 & Before) Page 7 of 14
MAINFRAME, RIGHT
TS821B (1999 & Before) Page 8 of 14
MAINFRAME, RIGHT
Ref # Part Number Qty Description
1 138402 BUMPER.ASM
2 73680500 SUB= 73690500
3 73680600 SUB= 73690600
4 74760528 BOLT
5 138669 "ASM. ENGINE, BASE"
6 74760616 BOLT
7 8450J COUNTERWEIGHT CRT
8 10040600 LOCKWASHER
9 73220600 NUT.HEX.3/8-16UNC
10 72140608 SUB= 72110608
11 4921H SPRING.RETAINER
12 4929H RIVET.PAN HD.1.75
13 5015J TIRE TI
5014J WHEEL TI
795R SUB= 65139
14 72470636 BOLT CRT
15 74760672 BOLT.3/8-16X4.5
16 104164X TIE CABLE CRT
17 REFER TO IMAGE
TS821B (1999 & Before) Page 9 of 14
TINE
TS821B (1999 & Before) Page 10 of 14
TINE
Ref # Part Number Qty Description
1 6556J SUB= 101194M
2 100445L TINE ASSY CRT
4 101194M TINE.LH.CRT
5 4929H RIVET.PAN HD.1.75
6 3146R RETAINER.SPRING
7 10040600 LOCKWASHER
8 101193M TINE RH CRT
9 74610616 BOLT
10 73610600 SUB= 7810H
11 74610624 BOLT.3/8-24X1-1/2
TS821B (1999 & Before) Page 11 of 14
TINE SHIELD
TS821B (1999 & Before) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 108711X505 SHIELD SIDE OUT L
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72140508 BOLT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 104178X505 SHIELD TINE RED
10 72140506 BOLT
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 10040400 LOCKWASHER
14 8386J TINE SHLD BRKT TI
15 108710X505 SHIELD SIDE RH
16 73220400 SUB= 50675
17 104084X505 SHIELD SIDE RED
18 72040410 BOLT
19 8389J GRIP TI
20 73220600 NUT.HEX.3/8-16UNC
21 138420 STAKE.ASM.DEPTH
22 74930656 BOLT
23 4440J HINGE CRT
24 72140408 BOLT.1/4-20X1/2
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102713X505 SHIELD LEVELING
28 138609 PIN.HINGE
TS821B (1999 & Before) Page 13 of 14

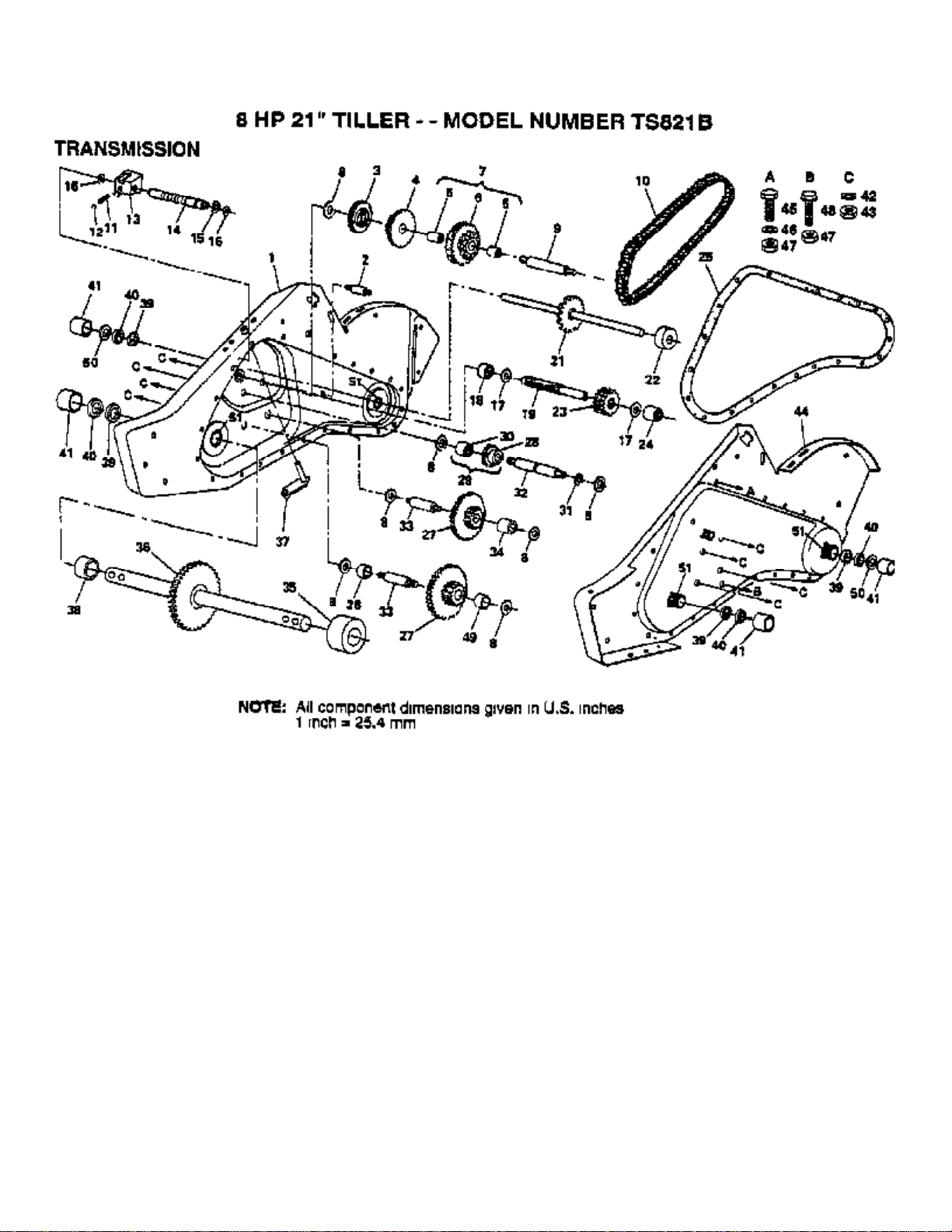

TRANSMISSION
TS821B (1999 & Before) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
142477 SUB= 160370
1 106179X SUB= 150430
2 8370J BOLT TI
3 8547J REVERSE GEAR TI
4 8546J CLUSTER GEAR TI
5 100413K "CRT, BEARING"
6 674A291 SUB= 674A290
7 674A290 SPROCKET ASSY TI
8 4358J WASHER
9 8358J REDUCTION SHFT TI
10 8371J CHAIN TI
11 100371K SPRING-SHIFT CRT
12 7392M SUB= 100482K
13 8353J SHIFT FORK TI
14 8354J SHIFT SHAFT TI
15 12000039 KLIP RING
16 4360J SUB= 102136X
17 1370H "T, BEARING"
18 4895H "TI, BEARING"
19 100724M SHAFT INPUT T
21 105378X SHAFT TINE CRT
22 106181X SPACER CRT
23 8359J INPUT PINION TI
24 5020J NEEDLE BRNG LT
25 8372J GEARCASE GSKT TI
26 106389X SPACER CRT
27 100433M GEAR CLUSTER CRT
28 8357J REVERSE GEAR TI
29 674A289 GEAR ASSY TI
30 6803J NEEDLE BEARING TI
31 12000040 KLIP RING
32 8356J REVERSE SHAFT TI
33 100016K SHAFT CRT
34 106392X SPACER CRT
35 106394X SPACER CRT
36 100436L SHAFT ASSY CRT
37 142145 BRACKET ASM SHIFT
38 106393X SPACER CRT
39 7393R OIL SEAL STD
40 140576 SEAL RING RUBBER
41 9672R CUP.FORMED.
42 10040700 LOCKWASHER
43 73610700 NUT.ASF.HEX.7/16
44 109331X SUB= 150417
45 74780512 BOLT
46 10040500 LOCKWASHER
47 73220500 NUT.HEX.5/16-18
48 100107K BOLT TI
50 102144X RING SPIRAL CRT
51 122204X SUB= 918122204X
6066J GREASE PREMIUM-1
