TS14H42A (1993) Page 1 of 23
DECALS
TS14H42A (1993) Page 2 of 23
DECALS
Ref # Part Number Qty Description
1 136794 SUB= 138955
2 135438 PLATE.NAME.SMALL
3 139094 DECAL.HOOD.RH
4 139095 DECAL.HOOD.LH
5 135437 NLA
6 139069 DECAL.PANEL.SIDE
7 127520 NLA
8 139093 DECAL.CAP.WHEEL
9 135437 NLA
10 133796 DECAL
11 4900J DECAL T
139387 MANUAL.O.TS14H42A
138311 DECAL HANDLE LIFT
BD20 42" SNOW BLOWER
C42 GRASS CATCHER
SB20 40" SNOW THROWER
TS14H42A (1993) Page 3 of 23
DRIVE
TS14H42A (1993) Page 4 of 23
DRIVE
Ref # Part Number Qty Description
1 121430X PUMP.BDU-10S-114
2 121431X TRANSAXLE.AGRIFAB
4 121323X PUMP.2003081.
5 126581X "GRD ASS'Y,BELT"
6 73680400 SUB= 73690400
7 126579X "PULLEY,TRANSAXLE"
8 121211X STANDOFF
10 121188X BRACKET
11 74780572 BOLT YT
12 10040500 LOCKWASHER
13 73680500 SUB= 73690500
14 110422X SUB= 146682
15 126578X "FAN,HYDRO"
16 74780412 SUB= 74780414
17 19092016 WASHER
18 10040400 LOCKWASHER
19 137589 V-BELT
20 126912X "FRICTION,PACK ASS"
21 126655X "PIN,ROLL METRIC"
22 137328 "ROD, TIE"
23 73040400 NUT WIZLOC T
24 74760612 SUB= 74780612
25 73680600 SUB= 73690600
26 19131216 WASHER
27 73680600 SUB= 73690600
28 121189X U BOLT
29 73680600 SUB= 73690600
30 121466X KNOB
31 126592X "LEVER,CONTROL"
32 126590X "BUSHING,PIVOT"
33 126591X "WSHER,SHIM"
34 12000003 RING T
35 126910X "SPRING,EXTENTION"
36 73040400 NUT WIZLOC T
37 137630 "ROD, BRAKE"
38 73800600 NUT
39 73350600 NUT
40 106888X SPRING ROD LT
41 19131316 WASHER
42 4921H SPRING.RETAINER
43 4497H RETAINER M
44 133261 BRAKE PARK ROD
45 071673 CAP PARKING BRAKE
46 136922 "BRKT, MTG."
47 17490616 SCREW GTV
49 138307 BRKT.MOUNTING
50 72110606 BOLT
51 73680600 SUB= 73690600
52 126577X "KEEPER,CENTERSPAN"
53 73680600 SUB= 73690600
54 122424X SUB= 149001
55 120183X NYLON BEARING
56 19211616 WASHER LT
57 1572H SUB= 2882J
58 123674X PULLEY.IDLER.FLAT
59 74760644 BOLT
60 4470J SPACER T
61 109070X BELT KEEPER LT
TS14H42A (1993) Page 5 of 23
DRIVE
Ref # Part Number Qty Description
62 19131312 WASHER
63 73680600 SUB= 73690600
64 127783 SUB= 139245
65 123789X ARM IDLER
66 123205X RETAIN BELT
67 74760624 SUB= 74930624
68 73680600 SUB= 73690600
69 19131316 WASHER
70 105710X "LINK, CLUTCH T"
71 76020412 COTTER PIN
72 105706X "LY, BEARING"
73 110812X WASHER LT
74 12000039 KLIP RING
75 105709X "SPRING, RETURN LT"
76 76020412 COTTER PIN
77 8883R PEDAL COVER T
78 136905 PULLEY ENGINE
79 M010110110 SUB= M747810110
80 10040700 LOCKWASHER
81 129921 KEEPER.BELT.ENG.L
82 74760616 BOLT
83 19131312 WASHER
84 73680600 SUB= 73690600
85 126575X "ARM,BYPASS CONTRO"
86 7605J BOLT T
87 110739X WASHER T
88 73680400 SUB= 73690400
89 126654X "CONSOLE,BYPASS"
90 11050600 LOCKWASHER
91 73610600 SUB= 7810H
92 126600X "CONSOLE,SHIFT FEN"
93 126597X "PLATE,NEUTRAL RH"
94 126598X "PLATE,NEUTRAL LH"
95 19091216 WASHER PM
96 10040400 LOCKWASHER
97 74760408 SUB= 74230408
98 121199X SPACER SPLIT
99 121749X WASHER
100 12000001 E-RING LT
101 123583X SQUARE KEY
102 121748X WASHER
107 72140506 BOLT
108 73680500 SUB= 73690500
109 137141 BRACKET.ASM.MTG
110 137140 SUB= 142600
111 19111012 WASHER T
112 126197X WASHER
TS14H42A (1993) Page 6 of 23
ELECTRICAL
TS14H42A (1993) Page 7 of 23
ELECTRICAL
Ref # Part Number Qty Description
1 121265X SUB= 123899X
2 102972X SUB= 918102972X
3 124211X NUT IGNITION
4 138982 HARNESS.IGN
5 4207J CABLE T
6 5114J STARTER CABLE GT
7 4206J CABLE-BATTERY T
8 133753 BTRY CASE W/O LID
9 109596X HOSE CLAMP T
10 138406 SUB= 146154
11 10090400 SUB= 10040400
12 73350400 NUT
13 74780408 BOLT
14 11050400 LOCKWASHER
15 73510400 NUT
16 131563 SUB= 154336
17 109553X SWITCH INTERLOCKT
21 121305X SWITCH SEAT
22 121264X "CAP,BATTERY "
23 74760412 BOLT LT
24 19091016 WASHER
25 10040400 LOCKWASHER
26 73220400 SUB= 50675
27 122147X KEY
28 108824X FUSE HYT
29 109238X TUBE T
30 123620X SUB= 141226
31 110712X SWITCH LT
32 136850 "HARNESS,LIGHT SOC"
33 4152J HEADLAMP BULB
34 108236X BRACKET LT
35 17021008 SCREW
38 719J SUB= 154336
39 11150400 LOCKWASHER
40 139282 HARNESS.PIGTAIL.H
48 9433R AMMETER T
49 131708 SUB= 532131708
50 10101000 SUB= 10071000
51 73911000 NUT
52 19070818 WASHER
53 7192J WIRE TIE
54 126016X SUB= 4021J
55 19171216 WASHER
56 4022J HEX NUT T
57 109748X RELAY ASSY T
TS14H42A (1993) Page 8 of 23
ENCLOSURES
TS14H42A (1993) Page 9 of 23
ENCLOSURES
Ref # Part Number Qty Description
1 11050400 LOCKWASHER
3 132637X418 SIDE PANEL LH
4 121444X017 PLATE.SLKSCR
5 124252X SUB= 140398
6 104783X DASH ASSY LT
7 73510400 NUT
8 137654 SUB= 140181
9 124130X SUPPORT ASS'Y
10 5479J PLUG BUTTON T
12 106784X SUB= 155013
13 104618X SUB= 155013
14 132635X505 SUB= 150301X505
15 124392X417 SUB= 147717
16 106395X LENS LT
18 131716 SUB= 532131716
19 105419X505 GRILL STRAP
22 137655X418 PANEL.SIDE.RH
23 136970 PANEL.DASH.RH
24 105464X505 SUB= 145243X505
25 135033 CHASSIS ASM
26 137275 SUB= 145009
27 136967 PANEL.DASH.LH
28 105465X505 SUB= 145244X505
30 127543X015 SADDLE.LT.GOOSE
31 19091216 WASHER PM
37 126599X505 FENDER
40 73220400 SUB= 50675
41 74760612 SUB= 74780612
42 19131312 WASHER
43 73680600 SUB= 73690600
45 17211010 SCREW LT
46 104755X """J"" FASTENER LT"
47 17490612 SCREW
48 17490512 SCREW
49 123481X SUB= 7605J
50 73680400 SUB= 73690400
51 74760620 SUB= 74780620
52 134014 PLUG DOME
53 17490608 SCREW LT
57 73510500 NUT
58 136619 BRKT FENDER
59 74180512 SCREW
60 17490412 SCREW HEX CRT
61 72140608 SUB= 72110608
64 74760614 SUB= 74760616
65 72110606 BOLT
66 133671 FOOTREST PAD
67 74191008 SCREW
68 10071000 LOCKWASHER
69 2029J WELDNUT
70 109808X HOOD LATCH T
71 74981020 SCREW
72 7206J SPACER LT
73 73731000 NUT
77 19070818 WASHER
79 2751R CLIP T
84 19111116 WASHER
87 19131210 WASHER
TS14H42A (1993) Page 10 of 23
ENCLOSURES
Ref # Part Number Qty Description
95 123198X SUB= 146525
104 19091016 WASHER
105 132644 SUB= 532132644
107 134774 PIVOT BRKT LH
108 134775 PIVOT BRKT RH
109 72140608 SUB= 72110608
112 121236X SPACER
113 126471X "CLIP,INSULATOR"
114 73800600 NUT
115 73510600 NUT
116 74760532 BOLT
117 104915X SUB= 105037X
TS14H42A (1993) Page 11 of 23
ENGINE
TS14H42A (1993) Page 12 of 23
ENGINE
Ref # Part Number Qty Description
1 132753 THROTTLE CONTROL
2 17720410 SCREW LT
3 PS1454 ENGINE KOHLER 14HP
6 CHECK WITH SUPPLIER
7 10040500 LOCKWASHER
8 74760508 BOLT
13 137350 MUFFLER.LT.12.5
14 13280328 PIPE NIPPLE
15 13200300 ELBOW
16 11050500 LOCKWASHER.5/16.E
17 M740108025 "BOLT,HEX"
23 128953 HEAT SHIELD
24 17021008 SCREW
29 137180 SUB= 532137180
31 109202X TANK.FUEL.LT.
32 123549X SUB= 158990
33 123487X HOSE CLAMP
34 110436X SUB= 9151R
35 17490612 SCREW
37 7834R SUB= 8542R
38 CHECK WITH SUPPLIER
41 128230 "CLAMP,FUEL TANK T"
42 128229 BRKT FUEL TANK T
43 74760616 BOLT
44 73680600 SUB= 73690600
45 CHECK WITH SUPPLIER
TS14H42A (1993) Page 13 of 23
LIFT
TS14H42A (1993) Page 14 of 23
LIFT
Ref # Part Number Qty Description
1 136971 WIRE.ASM.INNER
2 136968 SHAFT.ASM.LIFT.RH
3 138284 PIN GROOVE
4 12000002 SUB= 2225J
5 19211416 WASHER
6 120183X NYLON BEARING
7 125631X GRIP HANDLE
8 124526X SUB= 125925X
10 122512X SUB= 532122512
11 134619 LINK LIFT LH
12 135388 LIFT LINK RH
13 4939M SUB= 85902
14 135563 "PIN,SPRING"
15 127218 LINK.FRONT
16 73350800 NUT
17 130171 TRUNION
18 73800800 NUT.LK.W/WSH.1/2.
19 130832 SUB= 130833
20 3146R RETAINER.SPRING
21 19151216 WASHER
22 12000037 KLIP RING
23 110807X NUT T
24 19131016 WASHER
25 2876H SPRING T
26 76020308 SUB= 3145
27 110729X ROD LIFT LT
28 73350600 NUT
29 138057 KNOB INF 3/8-16
30 110810X TRUNION LT
TS14H42A (1993) Page 15 of 23

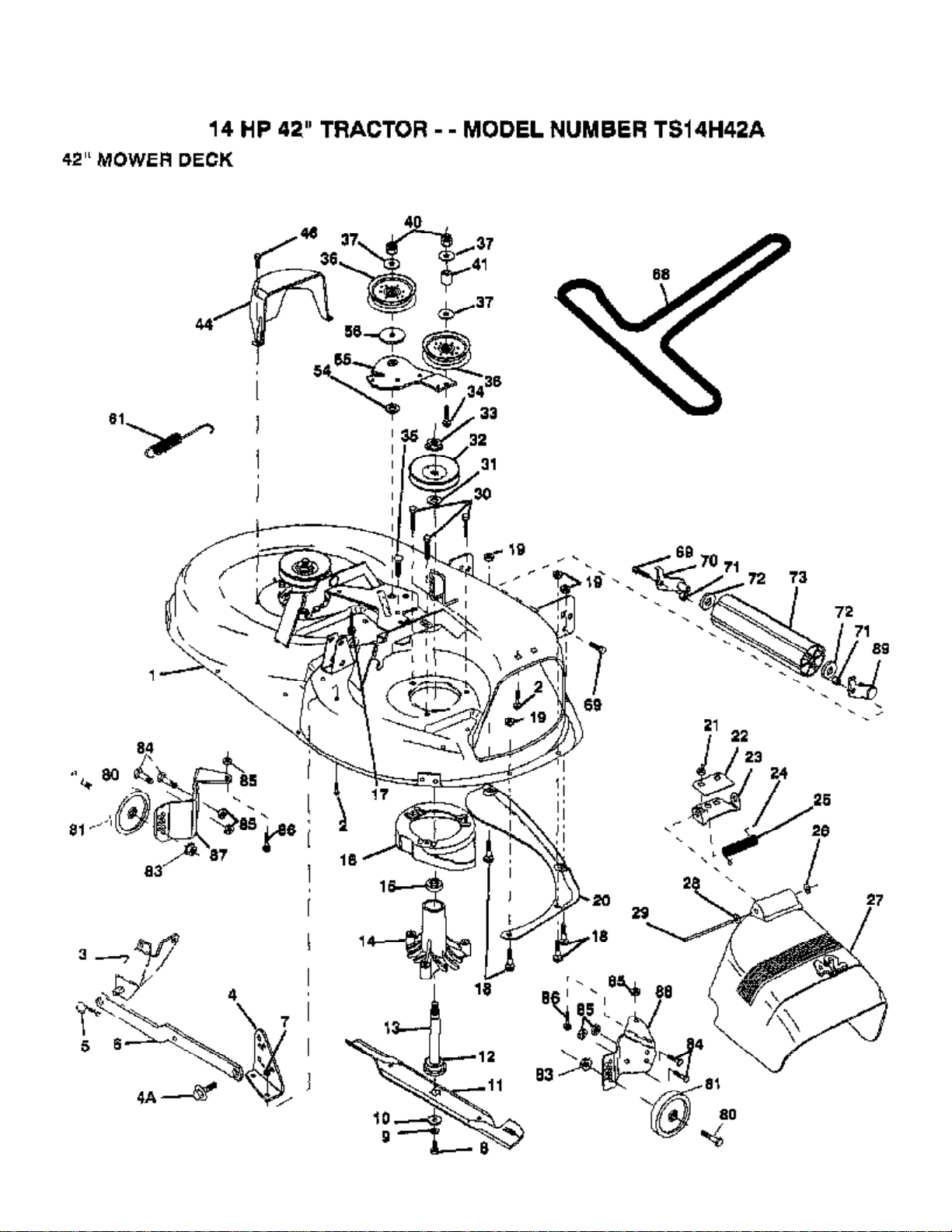

MOWER DECK
TS14H42A (1993) Page 16 of 23
MOWER DECK
Ref # Part Number Qty Description
1 138024 SUB= 145338
2 72140506 BOLT
3 138017 BRKT ASM SWAY BAR
4 138440 BRKT DECK SW BAR
4A 132827 BOLT SHD 5/16-18
5 4939M SUB= 85902
6 130832 SUB= 130833
7 73800500 NUT
8 850857 BLADE BOLT
9 10030600 SUB= 10040600
10 129962 WASHER BLADE
11 138498 "BLADE.42"" HIPERF"
12 129895 BEARING.BALL
13 137645 SUB= 137646
14 128774 HSG ASM MANDREL
15 110485X BEARING
16 136929 SUB= 140329
17 72110622 BOLT
18 72140505 BOLT
19 73800500 NUT
20 136888 SUB= 918136888
21 73680500 SUB= 73690500
22 134753 STIFFENER BRKT
23 131267 DEFLECTOR BRKT
24 105304X CAP-SLEEVE LT
25 123713X SPRING TORSION
26 110452X NUT PUSH M
27 130968 DEFLECTOR.SHIELD
28 19111016 WASHER
29 131491 HINGE ROD
30 78158 SUB= 17580520
31 129963 WASHER
32 129861 SUB= 153535
33 137266 SUB= 139729
34 72110616 BOLT
35 133835 XMAS TREE FASTNER
36 131494 FLAT IDLER PULLEY
37 19131316 WASHER
40 73680600 SUB= 73690600
41 132823 SUB= 532132823
44 134236 SUB= 140088
46 137729 SCREW.1/4-20X5/8
54 133943 HARDENED WASHER
55 133844 IDLER ARM
56 122052X SPACER RETAINER
61 131950 SPRING.EXTENSION
68 130969 BELT-V.92.4.MWR
69 74760616 BOLT
70 132274 SUB= 532132274
71 73680600 SUB= 73690600
72 19171416 WASHER
73 132264 SUB= 532132264
80 4898H BOLT M
81 105455X WHEEL.GAGE.BLK.PL
83 73800600 NUT
84 74760512 BOLT
85 73510500 NUT
86 72110504 SUB= 872110504
TS14H42A (1993) Page 17 of 23
MOWER DECK
Ref # Part Number Qty Description
87 132263 SUB= 155197
88 132262 SUB= 155198
89 132273 SUB= 532132273
138506 SUB= 145452
130794 MANDREL ASM
TS14H42A (1993) Page 18 of 23
SEAT
TS14H42A (1993) Page 19 of 23
SEAT
Ref # Part Number Qty Description
1 127427 SUB= 140119
2 126656X SUB= 140551
3 74760640 BOLT
4 19131610 WASHER PM
5 2751R CLIP T
6 73680600 SUB= 73690600
7 124181X SPRING COMPRESSIO
8 17490640 SCREW
9 19131614 WASHER
10 131451 SUB= 155925
11 121251X STRIP FORM
12 121246X BRKT SWITCH
13 121248X BUSHING
14 72050411 SUB= 872050411
15 134300 SPLIT SPACER
16 121250X SPRING
17 123976X SUB= 73900400
18 74641008 SUB= 71031008
19 73951000 "NUT,KEPS"
20 4171R CLIP T
21 105529X SUB= 139888
22 73680500 SUB= 73690500
24 19171912 WASHER
25 127018X "BOLT,SHOULDER"
26 120068X "KNOB 1/2"" YT"
27 131772 SEAT SPACER
28 131771 SPLIT SPACER
29 124238X CAP SPRING
TS14H42A (1993) Page 20 of 23
STEERING
TS14H42A (1993) Page 21 of 23
STEERING
Ref # Part Number Qty Description
1 12472X SUB= 150546
2 133988 SUB= 142033
3 135227 SPINDLE LH
4 135228 SPINDLE RH
5 6266H WASHER .T
6 121748X WASHER
7 19272016 WASHER
8 12000029 RING
9 3366R COL. SRTG. BEAR.
10 130468 SUB= 532130468
11 10040600 LOCKWASHER
12 73610600 SUB= 7810H
13 110438X BEARING
14 74011056 BOLT HEX 5/8-11
15 73901000 "NUT-LOC,FLANGE LT"
16 132624 AXLE PIN
17 128758 STEERING SHAFT
18 57079 THRUST WASHER
19 124035X SUPPORT.SHAFT
20 126684X SUB= 532126684
21 10040400 LOCKWASHER
22 71070410 "SCREW,SPECIAL"
23 127501 SUB= 918127501
24 109816X NYLINER T
25 124036X "BRKT,STEERING"
26 12000029 RING
27 136874 GEAR SECTOR
28 6266H WASHER .T
29 17490612 SCREW
30 10040600 LOCKWASHER
31 73610600 SUB= 7810H
32 130467 TIE ROD
33 19111216 WASHER M
34 10040500 LOCKWASHER
35 73810500 NUT.LOCK.5/16-24
36 1554J SUB= 155108
37 17431008 SUB= 98000165
38 126805 INSERT CAP STRG WH AUT
39 100712K WASHER
40 73940800 SUB= 73360800
41 100711L ADAPTER LT
43 121749X WASHER
44 121748X WASHER
45 12000029 RING
46 121232X CAP
47 6855M ZERK M
TS14H42A (1993) Page 22 of 23

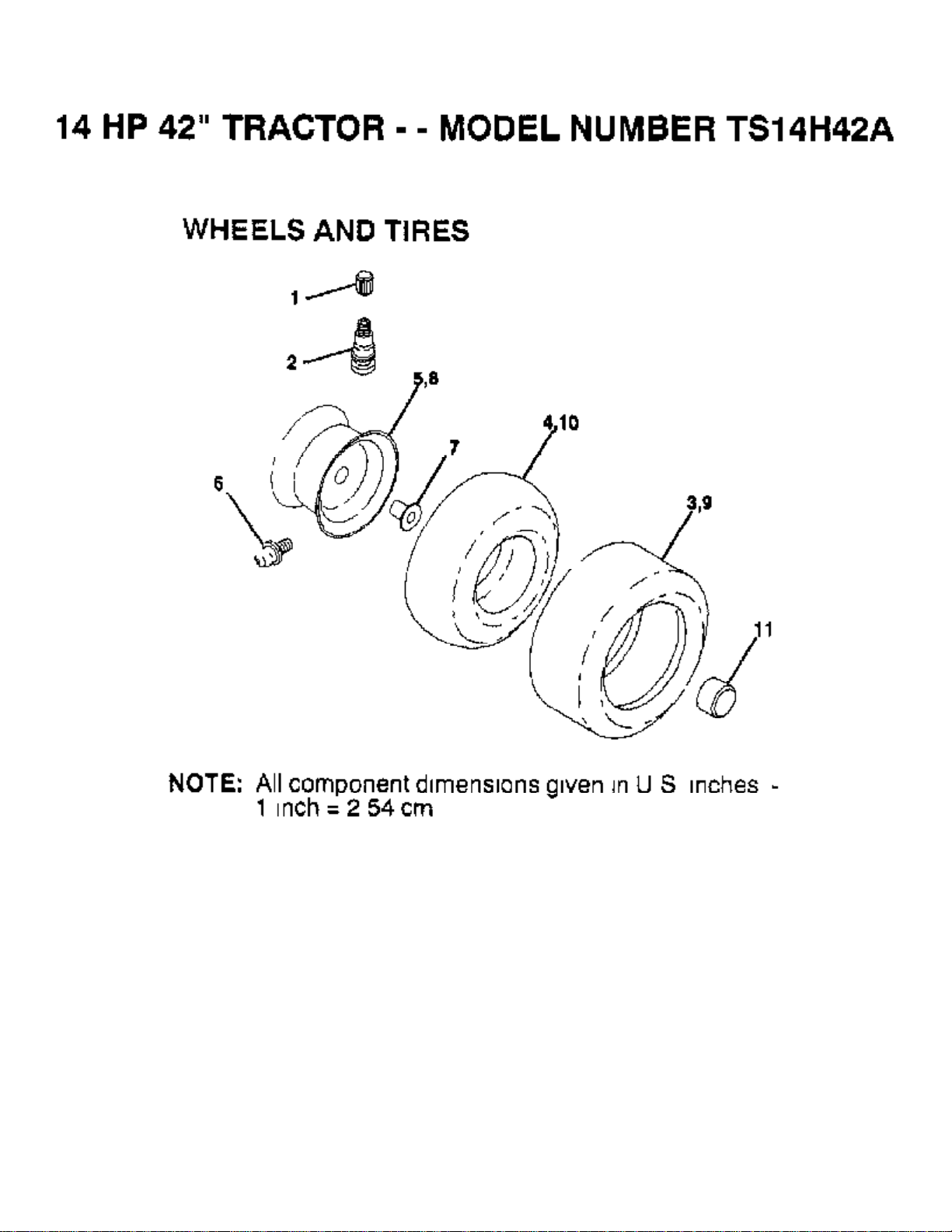

WHEELS AND TIRES
TS14H42A (1993) Page 23 of 23
WHEELS AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 106222X SUB= 122073X
4 59904 TUBE.5.3/4.5/6
5 106732X361 SUB= 106732X417
6 278H FITTING LT
7 9040H "FLANGE, BEARING"
8 106108X361 SUB= 106108X417
9 106268X SUB= 122074X
10 7152J TUBE.18X9.5-8
11 104757X HUB CAP
Loading...
