AYP TR500F Parts List

TR500F (1995) Page 1 of 14

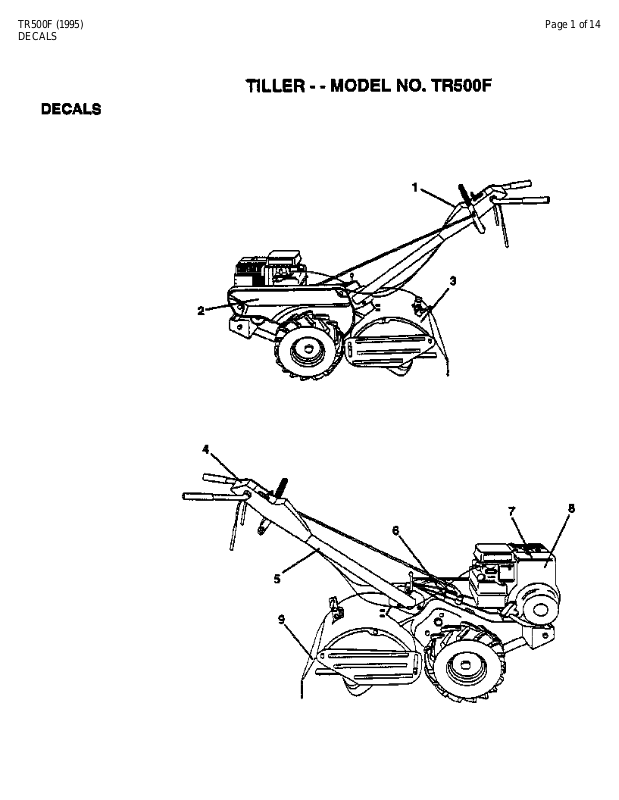

DECALS

TR500F (1995) Page 2 of 14
DECALS

Ref # Part Number Qty Description

1 139437 DECAL.PNL.CONTROL
2 128536 DECAL.LOGO
3 139442 DECAL.SHLD.TINE
4 136943 DECAL.INSTRUCTION
5 120431X DECAL TI
6 102180X DECAL CRT
7 110593X SUB= 121858X
8 271948 DECAL, BRIGGS & STRATTON
9 120075X DECAL TI

147936 MANUAL.O.TR500F

TR500F (1995) Page 3 of 14
HANDLE

TR500F (1995) Page 4 of 14
HANDLE

Ref # Part Number Qty Description

1 71191008 SCREW.PNHD.10-24
2 126951X "PANEL,CONT TI"
3 104164X TIE CABLE CRT
4 8206H GRIP T
5 4497H RETAINER M
6 81328 SHOULDER BOLT ST
7 109335X SHIFT HANDLE CRT
8 109313X GROMMET CRT

9 109337X SHIFT ROD CRT
10 72110608 BOLT D
11 109229X LOCK CRT
12 73930600 LOCKNUT
13 19131611 WASHER CRT
14 109228X LEVER LOCK CRT
15 127013X550 SUB= 155117
16 10040400 LOCKWASHER
17 73220400 SUB= 50675
18 73731000 NUT
19 147668 CABLE.CLUTCH.48.Z
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 102744X SUB= 102744X431
24 105216X "ASSY CONTROL, BAR"
25 127012X "CONT,THROTTLE"
26 72140404 BOLT
27 140528 GRIP NUB SNGL HDL

TR500F (1995) Page 5 of 14
MAINFRAME, LEFT
