T5517A (1999 & Before) Page 1 of 26
BELT GUARD AND PULLEY
T5517A (1999 & Before) Page 2 of 26
BELT GUARD AND PULLEY
Ref # Part Number Qty Description
1 121313X SUB= 159233
2 109227X PAD IDLER TI
3 130812 ENGINE PULLEY
4 74770812 SCREW
5 72140404 BOLT
6 121463X KEEPER BELT
7 104213X NUT-CAP TI
8 19091016 WASHER
9 131158X550 GUARD.PNT.BELT
10 72140405 BOLT T
11 9180R V BELT STD
12 23230506 SET SCREW
13 2649M KEY T
14 9175R TRANS SHEAVE RT
15 110528X BOLT TI
16 12000036 KLIP RING TI
17 73350600 NUT
18 9178R SUB= 75673
19 674A30 IDLER ARM TI
20 74760620 SUB= 74780620
21 106968X SHAFT IDLER TI
22 73350500 JAM NUT TI
23 73220400 SUB= 50675
24 10040400 LOCKWASHER
T5517A (1999 & Before) Page 3 of 26
DECALS
T5517A (1999 & Before) Page 4 of 26
DECALS
Ref # Part Number Qty Description
1 143107 DECAL.PNL.CTRL.
2 148806 DECAL.GUARD.HUSKE
3 143097 NAMEPLATE.HUSKEE
4 143108 DECAL.BAR.USA.HUS
5 136943 DECAL.INSTRUCTION
6 120431X DECAL TI
7 102180X DECAL CRT
8 110593X SUB= 121858X
9 120075X DECAL TI
10 148808 DECAL.ENG.B&S.5HP
11 148809 DECAL.ENG.SML.5HP
147245 MANUAL.O.TS517A
T5517A (1999 & Before) Page 5 of 26
DECALS
T5517A (1999 & Before) Page 6 of 26
DECALS
Ref # Part Number Qty Description
1 132591 NLA
2 137688 DECAL.WEF500B
3 137689 DECAL.WEF500B
4 110613X DECAL TI
5 110614X DECAL TI
6 110612X DECAL TI
7 271948 DECAL, BRIGGS & STRATTON
8 120076X SUB= 120075X
147929 MANUAL.WEF500B.EN
147930 MANUAL.WEF500B
T5517A (1999 & Before) Page 7 of 26
HANDLE
T5517A (1999 & Before) Page 8 of 26
HANDLE
Ref # Part Number Qty Description
1 137176X550 PANEL.CNTRL.HDLE.
2 72140512 BOLT
3 73680500 SUB= 73690500
4 19111116 WASHER
5 2621J500 SUB= 154127
6 140536 GRIP NUB DOUBLE
7 74760524 BOLT.HEX.5/16-1.5
8 3069J SUB= 164937
9 8206H GRIP T
10 1685H SUB= 68478
11 3067J SUB= 100382K
12 3070J SPRING EXT TI
13 19121414 WASHER
14 136376 KNOB HANDLE
15 471J BOLT CT
16 10040500 LOCKWASHER
17 73220500 NUT.HEX.5/16-18
18 98000129 NUT
19 72140506 BOLT
20 9209R550 PANEL.HANDLE.TILL
21 72110508 BOLT CRT
22 2622J500 SUB= 159764
23 19131312 WASHER
T5517A (1999 & Before) Page 9 of 26
HANDLE
T5517A (1999 & Before) Page 10 of 26
HANDLE
Ref # Part Number Qty Description
1 71191008 SCREW.PNHD.10-24
2 126951X "PANEL,CONT TI"
3 104164X TIE CABLE CRT
4 8206H GRIP T
5 4497H RETAINER M
6 81328 SHOULDER BOLT ST
7 109335X SHIFT HANDLE CRT
8 109313X GROMMET CRT
9 109337X SHIFT ROD CRT
10 72110608 BOLT D
11 109229X LOCK CRT
12 73930600 LOCKNUT
13 19131611 WASHER CRT
14 109228X LEVER LOCK CRT
15 127013X505 SUB= 155117
16 10040400 LOCKWASHER
17 73220400 SUB= 50675
18 73731000 NUT
19 147668 CABLE.CLUTCH.48.Z
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 102744X SUB= 102744X431
24 105216X "ASSY CONTROL, BAR"
25 127012X "CONT,THROTTLE"
26 72140404 BOLT
27 140528 GRIP NUB SNGL HDL
T5517A (1999 & Before) Page 11 of 26
MAINFRAME, LEFT
T5517A (1999 & Before) Page 12 of 26
MAINFRAME, LEFT
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930568 BOLT TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 86777 SUB= 750097
10 9484R CONDIUT CLIP T
11 10040400 LOCKWASHER
12 73220400 SUB= 50675
13 23230506 SET SCREW
14 120938X SPACER
15 19111116 WASHER
16 100473M "SHEAVE 10"" CRT"
17 73220500 NUT.HEX.5/16-18
19 2649M KEY T
20 110653X GUARD CRT
21 145216 SPACER.SPLIT
22 104214X NUT TI
23 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
24 126875X RIVET.DRILL.1.75
25 4497H RETAINER M
26 131159X505 "GUARD, BELT"
27 132672 BELT-V
28 104679X PULLEY-IDLER TI
29 12000032 KLIP RING
30 105611X SUB= 918105611X
31 102384X BOLT CRT
32 102141X SHIFT ARM CRT
33 74760616 BOLT
34 102383X COUNTERWEIGHT CRT
35 74760524 BOLT.HEX.5/16-1.5
36 102331X BRACKET LH CRT
37 130816 ENGINE SHEAVE
38 131558 BELT GUARD BRKT
39 140062 CAP PLUNGER BLACK
40 73800400 NUT
41 19091016 WASHER
T5517A (1999 & Before) Page 13 of 26
MAINFRAME, RIGHT
T5517A (1999 & Before) Page 14 of 26
MAINFRAME, RIGHT
Ref # Part Number Qty Description
1 73510500 NUT
2 102332X BRACKET RH CRT
3 74760524 BOLT.HEX.5/16-1.5
4 102173X COUNTERWEIGHT CRT
5 10040600 LOCKWASHER
6 73220600 NUT.HEX.3/8-16UNC
7 4497H RETAINER M
8 126875X RIVET.DRILL.1.75
9 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
10 REFER TO IMAGE
T5517A (1999 & Before) Page 15 of 26
TINE
T5517A (1999 & Before) Page 16 of 26
TINE
Ref # Part Number Qty Description
1 674A66 TINE OUTER RH T
2 3146R RETAINER.SPRING
3 674A64 SUB= 156924
4 674A63 TINE.INNER.LH
5 674A65 TINE.OUTER.LH.T
6 4929H RIVET.PAN HD.1.75
T5517A (1999 & Before) Page 17 of 26
TINE
T5517A (1999 & Before) Page 18 of 26
TINE
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 132673 PIN.CLEVIS.SHEAR
3 6554J "TINE.LH.12"""
4 3146R RETAINER.SPRING
5 132727 HUB&PLATE ASM LH
6 73610600 SUB= 7810H
7 10040600 LOCKWASHER
8 74610616 BOLT
9 4460J SUB= 6555J
10 132728 HUB&PLATE ASM RH
11 6555J "TINE.RH.12"""
T5517A (1999 & Before) Page 19 of 26
TINE SHIELD
T5517A (1999 & Before) Page 20 of 26
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X505 SHIELD.SD.OUT.LH
3 8393J STAKE PIN TI
4 12000036 KLIP RING TI
5 72140506 BOLT
6 8394J SPRING TI
7 8392J LATCH BRACKET TI
8 109230X SPRING CRT
9 102326X505 "SHIELD, TINE"
10 104085X505 "SHIELD, SIDE"
11 73220500 NUT.HEX.5/16-18
12 10040500 LOCKWASHER
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 104101X505 SHIELD.SD.OUT.RH
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 72040410 BOLT
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X500 STAKE DEPTH 16
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X505 LEVELING SHIELD
28 120588X PIN HINGE
T5517A (1999 & Before) Page 21 of 26
TRANSMISSION
T5517A (1999 & Before) Page 22 of 26
TRANSMISSION
Ref # Part Number Qty Description
1 74760524 BOLT.HEX.5/16-1.5
2 74780652 BOLT HEX 3/8-16
3 19131311 WASHER
5 73800600 NUT
6 9056R550 SHIELD.PNT.TINE
7 1949J500 SUB= 9181949J500
8 110519X500 SUB= 110519X
9 10040500 LOCKWASHER
10 73220500 NUT.HEX.5/16-18
11 74760544 SUB= 74780544
12 126669X SUB= 532126669
14 9173R SPLIT SPACER RT
15 73510500 NUT
16 19091412 WASHER
17 19092016 WASHER
18 10040400 LOCKWASHER
19 74610412 BOLT
20 REFER TO IMAGE

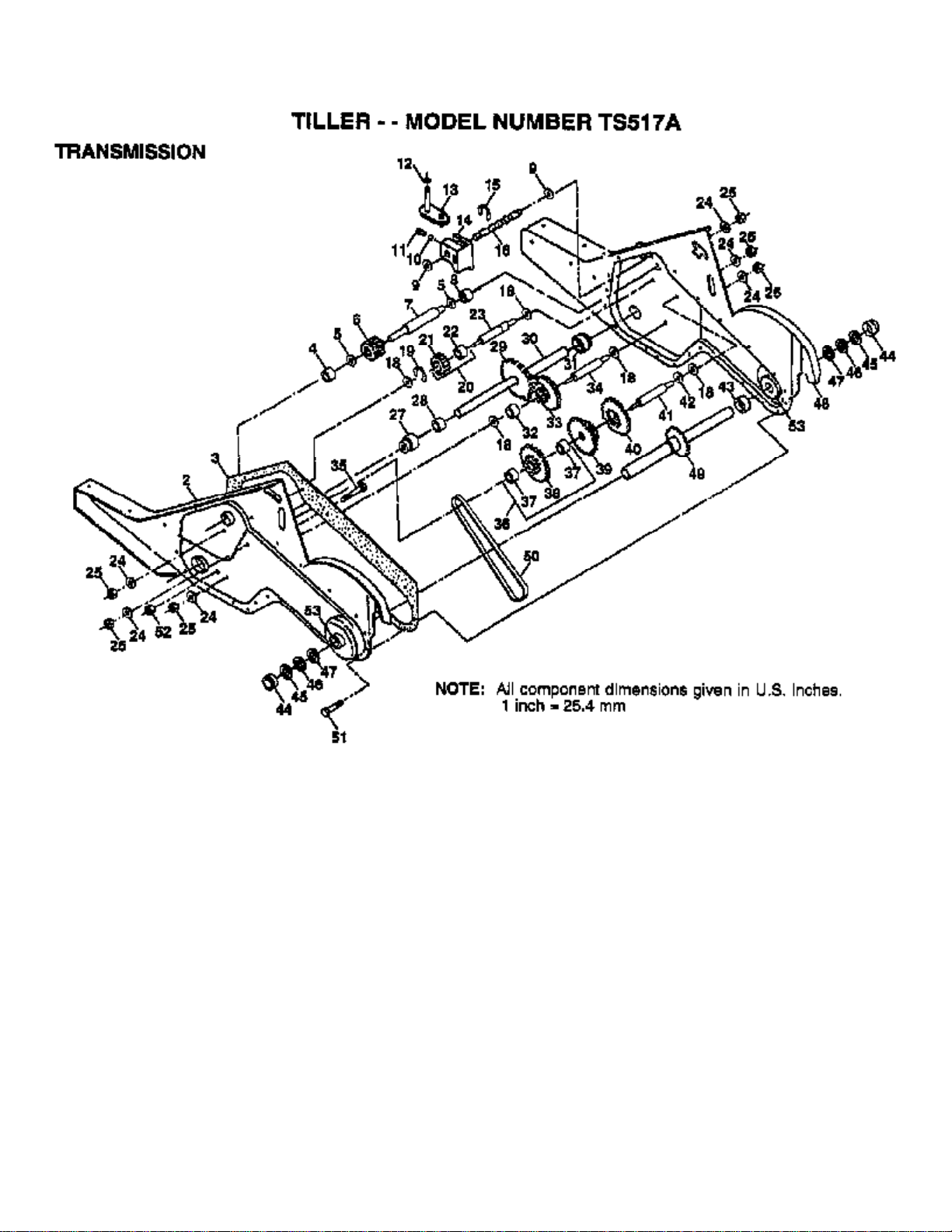

T5517A (1999 & Before) Page 23 of 26
TRANSMISSION
T5517A (1999 & Before) Page 24 of 26
TRANSMISSION
Ref # Part Number Qty Description
1 140524 SUB= 155112
2 139544 SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 137335 GEAR PINION INPUT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 142145 BRACKET ASM SHIFT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 140525 SHAFT.SHIFT.4.250
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
27 143009 BEARING.SHAFT.LH.
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 109204X SUB= 150737
31 143008 BEARING.SHAFT.RH.
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 137300 SPROCKET ASM.
37 4422J BEARING
38 137301 SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 140576 SEAL RING RUBBER
47 7393R OIL SEAL STD
48 139546 SUB= 150700
49 132688 TINE SHAFT
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
53 122204X SUB= 918122204X
6066J GREASE PREMIUM-1
T5517A (1999 & Before) Page 25 of 26
WHEEL AND DEPTH STAKE
T5517A (1999 & Before) Page 26 of 26
WHEEL AND DEPTH STAKE
Ref # Part Number Qty Description
1 9194R DRILLED RIVET RT
2 74760520 BOLT
3 74760512 BOLT
4 73220500 NUT.HEX.5/16-18
5 10040500 LOCKWASHER
6 73800600 NUT
7 4921H SPRING.RETAINER
8 1952J500 SUPPORT STAKE RH
9 122233X SUB= 2582J
10 326J SUB= 4929H
11 74780628 BOLT
12 74760524 BOLT.HEX.5/16-1.5
13 1951J500 SUPPORT STAKE LH
14 120958X WASHER
15 5388J STAKE SPRING TI
16 121117X BOLT SHOULDER
17 139488 WHEEL.8X1.75.YELL
18 19131311 WASHER
19 9190R500 BRACKET.WHL.PNT.
20 73680600 SUB= 73690600
21 74760516 SUB= 77394
22 73800500 NUT
