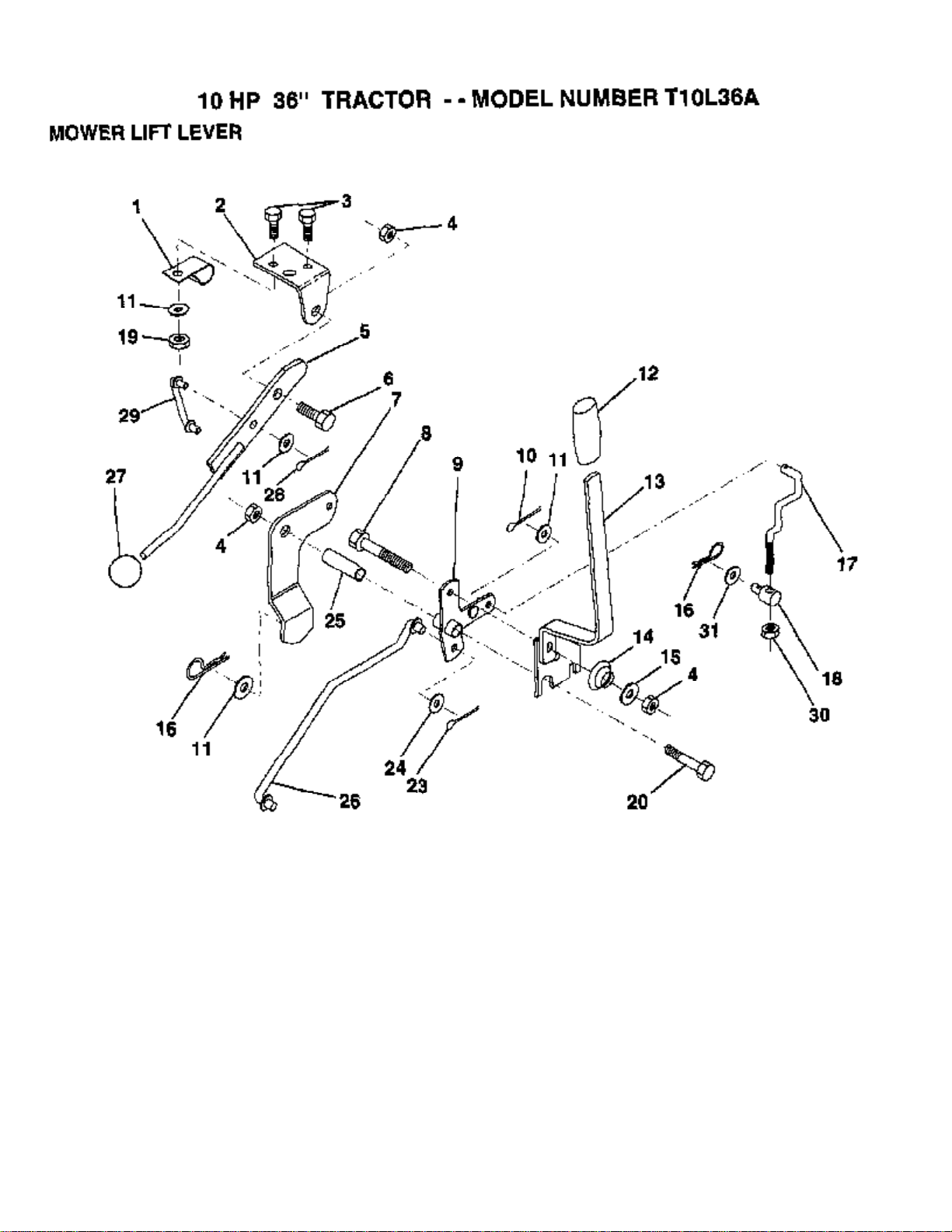

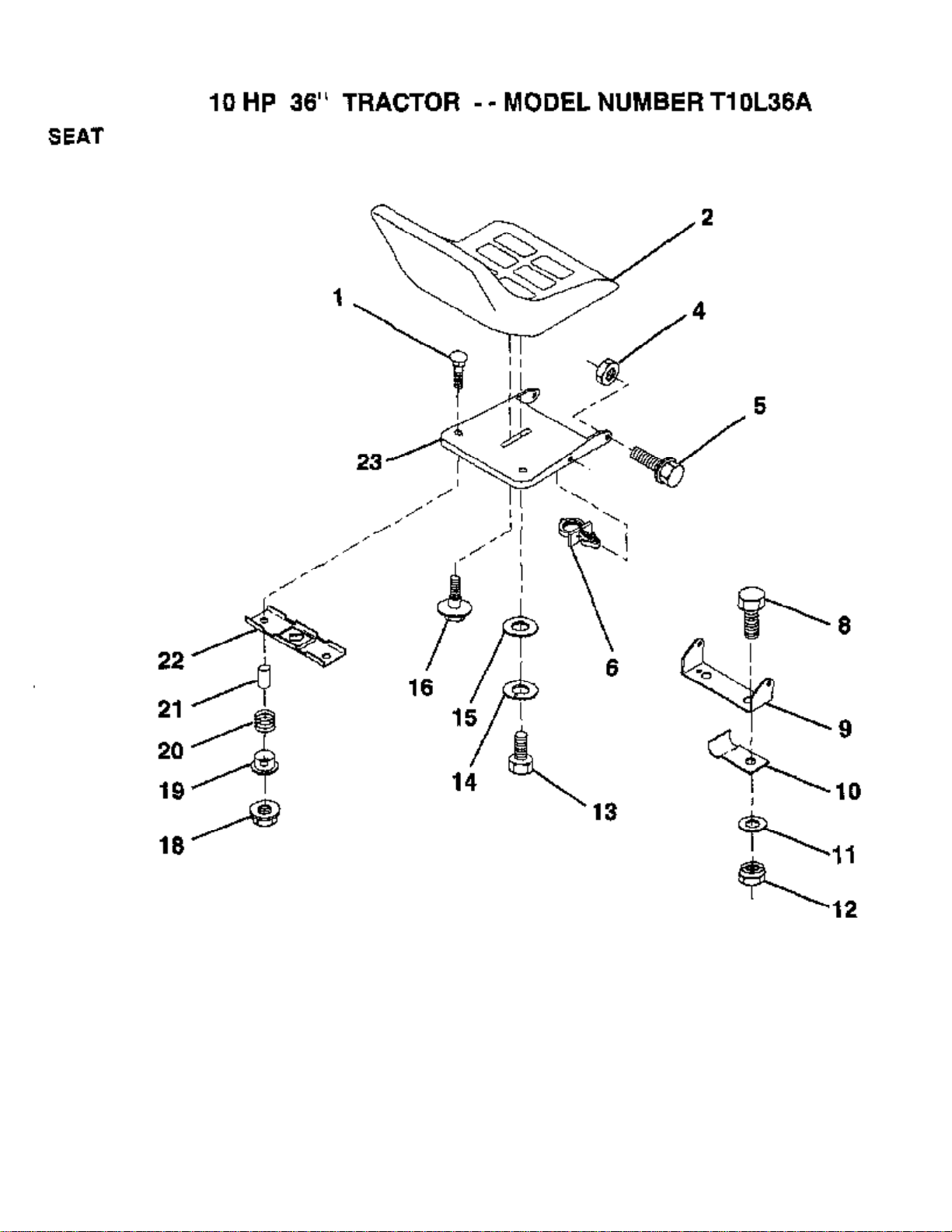

AYP T10L36A Parts List

T10L36A (1994) Page 1 of 35
BRAKE/REAR MOWER LIFT

T10L36A (1994) Page 2 of 35
BRAKE/REAR MOWER LIFT

Ref # Part Number Qty Description

1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8883R PEDAL COVER T
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT

9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 139933 PEDAL ASM CL/BK36
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73800600 NUT
20 73350600 NUT
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73800600 NUT
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 140776 LIFT ASM MOW REAR
29 72110506 SUB= 72270506
30 73510500 NUT

T10L36A (1994) Page 3 of 35
DANA TRANSAXLE

T10L36A (1994) Page 4 of 35
DANA TRANSAXLE

Ref # Part Number Qty Description

1 142671 HOUSING UPPER TRN

2 2274J SUB= 74760412

3 134400 SUB= 68003

4 105904X "SPRING, DETENT LT"

5 105905X "SCREW, SET LT"

6 138235 KIT SHIFTER ASM

7 134399 SHIFTER BOOT

8 73810500 NUT.LOCK.5/16-24

9 143045 SEAL OIL DANA5416
10 142672 SUB= 2225J
11 134793 ASM KIT SHIM 4689
12 143051 SUB= 148268
13 120415X WASHER T
14 142674 KEY WOODRUFF-DANA
15 138234 AS KIT INPUT SHFT
16 110078X PINION 14T T
17 105909X "RING,RETAINING LT"
18 105910X "CHAIN,24 PTCH LT"
19 105911X BEARING.FLNG.5510
20 142675 GEAR SPUR 14 TTH
21 138246 COLLAR CLUTCH
22 138236 ASM KIT CLTCH KEY
23 134791 SCREW TAP W/SEAL
24 142676 SHAFT INTERM DANA
25 2244J WOODRUFF KEY
26 105916X "RING,RETAINING LT"
27 120470X SPROCKET 18T T
28 110070X SPACER YT
29 142677 GEAR SPUR 37 TTH
30 120405X SUB= 124644X
31 108980X GEAR 25T LT
32 134796 SPUR GEAR 19T
33 138239 SPACER
34 106596X "SCREW, TAPPING LT"
35 105925X "WASHER, PLAIN LT"
36 2232J WASHER 025
37 108978X SPACER
38 110079X ASSM GEAR COMB
39 124639X SHAFT IDLER
40 120472X SPACER T
41 105928X SPROCKET 9T LT
42 110084X SUB= 167148
43 134394 ASM KIT SHIM
44 120473X SHAFT T
45 142678 GEAR SPUR 12 TTH
46 120407X SUB= 124641X
47 106589X "GEAR, SPUR 25T LT"
48 105937X "GEAR, SPUR 31T LT"
49 120523X SPACER T
50 120951X PUCK T
51 2226J WASHER 060
52 134401 NEOPRENE WASHER
53 2264J WASHER 031
54 120474X SUB= 154658
55 110081X GEAR 15T T
56 105941X "RING,RETAINING LT"
57 110071X SUB= 120478X
58 120952X SHAFT T

T10L36A (1994) Page 5 of 35
DANA TRANSAXLE

Ref # Part Number Qty Description

59 110082X GEAR 1ST T
60 120475X SUB= 154659
61 142680 HOUSING LOWER TNS
62 120961X PUCK T
63 7294J BRAKE DISC. T
64 108989X SPACER LT
65 120953X SUB= 918120953X
66 120954X PIN T
67 134799 TAP SCREW
68 138244 SUB= 108992X
69 108996X WASHER LT
70 120956X NLA
71 120416X SUB= 126976X

T10L36A (1994) Page 6 of 35
DASH

T10L36A (1994) Page 7 of 35
DASH

Ref # Part Number Qty Description

1 141523 CAP BLK FUEL LR

2 138393 TANK.ASM.DASH.LR

3 123487X HOSE CLAMP

4 8544R SUB= 295J

5 8548R FUEL LINE T

6 73510400 NUT

7 2751R CLIP T

8 19091216 WASHER PM

9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 17060408 SCREW.1/4-20X1/2
21 134014 PLUG DOME

T10L36A (1994) Page 8 of 35
DECALS

T10L36A (1994) Page 9 of 35
DECALS

Ref # Part Number Qty Description

1 138272 DECAL.INST.OPER

2 143749 DECAL.HD.LH.10HP

3 143748 DECAL.HD.RH.10HP

4 126171 SUB= 126171X

5 136830 DECAL.V.BELT

6 143750 DECAL.FENDER.COOP

7 133796 DECAL

8 126175 SUB= 126175X

143449 MANUAL.P.T10L36A
CE36 REAR BAGGER
MP36 SUB= MP36A

T10L36A (1994) Page 10 of 35
ELECTRICAL

T10L36A (1994) Page 11 of 35
ELECTRICAL

Ref # Part Number Qty Description

1 73510400 NUT

2 108423X CABLE ASM.

3 133909 SUB= 123899X

5 108236X BRACKET LT

6 109553X SWITCH INTERLOCKT

7 104445X SWITCH-INTER. GT

8 17021008 SCREW

9 140402 KEY STEEL DELTA
10 141226 COVER KEY SWITCH
11 140400 SUB= 145774
12 140399 SUB= 163088
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 143131 HARNESS IGNITION
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
24 131563 SUB= 154336
25 138406 SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
35 11050500 LOCKWASHER.5/16.E
36 11150400 LOCKWASHER
38 140660 ADAPTER.HARN.SERV
39 141735 BRACKET SWT CLUTC
55 17490508 SCREW LT
70 140413 HARNESS ENG DUAL
