AYP T102F Parts List

T102F (1999 & Before) Page 1 of 2

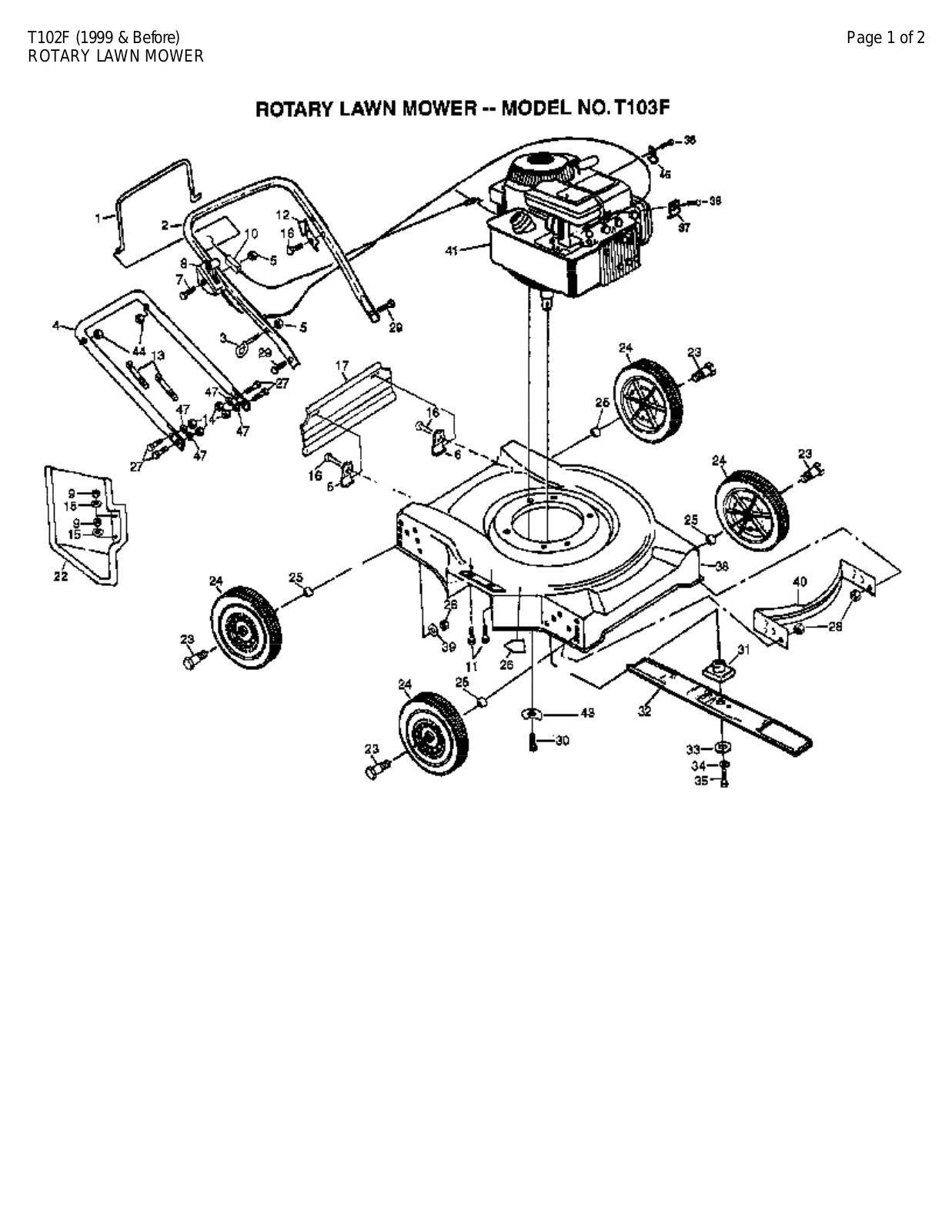

ROTARY LAWN MOWER

T102F (1999 & Before) Page 2 of 2
ROTARY LAWN MOWER

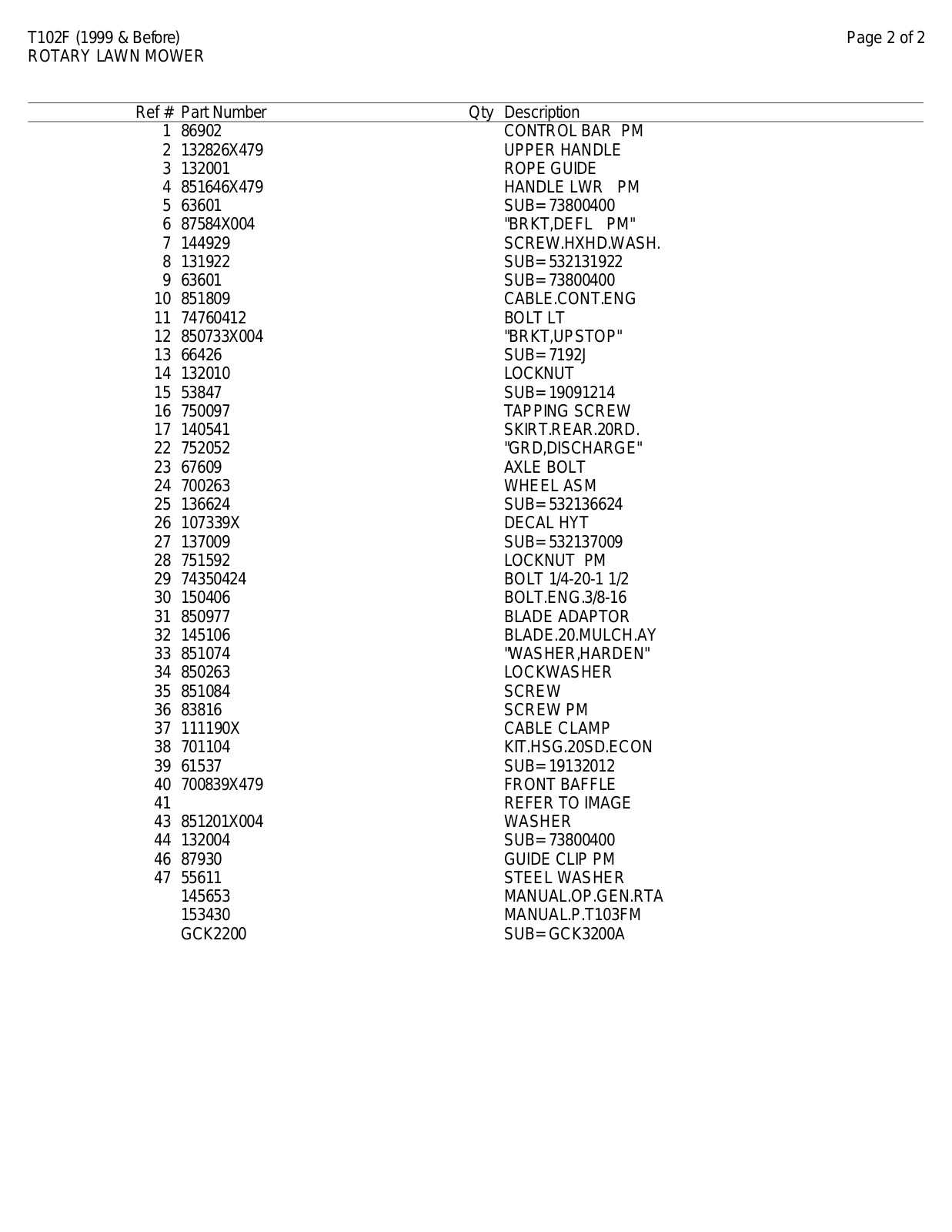

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 132826X479 UPPER HANDLE
3 132001 ROPE GUIDE
4 851646X479 HANDLE LWR PM
5 63601 SUB= 73800400
6 87584X004 "BRKT,DEFL PM"
7 144929 SCREW.HXHD.WASH.
8 131922 SUB= 532131922

9 63601 SUB= 73800400
10 851809 CABLE.CONT.ENG
11 74760412 BOLT LT
12 850733X004 "BRKT,UPSTOP"
13 66426 SUB= 7192J
14 132010 LOCKNUT
15 53847 SUB= 19091214
16 750097 TAPPING SCREW
17 140541 SKIRT.REAR.20RD.
22 752052 "GRD,DISCHARGE"
23 67609 AXLE BOLT
24 700263 WHEEL ASM
25 136624 SUB= 532136624
26 107339X DECAL HYT
27 137009 SUB= 532137009
28 751592 LOCKNUT PM
29 74350424 BOLT 1/4-20-1 1/2
30 150406 BOLT.ENG.3/8-16
31 850977 BLADE ADAPTOR
32 145106 BLADE.20.MULCH.AY
33 851074 "WASHER,HARDEN"
34 850263 LOCKWASHER
35 851084 SCREW
36 83816 SCREW PM
37 111190X CABLE CLAMP
38 701104 KIT.HSG.20SD.ECON
39 61537 SUB= 19132012
40 700839X479 FRONT BAFFLE
41 REFER TO IMAGE
43 851201X004 WASHER
44 132004 SUB= 73800400
46 87930 GUIDE CLIP PM
47 55611 STEEL WASHER

145653 MANUAL.OP.GEN.RTA
153430 MANUAL.P.T103FM
GCK2200 SUB= GCK3200A
