Page 1
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

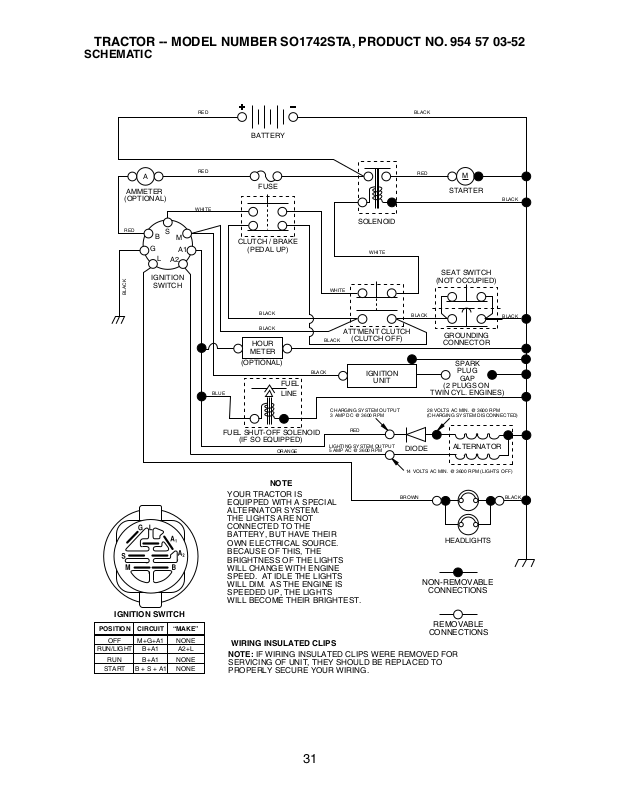

SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
A2
CLUTCH / BRAKE
(PEDAL UP)
BLACK
BLACK
HOUR
METER
(OPTIONAL)
FUEL
BLUE
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
LINE
ORANGE
WHITE
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
WHITE
IGNITION
UNIT
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GROUNDING
CONNECTOR
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
ALTERNATOR
BLACK
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
HEADLIGHTS
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
31
BLACK
Page 2
REPAIR PARTS
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
ELECTRICAL
22
21
42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
48
8
52
29
28
27
90
2
32
Page 3
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt Hex Hd 1/4-20unc X 3/4
8 176689 Box Battery Fender
16 176138 Switch Interlock
21 175685 Harness Asm Light W/4152J
22 4152J Bulb Light #1156
24 4799J Cable Battery 6 Ga 11"red
25 146147 Cable Battery 6 Ga w/16 wire,red
26 175158 Fuse 20 AMP
27 73510400 Nut Keps Hex 1/4-20 unc
28 4207J Cable Ground 6 Ga 12" black
29 121305X Switch Plunger Nc Gray
30 175566 Switch Ign
33 140401 Key Ign
40 179720 Harness Ign
41 71110408 Bolt Blk Fin Hex 1/4-20 X 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
48 140844 Adapter Ammeter Rectangular
52 141940 Protection Wire Loop
90 180449 Cover Terminal Battery
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
33
Page 4
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
CHASSIS AND ENCLOSURES
212
17
208
26
30
11
25
31
209
209
24
18
12
28
24
25
26
5
5
9
209
207
26
208
53
64
51
52
55
57
54
29
206
3
35
3
3
2
33
3
142
3
10
37
3
3
142
14
38
3
3
35
14
34
145
37
1
13
26
chassis-pl.lt_stlt_50
208
34
Page 5
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16x.75
5 155272 Bumper Hood/Dash
9 168336X010 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
12 145660 Clip Tinnerman
13 172105X010 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x 1-1/4
17 159639X417 Hood LT/PL
18 184921 Bumper Hood
24 74780616 Bolt Fin Hex 3/8-16 x 1 Gr 5
25 19131312 Washer 13/32 X 13/16 X 12 Ga
26 73800600 Nut Lock Hex W/Ins 3/8-16 Unc
28 179101 Grille LT/PL
29 140273X599 Lens LT/PL
30 169468X417 Fender Footrest STLT Pnt
31 136619 Bracket Support Fender
33 179716X417 Footrest Pnt Lh
34 179717X417 Footrest Pnt Rh
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm. Pivot Mower Rear
51 73800400 Nut Lock Hex W/Ins 1/4-20
52 19091416 Washer 9/32 x 7/8 x 16 Ga.
53 144697 Bracjet Grukke Lh
54 161464 Screw Hex Wshd 8-18 x 7/8
55 144696 Bracket Grille Rh
57 74780412 Bolt Hex 1/4-20 x 3/4
64 154798 Dash Lower STLT
142 175702 Plate Reinforcement STLT
145 156524 Rod Pivot Chassis/Hood
206 170165 Bolt Shoulder 5/16-18
207 17670508 Screw Thdrol 5/16-18 x 1/2
208 17670608 Screw Thdrol 3/8-16 x 1/2
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
212 156229 Insert Lens Refl ect P/L LT
- - 5479J Plug Btn Blk .359
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
35
Page 6
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

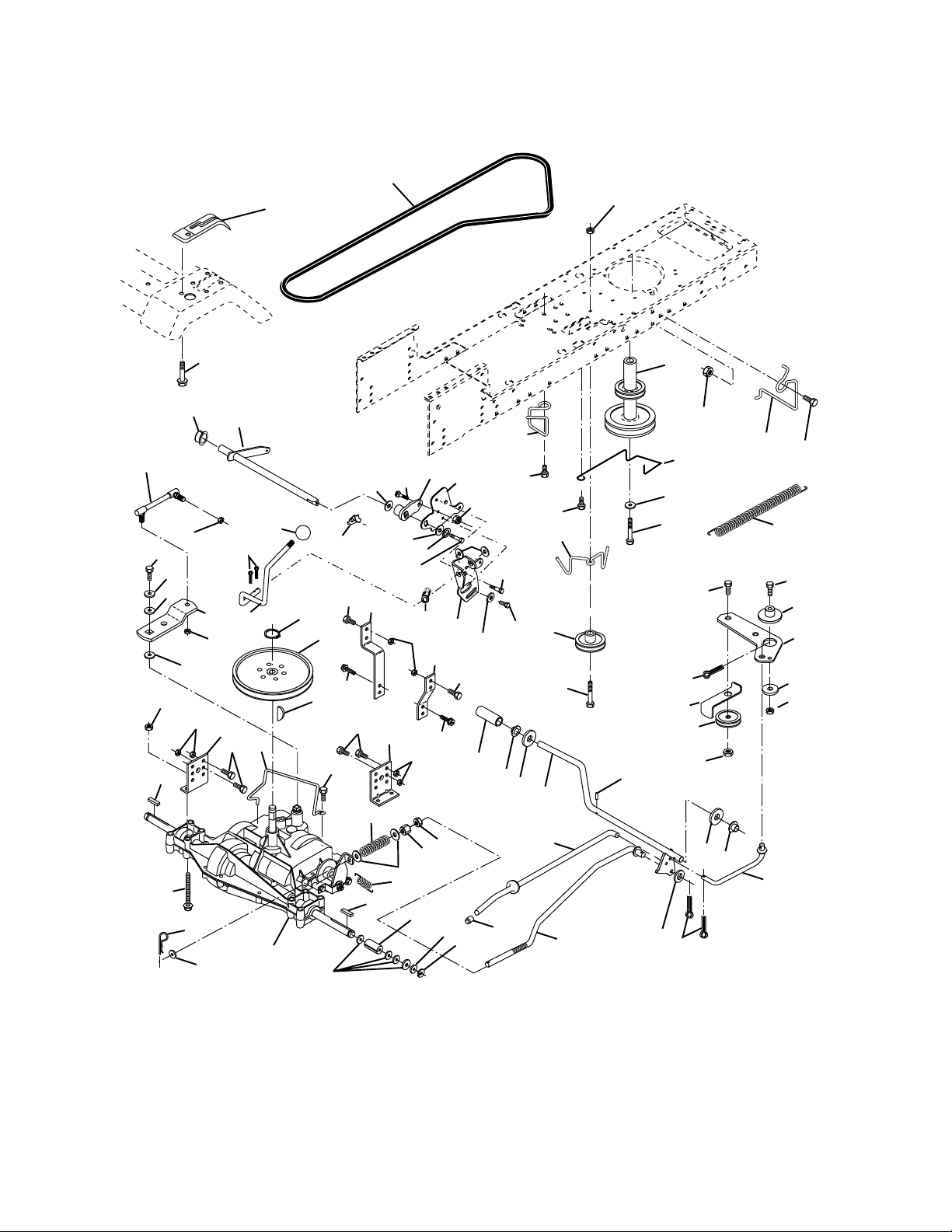

GROUND DRIVE
57
89
51
84
13
16
77
145
14
112
85
197
11
52
96
69
26
80
85
30
32
81
10
8
170
21
1
63
212
59
26
66
65
64
50
27
49
47
120
36
27
159
163
26
52
51
74
14
82
19
158
165
5
18
6
24
78
76
161
198
32
164
113
30
25
2
77
169
18
4
3
6
79
6
75
162
83
156
62
168
166
35
29
61
36
56
41
38
39
37
34
28
22
35
70
116
55
202
150
48
151
51
53
36
Page 7
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
GROUND DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle Peerless (206-545C)
(Order parts from transaxle
manufacturer)
2 146682 Spring Return Brake T/a Zinc
3 123666X Pulley Transaxle 18” tires
4 12000028 Ring Retainer # 5100-62
5 121520X Strap Torque 30 Degrees
6 17060512 Screw 5/16-18 X 3/4
8 165619 Rod Shift Fender Adjust Lt
10 76020416 Pin Cotter 1/8 X 1 Cad
11 105701X Washer Plate Shf 388 Sq Hole
13 74550412 Bolt 1/4-28 Unf Gr 8 W/Patch
14 10040400 Washer Lock Hvy Helical
16 73800500 Nut Lock Hex w/ins 5/16-18
18 74780616 Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5
19 73800600 Nut Lock 3/8-16 Unc
21 106933X Knob
22 130804 Rod Brake Blk Zinc 26 840
24 73350600 Nut Hex Jam 3/8-16 Unc
25 106888X Spring Rod Brake 2 00 Zinc
26 19131316 Washer 13/32 X 13/16 X 16 Ga
27 76020412 Pin Cotter 1/8 X 3/4 Cad
28 175765 Rod Brake Parking LT/YT
29 71673 Cap Brake Parking
30 174973 Bracket Mtg Transaxle
32 74760512 Bolt Hex Hd 5/16-18unc X 3/4
34 175578 Shaft Asm Pedal Foot
35 120183X Bearing Nylon Blk 629 Id
36 19211616 Washer 21/32 X 1 X 16 Ga
37 1572H Pin Roll 3/16 X 1”
38 179114 Pulley Composite Flat
39 74760648 Bolt Fin Hex 3/8-16 unc X 3
41 175556 Keeper Belt Flat Idler
47 127783 Pulley Idler V Groove Plastic
48 154407 Bellcrank Asm
49 123205X Retainer Belt Style Spring
50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 73680600 Nut Crownlock 3/8-16 Unc
52 73680500 Nut Crownlock 5/16-18 Unc
53 105710X Link Clutch
55 105709X Spring Return Clutch 6 75
56 17060620 Screw 3/8-16 x 1-1/4
57 130801 V-Belt Ground Drive 95 25
59 169691 Keeper Belt Span Ctr
61 17120614 Screw 3/8-16 x .875
62 8883R Cover Pedal Blk Round
KEY PART
NO. NO. DESCRIPTION
63 175410 Engine Pulley
64 71170764 Bolt Hex
65 10040700 Washer Lock Hvy Hlcl Spr 7/16
66 154778 Keeper Belt Engine Foolproof
69 142432 Screw Hex wsh HiLo 1/4 x 1/2 unc
70 134683 Guide Belt Mower Drive RH
74 137057 Spacer Axle
75 121749X Washer 25/32 X 1 1/4 X 16 Ga
76 12000001 E-ring #5133-75
77 123583X Key Square 2 0 X 1845/ 1865
78 121748X Washer 25/32 X 1-5/8 X 16 Ga
79 2228M Key Woodruff #9 3/16 x 3/4
80 131486 Arm Shift
81 165594 Shaft Asm Cross Tapered
82 123782X Spring Torsion T/a
83 19171216 Washer 17/32 X 3/4 X 16 Ga
84 166228 Link Transaxle PMST/18” Zinc
85 150360 Nut Lock Center 1/4 - 28 FNTHD
89 169372X428 Console Shift STLT
96 4497H Retainer Spring 1”
112 19091210 Washer 9/32 x 3/4 x 10 Ga.
113 127285X Strap Torque LT
116 72140608 Bolt Rdhd Sq Neck 3/8-16 x 1
120 73900600 Nut Lock Flg. 3/8-16 Unc
145 74490540 Bolt Hex FLGHD 5/16-18 Gr. 5
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10
156 166002 Washer Srrted 5/16ID x 1.125
158 165589 Bracket Shift Mount
159 183900 Hub Shift
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr
162 73680400 Nut Crownlock 1/4-20 Unc
163 74780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 19091010 Washer 5/8 x .281 x 10 Ga
165 165623 Bracket Pivot Lever
166 166880 Screw 5/16-18 x 5/8
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastening
170 178394 Keeper Belt Transaxle Gear
197 169613 Nyliner Snap-In
198 169593 Washer Nyliner
202 72110614 Bolt 3/8-16 x 1-3/4 Gr. 5
212 145214 Nut Hexfl ange Lock
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
37
Page 8
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

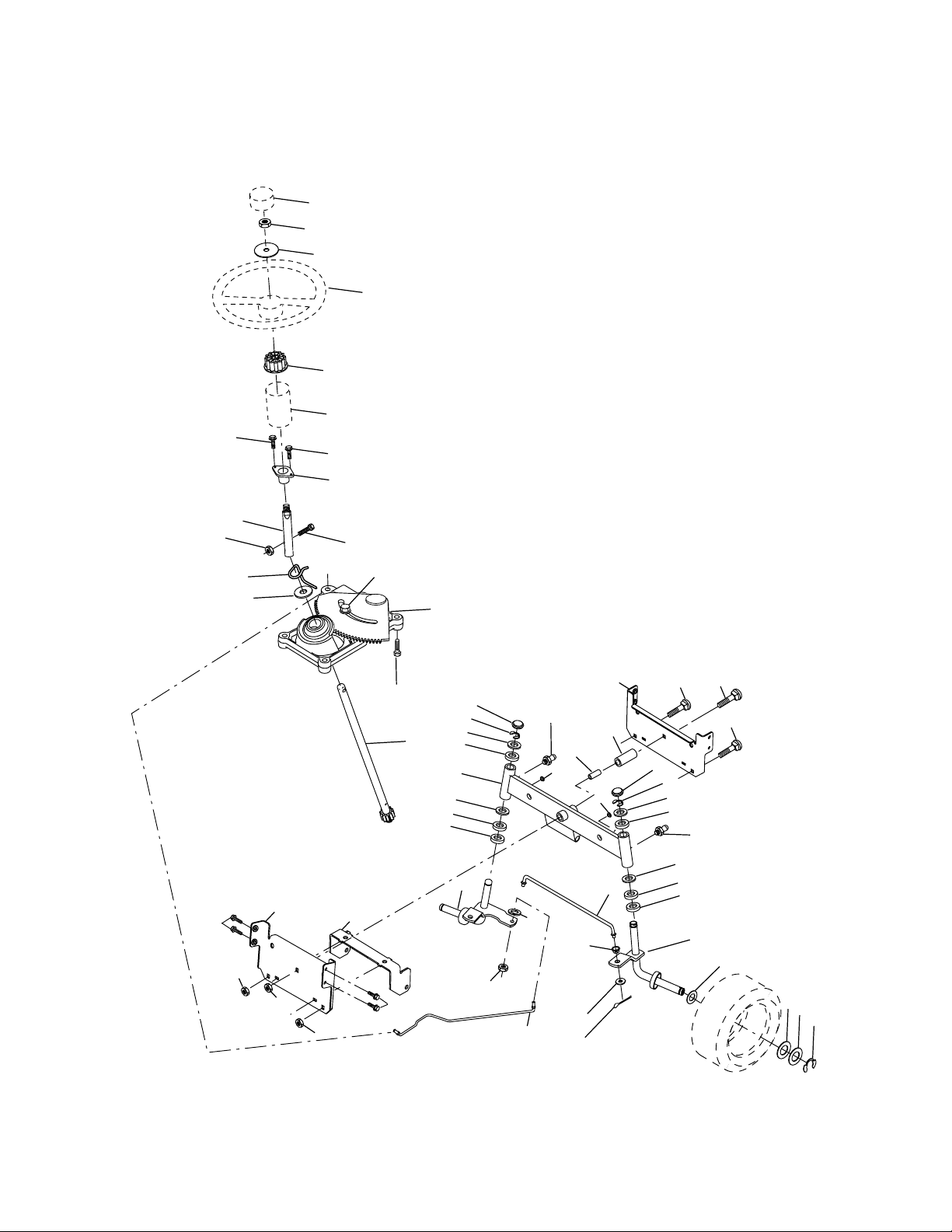

STEERING
38
12
39
1
41
42
37
37
36
44
51
91
43
68
29
15
15
54
88
71
29
17
82
29
15
46
8
6
9
2
7
9
5
3
40
47
85
11
10
68
13
65
46
8
85
32
26
28
30
67
67
67
6
9
47
7
9
5
4
43
43
6
8
38
Page 9
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
STEERING
KEY PART
NO. NO. DESCRIPTION
1 140044X428 Wheel Steering Auto Black
2 175131 Axle Asm Front
3 169840 Spin dle Asm Lh
4 169839 Spin dle Asm Rh
5 6266H Bear ing Race Thrust Harden
6 121748X Wash er 25/32 X 1 5/8 X 16ga
7 19272016 Wash er 27/32 X 1 1/4 X 16 Ga
8 12000029 Ring Klip #t5304-75
9 3366R Bear ing Col Strg Blk
10 175121 Link Drag
11 10040600 Lock wash er
12 73940800 Nut Hex Jam Toplock 1/2-20 Unf
13 136518 Spac er Bearing Axle Front
15 145212 Hex Flange Lock
17 180641 Shaft Asm Strg
26 126847X Bushing Rod Tie Blk Lt
28 19131416 Washer 13/32 X 7/8 X 16ga
29 17060612 Screw 3/8-16x3/4
30 76020412 Pin
32 130465 Rod Tie Wire Form 19 75 Mech
36 155099 Bushing Strg 5/8 Id Dash
37 152927 Screw TT #10-32 x 5 x 3/8 Flange
38 140045X428 Insert Cap Strg
39 19183812 Washer 9/16 x 2-3/8
40 7810H Locknut Center
41 100711L Adaptor Wheel Strg 640/ 635id
42 145054X428 Boot Dash Steering
43 121749X Washer 25/32 X 1 1/4 X 16 Ga
44 180640 Extension Shaft Steering
46 121232X Cap Spindle Fr Top Blk
47 183226 Fitting Grease
51 73540400 Nut Crownlock 1/4-28
54 71130420 Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8
65 160367 Spacer Brace Axle
67 72140618 Bolt Rdhd Sq 3/8-16 Unc x 2-3/4
68 169827 Brace Axle
71 175146 Steering Asm
82 169835 Bracket Susp Chassis Front
85 133835 Fastener Christmas Tree
88 175118 Bolt Shoulder 7/16-20 Unc
91 175553 Clip Steering
NOTE: All component dimensions given in U. S. inches
1 inch = 25.4 mm
39
Page 10
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

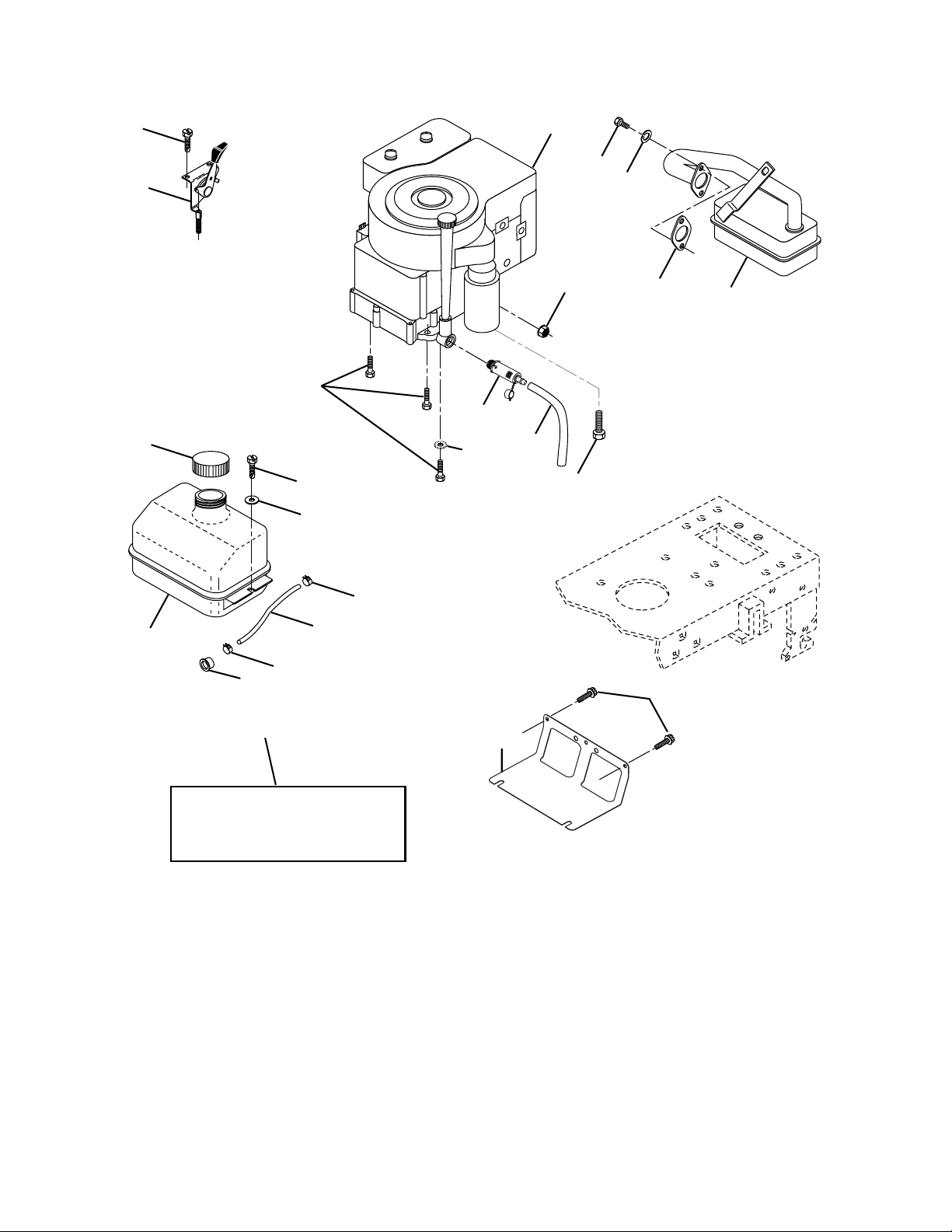

ENGINE
2
32
3
72
1
81
62
13
4
78
38
16
44
14
78
46
33
31
40
37
33
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 170551 Control Throt /Ch Flag
2 17720408 Screw Hex Thd Cut 1/4-20x1/2
3 - - - - - - Engine Briggs Model 31C707
(Order Parts From Engine
Manufacturer)
4 137352 Muffl er Exhaust B&S Lt
13 165291 Gasket 1 313 Id Tin Plated
14 148456 Tube Drain Oil Easy
16 11050600 Washer Lock Ext Tooth 3/8
23 169837 Shield Browning/Debris Guard
29 137180 Arrestor Spark
31 184900 Tank Fuel 1 25 Fr
32 140527 Cap Asm Fuel W/sym Vented
45
23
KEY PART
NO. NO. DESCRIPTION
33 123487X Clamp Hose Blk
37 137040 Line Fuel 20"
38 181654 Plug Drain Oil Easy
40 124028X Bushing Snap Nyl Blk Fuel Line
44 17670412 Screw Hexwsh Thdrol 1/4-20x3/4
45 17000612 Screw Hex Wsh Thdrol 3/8-16
46 19091416 Washer 9/32 X 7/8 X 16ga
72 183906 Screw Socket Head 5/16-18 x 1
78 17060620 Screw 3/8-16x1-1/4
81 73510400 Nut Keps Hex 1/4-20 Unc
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
40
Page 11
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

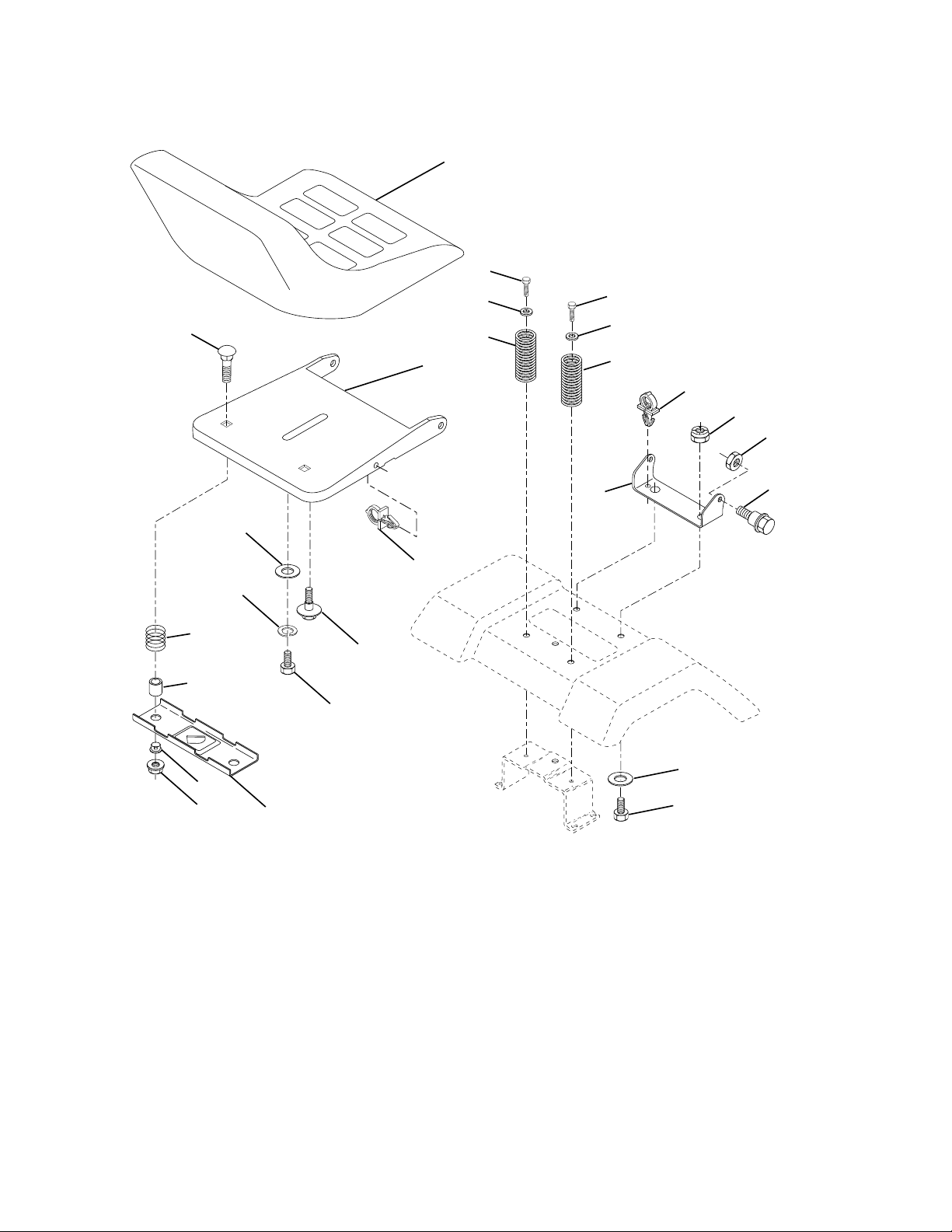

SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
24
5
26
16
25
15
23
13
17
KEY PART
NO. NO. DESCRIPTION
1 140116 Seat
2 140551 Brack et Pnt Pivot Seat (blk )
3 71110616 Bolt
4 19131610 Wash er 13/32 x 1 x 10 Ga
5 145006 Clip Push-In Hinged
6 73800600 Nut
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1
9 19131614 Wash er 13/32 x 1 x 14 Ga
10 182493 Pan Pnt Seat (blk )
12 121246X Brack et Pnt Mounting Switch
13 121248X Bush ing Snap Blk Nyl 50 Id
12
2
21
4
3
KEY PART
NO. NO. DESCRIPTION
14 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 134300 Spac er Split 28 x 96 Yel Zinc
16 121250X Spring Cprsn 1 27 Blk Pnt
17 123976X Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 171852 Bolt Shoulder 5/16-18 Unc Blkz-2A
22 73800500 Nut
23 71110814 Bolt Hex Black
24 19171912 Wash er 17/32 x 1-3/16 x 12 Ga
25 127018X Bolt Shoulder 5/16-18 x 62
26 10040800 Lockwasher
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
41
Page 12
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

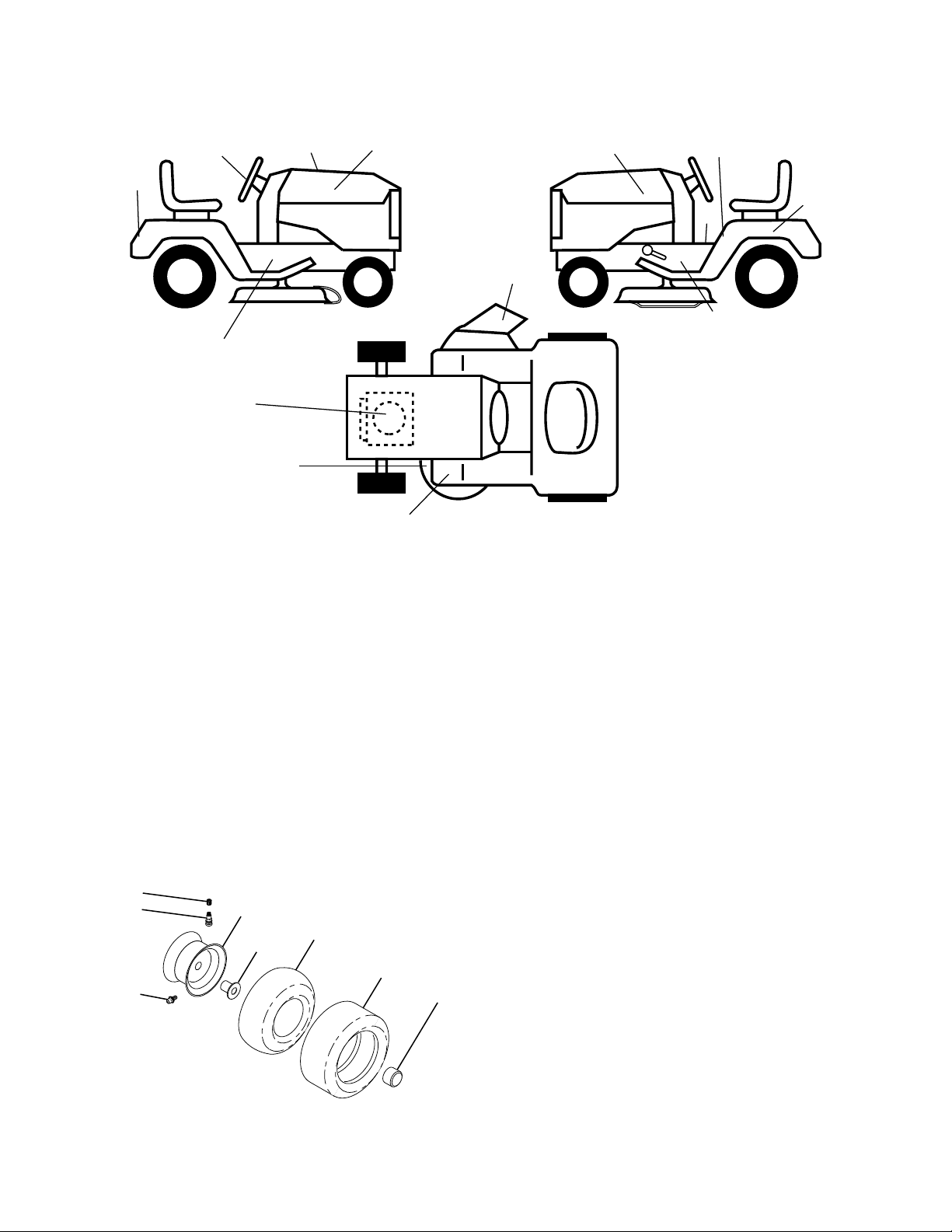

DECALS
2
8
3
6
7
20
14
9
KEY PART
NO. NO. DESCRIPTION
1 156368 De cal Instruction Operat English
2 186193 Decal Steering Statesman
186232 Decal Steering Agway
3 186190 Decal Hood RH Statesman
186230 Decal Hood RH Agway
4 186191 Decal Hood LH Statesman
186231 Decal Hood LH Agway
5 179128 Decal Deck “B”
6 186198 Decal Fender Statesman
186209 Decal Fender Agway
4
10
1
5
7
KEY PART
NO. NO. DESCRIPTION
7 186208 Decal Chassis Statesman
186235 Decal Chassis Agway
8 185409 Decal Replacement Parts
9 181249 Decal Footrest
10 156439 De cal Danger English
14 160396 De cal V-belt Schematic 42"
16 145005 Decal Battery Danger/Poison
20 184851 Decal HP Engine
- - 138311 Decal Lift Handle
- - 185632 Manual Owner’s English
- - 185633 Manual Owner’s Spanish
16
WHEELS AND TIRES
1
2
6
5,8
7
4,10
3,9
11
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X624 Rim Asm 6"front White Service
6 278H Fit ting Grease (Front Wheel Only)
7 9040H Bear ing Flange (Front Wheel Only)
8 106108X624 Rim Asm 8"rear White Service
9 106268X Tire R Ts 18x9.5-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
42
Page 13
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

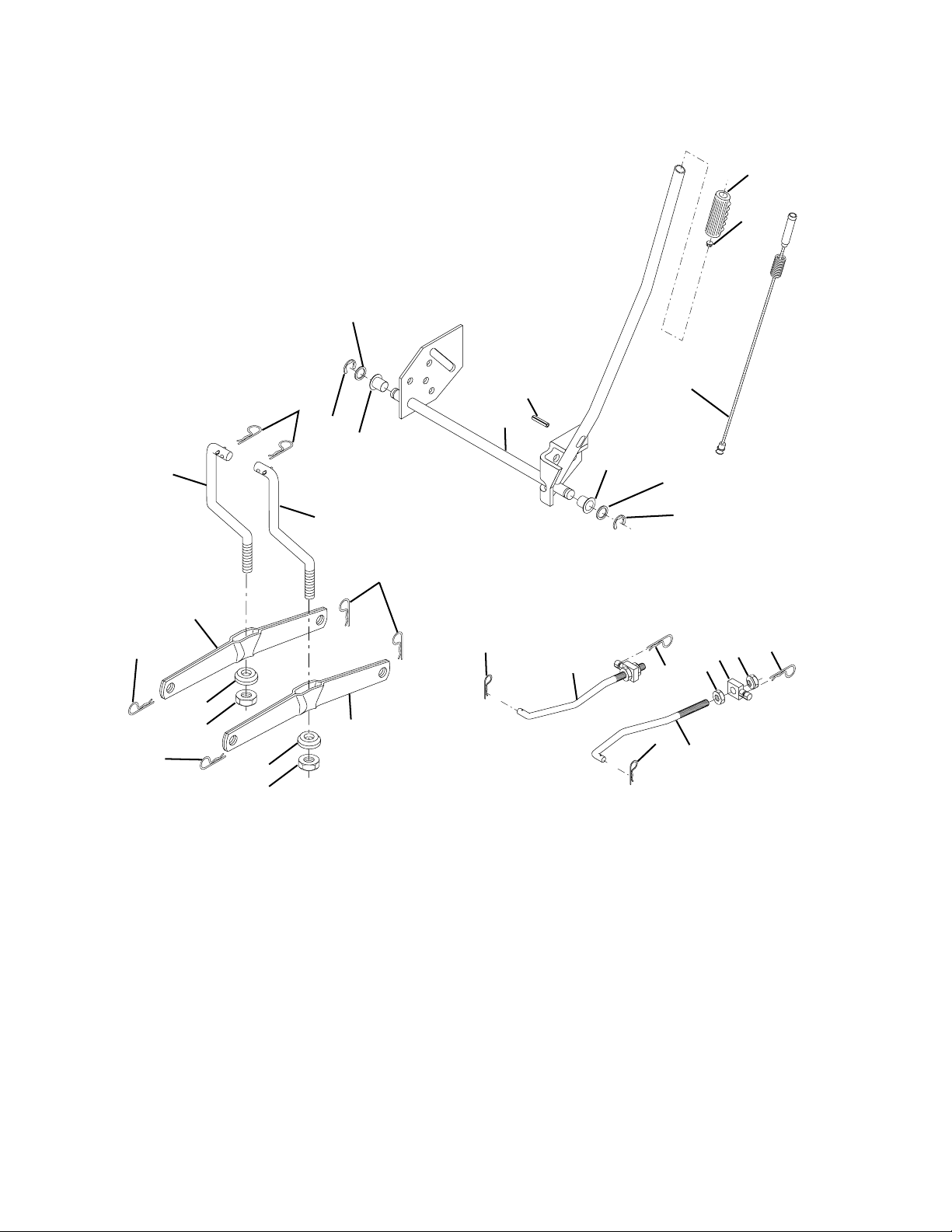

LIFT ASSEMBLY
7
8
5
13
13
11
19
31
32
31
32
13
12
3
4
2
1
6
6
5
4
13
18
20
19
20
15
20
20
16
17
15
KEY PART
NO. NO. DESCRIPTION
1 159460 Wire Asm Inner/Sprg w/Plunger
2 159471 Shaft Asm Lift
3 105767X Pin Groove
4 12000002 E Ring #5133-62
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing Nylon
7 109413X Grip Handle
8 124526X Button Plunger
11 139865 Link Lift Lh
12 139866 Link Lift Rh
13 4939M Retainer Spring
KEY PART
NO. NO. DESCRIPTION
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 Unc
17 175689 Trunnion
18 73800800 Nut Lock w/Wsh 1/2-13 Unc
19 139868 Arm Suspension Rear
20 163552 Retainer Spring
31 169865 Bearing Pvt Lift
32 73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
43
Page 14
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52

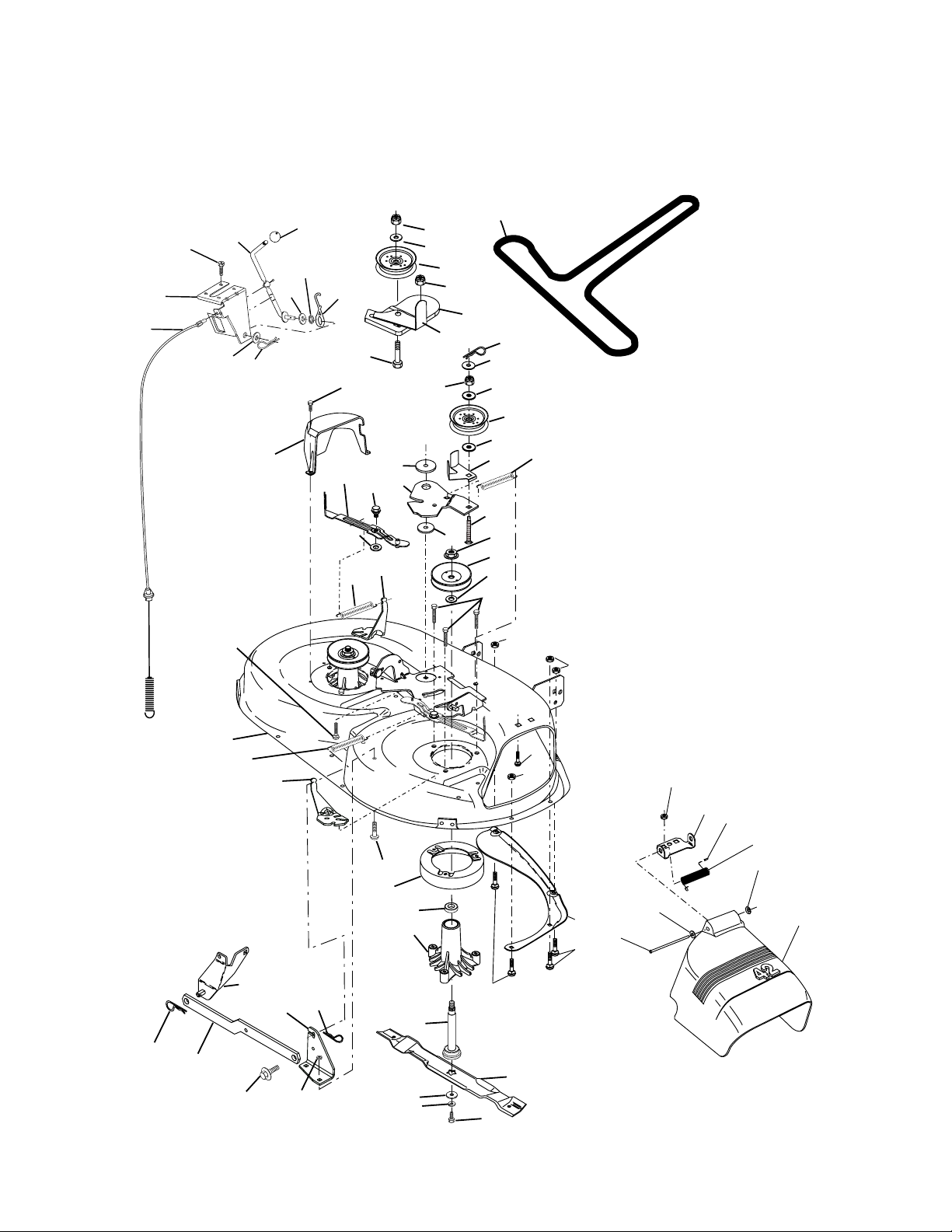

MOWER DECK
152
151
158
153
34
157
154
44
153
156
67
155
53
159
46
48
147
52
142
56
55
40
37
144
40
36
40
54
143
68
150
184
59
146
33
32
31
30
45
37
145
148
21
1
147
3
5
6
19
42_deck_man-t-path_3
142
21
2
21
21
23
24
25
2
26
16
29
28
27
15
14
20
18
149
4
18
13
11
21
10
9
8
44
Page 15
TRACTOR -- MODEL NUMBER SO1742STA, PRODUCT NO. 954 57 03-52
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 165892 Mower Deck Assembly, 42"
2 72140506 Bolt
3 138017 Bracket Asm Fr. Sway Bar 3/42
4 165460 Bracket Asm Deck 42" Sway Bar
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt 3/8-24 x 25 Grade 8 patched
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following blades are available)
11 134149 Blade, 42" Mulching Std
(For mulching mowers only)
- - 139775 Blade, 42" Mulching Premium
(For better wear when mulching
- - 138971 Blade, 42" Hi-Lift
(For bagging or discharging)
13 137645 Shaft As sem bly, Mandrel, Vented
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mower Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffl e, Vortex
21 73680500 Nut
23 177563 Bracket, Defl ector Mower 42"
24 105304X Cap, Sleeve 80 x 112 Blk Mower
25 123713X Spring, Torsion, Defl ector 2 52
26 110452X Nut, Push Phos & Oil
27 130968X428 Shield, Defl ector 42" Blk
28 19111016 Washer 11/32 x 5/8 x 16 Gauge
29 131491 Rod, Hinge 42" 6 75 W/G
30 173984 Screw Thdrol Hex
31 129963 Washer, Spacer Mower Vented
32 153535 Pulley, Mandrel
33 178342 Nut, Toplock
34 72110614 Bolt
36 131494 Pulley, Idler, Flat
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
40 73680600 Nut
KEY PART
NO. NO. DESCRIPTION
44 140088 Guard, Mandrel, LH
45 4497H Retainer
46 137729 Screw, Thdrol 1/4-20 x 5/8 T
48 133944 Washer, Hardened
52 139888 Bolt, Shoulder 5/16-18 UNC
53 184907 Arm Assembly, Pad, Brake
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 165723 Spacer, Retainer
59 141043 Guard TUV Idler
67 106932X Knob
68 144959 V-Belt, 42" Mower
142 165890 Arm Spring Brake Mower
143 157109 Bracket Arm Idler 42"
144 158634 Keeper Belt 42" Clutch Cable
145 165888 Pulley Idler Flat
146 171977 Bolt Carriage Idler
147 131335 Spring Extension
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow
150 19091216 Washer 9/32 x 3/4 x 16 Ga.
151 169670 Bracket Clutch Cable
152 169676 Clutch Cable 42"
153 169674 Washer Flat 3/8" Type B
154 169675 Spring Retainer
155 169671 Spring Retention LVR CLTCH CAB
156 169672 Spacer Clutch Cable
157 169669 Rod Clutch Cable 3/8"
158 17720408 Screw Hex Thd Cut 1/4-20 x 1/2
159 72140614 Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4
184 19131410 Washer 13/32 x 7/8 x 10 Ga.
- - 130794 Mandrel Assembly (Includes
Housing, Shaft and Shaft Hardware
Only - Pulley Not Included)
- - 171639 Replacement Mower, Complete
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
45
Loading...
