AYP SD224C Parts List

SD224C (1996) Page 1 of 2

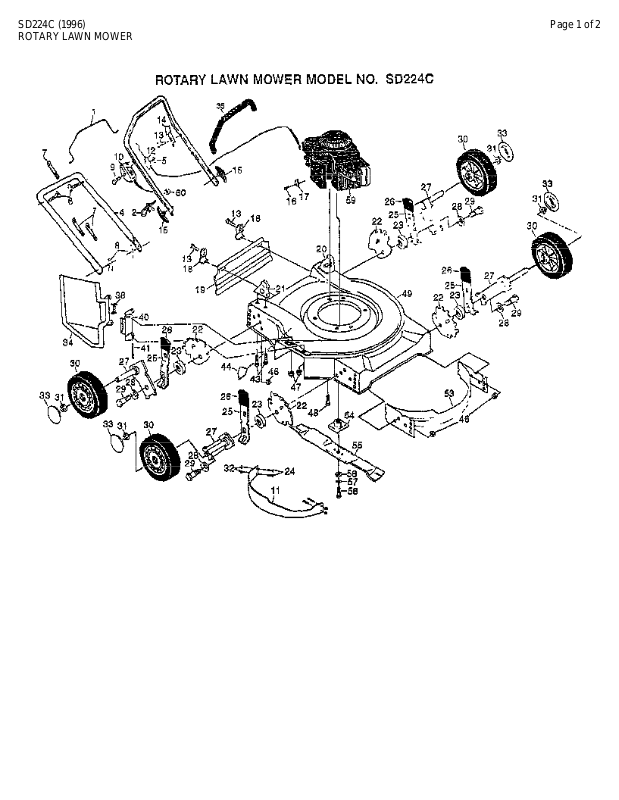

ROTARY LAWN MOWER

SD224C (1996) Page 2 of 2
ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 149147 SUB= 131036
2 132001 ROPE GUIDE
3 851708X479 SUB= 145640X479
4 151721X479 LOWER HANDLE
5 63601 SUB= 73800400
6 131959 BOLT.HANDLE.LM
7 66426 SUB= 7192J
8 51793 HAIRPIN COTTER

9 SCREW SCREW
10 700417 "CONTROL, THROTTLE"
11 700930 MULCHER PLATE
12 130861 "CABLE,ENG ZONE CO"
13 750097 TAPPING SCREW
14 850733X004 "BRKT,UPSTOP"
15 136376 KNOB HANDLE
16 83816 SCREW PM
17 213146 CABLE CLAMP
18 87584X004 "BRKT,DEFL PM"
19 140540 SKIRT.REAR.FGD.22
20 151665X479 HDLE BRKT ASSY.RH
21 151667X479 HDLE BRKT ASSY LH
22 700325X007 BRACKET.ADJ.9POS.
23 146630 SPACER.HEIGHT.ADJ
24 74961008 SCREW WS
25 700331X004 SPRING SELECTOR
26 87877 KNOB PM
27 145935X004 ARM.AXLE.ASM.BZP.
28 62335 "WASHER, BELLEVIL."
29 142748 BOLT SHLD 3/8-16
30 155231 WHEEL.ASM.8X2.JEP
31 83923 HEX FLANGE LOCKNT
32 69180 LOCKNUT
33 77400 HUB CAP
34 145282 GUARD.DISCH.22SD.
35 850724 SUB= 155890
38 145286 SUB= 152186
40 147775 BRACKET.HINGE.W/F
41 147286 ROD.HINGE.COMBI-C
43 149741 SCREW 5/16-18X3/4
44 141846 DECAL DANGER E/S
46 751592 LOCKNUT PM
47 63601 SUB= 73800400
48 150406 BOLT.ENG.3/8-16
49 151822 KIT.HSG.22SD.PUSH
53 700929X479 BAFFLE.FRT/REAR
54 850977 BLADE ADAPTOR
55 141114 "BLADE.MULCH.22"""
56 851074 "WASHER,HARDEN"
57 850263 LOCKWASHER
58 851084 SCREW
59 128802 ENGINE
60 73510400 NUT

145655 MANUAL.OP.GEN.PUS
145657 MANUAL.OP.GEN.PUS
155234 REPLACEMENT PARTS MANUAL
GCK2200 SUB= GCK3200A
