RT150GR (1999 & Before) Page 1 of 44
ENGINE, INTERNAL PARTS
RT150GR (1999 & Before) Page 2 of 44
ENGINE, INTERNAL PARTS
Ref # Part Number Qty Description
1 211542 HEAD, CYLINDER
2 94221 SCREW, CYLINDER HEAD 2-3/32"
3 93369 SCREW, CYLINDER HEAD 2-15/32"
4 293918 PLUG, SPARK RESISTOR
5 66538 ELBOW, SPARK PLUG
6 221512 COVER, CYLINDER HEAD
7 272157 GASKET, CYLINDER HEAD
8 211119 VALVE, EXHAUST
9 261044 VALVE, INTAKE
10 26478 SPRING, EXHAUST VALVE
11 260552 SPRING, INTAKE VALVE
12 93312 RETAINER, VALVE SPRING
13 211172 SEAT, INTAKE VALVE, STANDARD
14 211787 SEAT, INTAKE VALVE, STANDARD
15 262001 GUIDE, EXHAUST VALVE
16 393615 MUFFLER, EXHAUST
17 222263 LOCK, SCREW
18 93935 SCREW, HEX HEAD
19 393757 DEFLECTOR, EXHAUST, SIDE OUTLET
20 93705 SUB= 69485
21 27549 GASKET, VALVE COVER
22 294178 BREATHER, VALVE CHAMBER
23 66578 GROMMET, BREATHER TUBE
24 231526 TUBE, BREATHER
25 67838 GROMMET, BREATHER TUBE
26 93394 SCREW, SEMS, BREATHER, MOUNTING
27 262280 LINK, GOVERNOR
28 490374 LEVER ASSEMBLY, GOVERNOR
29 231082 NUT, HEX
30 92613 BOLT, GOVERNOR LEVER
31 93306 COTTER, HAIR PIN
32 93307 RETAINER, E-RING
33 231079 BUSHING, GOVERNOR CRANK
34 93448 PLUG, PIPE, HEX SOCKET
35 212733 GEAR, CAM
36 260642 TAPPET, VALVE
37 222450 WASHER, GOVERNOR LEVER
38 231077 CRANK, GOVERNOR
39 391737 GEAR, GOVERMOR
40 221551 WASHER THRUST
41 299430 ROD ASSEMBLY, CONNECTING
42 92296 LOCK, CONNECTING ROD SCREW
43 221876 LOCK, CONNECTING ROD SCREW
44 221890 DIPPER, CONNECTING ROD
45 397103 CRANKSHAFT
46 261696 GEAR, TIMING
48 298909 PIN ASSY, PISTON, STD
49 26026 LOCK, PISTON PIN
50 298904 PISTON ASSEMBLY, STANDARD
51 298982 RING SET, PISTON, STANDARD
52 395990 CYLINDER ASSEMBLY
392193 SPARK ARRESTING MUFFLER ASSY
397145 GASKET SET
89838 WRENCH SPARK PLUG
19069 PULLEY, FLYWHEEL
RT150GR (1999 & Before) Page 3 of 44
ENGINE, LEFT SIDE
RT150GR (1999 & Before) Page 4 of 44
ENGINE, LEFT SIDE
Ref # Part Number Qty Description
1 90832 WASHER, LOCK
2 93656 STUD
3 287602 COVER ASSY, CRANKCASE
4 294606 SEAL, OIL
5 297603 BUSHING, CRANKCASE COVER
6 66768 PLUG, OIL FILLER
7 270080 GASKET CRANKCASE STANDARD .015"
8 93490 SCREW, HEX HEAD
9 221511 SHIELD, CYLINDER
10 93032 SCREW, SEM, MOUNTING
11 91249 PLUG, PIPE 1/4" STD.
RT150GR (1999 & Before) Page 5 of 44
ENGINE, REAR VIEW
RT150GR (1999 & Before) Page 6 of 44
ENGINE, REAR VIEW
Ref # Part Number Qty Description
1 490073 SCREW, COVER MOUNTING
2 223765 COVER, AIR CLEANER
3 399959 FILTER, AIR
4 94018 SCREW, AIR CLEANER
5 490074 BASE, AIR CLEANER
6 271935 GASKET, AIR CLEANER MOUNTING
7 492611 CARBURERTOR ASSEMBLY
8 223793 THROTTLE, CARBURETOR
9 93499 SCREW
10 93527 SCREW, MACHINE, ROUND HEAD
11 260575 SPRING, THROTTLE ADJUSTMENT
12 490048 SHAFT AND LEVER THROTTLE
13 271853 WASHER, THROTTLE SHAFT, FOAM
14 398970 SEAL, THROTTLE SHAFT
15 262270 LINK, THROTTLE
16 271936 GASKET, INTAKE ELBOW MOUNTING
17 280720 BELL CRANK
18 231520 SCREW, SHOULDER
19 231533 VALVE, NEEDLE
20 491177 VALVE AND SHAFT GROUP, CHOKE
21 270382 WASHER, FOAM
22 221839 WASHER, BRASS
23 26336 SPRING, NEEDLE VALVE
24 223789 PLUG, WELCH
25 391813 FUEL PIPE AND CLIP ASSEMBLY
27 220352 PLUG, WELCH
28 221377 CAP, SPRING
29 262328 SPRING, FUEL PUMP DIAPHRAGM
30 270026 DIAPHRAGM
31 210959 COVER, DIAPHRAGM
32 93265 PIN, DIAPHRAGM COVER
33 93141 SCREW, DIAPHRAGM
34 93543 SCREW, SEMS, HEX HEAD
35 490589 SCREW AND COLLAR
36 223813 CRANK, BELL
37 490507 RETAINER, LINK
38 262279 ROD, SPEED CONTROL
39 220982 WASHER
40 93357 SCREW, SEMS, CARBURETOR MOUNTING
41 280715 KNOB, CONTROL
42 490649 PANEL, CONTROL
43 262359 LINK, CHOKE
44 262470 LINK, CONTROL
45 93572 SCREW
46 262282 SPRING, GOVERNOR
47 491577 LEVER, BRACKET ASSEMBLY
48 93491 RIVET, GOVERNOR CONTROL LEVER MOUNTING
49 222962 BUSHING, GOVERNOR LEVER, FLAT
50 223455 LEVER, GOVERNOR CONTROL
51 396847 SWITCH, STOP
52 94409 SCREW, SEMS, TANK BRACKET MNT.
53 280321 RACK, GEAR CONTROL
54 490554 TAMK ASSEMBLY, FUEL
55 490075 CAP, FUEL TANK
56 271928 GASKET, FUEL TANK MOUNTING
57 223786 CLAMP BREATHER TUBE
58 94094 SCREW, SEMS, FUEL TANK MOUNTING
RT150GR (1999 & Before) Page 7 of 44
ENGINE, RIGHT SIDE
RT150GR (1999 & Before) Page 8 of 44
ENGINE, RIGHT SIDE
Ref # Part Number Qty Description
1 390463 STARTER, ASSEMBLY, REWIND
2 230228 PIN, STARTER GRIP
3 66728 GRIP, STARTER ROPE
4 66884 ROPE, REWIND STARTER
5 299431 HOUSING, REWIND STARTER
6 92987 NUT, HEX
7 490179 SPRING, REWIND STARTER
8 295871 PULLEY, REWIND STARTER
9 94128 SCREW, HEX HEAD
10 222598 ANCHOR, SPRING
11 490817 SPACER
12 490169 HOUSING, BLOWER
13 93158 SCREW, SEMS
14 93490 SCREW, HEX HEAD
15 221923 SCREEN, STARTER PULLEY
16 399671 CLUTCH ASSEMBLY, REWIND STARTER
17 394506 WASHER, CLUTCH RETAINER
18 63770 BALL, CLUTCH
19 298799 RATCHET, REWIND STARTER
20 394897 HOUSING, STARTER CLUTCH
21 220865 WASHER, SPRING
22 297229 FLYWHEEL, MAGNETO
23 93414 SCREW, ARMATURE MOUNTING
24 223886 GUIDE, AIR
25 397358 ARMATURE GROUP
26 221798 TERMINAL, IGNITION CABLE
27 398808 WIRE, GROUND
28 395990 CYLINDER ASSEMBLY
29 299819 SEAL, OIL
30 297565 BUSHING, CYLINDER
31 222443 GUARD, FLYWHEEL
32 93705 SUB= 69485
33 222698 KEY, FLYWHEEL
RT150GR (1999 & Before) Page 9 of 44
HANDLE ASSEMBLY
RT150GR (1999 & Before) Page 10 of 44
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 73731000 NUT
2 9266R SUB= 624A78
3 72140404 BOLT
4 71091008 SCREW
5 104322X NLA
6 124172X NLA
7 120943X PANEL CONTROL
8 104164X TIE CABLE CRT
9 8206H GRIP T
10 109335X SHIFT HANDLE CRT
11 4497H RETAINER M
12 81328 SHOULDER BOLT ST
13 109313X GROMMET CRT
14 109337X SHIFT ROD CRT
15 72110608 BOLT D
16 109229X LOCK CRT
17 5394H SUB= 73930600
18 19131611 WASHER CRT
19 109228X LEVER LOCK CRT
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
25 105744X "ROD, FRT. PARAL T"
26 105216X "ASSY CONTROL, BAR"
27 102162X CABLE.CLUTCH.CRT
28 110614X DECAL TI
29 120940X425 SUB= 120940X479
30 110670X THROTTLE CRT
31 110680X KNOB CRT
124175X NLA
124176X OWNER'S MANUAL - FRENCH
RT150GR (1999 & Before) Page 11 of 44
HANDLE ASSEMBLY
RT150GR (1999 & Before) Page 12 of 44
HANDLE ASSEMBLY
Ref # Part Number Qty Description
2 9266R SUB= 624A78
3 72140404 BOLT
4 17080408 SCREW
5 104322X NLA
6 102692X DECAL - CONTROL PANEL
7 120943X PANEL CONTROL
8 104164X TIE CABLE CRT
9 8206H GRIP T
10 109335X SHIFT HANDLE CRT
11 4497H RETAINER M
12 81328 SHOULDER BOLT ST
13 109313X GROMMET CRT
14 109337X SHIFT ROD CRT
15 72110608 BOLT D
16 109229X LOCK CRT
17 5394H SUB= 73930600
18 19131611 WASHER CRT
19 109228X LEVER LOCK CRT
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
25 102744X SUB= 102744X431
26 105216X "ASSY CONTROL, BAR"
27 102162X CABLE.CLUTCH.CRT
28 110614X DECAL TI
29 120940X388 SUB= 120940X479
30 110670X THROTTLE CRT
31 110680X KNOB CRT
RT150GR (1999 & Before) Page 13 of 44
HANDLE ASSEMBLY
RT150GR (1999 & Before) Page 14 of 44
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 73731000 NUT
2 9266R SUB= 624A78
3 72140404 BOLT
4 71091008 SCREW
5 104322X NLA
6 124172X NLA
7 120943X PANEL CONTROL
8 104164X TIE CABLE CRT
9 8206H GRIP T
10 109335X SHIFT HANDLE CRT
11 4497H RETAINER M
12 81328 SHOULDER BOLT ST
13 109313X GROMMET CRT
14 109337X SHIFT ROD CRT
15 72110608 BOLT D
16 109229X LOCK CRT
17 5394H SUB= 73930600
18 19131611 WASHER CRT
19 109228X LEVER LOCK CRT
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
22 102604X GRIP BAR CRT
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
25 102744X SUB= 102744X431
26 105216X "ASSY CONTROL, BAR"
27 102162X CABLE.CLUTCH.CRT
28 110614X DECAL TI
29 120940X425 SUB= 120940X479
30 110670X THROTTLE CRT
31 110680X KNOB CRT
124175X NLA
124176X OWNER'S MANUAL - FRENCH
RT150GR (1999 & Before) Page 15 of 44

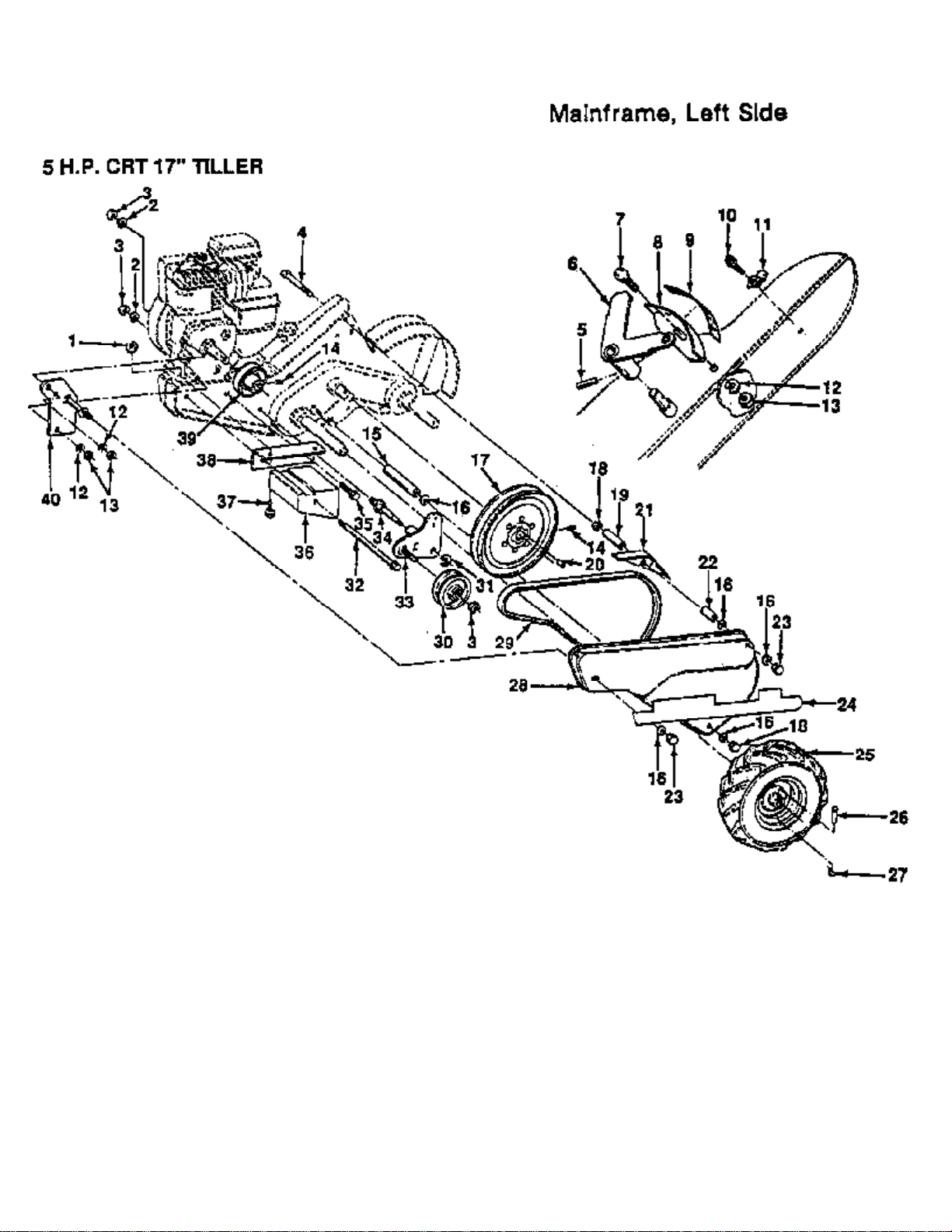

MAIN FRAME, LEFT SIDE
RT150GR (1999 & Before) Page 16 of 44
MAIN FRAME, LEFT SIDE
Ref # Part Number Qty Description
32 74930576 BOLT-HEX TI
33 1572H SUB= 2882J
34 110111X LEVER ASM CRT
35 8700J PANEL TI
36 72110404 BOLT
37 104323X NLA
38 73220500 NUT.HEX.5/16-18
39 110651X SPACER CRT
40 120938X SPACER
41 19111116 WASHER
42 110653X GUARD CRT
43 110652X SPACER CRT
44 23230506 SET SCREW
45 100473M "SHEAVE 10"" CRT"
46 2649M KEY T
47 102143X SUB= 132672
48 102148X388 SUB= 131159X505
49 104214X NUT TI
50 102699X NLA
51 102814X SUB= 126875X
52 109208X SUB= 124258X
102190X TIRE.CHV.13X5.0-6
795R SUB= 65139
53 102142X SUB= 130816
54 73220600 NUT.HEX.3/8-16UNC
55 104679X PULLEY-IDLER TI
56 12000032 KLIP RING
57 105611X SUB= 918105611X
58 102141X SHIFT ARM CRT
59 74760616 BOLT
60 102384X BOLT CRT
61 102383X COUNTERWEIGHT CRT
62 74760524 BOLT.HEX.5/16-1.5
63 102331X BRACKET LH CRT
64 102376X BRACKET ASSY CRT
65 73510500 NUT
66 10040600 LOCKWASHER
11 4497H RETAINER M
20 9484R CONDIUT CLIP T
21 86777 SUB= 750097
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
RT150GR (1999 & Before) Page 17 of 44

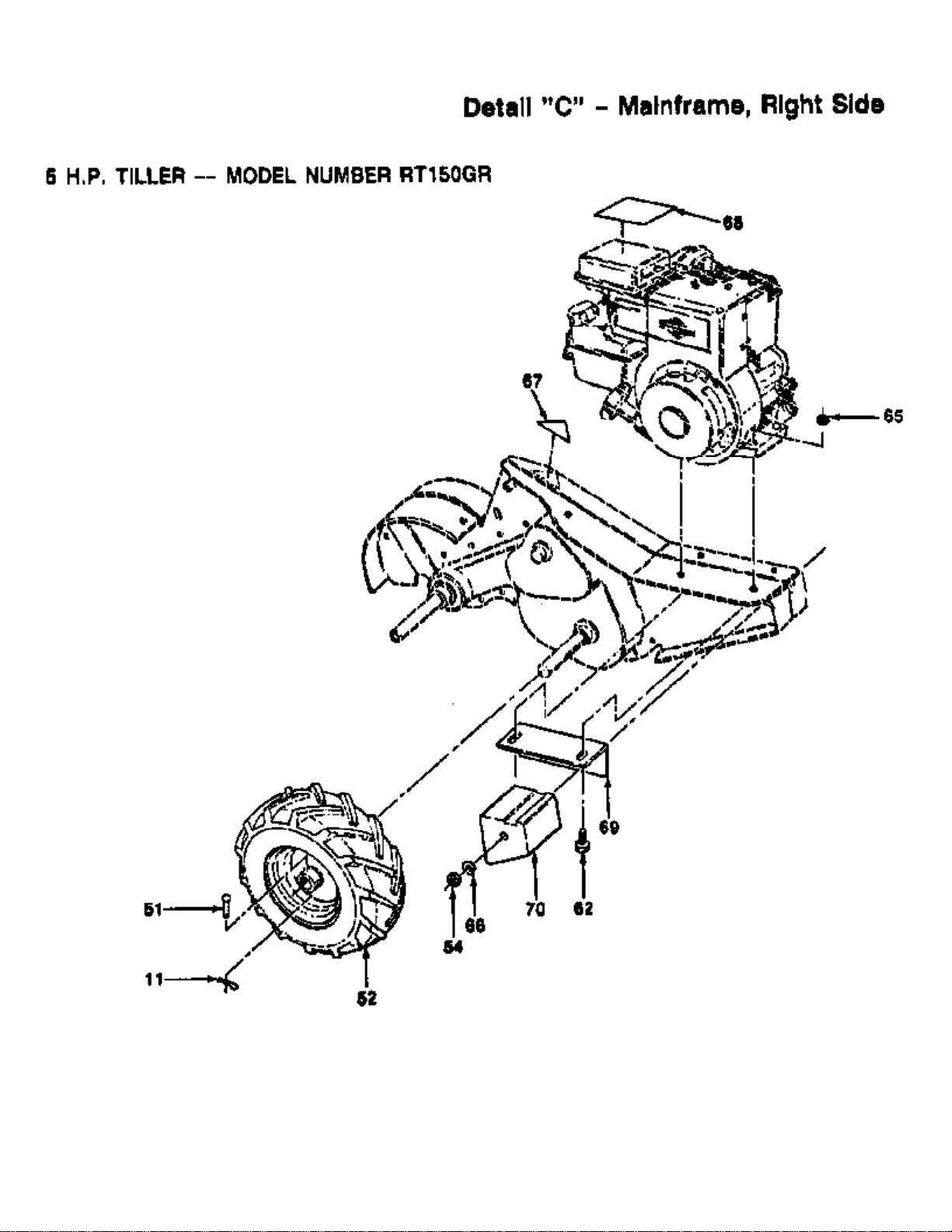

MAIN FRAME, RIGHT SIDE
RT150GR (1999 & Before) Page 18 of 44
MAIN FRAME, RIGHT SIDE
Ref # Part Number Qty Description
67 REFER TO IMAGE
68 110612X DECAL TI
69 102332X BRACKET RH CRT
70 102173X COUNTERWEIGHT CRT
11 4497H RETAINER M
51 102814X SUB= 126875X
52 109208X SUB= 124258X
54 73220600 NUT.HEX.3/8-16UNC
62 74760524 BOLT.HEX.5/16-1.5
65 73510500 NUT
66 10040600 LOCKWASHER
RT150GR (1999 & Before) Page 19 of 44

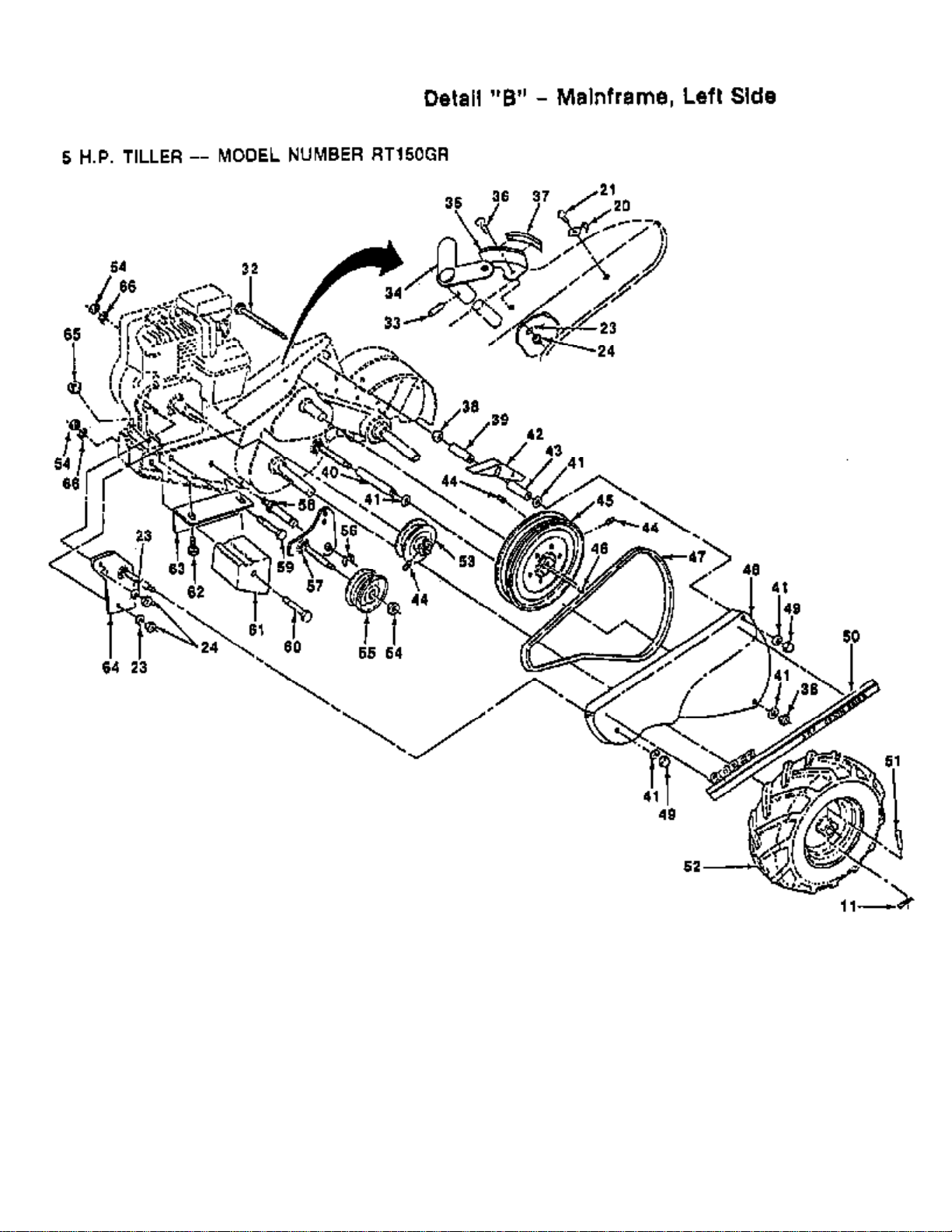

MAINFRAME, LEFT SIDE
RT150GR (1999 & Before) Page 20 of 44
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930576 BOLT-HEX TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 104323X NLA
10 86777 SUB= 750097
11 9484R CONDIUT CLIP T
12 10040400 LOCKWASHER
13 73220400 SUB= 50675
14 23230506 SET SCREW
15 120938X SPACER
16 19111116 WASHER
17 100473M "SHEAVE 10"" CRT"
18 73220500 NUT.HEX.5/16-18
19 110651X SPACER CRT
20 2649M KEY T
21 110653X GUARD CRT
22 110652X SPACER CRT
23 104214X NUT TI
24 124173X NLA
25 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
26 102841X SUB= 126875X
27 4497H RETAINER M
28 102148X425 SUB= 131159X505
29 102143X SUB= 132672
30 104679X PULLEY-IDLER TI
31 12000032 KLIP RING
32 102384X BOLT CRT
33 105611X SUB= 918105611X
34 102141X SHIFT ARM CRT
35 74760616 BOLT
36 102383X COUNTERWEIGHT CRT
37 74760524 BOLT.HEX.5/16-1.5
38 102331X BRACKET LH CRT
39 102142X SUB= 130816
40 102376X BRACKET ASSY CRT
RT150GR (1999 & Before) Page 21 of 44

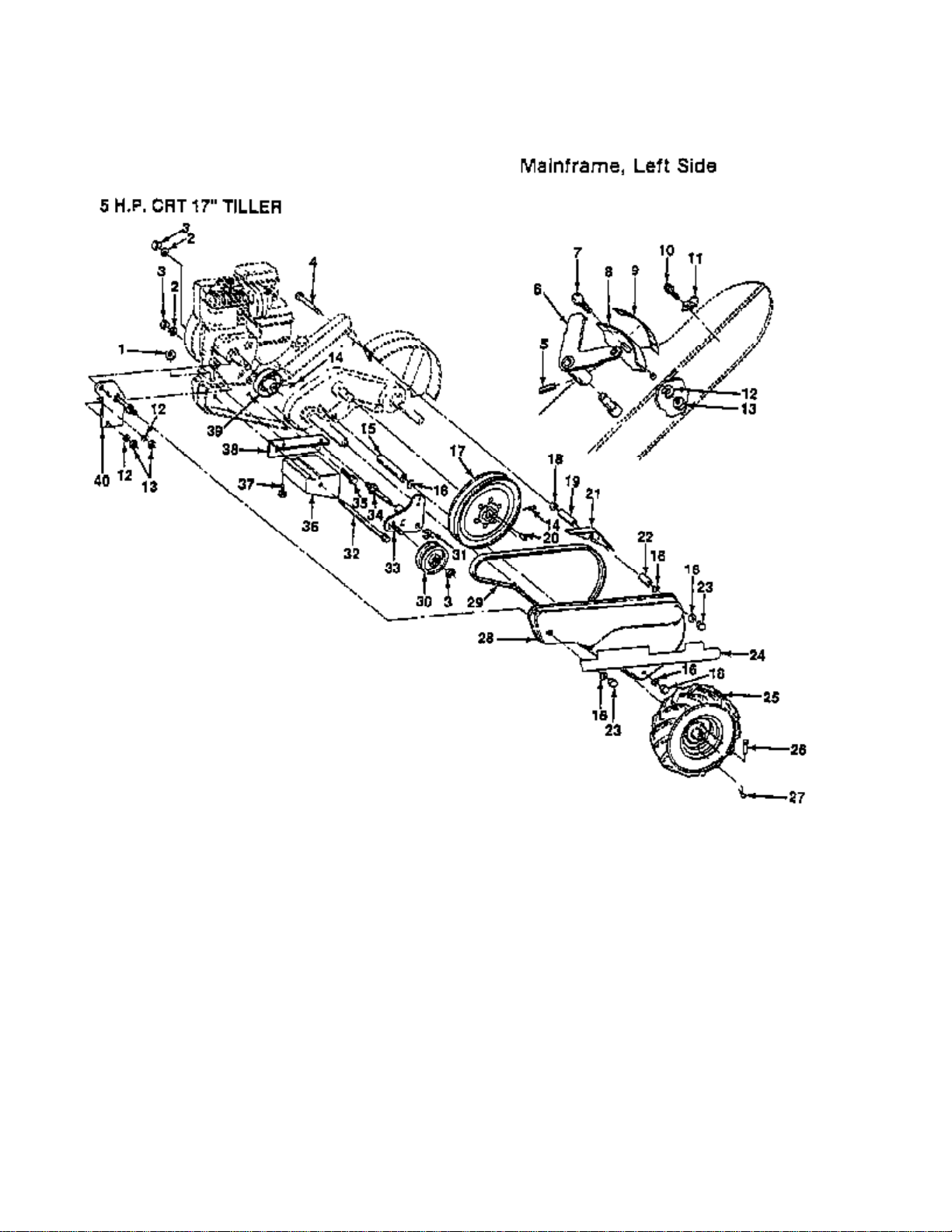

MAINFRAME, LEFT SIDE
RT150GR (1999 & Before) Page 22 of 44
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
1 73510500 NUT
2 10040600 LOCKWASHER
3 73220600 NUT.HEX.3/8-16UNC
4 74930576 BOLT-HEX TI
5 1572H SUB= 2882J
6 110111X LEVER ASM CRT
7 72110404 BOLT
8 8700J PANEL TI
9 104323X NLA
10 86777 SUB= 750097
11 9484R CONDIUT CLIP T
12 10040400 LOCKWASHER
13 73220400 SUB= 50675
14 23230506 SET SCREW
15 120938X SPACER
16 19111116 WASHER
17 100473M "SHEAVE 10"" CRT"
18 73220500 NUT.HEX.5/16-18
19 110651X SPACER CRT
20 2649M KEY T
21 110653X GUARD CRT
22 110652X SPACER CRT
23 104214X NUT TI
24 124173X NLA
25 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
26 102841X SUB= 126875X
27 4497H RETAINER M
28 102148X425 SUB= 131159X505
29 102143X SUB= 132672
30 104679X PULLEY-IDLER TI
31 12000032 KLIP RING
32 102384X BOLT CRT
33 105611X SUB= 918105611X
34 102141X SHIFT ARM CRT
35 74760616 BOLT
36 102383X COUNTERWEIGHT CRT
37 74760524 BOLT.HEX.5/16-1.5
38 102331X BRACKET LH CRT
39 102142X SUB= 130816
40 102376X BRACKET ASSY CRT
RT150GR (1999 & Before) Page 23 of 44

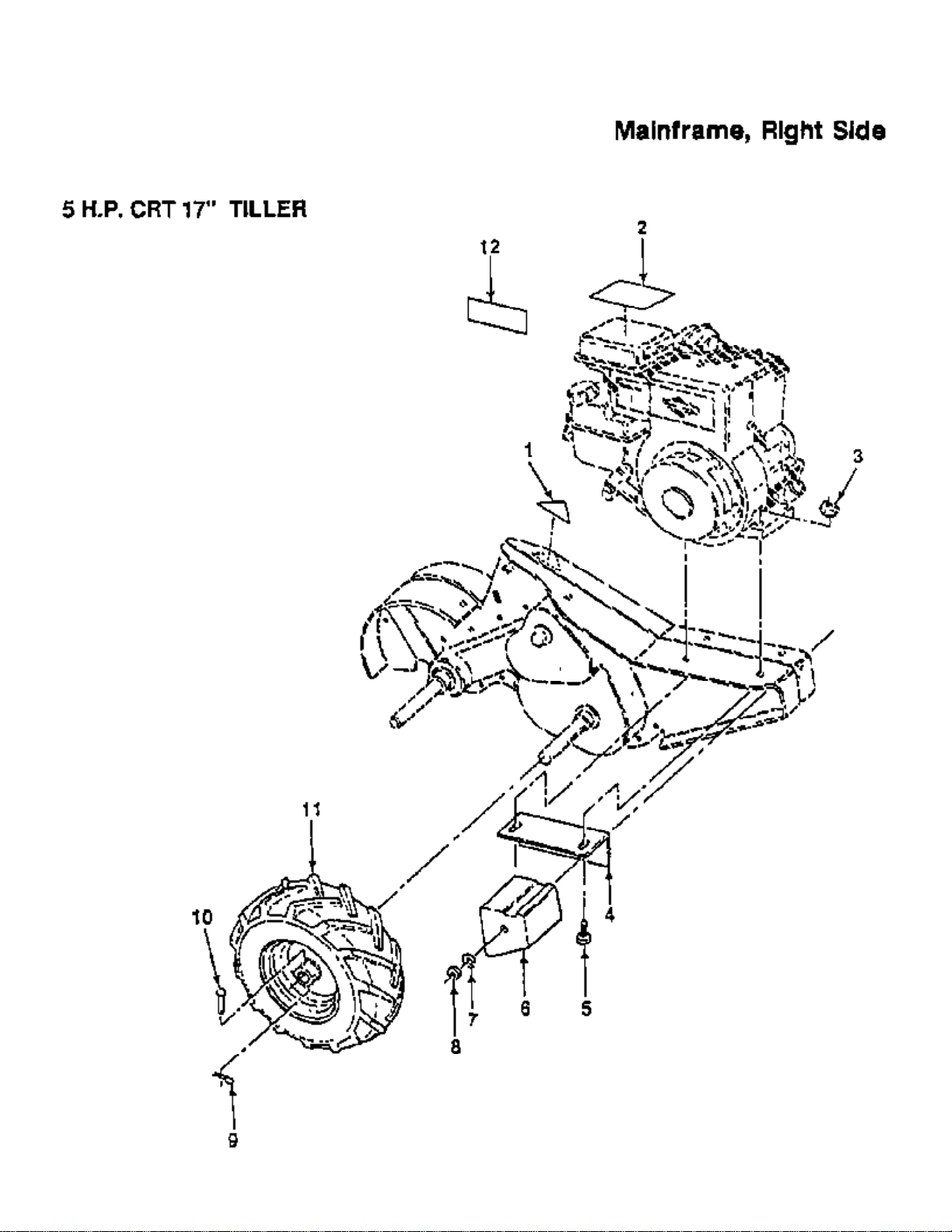

MAINFRAME, RIGHT SIDE
RT150GR (1999 & Before) Page 24 of 44
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 REFER TO IMAGE
2 110612X DECAL TI
3 73510500 NUT
4 102332X BRACKET RH CRT
5 74760524 BOLT.HEX.5/16-1.5
6 102173X COUNTERWEIGHT CRT
7 10040600 LOCKWASHER
8 73220600 NUT.HEX.3/8-16UNC
9 4497H RETAINER M
10 102841X SUB= 126875X
11 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
12 121543X SUB= 271948
RT150GR (1999 & Before) Page 25 of 44
MAINFRAME, RIGHT SIDE
RT150GR (1999 & Before) Page 26 of 44
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 REFER TO IMAGE
2 110612X DECAL TI
3 73510500 NUT
4 102332X BRACKET RH CRT
5 74760524 BOLT.HEX.5/16-1.5
6 102173X COUNTERWEIGHT CRT
7 10040600 LOCKWASHER
8 73220600 NUT.HEX.3/8-16UNC
9 4497H RETAINER M
10 102841X SUB= 126875X
11 102190X TIRE.CHV.13X5.0-6
109208X SUB= 124258X
795R SUB= 65139
12 121543X SUB= 271948
RT150GR (1999 & Before) Page 27 of 44
TINE ASSEMBLY
RT150GR (1999 & Before) Page 28 of 44

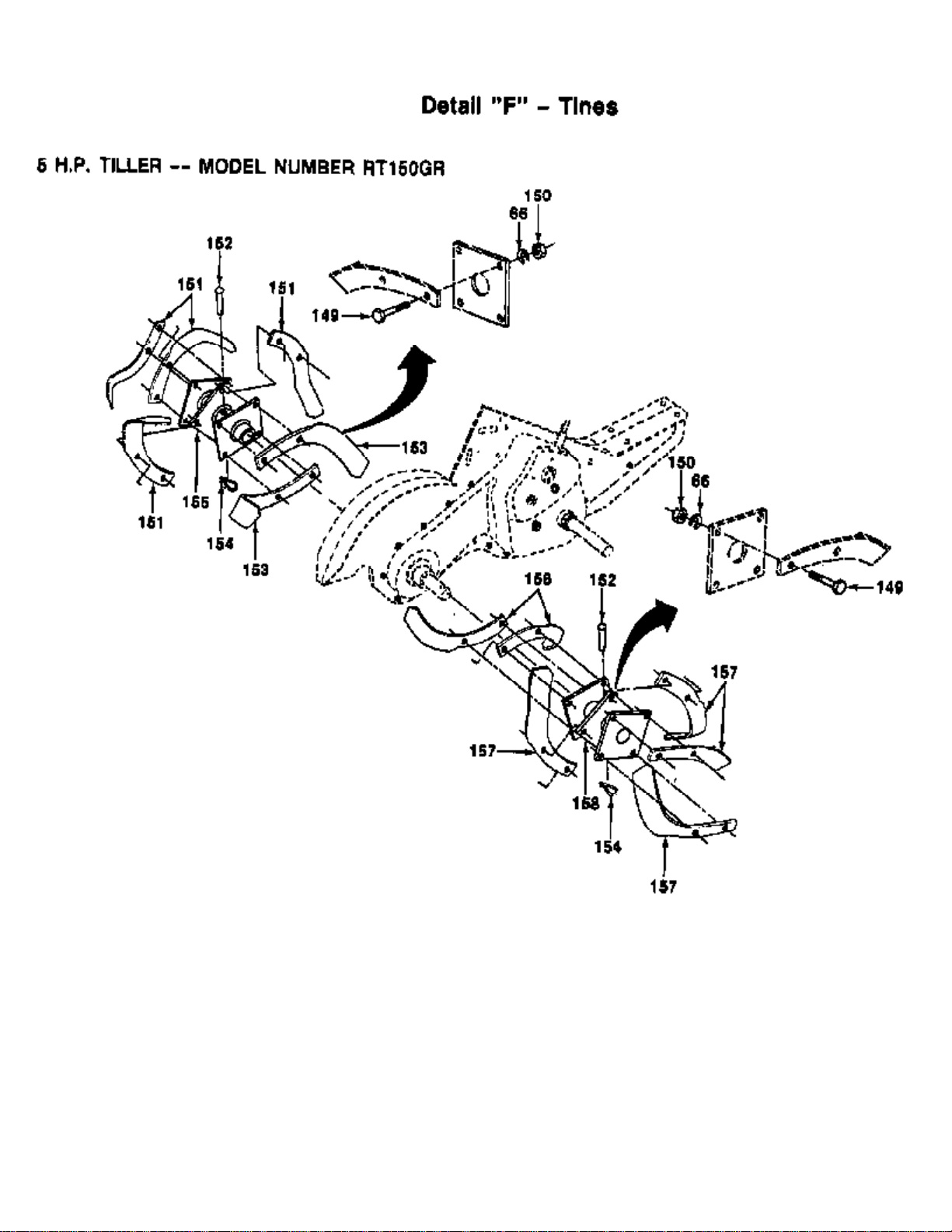

TINE ASSEMBLY
Ref # Part Number Qty Description
149 74610616 BOLT
150 73610600 SUB= 7810H
151 4459J SUB= 6554J
152 4929H RIVET.PAN HD.1.75
153 6554J "TINE.LH.12"""
154 3146R RETAINER.SPRING
155 102380X TINE ASSY LH CRT
156 6555J "TINE.RH.12"""
157 4460J SUB= 6555J
158 102382X TINE ASSY RH CRT
120937X NLA
121115X OWNER'S MANUAL - FRENCH
66 10040600 LOCKWASHER
RT150GR (1999 & Before) Page 29 of 44

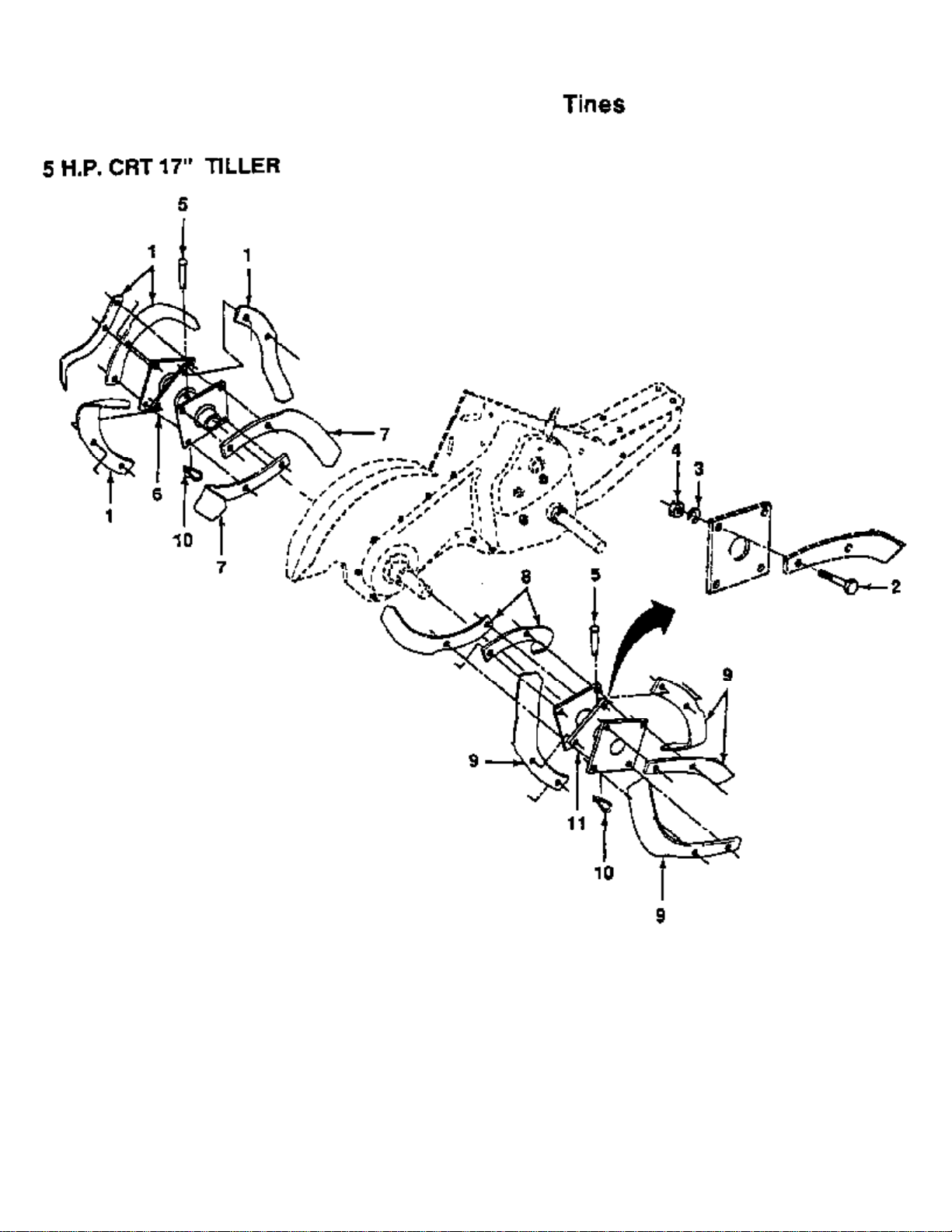

TINE ASSEMBLY
RT150GR (1999 & Before) Page 30 of 44
TINE ASSEMBLY
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 74610616 BOLT
3 10040600 LOCKWASHER
4 73610600 SUB= 7810H
5 4929H RIVET.PAN HD.1.75
6 102380X TINE ASSY LH CRT
7 6554J "TINE.LH.12"""
8 6555J "TINE.RH.12"""
9 4460J SUB= 6555J
10 3146R RETAINER.SPRING
11 102382X TINE ASSY RH CRT
RT150GR (1999 & Before) Page 31 of 44

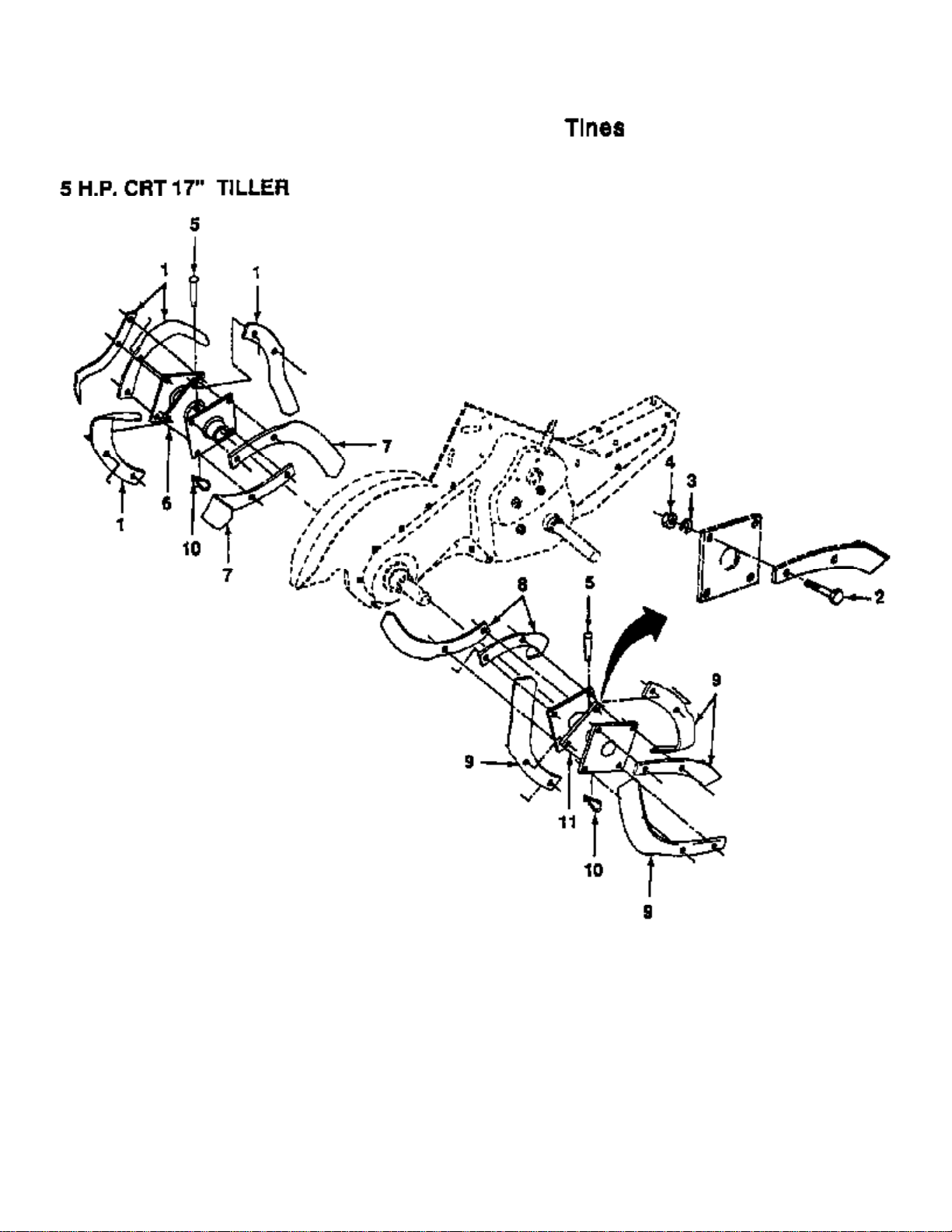

TINE ASSEMBLY
RT150GR (1999 & Before) Page 32 of 44
TINE ASSEMBLY
Ref # Part Number Qty Description
1 4459J SUB= 6554J
2 74610616 BOLT
3 10040600 LOCKWASHER
4 73610600 SUB= 7810H
5 4929H RIVET.PAN HD.1.75
6 102380X TINE ASSY LH CRT
7 6554J "TINE.LH.12"""
8 6555J "TINE.RH.12"""
9 4460J SUB= 6555J
10 3146R RETAINER.SPRING
11 102382X TINE ASSY RH CRT
RT150GR (1999 & Before) Page 33 of 44

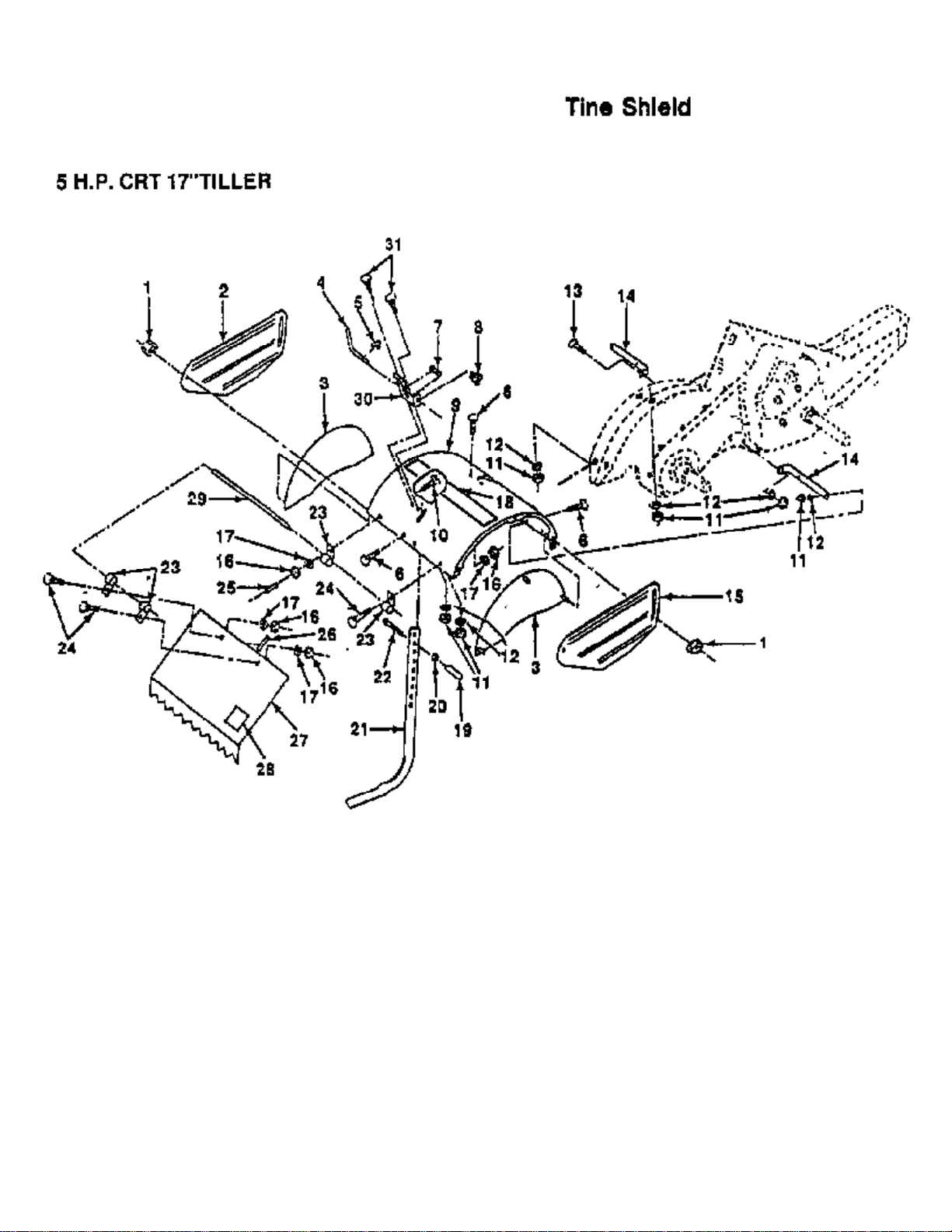

TINE SHIELD
RT150GR (1999 & Before) Page 34 of 44
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X425 SUB= 104086X388
3 104085X425 SUB= 104085X388
4 8393J STAKE PIN TI
5 12000036 KLIP RING TI
6 72140506 BOLT
7 8394J SPRING TI
8 109230X SPRING CRT
9 102326X425 SUB= 102326X505
10 72040410 BOLT
11 10040500 LOCKWASHER
12 73220500 NUT.HEX.5/16-18
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 104101X425 SUB= 104101X505
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 124171X NLA
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X425 SUB= 102695X505
28 120076X SUB= 120075X
29 120588X PIN HINGE
30 8392J LATCH BRACKET TI
31 72110508 BOLT CRT
RT150GR (1999 & Before) Page 35 of 44

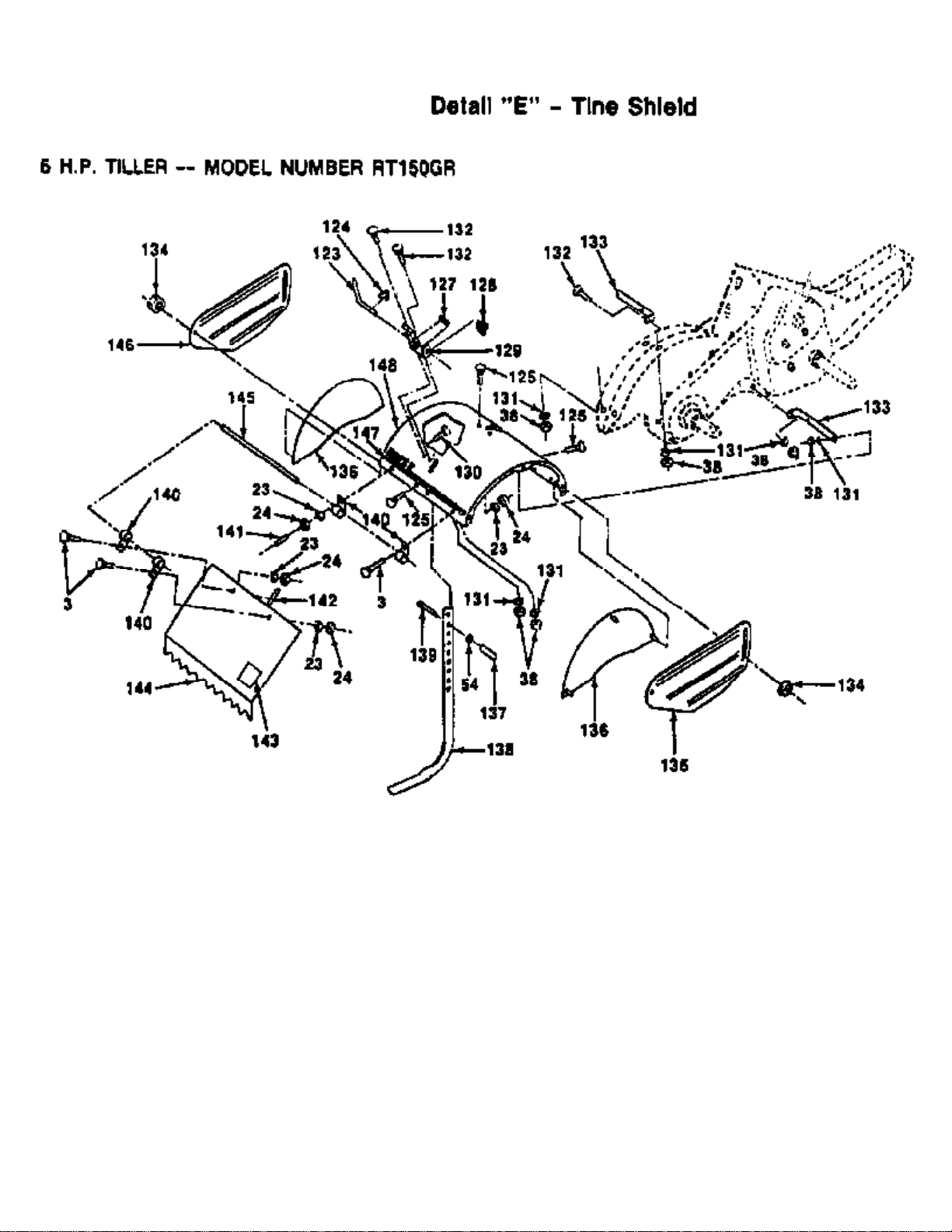

TINE SHIELD
RT150GR (1999 & Before) Page 36 of 44
TINE SHIELD
Ref # Part Number Qty Description
123 8393J STAKE PIN TI
124 12000036 KLIP RING TI
125 72140505 BOLT
127 8394J SPRING TI
128 109230X SPRING CRT
129 8392J LATCH BRACKET TI
130 72040410 BOLT
131 10040500 LOCKWASHER
132 72110508 BOLT CRT
133 102155X SUB= 124343X
134 98000129 NUT
135 104101X388 SUB= 104101X505
136 104085X388 SHIELD CRT
137 102701X GRIP CRT
138 102156X SUB= 102156X500
139 74930632 BOLT
140 4440J HINGE CRT
141 6712J VINYL CAP TI
142 109227X PAD IDLER TI
143 120076X SUB= 120075X
144 102695X388 SUB= 102695X505
145 120588X PIN HINGE
146 104086X388 SHIELD.SD.OUT.LH
147 121452X NLA
148 102326X388 SUB= 102326X505
3 72140404 BOLT
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
38 73220500 NUT.HEX.5/16-18
54 73220600 NUT.HEX.3/8-16UNC
RT150GR (1999 & Before) Page 37 of 44

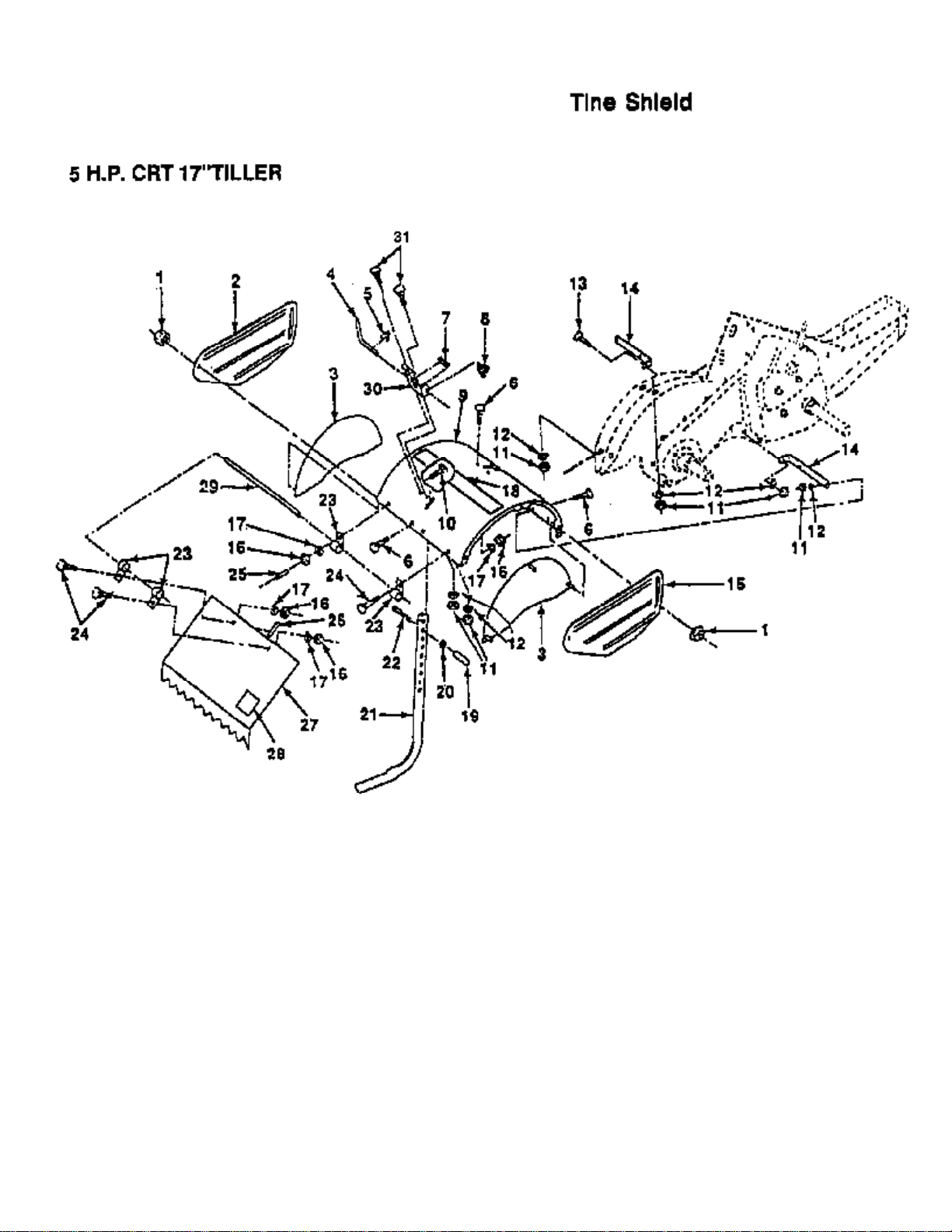

TINE SHIELD
RT150GR (1999 & Before) Page 38 of 44
TINE SHIELD
Ref # Part Number Qty Description
1 98000129 NUT
2 104086X425 SUB= 104086X388
3 104085X425 SUB= 104085X388
4 8393J STAKE PIN TI
5 12000036 KLIP RING TI
6 72140506 BOLT
7 8394J SPRING TI
8 109230X SPRING CRT
9 102326X425 SUB= 102326X505
10 72040410 BOLT
11 10040500 LOCKWASHER
12 73220500 NUT.HEX.5/16-18
13 72110510 BOLT
14 124343X BRKT SHIELD TINE
15 104101X425 SUB= 104101X505
16 73220400 SUB= 50675
17 10040400 LOCKWASHER
18 124171X NLA
19 102701X GRIP CRT
20 73220600 NUT.HEX.3/8-16UNC
21 102156X SUB= 102156X500
22 74930632 BOLT
23 4440J HINGE CRT
24 72140404 BOLT
25 6712J VINYL CAP TI
26 109227X PAD IDLER TI
27 102695X425 SUB= 102695X505
28 120076X SUB= 120075X
29 120588X PIN HINGE
30 8392J LATCH BRACKET TI
31 72110508 BOLT CRT
RT150GR (1999 & Before) Page 39 of 44
TRANSMISSION P/N BREAKOUT
RT150GR (1999 & Before) Page 40 of 44

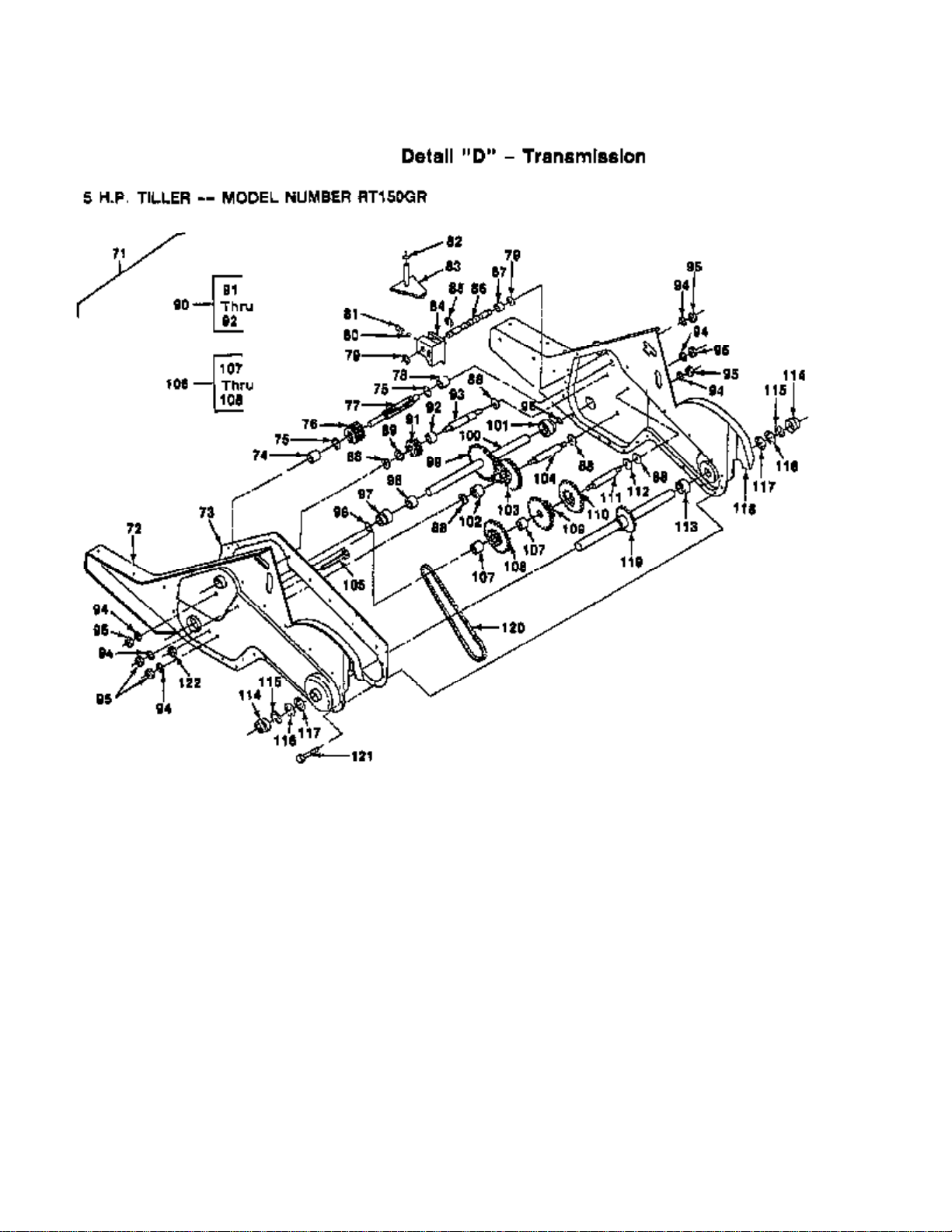

TRANSMISSION P/N BREAKOUT
Ref # Part Number Qty Description
71 121146X SUB= 155112
72 121147X SUB= 150698
73 106211X GASKET TI
74 5020J NEEDLE BRNG LT
75 1370H "T, BEARING"
76 102113X PINION-INPUT CRT
77 102110X SHAFT-INPUT CRT
78 4895H "TI, BEARING"
79 102136X WASHER SEAL CRT
80 7392M SUB= 100482K
81 100371K SPRING-SHIFT CRT
82 106160X O-RING TI
83 102107X ARM ASSY CRT
84 8353J SHIFT FORK TI
85 12000039 KLIP RING
86 102109X SHAFT SHIFT CRT
87 104159X SPACER SPLIT CRT
88 4358J WASHER
89 12000040 KLIP RING
90 102114X GEAR ASSY CRT
91 102115X GEAR-REV IDLR CRT
92 6803J NEEDLE BEARING TI
93 102111X SHAFT CRT
94 10040700 LOCKWASHER
95 73610700 NUT.ASF.HEX.7/16
96 102128X O RING CRT
97 102100X "CRT, BEARING"
98 106390X BUSHING TI
99 102134X CHAIN CRT
100 109204X SUB= 150737
101 102106X SUB= 918102106X
102 106388X SPACER TI
103 102121X SPRCKT 8 GEAR CRT
104 102112X SHFT 2ND RED. CRT
105 102101X SCRW WHIZ LOK CRT
106 106141X SUB= 137300
107 4422J BEARING
108 106142X SUB= 137300
109 105345X GEAR TI
110 105346X GEAR TI
111 8358J REDUCTION SHFT TI
112 4220R BRNG RACE
113 106146X SPACER TI
114 9672R CUP.FORMED.
115 102144X RING SPIRAL CRT
116 9676R SUB= 147344
117 9674R SUB= 147344
118 121745X SUB= 150700
119 106144X SHAFT ASSY TI
120 106147X CHAIN.50 LINK TI
121 17580408 SCREW CRT
122 73220500 NUT.HEX.5/16-18
RT150GR (1999 & Before) Page 41 of 44

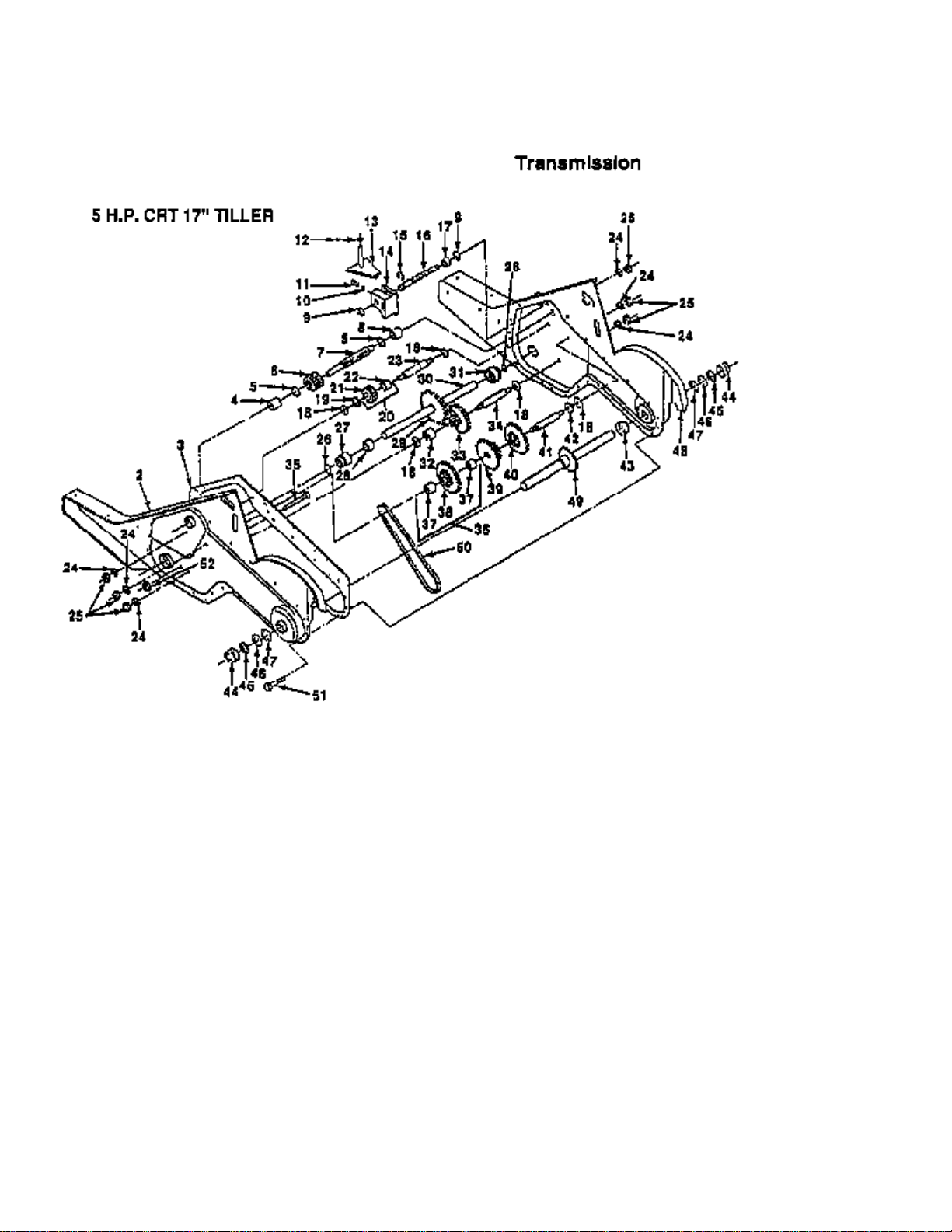

TRANSMISSION P/N BREAKOUT
RT150GR (1999 & Before) Page 42 of 44
TRANSMISSION P/N BREAKOUT
Ref # Part Number Qty Description
1 121146X SUB= 155112
2 121147X SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 102113X PINION-INPUT CRT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 102107X ARM ASSY CRT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 102109X SHAFT SHIFT CRT
17 104159X SPACER SPLIT CRT
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
26 102128X O RING CRT
27 102100X "CRT, BEARING"
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 109204X SUB= 150737
31 102106X SUB= 918102106X
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 106141X SUB= 137300
37 4422J BEARING
38 106142X SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 9676R SUB= 147344
48 121745X SUB= 150700
49 106144X SHAFT ASSY TI
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
53 6066J GREASE PREMIUM-1
RT150GR (1999 & Before) Page 43 of 44

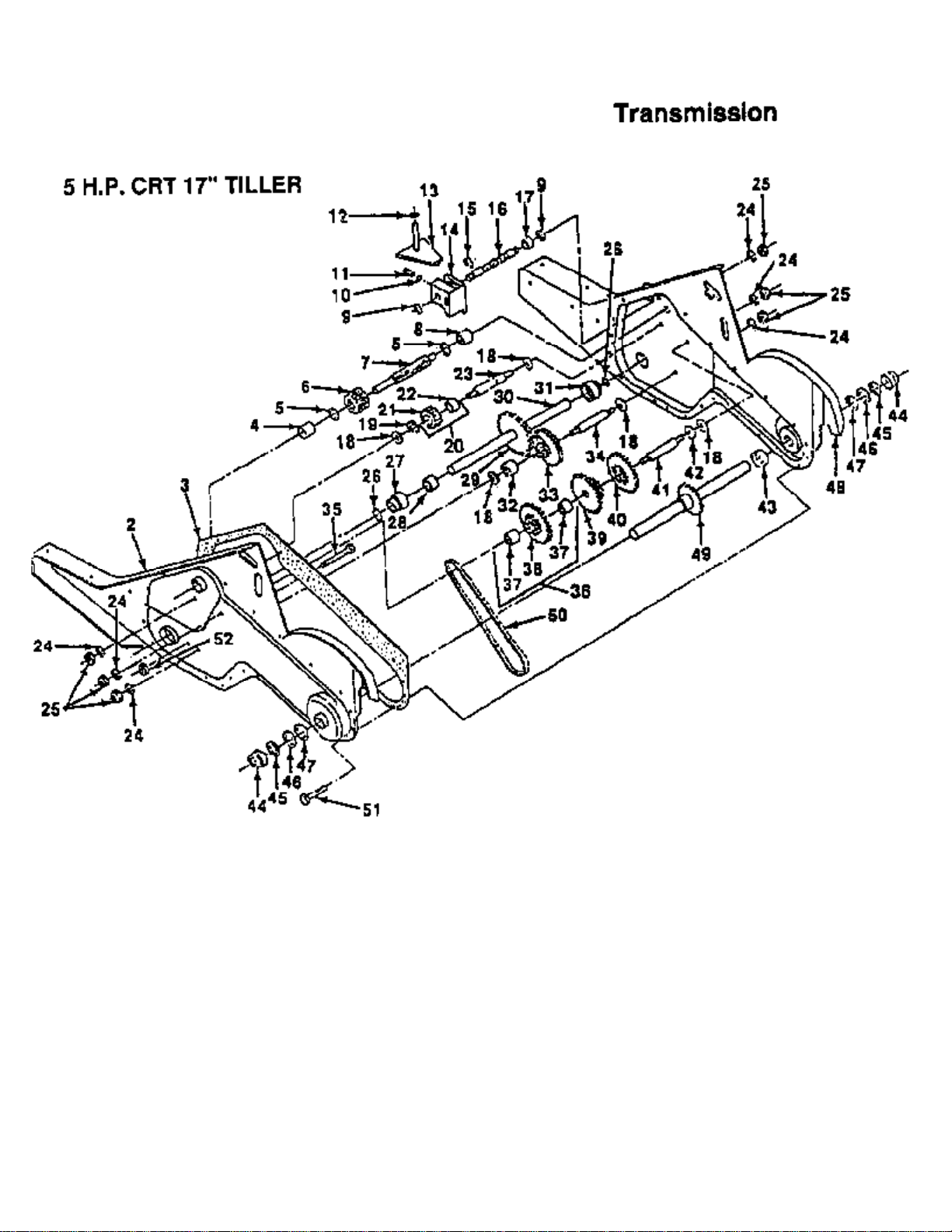

TRANSMISSION P/N BREAKOUT
RT150GR (1999 & Before) Page 44 of 44
TRANSMISSION P/N BREAKOUT
Ref # Part Number Qty Description
1 121146X SUB= 155112
2 121147X SUB= 150698
3 106211X GASKET TI
4 5020J NEEDLE BRNG LT
5 1370H "T, BEARING"
6 102113X PINION-INPUT CRT
7 102110X SHAFT-INPUT CRT
8 4895H "TI, BEARING"
9 102136X WASHER SEAL CRT
10 7392M SUB= 100482K
11 100371K SPRING-SHIFT CRT
12 106160X O-RING TI
13 102107X ARM ASSY CRT
14 8353J SHIFT FORK TI
15 12000039 KLIP RING
16 102109X SHAFT SHIFT CRT
17 104159X SPACER SPLIT CRT
18 4358J WASHER
19 12000040 KLIP RING
20 102114X GEAR ASSY CRT
21 102115X GEAR-REV IDLR CRT
22 6803J NEEDLE BEARING TI
23 102111X SHAFT CRT
24 10040700 LOCKWASHER
25 73610700 NUT.ASF.HEX.7/16
26 102128X O RING CRT
27 102100X "CRT, BEARING"
28 106390X BUSHING TI
29 102134X CHAIN CRT
30 109204X SUB= 150737
31 102106X SUB= 918102106X
32 106388X SPACER TI
33 102121X SPRCKT 8 GEAR CRT
34 102112X SHFT 2ND RED. CRT
35 102101X SCRW WHIZ LOK CRT
36 106141X SUB= 137300
37 4422J BEARING
38 106142X SUB= 137300
39 105345X GEAR TI
40 105346X GEAR TI
41 8358J REDUCTION SHFT TI
42 4220R BRNG RACE
43 106146X SPACER TI
44 9672R CUP.FORMED.
45 102144X RING SPIRAL CRT
46 9676R SUB= 147344
47 9674R SUB= 147344
48 121745X SUB= 150700
49 106144X SHAFT ASSY TI
50 106147X CHAIN.50 LINK TI
51 17580408 SCREW CRT
52 73220500 NUT.HEX.5/16-18
53 6066J GREASE PREMIUM-1
Loading...
