Page 1

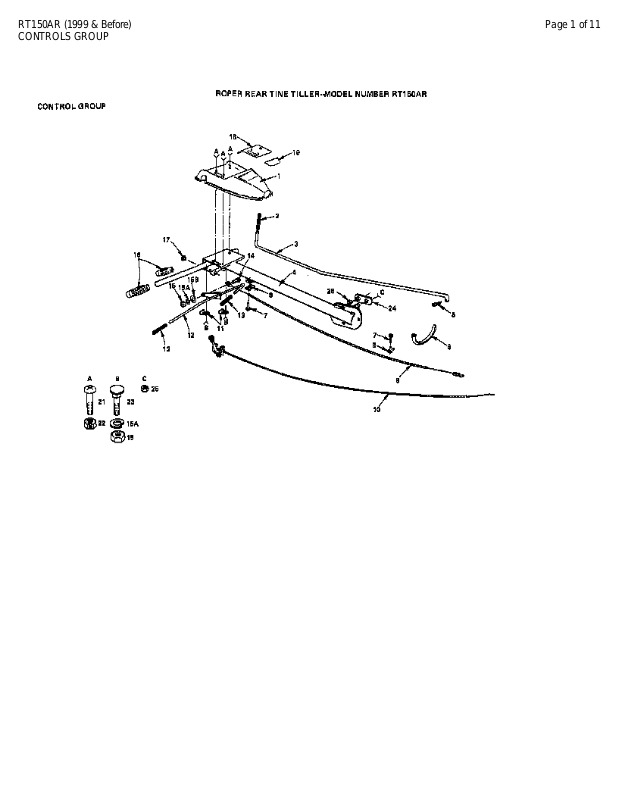

RT150AR (1999 & Before) Page 1 of 11
CONTROLS GROUP
Page 2
RT150AR (1999 & Before) Page 2 of 11
CONTROLS GROUP
Ref # Part Number Qty Description
1 102595X PANEL - CONTROL
2 8389J GRIP TI
3 102868X358 ROD - SHIFT
4 104890X358 SUB= 109446X431
5 4497H RETAINER M
6 104164X TIE CABLE CRT
7 17561008 SCREW TI
8 9484R CONDIUT CLIP T
9 102162X CABLE.CLUTCH.CRT
10 102687X CTRL-THROTTLE T
11 102744X SUB= 102744X431
12 102601X358 SUB= 105216X
13 102604X GRIP BAR CRT
14 81328 SHOULDER BOLT ST
15 73220400 SUB= 50675
15A 10040400 LOCKWASHER
15B 19091016 WASHER
16 9266R SUB= 624A78
17 102856X GROMMET TI
18 102721X NLA
19 102692X DECAL - CONTROL PANEL
21 74981008 SCREW
22 98000049 NUT
23 72110404 BOLT
24 101282K "NUT, LOCK CRT"
25 73690400 LOCKNUT
26 104886X NUT FLANGE CRT
Page 3
RT150AR (1999 & Before) Page 3 of 11
HARDWARE (MAIN FRAME)
Page 4
RT150AR (1999 & Before) Page 4 of 11
HARDWARE (MAIN FRAME)
Ref # Part Number Qty Description
3 19111116 WASHER
4 104214X NUT TI
6 10040400 LOCKWASHER
7 73220400 SUB= 50675
12 10040600 LOCKWASHER
13 73220600 NUT.HEX.3/8-16UNC
22 72140608 SUB= 72110608
23 5394H SUB= 73930600
24 17561008 SCREW TI
Page 5
RT150AR (1999 & Before) Page 5 of 11
MAIN FRAME
Page 6
RT150AR (1999 & Before) Page 6 of 11
MAIN FRAME
Ref # Part Number Qty Description
1 23230506 SET SCREW
3 19111116 WASHER
4 104214X NUT TI
5 72110404 BOLT
6 10040400 LOCKWASHER
7 73220400 SUB= 50675
8 74760524 BOLT.HEX.5/16-1.5
9 10040500 LOCKWASHER
10 73220500 NUT.HEX.5/16-18
11 74760616 BOLT
12 10040600 LOCKWASHER
13 73220600 NUT.HEX.3/8-16UNC
14 74610616 BOLT
15 73610600 SUB= 7810H
16 19111214 WASHER
17 72140505 BOLT
18 72110508 BOLT CRT
19 72140506 BOLT
Page 7
RT150AR (1999 & Before) Page 7 of 11
MAIN FRAME
Page 8
RT150AR (1999 & Before) Page 8 of 11
MAIN FRAME
Ref # Part Number Qty Description
1 102142X SUB= 130816
2 102376X BRACKET ASSY CRT
3 130202 NLA
4 102697X DECAL - 5HP
5 102166X SUB= 110111X
6 1572H SUB= 2882J
7 673H455 SUB= 8700J
8 102180X DECAL CRT
9 73220600 NUT.HEX.3/8-16UNC
10 102173X COUNTERWEIGHT CRT
10A 102383X COUNTERWEIGHT CRT
11 102384X BOLT CRT
12 102373X SUB= 109228X
13 74930580 BOLT - HEX
14 102189X SUB= 124258X
102190X TIRE.CHV.13X5.0-6
795R SUB= 65139
15 4497H RETAINER M
16 102841X SUB= 126875X
17 677H775 SUB= 6555J
18 102382X TINE ASSY RH CRT
19 4929H RIVET.PAN HD.1.75
20 3146R RETAINER.SPRING
21 678H369 SUB= 6555J
22 102332X BRACKET RH CRT
23 102331X BRACKET LH CRT
25 104101X358 NLA
26 104085X358 SUB= 104085X505
28 102326X358 NLA
29 102155X SUB= 124343X
30 102154X SUB= 120588X
31 102701X GRIP CRT
32 102156X SUB= 102156X500
33 74930632 BOLT
35 104476X NLA
36 4440J HINGE CRT
37 102695X358 SHLD-LEVELING TI
39 8392J LATCH BRACKET TI
40 12000036 KLIP RING TI
41 8394J SPRING TI
42 102698X DECAL - TINE SHIELD
43 8393J STAKE PIN TI
44 104086X358 SUB= 104086X505
45 677H774 SUB= 6554J
46 102380X TINE ASSY LH CRT
47 678H368 SUB= 6554J
48 102150X NLA
49 1911116 WASHER
50 100473M "SHEAVE 10"" CRT"
51 102148X358 SUB= 131159X428
52 102699X NLA
53 102143X SUB= 132672
54 2649M KEY T
55 102149X NLA
56 19131414 WASHER
57 73220500 NUT.HEX.5/16-18
58 102141X SHIFT ARM CRT
59 102139X SUB= 105611X
Page 9
RT150AR (1999 & Before) Page 9 of 11
MAIN FRAME
Ref # Part Number Qty Description
60 9484R CONDIUT CLIP T
61 12000032 KLIP RING
62 104679X PULLEY-IDLER TI
102694X MANUAL - OWNER'S
Page 10
RT150AR (1999 & Before) Page 10 of 11
TRANSMISSION
Page 11
RT150AR (1999 & Before) Page 11 of 11
TRANSMISSION
Ref # Part Number Qty Description
104894X SUB= 155112
1 104895X GEARCASE ASSY
2 102136X WASHER SEAL CRT
3 12000039 KLIP RING
4 8353J SHIFT FORK TI
5 100371K SPRING-SHIFT CRT
6 7392M SUB= 100482K
7 102109X SHAFT SHIFT CRT
8 104159X SPACER SPLIT CRT
9 102128X O RING CRT
10 102100X "CRT, BEARING"
11 102101X SCRW WHIZ LOK CRT
12 8364J SUB= 106390X
13 102124X SUB= 109204X
14 4358J WASHER
15 102112X SHFT 2ND RED. CRT
16 102127X SUB= 106388X
17 102106X SUB= 918102106X
18 102134X CHAIN CRT
19 102121X SPRCKT 8 GEAR CRT
20 4895H "TI, BEARING"
21 8358J REDUCTION SHFT TI
22 1370H "T, BEARING"
23 4220R BRNG RACE
25 102120X SUB= 131527
26 102113X PINION-INPUT CRT
27 8546J CLUSTER GEAR TI
28 5020J NEEDLE BRNG LT
29 6803J NEEDLE BEARING TI
30 4422J BEARING
31 102115X GEAR-REV IDLR CRT
32 102117X SPROCKET ASSY
33 102111X SHAFT CRT
34 12000040 KLIP RING
35 102129X NLA
36 102131X NLA
37 102116X NLA
38 102130X SUB= 106146X
39 102144X RING SPIRAL CRT
40 102107X ARM ASSY CRT
41 10040700 LOCKWASHER
42 73610700 NUT.ASF.HEX.7/16
43 104896X NLA
44 102137X SUB= 106211X
45 73220500 NUT.HEX.5/16-18
46 102114X GEAR ASSY CRT
47 102135X NLA
48 17580408 SCREW CRT
49 9674R SUB= 147344
50 9676R SUB= 147344
51 9672R CUP.FORMED.
6066J GREASE PREMIUM-1
