AYP RRT12L36A Parts List

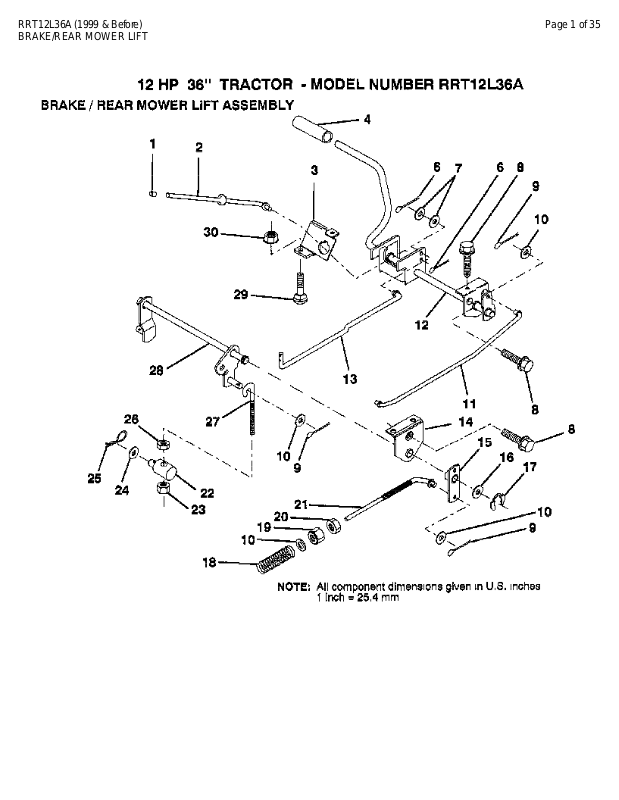

RRT12L36A (1999 & Before) Page 1 of 35
BRAKE/REAR MOWER LIFT

RRT12L36A (1999 & Before) Page 2 of 35
BRAKE/REAR MOWER LIFT

Ref # Part Number Qty Description

1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT

9 76020412 COTTER PIN
10 19131316 WASHER
11 131656 SUB= 136225
12 133483 SUB= 139933
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 133332 PVT BRAKE ARM ASM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73680600 SUB= 73690600
20 73350600 NUT
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73680600 SUB= 73690600
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 127358 SUB= 140776
29 72110506 SUB= 72270506
30 73510500 NUT

RRT12L36A (1999 & Before) Page 3 of 35
DANA TRANSAXLE

RRT12L36A (1999 & Before) Page 4 of 35
DANA TRANSAXLE

Ref # Part Number Qty Description

1 3865 HOUSING UPPER

2 1919 SCREW

3 1151 BALL DETENT

4 3626 SPRING, DETENT

5 3623 SCREW, SET

6 4336 ASSY SHIFTER

7 3884 O-RING

8 3885 WASHER PLAIN

3886 WASHER PLAIN
3887 WASHER PLAIN
3888 WASHER PLAIN
3889 WASHER PLAIN
3121 WASHER PLAIN
3890 WASHER PLAIN

9 1100 RING RETAINING
10 1099 RING RETAINING
11 1959 WASHER PLAIN

1441 WASHER PLAIN
1423 WASHER, PLAIN .632 X 1.00 X .026
1082 WASHER PLAIN
1424 WASHER PLAIN
1068 WASHER PLAIN
1425 WASHER PLAIN
1358 WASHER PLAIN
1145 WASHER, PLAIN .632 X 1.00 X .060

1319 WASHER PLAIN
12 3312 O-RING
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1374 KEY WOODRUFF #9
15 4134 ASSY KIT INPUT SHAFT
16 3590 PINION, BEVEL, 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 3773 GEAR SPUR, 14 TEETH
21 3631 COLLAR CLUTCH
22 3828 KEY CLUTCH
23 1369 KEY WOODRUFF #3
24 3883 SHAFT INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 3786 GEAR, SPUR, 37 TEETH
30 3785 GEAR, SPUR, 35 TEETH
31 3867 GEAR, SPUR, 30 TEETH
32 3783 GEAR, SPUR, 25 TEETH
33 3869 GEAR, SPUR, 22 TEETH
34 3741 GEAR SPUR
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3877 SHAFT IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3853 GEAR, BEVEL, 42 TEETH
43 3749 WASHER PLAIN

RRT12L36A (1999 & Before) Page 5 of 35
DANA TRANSAXLE

Ref # Part Number Qty Description

3652 WASHER PLAIN

3693 WASHER PLAIN

3653 WASHER PLAIN

3408 WASHER PLAIN

3732 WASHER PLAIN

3184 WASHER, PLAIN .758 X 1.25 X .031

3733 WASHER PLAIN

3198 WASHER PLAIN

3734 WASHER PLAIN

3735 WASHER PLAIN

3736 WASHER PLAIN

3180 WASHER PLAIN
44 3882 SHAFT, DRIVE
45 3646 GEAR, SPUR, 12 TEETH
46 3707 GEAR SPUR, 15 TEETH
47 3866 GEAR, SPUR, 20 TEETH
48 3719 GEAR, SPUR, 25 TEETH
49 3868 GEAR, SPUR, 28 TEETH
50 3683 GEAR, SPUR, 31 TEETH
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 3191 SEAL FELT
53 3180 WASHER PLAIN
54 3980 AXLE LEFT HAND
55 3780 GEAR, MITER, 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
59 3781 GEAR, MITER, 15 TEETH
60 3981 AXLE RIGHT HAND
61 3864 HOUSING LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 3915 SCREW TAPPING
68 3768 LEVER, ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 3847 LOCKNUT 5/16-24
72 3724 SCREW TAPPING
73 3906 WASHER PLAIN
74 3907 PUCK, FRICTION
75 4300 GREASE

RRT12L36A (1999 & Before) Page 6 of 35
DASH

RRT12L36A (1999 & Before) Page 7 of 35
DASH

Ref # Part Number Qty Description

1 122015X SUB= 141523
2 130913 SUB= 138393
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73510400 NUT
7 2751R CLIP T
8 19091216 WASHER PM

9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023X ADJUSTER QUAD
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 18000408 SUB= 818000408
21 19090816 WASHER
22 134014 PLUG DOME

RRT12L36A (1999 & Before) Page 8 of 35
DECALS

RRT12L36A (1999 & Before) Page 9 of 35
DECALS

Ref # Part Number Qty Description

2 130569 "DECAL,STP HD LH"

3 130568 "DECAL,STP HD RH"

4 132627 GRILL DECAL

5 127033 "DECAL,HOOD"

6 132628 FENDER DECAL

7 133795 DECAL CAUTION

8 121349X DECAL WARNING

9 109820X DECAL YT
10 127075 "DECAL,STR WHL"
11 123637X SUB= 138269
12 121549X DECAL
13 123649X DECAL WARNING
14 125690X DECAL

133626 OPERATORS MANUAL
131745 OP MANUAL
135821X MANUAL REPAI RPARTS

RRT12L36A (1999 & Before) Page 10 of 35
ELECTRICAL

RRT12L36A (1999 & Before) Page 11 of 35
ELECTRICAL

Ref # Part Number Qty Description

1 73510400 NUT

2 4560J SUB= 2957J

3 133909 SUB= 123899X

5 108236X BRACKET LT

6 104445X SWITCH-INTER. GT

7 109553X SWITCH INTERLOCKT

8 17021008 SCREW

9 122147X KEY
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 134860 "HARNESS,IGNITION"
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 109081X SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
34 73510600 NUT
35 11050600 LOCKWASHER
