RL1036A (1999 & Before) Page 1 of 35

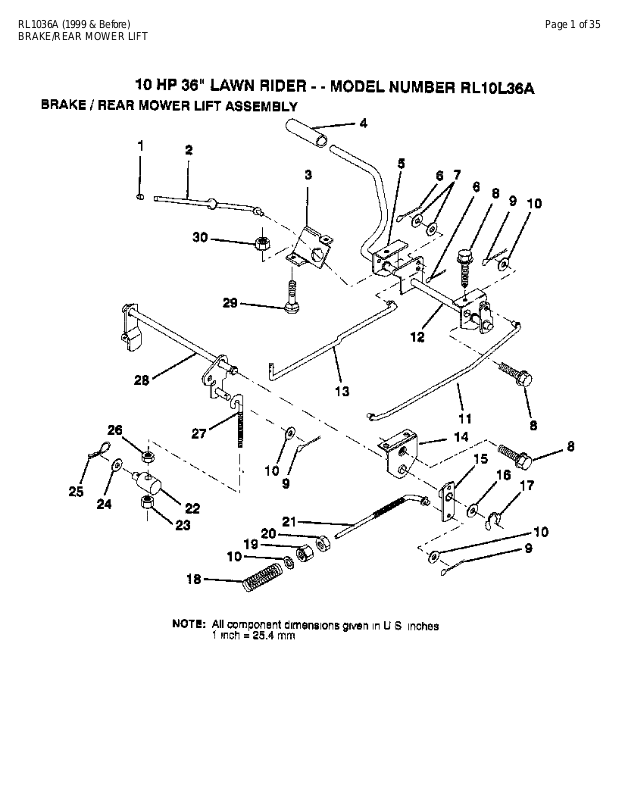

BRAKE/REAR MOWER LIFT
RL1036A (1999 & Before) Page 2 of 35
BRAKE/REAR MOWER LIFT
Ref # Part Number Qty Description
1 71673 PLUNGER CAP T
2 123436X "ROD,PARK BRAKE"
3 123437X "BRKT,PARK BRAKE"
4 8156H FOOT PEDAL COVER
5 122504X "BRKT,CLU PEDAL LH"
6 76020312 SUB= 3145
7 19131016 WASHER
8 17490508 SCREW LT
9 76020412 COTTER PIN
10 19131316 WASHER
11 123543X "ROD,FRT BRAKE"
12 129567 SUB= 139933
13 123394X "ROD,CLUTCH"
14 121978X "BRKT,LIFT SHAFT"
15 123641X BRAKE PIVOT ARM
16 19251816 WASHER T
17 12000034 KLIP RING
18 106888X SPRING ROD LT
19 73680600 SUB= 73690600
20 73350600 NUT
21 131460 SUB= 532131460
22 127378 SUB= 144585
23 73680600 SUB= 73690600
24 19132012 WASHER
25 4921H SPRING.RETAINER
26 73930600 LOCKNUT
27 127369 "LINK, MOWER REAR"
28 127358 SUB= 140776
29 72110506 SUB= 72270506
30 73510500 NUT
RL1036A (1999 & Before) Page 3 of 35
DASH
RL1036A (1999 & Before) Page 4 of 35
DASH
Ref # Part Number Qty Description
1 122015X SUB= 141523
2 130913 SUB= 138393
3 123487X HOSE CLAMP
4 8544R SUB= 295J
5 8548R FUEL LINE T
6 73510400 NUT
7 2751R CLIP T
8 19091216 WASHER PM
9 74760428 BOLT
10 19091413 WASHER
11 121249X SPACER SPLIT
12 3720R SPRING M
13 126450X "KNOB,HGT RETAINER"
14 126115X KNOB
15 122023 ADJ QUARDRANT HEIGHT
16 124346X NUT
17 72110404 BOLT
18 130745 SUPT ASSY DASH
19 134744 CROSS BRACE
20 18000408 SUB= 818000408
21 19090816 WASHER
22 134014 PLUG DOME
RL1036A (1999 & Before) Page 5 of 35
DECALS
RL1036A (1999 & Before) Page 6 of 35
DECALS
Ref # Part Number Qty Description
1 127078 DECAL STEERING WHEEL
2 130569 "DECAL,STP HD LH"
3 130568 "DECAL,STP HD RH"
4 132627 GRILL DECAL
5 127032 NLA
6 132628 FENDER DECAL
7 133795 DECAL CAUTION
8 121349X DECAL WARNING
9 109820X DECAL YT
11 123637X SUB= 138269
13 123649X DECAL WARNING
133626 OPERATORS MANUAL
131745 OP MANUAL
135504 "MANUAL,PARTS"
RL1036A (1999 & Before) Page 7 of 35
ELECTRICAL
RL1036A (1999 & Before) Page 8 of 35
ELECTRICAL
Ref # Part Number Qty Description
1 73510400 NUT
2 108423X CABLE ASM.
3 133909 SUB= 123899X
5 108236X BRACKET LT
6 104445X SWITCH-INTER. GT
7 109553X SWITCH INTERLOCKT
8 17021008 SCREW
9 122147X KEY
10 123620X SUB= 141226
11 124211X NUT IGNITION
12 4406R SUB= STD365402
14 7192J WIRE TIE
15 121305X SWITCH SEAT
16 73510500 NUT
17 108824X FUSE HYT
18 128353 CABLE ASSY
19 132223 SUB= 532132223
20 73350400 NUT
21 10090400 SUB= 10040400
22 74780408 BOLT
23 11050400 LOCKWASHER
24 131563 SUB= 154336
25 109081X SUB= 146154
26 74760412 BOLT LT
27 19091016 WASHER
28 10040400 LOCKWASHER
29 121264X "CAP,BATTERY "
30 73220400 SUB= 50675
35 11050600 LOCKWASHER
RL1036A (1999 & Before) Page 9 of 35
ENGINE/THROTTLE
RL1036A (1999 & Before) Page 10 of 35
ENGINE/THROTTLE
Ref # Part Number Qty Description
1 17720408 SCREW
2 132521 THROTTLE CONTROL
3 REFER TO IMAGE
4 71070512 SCREW
5 10040500 LOCKWASHER
6 125593X SUB= 272293
7 73220500 NUT.HEX.5/16-18
8 121094X BOLT T
9 19101216 WASHER
10 10040400 LOCKWASHER
11 74780412 SUB= 74780414
12 124097X MUFFLER
13 101326L DEFLECTOR.222573
14 17030808 SUB= 17030814
15 121851X SUB= 532137180
17 17490624 SCREW LT
18 126636X "KEEPER,DR BELT GR"
RL1036A (1999 & Before) Page 11 of 35
FENDER/CHASSIS
RL1036A (1999 & Before) Page 12 of 35
FENDER/CHASSIS
Ref # Part Number Qty Description
1 129965 SUB= 156417
2 19132012 WASHER
3 17490612 SCREW
4 124181X SPRING COMPRESSIO
5 127115X419 "PLATE, BATTERY"
6 109596X HOSE CLAMP T
7 124144X PAD FOOTREST
8 17490512 SCREW
9 126993X CONSOLE SHFT 4SP
10 124602X SUB= 139783
11 124346X NUT
12 133384X ASSY FRAME
13 105687X SUB= 109238X
14 73510400 NUT
15 73680500 SUB= 73690500
16 74760512 BOLT
17 127880 DRAWBAR
18 126470X "CLIP,INSULATOR"
19 128083X419 SUB= 140955X419
20 19091413 WASHER
RL1036A (1999 & Before) Page 13 of 35
FRONT AXLE
RL1036A (1999 & Before) Page 14 of 35
FRONT AXLE
Ref # Part Number Qty Description
1 121232X CAP
2 12000029 RING
3 121748X WASHER
4 121922X NYLINER
5 121914X AXLE FRONT
6 6266H WASHER .T
7 121919X SPINDLE RH
8 121749X WASHER
9 76020412 COTTER PIN
10 19131316 WASHER
11 126847X BUSHING.DRAGLINK
12 121924X ROD TIE
13 121916X SPINDLE LH
RL1036A (1999 & Before) Page 15 of 35
GROUND DRIVE
RL1036A (1999 & Before) Page 16 of 35
GROUND DRIVE
Ref # Part Number Qty Description
1 73680500 SUB= 73690500
2 74760512 BOLT
3 131205 SUB= 532131205
4 134828 SUB= 138029
5 10040700 LOCKWASHER
6 71170744 HEX BOLT
7 124525X BELT
8 123405X "KEEPER,DRIVE BELT"
9 72140612 BOLT
10 123396X "KEEP,IDLER DR BEL"
11 123395X SUB= 140911
12 4859J SUB= 123674X
13 19131316 WASHER
14 73930600 LOCKNUT
15 73680600 SUB= 73690600
16 126471X "CLIP,INSULATOR"
17 122052X SPACER RETAINER
18 131459 SUB= 532131459
19 73510500 NUT
20 123891X "KEEPER,DR BELT "
21 19111016 WASHER
22 123404X "KEEPER,FRA DR BEL"
23 131204 SUB= 532131204
RL1036A (1999 & Before) Page 17 of 35
HOOD
RL1036A (1999 & Before) Page 18 of 35

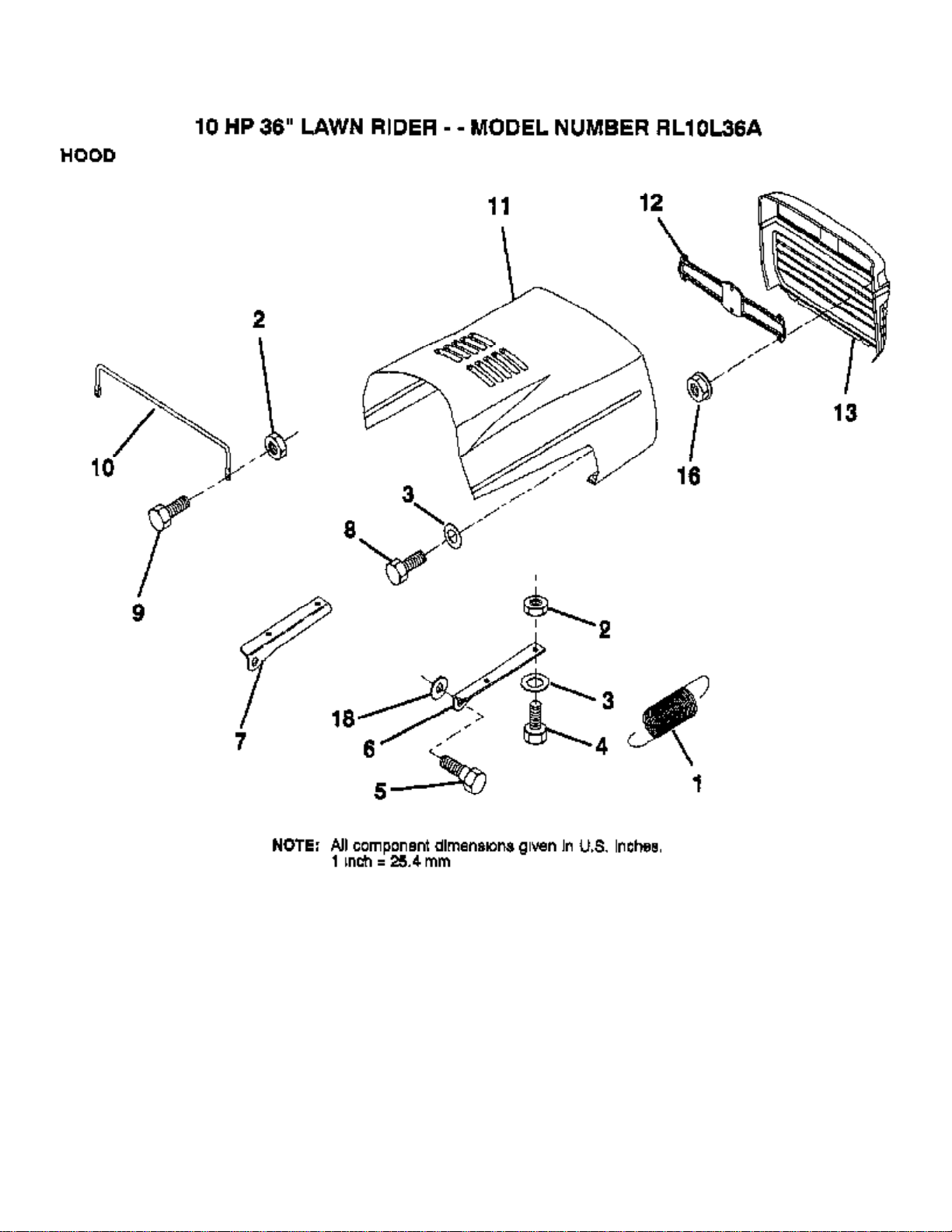

HOOD
Ref # Part Number Qty Description
1 124657X EXT SPRING
2 73510400 NUT
3 19091016 WASHER
4 74780410 BOLT
5 126675X SUB= 139888
6 122549X BRKT HOOD RH
7 122548X BRKT HOOD LH
8 17411310 SUB= 17521312
9 74780412 SUB= 74780414
10 123693X "BRACE,HOOD"
11 132918X419 HOOD
12 127178 LENS T
13 134232X507 GRILL
16 124346X NUT
18 19111116 WASHER
RL1036A (1999 & Before) Page 19 of 35
MOWER DECK
RL1036A (1999 & Before) Page 20 of 35
MOWER DECK
Ref # Part Number Qty Description
1 127743 SUB= 140064
2 122052X SPACER RETAINER
3 73680600 SUB= 73690600
4 130840 BRAKE ASM
5 131251 IDLER BELT GUIDE
6 121316X PULLEY IDLER
7 72110616 BOLT
8 19131410 WASHER
9 127744 SUB= 140092
10 72110608 BOLT D
11 130841 BRAKE ROD
12 127356 "BRKT,LIFT REAR"
13 72140505 BOLT
14 73680500 SUB= 73690500
15 127357 "BRKT,LIFT REAR LH"
16 130837 SUB= 153298
17 128508 MOWER LINK STAB
18 128511 "PIN,GROOVE"
19 127380 "BRKT,LINK STABILI"
20 127841 SUB= 138496
21 129962 WASHER BLADE
22 10030600 SUB= 10040600
23 850857 BLADE BOLT
24 128961 SUB= 140329
25 78158 SUB= 17580520
26 129963 WASHER
27 129983 SUB= 156600
28 129207 SUB= 153531
29 73050900 SUB= 139729
30 126361X SUB= 532136631
31 17490508 SCREW LT
32 122051X "SUPT,IDLER ARM"
33 131560 SUB= 532131560
36 121980X HINGE ROD
37 123713X SPRING TORSION
38 105304X CAP-SLEEVE LT
39 19111016 WASHER
40 110452X NUT PUSH M
41 131264 V-BELT.PRIM.78.5.
42 19171616 WASHER
43 3146R RETAINER.SPRING
44 130836 SUB= 140608
45 110485X BEARING
46 128774 HSG ASM MANDREL
47 129895 BEARING.BALL
48 133172 SUB= 137646
130794 MANDREL ASM
135082 SUB= 140979
RL1036A (1999 & Before) Page 21 of 35
MOWER LIFT LEVER
RL1036A (1999 & Before) Page 22 of 35
MOWER LIFT LEVER
Ref # Part Number Qty Description
1 126470X "CLIP,INSULATOR"
2 122018X BRKT CLUTCH
3 74780408 BOLT
4 73680600 SUB= 73690600
5 123417X CLUTCH LEVER AS
6 106451X "BOLT, SHOULDER LT"
7 135371 MWR CLUTCH ARM AS
8 74760636 BOLT
9 121930X "BELLCRANK,LIFT"
10 76020412 COTTER PIN
11 19131316 WASHER
12 131861 SUB= 532131861
13 127028 "HDLE,LIFT T"
14 123496X SPRING COMPRESSIO
15 19131212 WASHER T
16 4921H SPRING.RETAINER
17 127359 "LINK,LIFT FRT"
18 133205 TRUNION
19 73680400 SUB= 73690400
20 74760644 BOLT
23 76020416 PIN COTTER 1/8
24 19171616 WASHER
25 121933X TUBE SPACER
26 121934X "ROD,MOWER LIFT "
27 106932X KNOB T(3/8 HOLE)
28 76020312 SUB= 3145
29 131655 CLUTCH LINK
RL1036A (1999 & Before) Page 23 of 35
SEAT
RL1036A (1999 & Before) Page 24 of 35
SEAT
Ref # Part Number Qty Description
1 72050411 SUB= 872050411
2 134647 SUB= 140119
3 74641008 SUB= 71031008
4 73680500 SUB= 73690500
5 105529X SUB= 139888
6 4171R CLIP T
7 73951000 "NUT,KEPS"
8 74760612 SUB= 74780612
9 126656X SUB= 140551
10 126471X "CLIP,INSULATOR"
11 19133210 WASHER
12 73680600 SUB= 73690600
13 74780814 BOLT
14 10040800 LOCKWASHER
15 19171912 WASHER
16 127018X "BOLT,SHOULDER"
17 121251X STRIP FORM
18 123976X SUB= 73900400
19 121248X BUSHING
20 121250X SPRING
21 121249X SPACER SPLIT
22 121246X BRKT SWITCH
23 131451X PAN SEAT
RL1036A (1999 & Before) Page 25 of 35
SECTOR GEAR/AXLE SUPPORT
RL1036A (1999 & Before) Page 26 of 35
SECTOR GEAR/AXLE SUPPORT
Ref # Part Number Qty Description
1 132566 DRAG LINK
2 74780828 "BOLT,HEX"
5 121926X GEAR SECTOR
6 121927X BUSHING
7 73030800 NUT
8 126472X CLIP INSULATOR
9 73680800 NUT LTV
10 76020412 COTTER PIN
11 19131316 WASHER
12 126847X BUSHING.DRAGLINK
13 74760512 BOLT
14 19111416 WASHER
15 72110606 BOLT
16 72140622 BOLT
17 121912X "SUPT,FRT AXLE"
18 73220600 NUT.HEX.3/8-16UNC
19 73930600 LOCKNUT
20 73680600 SUB= 73690600
21 73680500 SUB= 73690500
RL1036A (1999 & Before) Page 27 of 35
STEERING
RL1036A (1999 & Before) Page 28 of 35
STEERING
Ref # Part Number Qty Description
1 133742 ST WHL INSERT CAP
2 7810H GRIPCO NUT
3 19133808 WASHER T
4 133741 SUB= 150547
5 121897X SLEEVE STEERING
6 17431008 SUB= 98000165
7 102803X SUB= 918102803X
8 123651X SUB= 148966
9 124210X STEERING CLIP
10 123438X BUSHING STEER LWR
11 12000045 RING
12 19211616 WASHER LT
13 104820X ADAPTER-WHEEL LT
RL1036A (1999 & Before) Page 29 of 35
TRANSAXLE
RL1036A (1999 & Before) Page 30 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 3865 HOUSING UPPER
2 1919 SCREW
3 1151 BALL DETENT
4 3626 SPRING, DETENT
5 3623 SCREW, SET
6 4336 ASSY SHIFTER
7 3884 O-RING
8 3885 WASHER PLAIN
3886 WASHER PLAIN
3887 WASHER PLAIN
3888 WASHER PLAIN
3889 WASHER PLAIN
3121 WASHER PLAIN
3890 WASHER PLAIN
9 1100 RING RETAINING
10 1099 RING RETAINING
11 1959 WASHER PLAIN
1441 WASHER PLAIN
1423 WASHER, PLAIN .632 X 1.00 X .026
1082 WASHER PLAIN
1424 WASHER PLAIN
1068 WASHER PLAIN
1425 WASHER PLAIN
1358 WASHER PLAIN
1145 WASHER, PLAIN .632 X 1.00 X .060
1319 WASHER PLAIN
12 3312 O-RING
13 3876 WASHER, PLAIN .632 X 1.38 X .046
14 1374 KEY WOODRUFF #9
15 4134 ASSY KIT INPUT SHAFT
16 3590 PINION, BEVEL, 14 TEETH
17 3624 RING, RETAINING
18 3625 CHAIN, 24 PITCHES
19 1542 BEARING, FLANGE
20 3773 GEAR SPUR, 14 TEETH
21 3631 COLLAR CLUTCH
22 3828 KEY CLUTCH
23 1369 KEY WOODRUFF #3
24 3883 SHAFT INTERMEDIATE
25 1375 KEY, WOODRUFF, #61
26 3627 RING, RETAINING
27 3830 SPROCKET, 18 TEETH
28 3841 SPACER
29 3786 GEAR, SPUR, 37 TEETH
30 3685 SPACER
31 3867 GEAR, SPUR, 30 TEETH
32 3783 GEAR, SPUR, 25 TEETH
33 3907 PUCK, FRICTION
34 3741 GEAR SPUR
35 3628 WASHER, PLAIN .640 X 1.37 X .061
36 1423 WASHER, PLAIN .632 X 1.00 X .026
37 3422 SPACER .630 X 1.00 X .169
38 4286 ASSY GEAR COMB 12&35 TEETH
39 3877 SHAFT IDLER
40 3901 SPACER .635 X .875 X .755
41 3645 SPROCKET, 9 TEETH
42 3853 GEAR, BEVEL, 42 TEETH
43 3749 WASHER PLAIN
RL1036A (1999 & Before) Page 31 of 35
TRANSAXLE
Ref # Part Number Qty Description
3652 WASHER PLAIN
3693 WASHER PLAIN
3653 WASHER PLAIN
3408 WASHER PLAIN
3732 WASHER PLAIN
3184 WASHER, PLAIN .758 X 1.25 X .031
3733 WASHER PLAIN
3198 WASHER PLAIN
3734 WASHER PLAIN
3735 WASHER PLAIN
3736 WASHER PLAIN
3180 WASHER PLAIN
44 3882 SHAFT, DRIVE
45 3646 GEAR, SPUR, 12 TEETH
46 3684 SPACER .781 X 1.00 X .750
47 3866 GEAR, SPUR, 20 TEETH
48 3719 GEAR, SPUR, 25 TEETH
49 3906 WASHER PLAIN
50 3683 GEAR, SPUR, 31 TEETH
51 1145 WASHER, PLAIN .632 X 1.00 X .060
52 3191 SEAL FELT
53 3180 WASHER PLAIN
54 3980 AXLE LEFT HAND
55 3780 GEAR, MITER, 15 TEETH
56 3656 RING, RETAINING
57 3839 GEAR, SPUR, 32 TEETH
58 3919 SHAFT, CROSS
59 3781 GEAR, MITER, 15 TEETH
60 3981 AXLE RIGHT HAND
61 3864 HOUSING LOWER
62 3920 PUCK, FRICTION
63 3276 DISC, BRAKE
64 3758 SPACER
65 3916 JAW, BRAKE
66 3843 PIN, DOWEL
67 3915 SCREW TAPPING
68 3768 LEVER, ACTUATING
69 3760 WASHER, PLAIN .321 X 1.00 X .055
70 3917 BRACKET, ANTI-ROTATION
71 3847 LOCKNUT 5/16-24
72 3724 SCREW TAPPING
73 4300 GREASE
RL1036A (1999 & Before) Page 32 of 35
TRANSAXLE
RL1036A (1999 & Before) Page 33 of 35
TRANSAXLE
Ref # Part Number Qty Description
1 123385X PULLEY
2 12000028 SUB= 2267J
3 123383X SUB= 142594
4 2228M SUB= 2228M1
5 73680500 SUB= 73690500
6 72140506 BOLT
7 123378X "STRAP,TORQUE"
9 110422X SUB= 146682
10 121749X WASHER
11 123583X SQUARE KEY
12 74760644 BOLT
14 17490512 SCREW
15 19171616 WASHER
16 124600X "SUPT,HDLE SHT LH"
17 123632X "LINK,SHIFT"
18 71040412 SUB= 74550412
19 10040400 LOCKWASHER
20 19091210 WASHER LT
21 123484X ARM SHIFT
22 105701X WASH-SHFT PLT LT
23 106933X KNOB T (1/2-HOLE)
24 128215 "ROD,SHIFT"
25 76020416 PIN COTTER 1/8
26 73810500 NUT.LOCK.5/16-24
27 73510500 NUT
28 128085 "SPRING,EXT"
29 128084 "SUPT,HDLE RH"
31 123409X SPACER
33 73680600 SUB= 73690600
34 11050500 LOCKWASHER.5/16.E
35 12000001 E-RING LT
RL1036A (1999 & Before) Page 34 of 35
WHEEL AND TIRES
RL1036A (1999 & Before) Page 35 of 35
WHEEL AND TIRES
Ref # Part Number Qty Description
1 59192 VALVE CAP
2 65139 VALVE STEM LT
3 278H FITTING LT
4 124142X SUB= 123410X
124143X SUB= 122075X
5 59904 TUBE.5.3/4.5/6
8134H TUBE.16X6.5/7.5-8
6 122394X311 SUB= 137237X427
123412X311 SUB= 123412X427
7 104757X HUB CAP
8 9040H "FLANGE, BEARING"
9 121748X WASHER
Loading...
