RF300AR (1999 & Before) Page 1 of 5
HARDWARE (MAIN FRAME)
Page 2
RF300AR (1999 & Before) Page 2 of 5
HARDWARE (MAIN FRAME)
Ref # Part Number Qty Description
34 104213X NUT-CAP TI
50 10040500 LOCKWASHER
51 73220500 NUT.HEX.5/16-18
53 19121414 WASHER
58 7810H GRIPCO NUT
59 74760520 BOLT
65 72240404 BOLT
66 10040400 LOCKWASHER
67 73220400 SUB= 50675
68 74760480 BOLT
69 19091016 WASHER
70 74760432 BOLT
71 73560600 SUB= 73800600
72 19131311 WASHER
73 19171616 WASHER
74 23200506 SET SCREW
75 74760524 BOLT.HEX.5/16-1.5
76 74760544 SUB= 74780544
77 74610412 BOLT
78 19092016 WASHER
79 19091412 WASHER
80 74610652 BOLT.3/8-24X3.75
81 10040600 LOCKWASHER
85 74760408 SUB= 74230408
Page 3
RF300AR (1999 & Before) Page 3 of 5

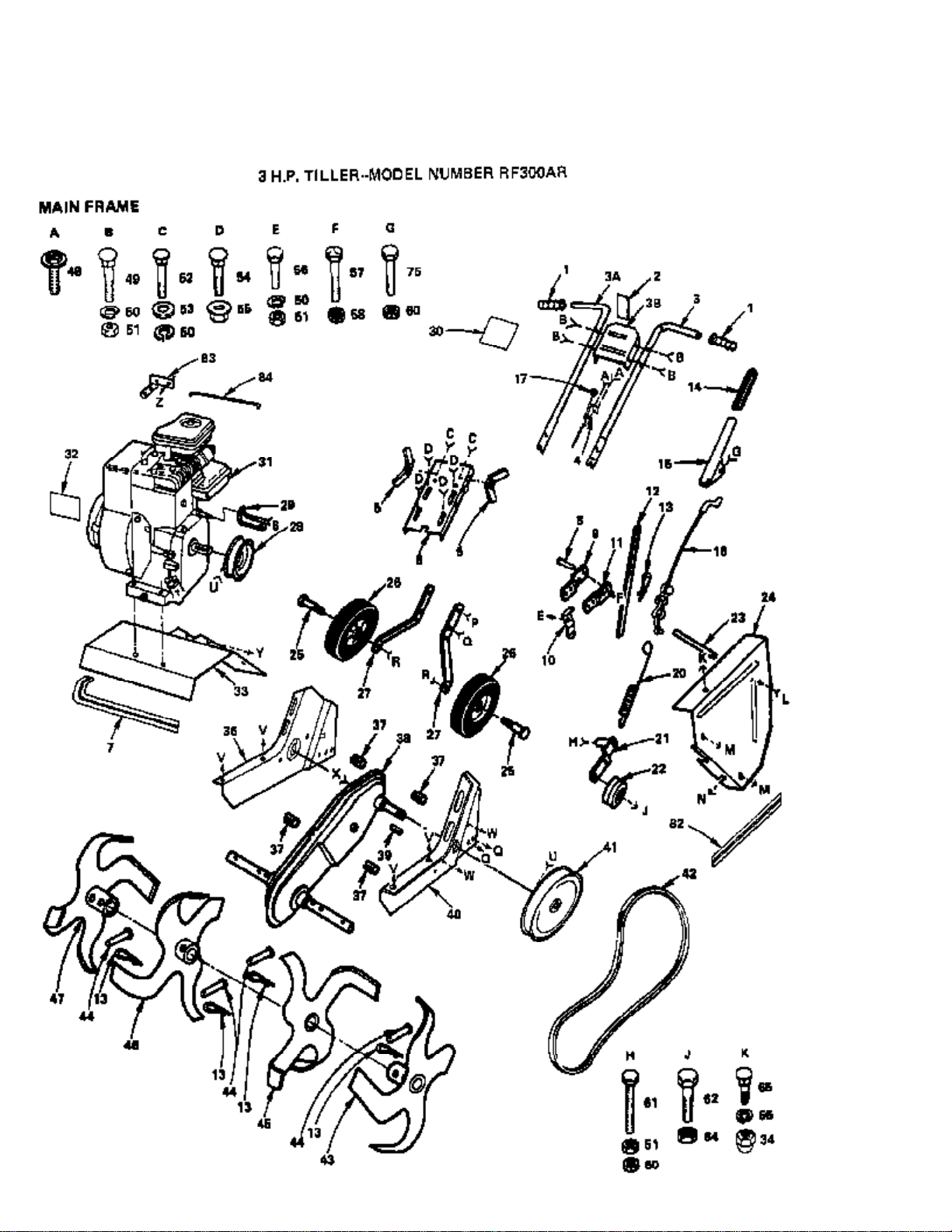

MAIN FRAME, TINE ASSY
Page 4
RF300AR (1999 & Before) Page 4 of 5
MAIN FRAME, TINE ASSY
Ref # Part Number Qty Description
1 9266R SUB= 624A78
2 102722X NLA
3 2621J SUB= 154127
3A 2622J SUB= 159764
3B 101229D358 BRACKET - HANDLE
4 104358X THROTTLE CONTROL
5 2628J SUB= 136376
6 101960X358 NLA
7 104217X DECAL - TINE SHIELD
8 9551R DRILLED RIVET RT
9 674H54 SUB= 318J
10 325J STAKE SPRING CT
11 674H55 SUB= 317J500
12 674H8 SUB= 9193R500
13 4921H SPRING.RETAINER
14 8206H GRIP T
15 3069J SUB= 164937
16 3067J SUB= 100382K
17 2878J KNOB TI
20 3070J SPRING EXT TI
21 674H20 SUB= 674A30
22 9178R SUB= 75673
23 2990J SPLIT SPACER
24 9053R358 BELT GUARD
25 4898H BOLT M
26 101214K SUB= STD333760
27 674H4 NLA
28 7417J PULLEY
29 9184R NLA
30 104229X NLA
31 80202 ENGINE, B&S
32 102688X DECAL-3HP
33 9055R358 SHIELD - TINE
34 104213X NUT-CAP TI
36 674H45 ENGINE BRACKET
37 9173R SPLIT SPACER RT
38 674A142 SUB= 105391X
39 2649M KEY T
40 674H44 ENGINE BRACKET
41 9174R TRANS SHEAVE RT
42 9179R SUB= TH3H390
43 674H151 SUB= 106859X
44 9194R DRILLED RIVET RT
45 674H149 SUB= 106857X
46 674H150 SUB= 106858X
47 674H152 SUB= 106860X
48 17561008 SCREW TI
49 72240512 BOLT TI
50 10040500 LOCKWASHER
51 73220500 NUT.HEX.5/16-18
52 72110510 BOLT
53 19121414 WASHER
54 72240506 BOLT
55 98000129 NUT
56 74760512 BOLT
57 74610620 BOLT
58 7810H GRIPCO NUT
60 1685H SUB= 68478
Page 5
RF300AR (1999 & Before) Page 5 of 5
MAIN FRAME, TINE ASSY
Ref # Part Number Qty Description
61 74930532 SUB= 74760532
62 74760620 SUB= 74780620
64 73350600 NUT
65 72240404 BOLT
66 10040400 LOCKWASHER
75 74760524 BOLT.HEX.5/16-1.5
82 104218X DECAL - BELT GUARD
83 104233X NLA
84 104234X NLA
102538X OWNER'S MANUAL
