AYP RER80AT Parts List

RER80AT (1999 & Before) Page 1 of 24
CHASSIS

RER80AT (1999 & Before) Page 2 of 24
CHASSIS

Ref # Part Number Qty Description

1 3133J TOW HITCH - EYEBOLT
2 73680600 SUB= 73690600
3 110990X CHASSIS
6 677A774 LEVER ARM
7 110989X LENS GRILLE

9 74760512 BOLT
10 19211616 WASHER LT
11 12000002 SUB= 2225J
12 73680500 SUB= 73690500
13 6276J PARALLEL BAR
14 6092J NLA
16 72386 BRAKE ROD
17 64284 NLA
18 76020312 SUB= 3145
19 62755 SPRING
20 110979X NLA
21 72361 NLA
22 63640 COTTER PIN
23 72393 NLA
24 72360 NLA
25 71673 PLUNGER CAP T
26 72387 NLA
27 67174 NLA
28 101008K BOLT SHOULDER LT
29 19172410 SUB= 67725
30 73530500 NUT
31 110991X SPRING RER
32 53018 IDLER PULLEY RER
33 15760624 BOLT
34 55862 SUB= 106932X
35 67346 V BELT T (L439)
36 110955X FRONT MEMBER RER
37 72140506 BOLT
38 72375 LIFTER BRKT T
39 110978X NLA
40 677A776 NLA
41 72140508 BOLT
42 74576 DRIVELOKPINTYPE
43 110985X "RER, BELLCRANK"
45 68475 NLA
46 74760612 SUB= 74780612
47 73800500 NUT
48 110984X PIVOT BRKT RER
49 110965X SADDLE RER
50 73680800 NUT LTV
51 74760856 SPEC BOLT RER
52 4120J TUBE - SUPPORT
53 110959X AXLE ASSY RER
54 71208 BUSHING
56 12000002 SUB= 2225J
57 110967X KINGPIN
58 110968X KINGPIN RER
59 17490512 SCREW
60 73350600 NUT
61 120491X COUNTERWEIGHT R
62 74760644 BOLT
63 19132012 WASHER
64 19131210 WASHER

RER80AT (1999 & Before) Page 3 of 24
DIFFERENTIAL ASSY.

RER80AT (1999 & Before) Page 4 of 24
DIFFERENTIAL ASSY.

Ref # Part Number Qty Description

1 79429 CAPBEAR ASSY

2 2309J TRANSFER GEAR CASE ASSY

3 73220500 NUT.HEX.5/16-18

4 2310J NLA

5 2311J GEAR SHAFT L RE

6 74760572 BOLT

7 73680500 SUB= 73690500

8 2312J SPROCKET

9 2313J SPACKER - SPROCKET

RER80AT (1999 & Before) Page 5 of 24
ELECTRICAL

RER80AT (1999 & Before) Page 6 of 24
ELECTRICAL

Ref # Part Number Qty Description

REFER TO IMAGE

RER80AT (1999 & Before) Page 7 of 24
ELECTRICAL AND ENGINE

RER80AT (1999 & Before) Page 8 of 24
ELECTRICAL AND ENGINE

Ref # Part Number Qty Description

1 110964X NLA

2 74610408 BOLT

3 10020400 LOCKWASHER T

4 19091216 WASHER PM

5 55862 SUB= 106932X

6 74525 SWITCH

7 74693 TRANSMISSION ASSY

8 73541 TRANS PULLEY

9 15760510 NLA
10 2228M SUB= 2228M1
11 12000028 SUB= 2267J
13 110951X HARNESS RER
14 51J TERM COVER DUAL
15 4406R SUB= STD365402
16 7552H SUB= STD365410
17 2965J PAD - BATTERY
18 101253M SUB= 102958X
19 67188 SUB= 70456
20 74760408 SUB= 74230408
21 2002J NLA
22 1592J "ROD LT, BATTERY"
24 73220400 SUB= 50675
25 719J SUB= 154336
26 2223J CAP - BATTERY
27 73490400 SUB= 146525
28 19091016 WASHER
29 742J NLA
30 739J NLA
31 74310406 SCREW
32 677A201 NLA
33 101389X ENGINE PULLEY RER
34 17490624 SCREW LT
35 19152405 WASHER LT
36 74770728 BOLT RER
37 9396E SQ KEY STD
38 191707 ENGINE
39 120121X NLA
40 109553X SWITCH INTERLOCKT
41 109081X SUB= 146154
42 6070J NLA
43 6181J CABLE ASSY
44 2098J CABLE ASSY LT
45 74780444 NLA
47 73350400 NUT
49 74760412 BOLT LT
50 11151000 LOCKWASHER
51 3258J CONDUIT NUT L
52 7833R HOSE T
53 6999R SUB= 123487X
54 19211621 WASHER
55 10040700 LOCKWASHER
56 889J MUFFLER CLIP T
58 19121410 NLA
60 3605J CAP-FILLER T
61 11050400 LOCKWASHER
62 10090400 SUB= 10040400
63 2224J GASKET - BATTERY
64 110995X NLA

RER80AT (1999 & Before) Page 9 of 24
ELECTRICAL AND ENGINE

Ref # Part Number Qty Description

65 74760412 BOLT LT
66 73680400 SUB= 73690400
67 121064X SWITCH T
68 74681008 SCREW
69 73951000 "NUT,KEPS"
70 74780408 BOLT
71 73680400 SUB= 73690400
72 235R CLIPT

RER80AT (1999 & Before) Page 10 of 24
GRASS CATCHER

RER80AT (1999 & Before) Page 11 of 24
GRASS CATCHER

Ref # Part Number Qty Description

1 74760520 BOLT

2 4497J SPACER T

3 6110J NLA

4 74780526 BOLT

5 19111216 WASHER M

7 74195 FRAME SUPPORT B

8 73473 NLA

9 74194 SUB= 74195
10 73680400 SUB= 73690400
11 19091216 WASHER PM
12 72240408 BOLT
13 8709J NLA
14 73472 NLA
15 8036J NLA
16 605J NLA
17 73680600 SUB= 73690600
18 10040600 LOCKWASHER
19 19131216 WASHER
20 73471 BAG LATCH
21 75131 BUMPER T
22 6111J NLA
23 75081 NLA
24 74760632 SUB= 74930632
25 19131614 WASHER
28 19111412 NLA
29 73680500 SUB= 73690500

RER80AT (1999 & Before) Page 12 of 24
HARDWARE

RER80AT (1999 & Before) Page 13 of 24
HARDWARE

Ref # Part Number Qty Description

77 19171912 WASHER
78 10040800 LOCKWASHER
79 74780816 BOLT
80 19151616 SUB= 19171616
81 121094X BOLT T

RER80AT (1999 & Before) Page 14 of 24
MOWER DECK

RER80AT (1999 & Before) Page 15 of 24
MOWER DECK

Ref # Part Number Qty Description

1 110975X V-BELT RER

2 74668 HOUSING W/SILK SCREENING

3 74710 HOUSING LIFTE T

4 74709 HOUSING LIFTE T

5 72110506 SUB= 72270506

7 6091J SHOULDER BOLT T

8 19111216 WASHER M

9 110289X NLA
11 73680500 SUB= 73690500
12 6069J BELT SNUBBER T
13 72250508 SUB= 72140508
14 72368 MOWER SUPPORT T
16 110988X JACKSHAFT RER
17 73680600 SUB= 73690600
18 71534 DISCHARGE GUARD
19 72250406 SUB= 72140406
20 73680400 SUB= 73690400
21 74824 SUB= 120893X
22 74825 NLA
23 75276 SUB= 25646
24 74610620 BOLT
25 67354 SUB= 19133808
26 10040600 LOCKWASHER
27 78850 SUB= 85463
27 107339X DECAL HYT
28 19131407 SUB= 55611
29 73680500 SUB= 73690500
30 19131407 SUB= 55611

RER80AT (1999 & Before) Page 16 of 24
SPARK ARRESTER ASSEMBLY

RER80AT (1999 & Before) Page 17 of 24
SPARK ARRESTER ASSEMBLY

Ref # Part Number Qty Description

677A771 677A771 SPARK ARRESTER ASSEMBLY1

RER80AT (1999 & Before) Page 18 of 24
STEERING AND ENCLOSURE GROUP

RER80AT (1999 & Before) Page 19 of 24
STEERING AND ENCLOSURE GROUP

Ref # Part Number Qty Description

1 74564 NLA

2 1114J INSERT CAP LT

3 73360800 NUT

4 19171616 WASHER

5 120048X NLA

6 110098X NLA

8 74780412 SUB= 74780414

9 72140508 BOLT
10 10047X012
11 17490508 SCREW LT
14 75122 NLA
14 80405 DECAL - OPERATING INSTRUCTIONS
15 4921H SPRING.RETAINER
16 121076X SUB= 140119
17 108601X NLA
18 110981X388 NLA
19 110963X NLA
20 105513X SUB= 140551
21 121069X SUB= 155925
22 110973X NLA
23 61159 KNOB
24 8034J388 PANEL RER
25 8033J388 PANEL - SIDE
26 17760412 SCREW LT
27 98000131 NLA
28 19111816 SUB= 52915
29 73680500 SUB= 73690500
30 74706 SHIFTER GATE T
31 74705 DECAL SHIFT
31 108630X NLA
32 REFER TO IMAGE
32 REFER TO IMAGE
33 74561 NLA
33 8046X DECAL - BLADE
34 74512 DECAL - ENGINE
34 8037X DECAL, ENGINE
39 120393X BRAKE ROD RER
40 6278J BELT KEEPER T
41 6109J IDLER PULLEY T
42 110954X NLA
43 73680600 SUB= 73690600
44 120484X SPRING
45 74538 LEVER.CLUTCH.BLAD
46 71246 NLA
47 110953X HANDLE RER
48 75339 CONTROL ARM ASSY
50 19131407 SUB= 55611
51 74559 DECAL
51 80455 DECAL
52 2751J CLIP LINE FUEL
53 376J DECAL
54 74542 IDLER SUPPORT BKT
55 74760512 BOLT
56 6077J IDLER ARM
57 67365 FOOT PAD LT
58 67189 NLA
59 72140506 BOLT
60 72384 NLA

RER80AT (1999 & Before) Page 20 of 24
STEERING AND ENCLOSURE GROUP

Ref # Part Number Qty Description

61 73510500 NUT
62 108600X DECAL - FENDER
63 108599X DECAL - FENDER
64 73930600 LOCKNUT
65 105529X SUB= 139888
66 73680500 SUB= 73690500
67 73680600 SUB= 73690600
68 19131210 WASHER
70 72110606 BOLT
71 98000131 NLA
72 73510500 NUT
73 121067X SPRING T
74 121068X SPRING T
75 17490612 SCREW
76 19131614 WASHER
82 10040400 LOCKWASHER
83 67359 SUB= 19133808
84 73951000 "NUT,KEPS"

101539X SHEET INSTR LT
120124X OWNER'S MANUAL (FRENCH)
101572X SHEET-INSTRUCTION (FRENCH)

RER80AT (1999 & Before) Page 21 of 24
TRANSMISSION

RER80AT (1999 & Before) Page 22 of 24
TRANSMISSION

Ref # Part Number Qty Description

794213
1 770061
2 772070 COVER, TRANSMISSION
3 776161
4 778121A GEAR, SPUR
5 778122
6 778123
7 778124
8 778125 GEAR, SPUR, 35 TEETH
9 784266 COLLAR, SHIFT

10 786060
11 786061
12 776134
13 448109
14 778126
15 778127
16 778128
17 778129
18 776135 SHAFT, INPUT
19 778113
20 786047
21 790003 DISK, BRAKE
22 790004 LEVER, BRAKE
23 790005
24 790006 PAD BRAKE
25 790007 PLATE BRAKE PAD
26 786026 PIN DOWEL
27 780105
28 786062
29 780072 WASHER THRUST
30 780106
31 792072
32 792035 RING, RETAINER
33 780109 WASHER, THRUST
34 788040 RETAINING RING
35 784267
36 792073 SCREW, 1/4-20 X 1-1/4

36A 792085 SCREW FLNG HEX 1/4-20 X 2-1/4

37 792089A KEY (4 REQUIRED)
38 792075 LOCKNUT 5/16-24
39 792076 WASHER, FLAT
40 792077 BALL STEEL, 5/16" DIA.
41 792078 SCREW, 3/8-16 X 3/8"
42 792079 SPRING
43 780108 WASHER THRUST
44 786067 SPACER

RER80AT (1999 & Before) Page 23 of 24

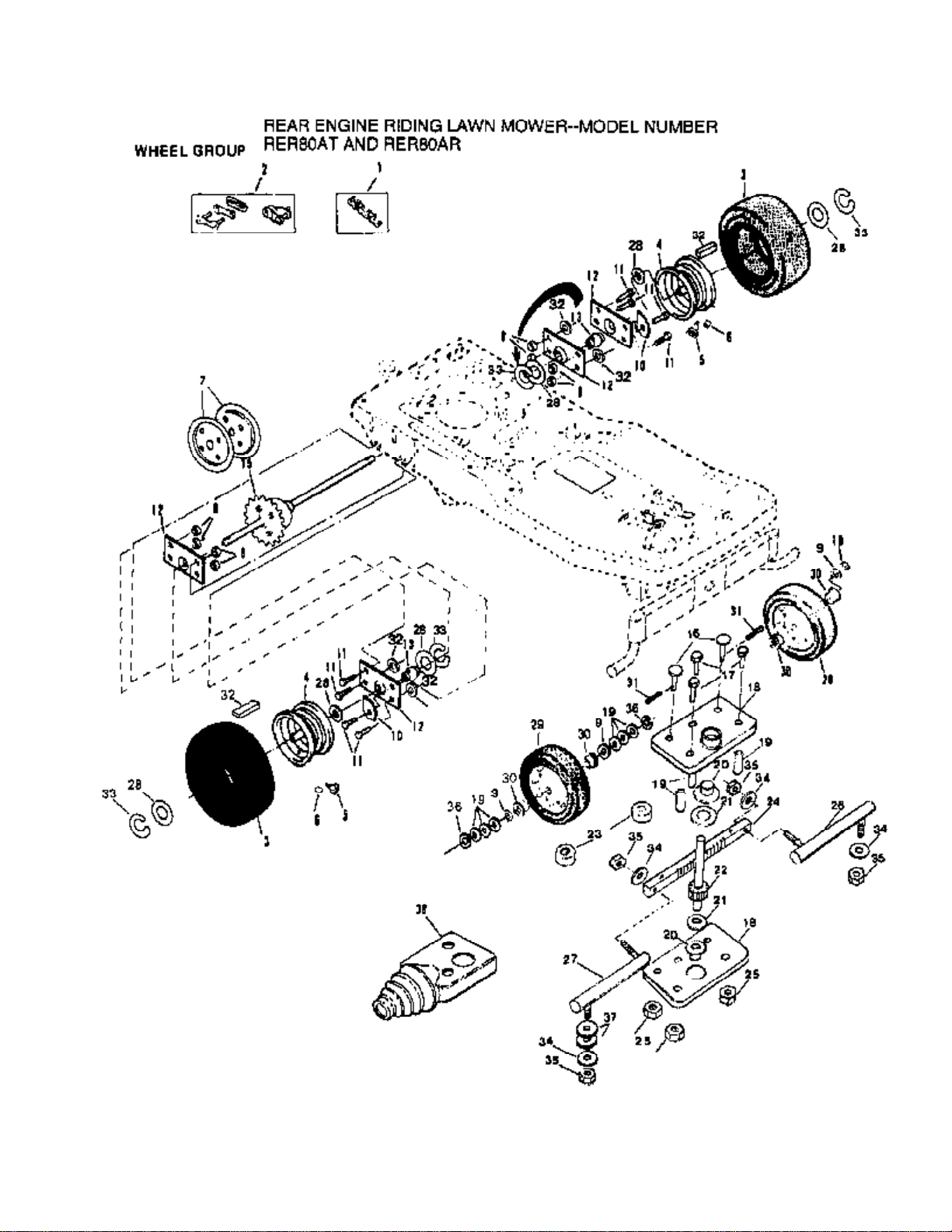

WHEEL GROUP

RER80AT (1999 & Before) Page 24 of 24
WHEEL GROUP

Ref # Part Number Qty Description

1 72818 CHAIN#41(82PITCHE
2 60474 NLA
3 70302 SUB= 123410X

79568 TUBE
4 70301 RIM
5 65139 VALVE STEM LT
6 59192 VALVE CAP
7 120125X NLA
8 73510500 NUT
9 19211612 WASHER.21/32X1

10 67703 NLA
11 74760516 SUB= 77394
12 72382 "CUP, BEARING"
13 100520K "LT, BEARING"
15 110957X DIFFERENTIAL R
16 110996X RIVET - DRILLED
17 74780420 BOLT
18 110982X NLA
19 110980X SPACER RER
20 120183X NYLON BEARING
21 101930X WASHER YTV
22 110966X SHAFT RER
23 110983X NLA
24 120049X NLA
25 73680400 SUB= 73690400
26 120395X TIE ROD RER
27 120396X ROD.TIE.RH.REEN
28 1925016 SUB= 121749X
29 102754X NLA
30 64906 BEARING
31 76020412 COTTER PIN
32 2703J SUB= 123583X
33 12000001 E-RING LT
34 10090400 SUB= 10040400
35 73610400 NUT
36 12000002 SUB= 2225J
37 19091610 NLA
38 120128X NLA
