AYP RE1N101TB Parts List

RE1N101TB (1999 & Before) Page 1 of 2

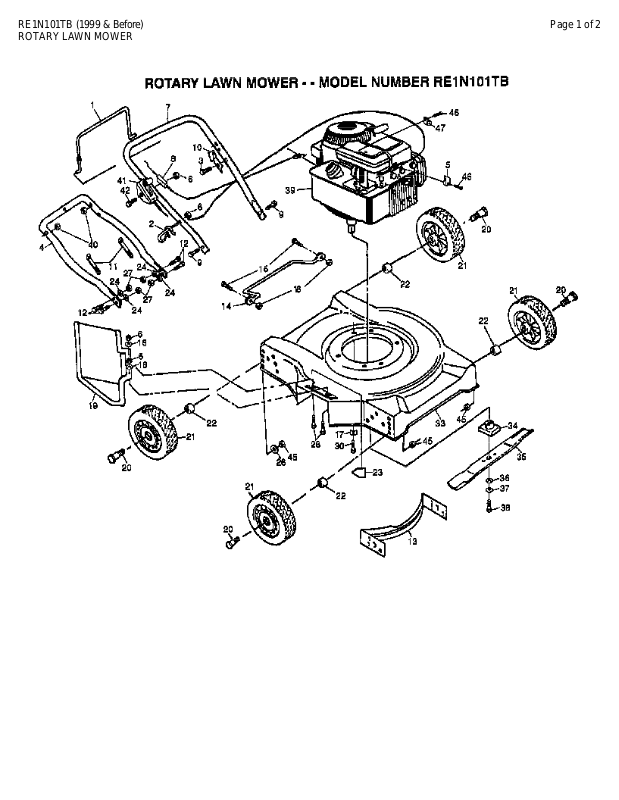

ROTARY LAWN MOWER

RE1N101TB (1999 & Before) Page 2 of 2
ROTARY LAWN MOWER

Ref # Part Number Qty Description

1 86902 CONTROL BAR PM
2 132001 ROPE GUIDE
3 750097 TAPPING SCREW
4 851646X479 HANDLE LWR PM
5 213146 CABLE CLAMP
6 63601 SUB= 73800400
7 132826X479 UPPER HANDLE
8 851809 CABLE.CONT.ENG

9 74350424 BOLT 1/4-20-1 1/2
10 850733X004 "BRKT,UPSTOP"
11 66426 SUB= 7192J
12 137009 SUB= 532137009
13 136164X479 BAFFLE.FRONT.ASM
14 801542 GUARD REAR FOOT
15 85825 SCREW
16 69180 LOCKNUT
17 851201X004 WASHER
18 53847 SUB= 19091214
19 752052 "GRD,DISCHARGE"
20 67609 AXLE BOLT
21 130491 WHEEL ASSY
22 136624 SUB= 532136624
23 145494 DECAL.DANGER.CUTF
24 55611 STEEL WASHER
26 61537 SUB= 19132012
27 132010 LOCKNUT
28 74760412 BOLT LT
30 850998 SCREW
33 149403 KIT.HSG.20SD.PUSH
34 850977 BLADE ADAPTOR
35 145106 BLADE.20.MULCH.AY
36 851074 "WASHER,HARDEN"
37 850263 LOCKWASHER
38 851084 SCREW
39 REFER TO IMAGE
40 132004 SUB= 73800400
41 131922 SUB= 532131922
42 144929 SCREW.HXHD.WASH.
45 751592 LOCKNUT PM
46 83816 SCREW PM
47 87930 GUIDE CLIP PM

149402 MANUAL.P.RE1N101T
149401 MANUAL.RE2A271B
800197 NLA
145495 DECAL.INTERN.4SYM
133379 SUB= 133379X479
145438 DECAL.EURO.STAND.
