RBSP225QC (1997) Page 1 of 7
GEAR CASE ASSEMBLY
RBSP225QC (1997) Page 2 of 7
GEAR CASE ASSEMBLY
Ref # Part Number Qty Description
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
702511 SUB= 48367
RBSP225QC (1997) Page 3 of 7
LAWN MOWER
RBSP225QC (1997) Page 4 of 7
LAWN MOWER
Ref # Part Number Qty Description
1 155890 SUB= 164265
2 147049 BAIL.CNTRL.DELUXE
3 145640X479 HANDLE.UP.DLX.CON SUBS/1
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
7 700417 "CONTROL, THROTTLE"
8 144929 SCREW.HXHD.WASH.
9 136376 KNOB HANDLE
10 83816 SCREW PM
11 213146 CABLE CLAMP
12 151023 KIT.DOOR.REAR
16 128415 BLIND RIVET
17 141846 DECAL DANGER E/S
18 150050 SCREW.HXTAP.10-24
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 59708 SCREW
23 133040X479 REAR BAFFLE
24 140540 SKIRT.REAR.FGD.22
25 700365X479 BAFFLE.SIDE
26 700360X479 PLATE.BACK
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 151517 SUB= 7192J
32 151721X479 LOWER HANDLE
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 83923 HEX FLANGE LOCKNT
38 148443 WHEEL.8X2.RAD.GRN
39 142748 BOLT SHLD 3/8-16
40 62335 "WASHER, BELLEVIL."
41 145935X004 ARM.AXLE.ASM.BZP.
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
45 146630 SPACER.HEIGHT.ADJ
46 700327X007 BRACKET.ADJ.9.RH
47 150078 SCREW.HXWS.5/16
50 151588X479 BRACKET.HDL.RH.
51 151589X479 BRACKET.HDL.LH.
54 851201X004 WASHER
55 150406 BOLT.ENG.3/8-16
57 144964 KIT.BAF.FRT.22RD
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 141114 "BLADE.MULCH.22"""
63 851514 ADAPTOR.BLADE.LM
64 153546 HSG KIT
65 12H802 ENGINE
68 88652 HINGE SCREW
69 133170X479 MULCHER PLATE
70 134612 SUB= 48283
71 700326X007 BRACKET.ADJ.9.LH
72 751592 LOCKNUT PM
73 145281 DOOR.MULCH.COMBI
74 147775 BRACKET.HINGE.W/F
RBSP225QC (1997) Page 5 of 7
LAWN MOWER
Ref # Part Number Qty Description
75 REFER TO IMAGE
76 REFER TO IMAGE
77 145285 GUARD.DISCH.CLIPO
151705 DECAL.COMBI-CUT
145658 MANUAL.GEN.SP.E.
145661 MANUAL.OP.GEN.SPN
160429 MANL.P.RBSP225QC
158820 DECAL HOUSING
143285 DECAL.HSG.FT.KGRO
151698 DECAL.HOUSING
MA36 CLIPPING DEFL
RBSP225QC (1997) Page 6 of 7
LAWN MOWER

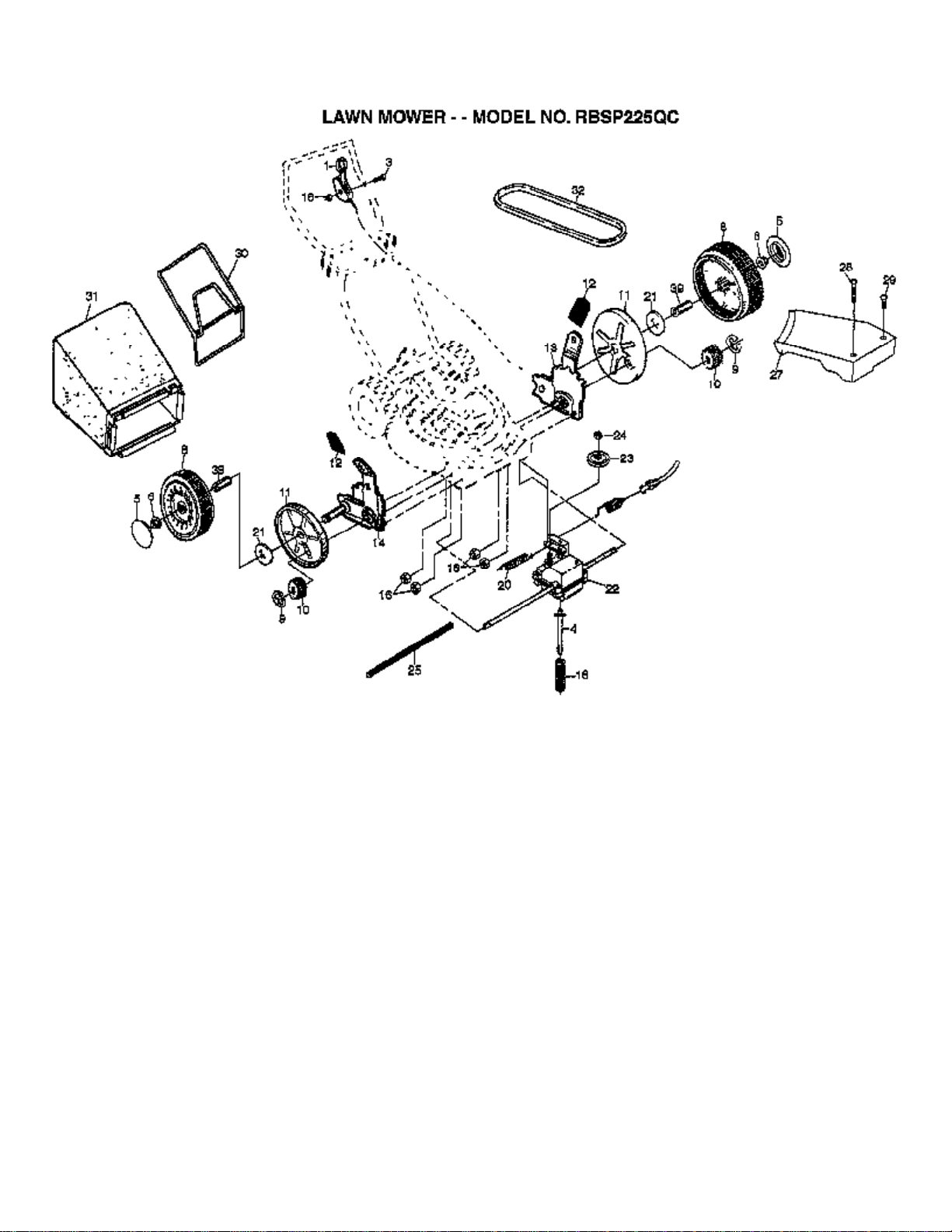

RBSP225QC (1997) Page 7 of 7
LAWN MOWER
Ref # Part Number Qty Description
1 146323 CONTROL.DRV.56.25
3 144929 SCREW.HXHD.WASH.
4 150495 SPRING.RETAINER.
5 77400 HUB CAP
6 145212 NUT.HXFLG.LOCK.
8 143427 WHEEL 8X2 RAD GRN
9 12000058 E-RING.7/16.RE.
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 151521 WHEEL.ADJ.ASM.LH.
14 151520 WHEEL.ADJ.ASM.RH.
16 63601 SUB= 73800400
18 137090 SPRING.TENSION
20 75192 SPRING
21 67725 WASHER FLUT
22 702511 SUB= 48367
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
25 86012 DRV SHAFT TUBE PM
27 137081 "COVER.DRIVE 22""RD"
28 146072 SCREWL.SLOT.TORXT
29 149746 SCREW.SLOT.TORTX.
30 149555 FRAME.CATCHER.2.5
31 151861 GRASS BAG
32 146527 SUB= 157769
39 88446 BUSHING.HEX
151812 DECAL.DRIVE COVER
