RBSP225D (1999 & Before) Page 1 of 7
GEAR CASE
RBSP225D (1999 & Before) Page 2 of 7
GEAR CASE
Ref # Part Number Qty Description
1 17490416 SCREW.1/4-20
2 137055X004 BRACKET.GEARCASE
3 137053 SHIFTER
4 57072 SEAL
6 48373 KIT GEARCASE HALV
7 77881 BEARING
8 137051 SHAFT.WORM
9 137074 SHAFT.DRIVE
10 57079 THRUST WASHER
11 131484 CLUTCH YOKE
12 700343 BUSHING.GEAR BOX
13 86447 PLUG PM
14 137050 GEAR.HELICAL
15 750436X CLUTCH JAW
16 750369 SUB= 6066J
17 12000003 RING T
18 850848 HI PRO KEY
19 81585X004 SPRING BRKT
RBSP225D (1999 & Before) Page 3 of 7
ROTARY LAWN MOWER
RBSP225D (1999 & Before) Page 4 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 850724 SUB= 155890
2 147049 BAIL.CNTRL.DELUXE
3 146883 SUB= 164286
4 63601 SUB= 73800400
5 130861 "CABLE,ENG ZONE CO"
7 700417 "CONTROL, THROTTLE"
8 144929 SCREW.HXHD.WASH.
9 136376 KNOB HANDLE
10 83816 SCREW PM
11 213146 CABLE CLAMP
12 147612 KIT.DOOR.REAR.22
13 750097 TAPPING SCREW
14 87930 GUIDE CLIP PM
16 128415 BLIND RIVET
17 107339X DECAL HYT
18 86344 SCREW PM
19 73510400 NUT
20 84596 ENGINE.PULLEY.FWG
21 87677 HI PRO KEY PM
22 59708 SCREW
23 133040X479 REAR BAFFLE
24 140540 SKIRT.REAR.FGD.22
25 700365X479 BAFFLE.SIDE
26 700360X479 PLATE.BACK
28 54583 SCREW
29 133190X479 DISCHARGE BAFFLE
30 132001 ROPE GUIDE
31 66426 SUB= 7192J
32 132813X479 SUB= 151721X479
33 131959 BOLT.HANDLE.LM
34 51793 HAIRPIN COTTER
35 77400 HUB CAP
36 85179 RETAINER CLIP PM
37 52160 WASHER
38 148443 WHEEL.8X2.RAD.GRN
39 142748 BOLT SHLD 3/8-16
40 62335 "WASHER, BELLEVIL."
41 85021X004 AXLE ARM
42 700331X004 SPRING SELECTOR
43 87877 KNOB PM
45 84920 SUB= 146630
46 700327X007 BRACKET.ADJ.9.RH
47 55187 SCREW
50 700915X479 SUB= 150956
51 700913X479 SUB= 150956
52 751592 LOCKNUT PM
54 851201X004 WASHER
55 850998 SCREW
57 132255X479 SUB= 144964
59 851084 SCREW
60 850263 LOCKWASHER
61 851074 "WASHER,HARDEN"
62 141114 "BLADE.MULCH.22"""
63 851514 ADAPTOR.BLADE.LM
64 148207 KIT.HSG.22RD.FWGD
65 REFER TO IMAGE
68 88652 HINGE SCREW
69 133170X479 MULCHER PLATE
RBSP225D (1999 & Before) Page 5 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
70 134612 SUB= 48283
71 700326X007 BRACKET.ADJ.9.LH
145658 MANUAL.GEN.SP.E.
145661 MANUAL.OP.GEN.SPN
149110 MANUAL.ROSP225D
143289 DECAL ENGINE KGRO
143286 DECAL HSG KGRO
143285 DECAL.HSG.FT.KGRO
RBSP225D (1999 & Before) Page 6 of 7
ROTARY LAWN MOWER

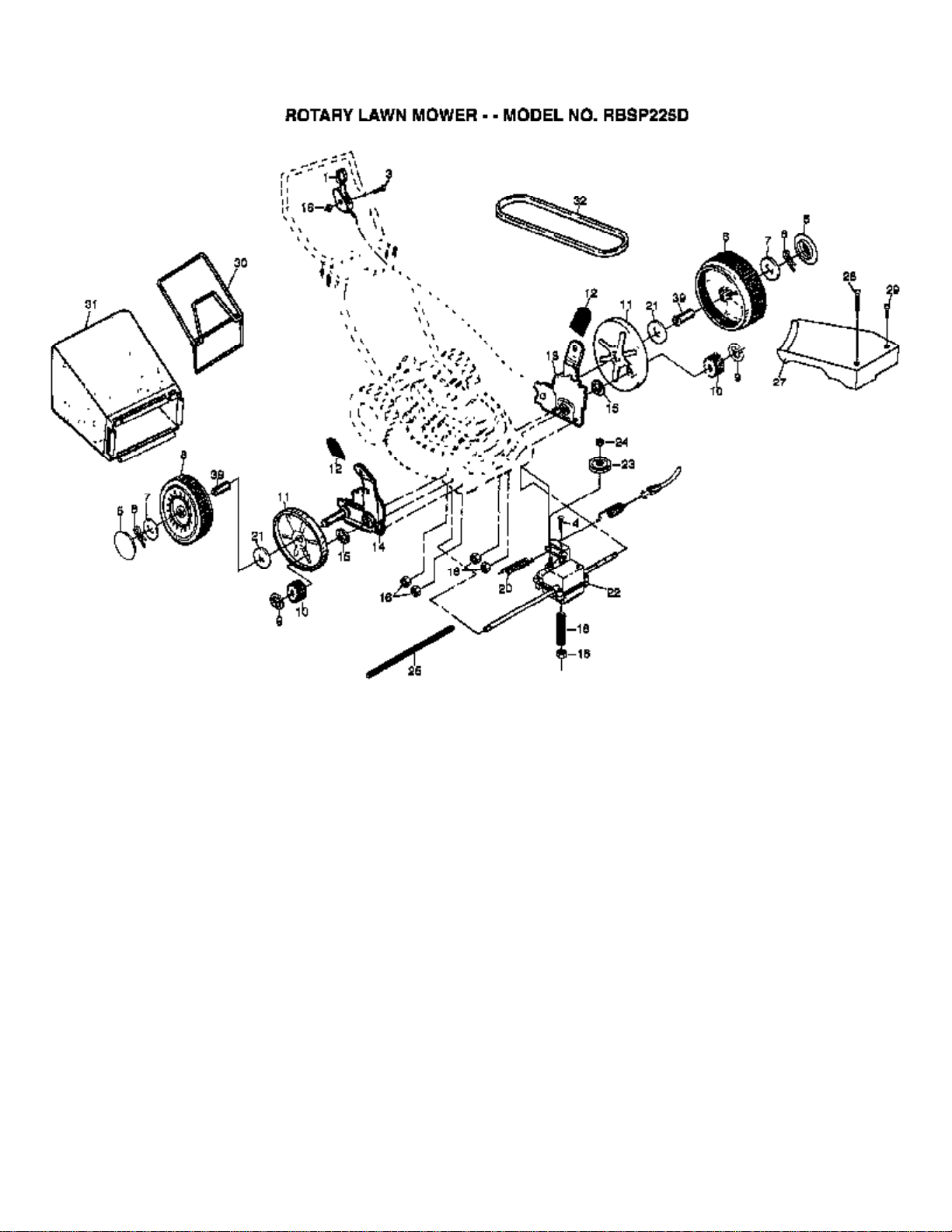

RBSP225D (1999 & Before) Page 7 of 7
ROTARY LAWN MOWER
Ref # Part Number Qty Description
1 146323 CONTROL.DRV.56.25
3 144929 SCREW.HXHD.WASH.
4 700875 BOLT.1/4-20X2.0
5 77400 HUB CAP
6 85179 RETAINER CLIP PM
7 52160 WASHER
8 143427 WHEEL 8X2 RAD GRN
9 12000058 E-RING.7/16.RE.
10 137054 PINION.GEAR
11 88080 DUST SHROUD PM
12 87877 KNOB PM
13 148484 SUB= 151228
14 148485 SUB= 151226
15 88118 WASHER PM
16 63601 SUB= 73800400
18 137090 SPRING.TENSION
20 75192 SPRING
21 67725 WASHER FLUT
22 702511 SUB= 48367
23 137052 PULLEY.DRIVEN
24 132010 LOCKNUT
25 86012 DRV SHAFT TUBE PM
27 137081 "COVER.DRIVE 22""RD"
28 87866 SUB= 146072
29 136797 SUB= 149746
30 143065 FRAME CATCHER 2.5
31 135200 GRASSBAG.PM.
32 137078 SUB= 157769
39 88446 BUSHING.HEX
143288 DECAL FWGD KGRO
