QP6Y22SHA (2000) Page 1 of 7
Drive Assembly
QP6Y22SHA (2000) Page 2 of 7
Drive Assembly
Ref # Part Number Qty Description
2 145755 Drive Control
3 751152 Locknut #10-24
4 158755 Hex Washer Head Screw 1/4-20 x 2.12
5 146527 V-Belt
6 150495 Spring Retainer
8 77400 Hubcap
9 145212 Flanged Locknut 3/8-16
11 170263 Wheel & Tire Assembly
12 12000058 E-Ring
13 137054 Pinion
14 88080 Dust Cover
16 67725 Washer 1/2 x 1-1/2 x .134
18 87877 Selector Knob
19 63601 Hex Locknut 1/4-20
22 66426 Wire Tie
26 146072 Pan Head Tapping Screw #10-24 x 2-3/4
27 750097 Hex Head Tapping Screw #10-2
28 137088 Drive Cover
31 132010 Hex Flange Nut
32 137052 Drive Pulley
35 151521 Wheel Adjuster Assembly (Left)
36 702511 Gear Case Assembly
37 137090 Spring
40 75192 Spring
41 151520 Wheel Adjuster Assembly (Right)
55 86012 Driveshaft Cover
QP6Y22SHA (2000) Page 3 of 7
Gear Case Assembly
QP6Y22SHA (2000) Page 4 of 7
Gear Case Assembly
Ref # Part Number Qty Description
1 17490416 Screw, Tapping 1/4-20 x 1-1/4
2 137055 Bracket, Adjusting
3 137053 Shifter
4 57072 Seal
6 48373 Gear Case Halves, Upper and Lower (Includes Key #4, and
7)
7 77881 Bearing
8 137051 Shaft, Worm
9 137077 Drive Shaft
10 57079 Washer, Hardened
11 131484 Yoke, Clutch
12 700343 Bushing
13 86447 Plug
14 137050 Gear, Helical
15 750436X Jaw, Clutch
16 750369 Grease
17 12000003 E-Ring
18 850848 Key, Hi-Pro
19 81585X004 Spring Bracket
QP6Y22SHA (2000) Page 5 of 7

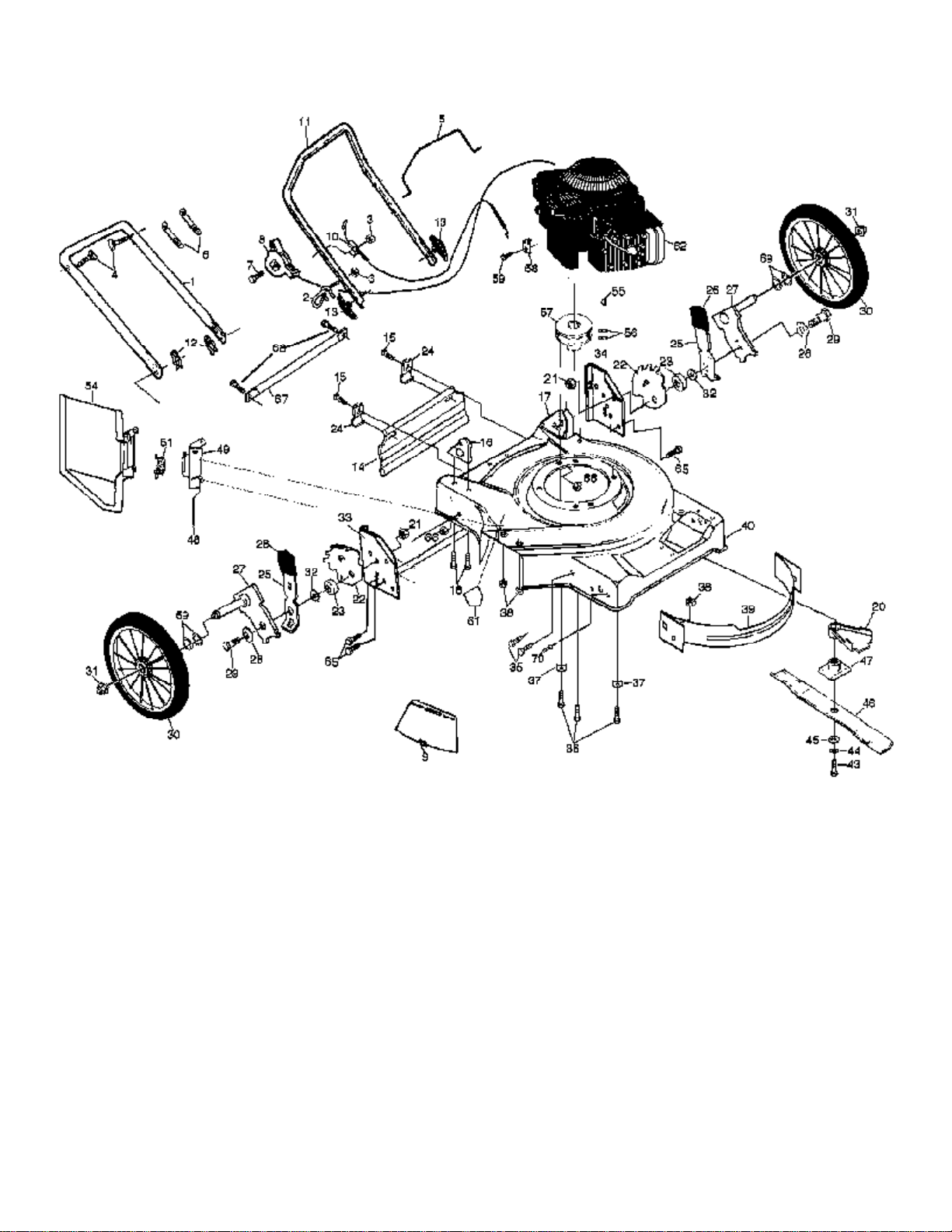

General Assembly
QP6Y22SHA (2000) Page 6 of 7
General Assembly
Ref # Part Number Qty Description
1 151721X479 Lower Handle
2 153638 Rope Guide
3 63601 Locknut 1/4-20
4 131959 Handle Bolt
5 145794 Control Bar
6 66426 Wire Ties
7 144929 Hex Washer Head Screw 1/4-20 x 2-1/8
8 166971 Throttle Control
9 751772X479 Mulcher Plate
10 130861 Engine Zone Control Cable
11 166862X479 Upper Handle
12 51793 Hairpin Cotter
13 136376 Handle Knobs
14 140540 Rear Skirt
15 750097 Hex Head Screw
16 170345X479 Handle Bracket Assembly (Right)
17 170346X479 Handle Bracket Assembly (Left)
18 149741 Screw 5/16-18 x 3/4
20 134612 Debris Shield
21 751592 Locknut
22 700325X007 Wheel Adjusting Bracket
23 146630 Spacer
24 87584X004 Skirt Bracket
25 700331X004 Selector Spring
26 87877 Selector Knob
27 750913X004 Axle Arm Assembly
28 61651 Belleville Washer
29 142748 Shoulder Bolt 3/8-16
30 170258 Wheel & Tire Assembly (Rear)
31 83923 Flanged Locknut 3/8-16
32 88348 Flat Washer
33 750386X479 Wheel Support Bracket (RT)
34 750388X479 Wheel Support Bracket (LT)
35 17600406 Screw
36 150406 Thread Rolling Screw 3/8-16 x 1
37 851201X004 Engine Washer
38 63601 Nut
39 170031 Front Baffle Kit
40 172837 Mower Housing Kit (Includes Key No. 61)
43 851084 Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
44 850263 Helical Washer 3/8
45 851074 Hardened Washer
46 141114 22" Blade
47 851514 Blade Adapter
48 147286 Hinge Rod
49 87593 Housing Bracket
51 87589 Torsion Spring
54 750149 Discharge Guard
55 87677 Hi-Pro Key
56 UNKNOWN
57 84596 Engine Pulley
58 213146 Cable Clamp
59 83816 Screw #10 x 5/8
61 107339X Danger Decal
62 Engine - Briggs & Stratton 120602 Order parts from engine
manufacturer
65 74760612 Bolt
QP6Y22SHA (2000) Page 7 of 7
General Assembly
Ref # Part Number Qty Description
66 751592 Nut
67 165175X479 Support Rod
68 54583 Screw hex Tap. 1/4/20
69 57143 Wave Washer
70 128415 Pop Rivet
162300 Warning Decal
134027X479 Rear Baffle (Not Shown)
172787 Operator's Manual (English)
172836 Repair Parts Manual
GCK3200 Grass Catcher Available accessory not included with lawn
mower
