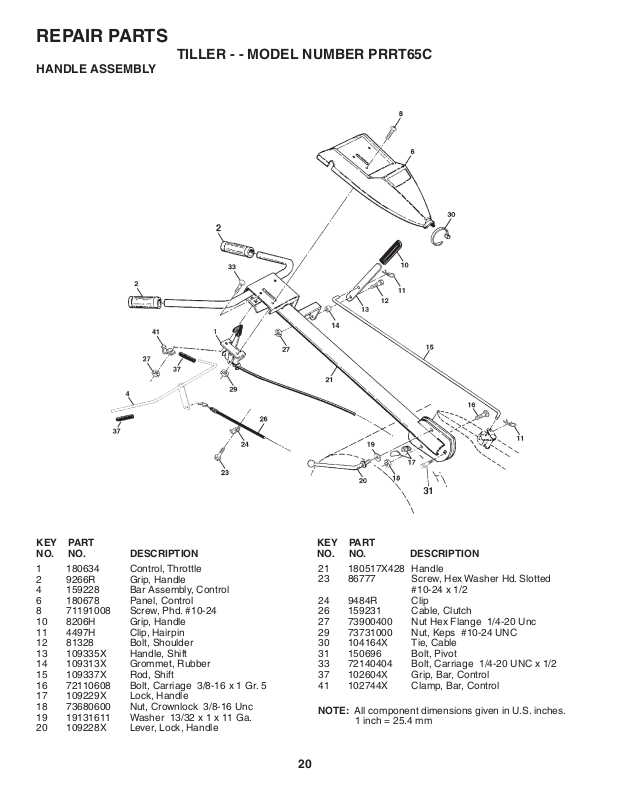

AYP PRRT65C Parts List
REPAIR PARTS
HANDLE ASSEMBLY
TILLER - - MODEL NUMBER PRRT65C
KEY PART
NO. NO. DESCRIPTION
1 180634 Control, Throttle
2 9266R Grip, Handle
4 159228 Bar Assembly, Control
6 180678 Panel, Control
8 71191008 Screw, Phd. #10-24
10 8206H Grip, Handle
11 4497H Clip, Hairpin
12 81328 Bolt, Shoulder
13 109335X Handle, Shift
14 109313X Grommet, Rubber
15 109337X Rod, Shift
16 72110608 Bolt, Carriage 3/8-16 x 1 Gr. 5
17 109229X Lock, Handle
18 73680600 Nut, Crownlock 3/8-16 Unc
19 19131611 Washer 13/32 x 1 x 11 Ga.
20 109228X Lever, Lock, Handle
KEY PART
NO. NO. DESCRIPTION
21 180517X428 Handle
23 86777 Screw, Hex Washer Hd. Slotted
#10-24 x 1/2
24 9484R Clip
26 159231 Cable, Clutch
27 73900400 Nut Hex Flange 1/4-20 Unc
29 73731000 Nut, Keps #10-24 UNC
30 104164X Tie, Cable
31 150696 Bolt, Pivot
33 72140404 Bolt, Carriage 1/4-20 UNC x 1/2
37 102604X Grip, Bar, Control
41 102744X Clamp, Bar, Control
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
20
REPAIR PARTS
MAINFRAME, LEFT SIDE
TILLER - - MODEL NUMBER PRRT65C
KEY PART
NO. NO. DESCRIPTION
1 73510500 Nut, Keps 5/16-18
2 10040600 Washer, Lock 3/8
3 73220600 Nut, Hex 3/8-16
4 170127 Shield, Inner Belt Guard RT
5 164329 Screw, Shift Lever
6 110111X Lever, Shift
7 72110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 8700J Plate, Shift Indicator
9 86777 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 9484R Clip
11 10040400 Washer, Lock 1/4
12 73220400 Nut, Hex 1/4-20
13 23230506 Screw, Set, Hex 5/16-18 x 3/8
14 156117 Spacer, Split 0.327 x 0.42 x 1.220
15 19111116 Washer 11/32 x 11/16 x 16 Ga.
16 145102 Sheave, Transmission
19 12000028 Retainer, Ring
21 110652X Spacer, Split 0.327 x 0.42 x 2.09
22 74770508 Bolt, Fin Hex 5/16-24 UNF x 1/2
23 5015J Tire
127259X Rim
795R Tire Valve
KEY PART
NO. NO. DESCRIPTION
24 126875X Rivet, Drilled
25 4497H Clip, Hairpin
26 165501X428 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102384X Bolt, Hex 5/16-16 x 12
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 x 1
34 102383X Counterweight, L. H.
35 74760532 Bolt, Hex 5/16-18 x 2
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38 74760544 Bolt, Fin Hex 5/16-18 UNC x 2-3/4
39 140062 Cap, Plunger Blk
40 170488 Screw Hex Wsh Slt #10-24 x 1/2
44 73800500 Nut Lock Hex w/Ins 5/16-18 Unc PL
65 73970500 Nut Lock Hex Flange
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
21
REPAIR PARTS
TILLER - - MODEL NUMBER PRRT65C
MAINFRAME, RIGHT SIDE
16
12
13
11
10
15
2
2
5
7
8
9
6
1
2
3
4
KEY PART
NO. NO. DESCRIPTION
1 166532 Bumper
2 73970500 Locknut, Hex, Flange 5/16-18
3 19111116 Washer 11/32 x 11/16 x 16 Ga.
4 74760512 Bolt, Hex 5/16-18 x 3/4
5 102332X Bracket, Reinforcement
6 74760532 Bolt, Hex 5/16-18 x 2
7 102173X Counter Weight, R.H.
8 10040600 Washer, Lock 3/8
9 73220600 Nut, Hex 3/8-16
10 74760524 Bolt, Hex 5/16-18 x 1-1/2
11 4497H Clip, Hairpin
KEY PART
NO. NO. DESCRIPTION
12 126875X Rivet, Drilled
13 5015J Tire
127259X Rim
795R Tire Valve
15 - - - - - - - - Engine, Briggs & Stratton
Model No. 121402
(Order parts from engine manufac-
turer)
16 7192J Tie Cable
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
22
