AYP PRGT2046A User Manual

SCHEMATIC
TRACTOR - - MODEL NUMBER PRGT2046A
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
BROWN
RED
BATTERY
A
RED
FUSE
WHITE
S
B
BLACK
M
A1
A2L
CG
B
RED
WHITE
F
H
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLACK
CLUTCH / BRAKE
BLACK
(PEDAL UP)
RED
BLACK
RED
WHITE
SOLENOID
ELECTRIC CLUTCH
85 86
87
RED
M
STARTER
BLACK
30
BLACK
BLACK
87A
GREEN
SEAT SWITCH
(NOT OCCUPIED)
FUEL LINE
BLUE
GREEN
BLACK
HOUR
METER
(OPTIONAL)
IGNITION
UNIT
OPERATOR
PRESENCE
RELAY #1
BLACK
SPARK PLUGS
ON TWIN CYL. ENGINES)
BLACK
GAP
(2 PLUGS
IGNITION SWITCH
OFF
CIRCUITPOSITION
M + G + A1
B + A1ON + LIGHTS B + A1ON
B + S + A1START
MAKE
NONE L + A2
NONE NONE
WIRING INSULATED CLIPS NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR WIRING.
FUEL SHUT-OFF
CHARGING SYSTEM OUTPUT 16 AMP DC @ 3600 RPM
RED
87
87A
8586
30
RELAY
REMOVABLE
SOLENOID
RED
REGULATOR
PTO SWITCH
CIRCUITPOSITION
OFF
C + G, B + H
C + F, B + E, A + DON
NON-REMOVABLE
YELLOW
ALTERNATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
BROWN
HEADLIGHTS
G
FC
E
H
B
A
D
BLACK
29
30
33
24
42
43
40
26
28
25
50
29
27
27
41
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
ELECTRICAL
22
21
79
12
81
10
11
D
.C
.
A
M
P
E
R
E
S
52
45
27
2
16
1
8
12
30
REPAIR PARTS
ELECTRICAL
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 144926 Battery 2 74760412 Bolt Hex Head 1/4-20 x 3/4 8 7603J Tray, Battery 10 145211 Bolt Btr Frt 1/4-20 X 7.5 zinc 11 150109 Holdown Battery Front Mount 12 145769 Nut Push Nylon 1/4" 16 153664 Switch Interlock Push-In 21 166184 Harness Headlight 22 4152J Bulb Light 24 4206J Cable, Battery 25 146149 Cable, Battery 26 108824X Fuse 27 73510400 Nut Keps Hex 1/4-20 Unc 28 170697 Cable, Ground 29 160784 Switch, Plunger 30 175566 Switch, Ign 33 140401 Key 40 170238 Harness, Ignition 41 17720408 Screw 1/4-20 x 1/2 42 131563 Cover, Terminal Red 43 175141 Solenoid 45 122822X Ammeter 50 174653 Switch, PTO 52 141940 Protection Wire Loop 79 163996 Bulbholder 81 109748X Relay Asm.
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
31
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
CHASSIS AND ENCLOSURES
14
15
130
58
17
21
141
138
47
37
17
17
28
47
17
20
19
2
91
137
88
4
86
17
85
43
56
5
130
17
144
68
35
90
7
7
34
16
36
36
17
140
17
67
31
148
147
8
122
6
68
63
30
139
32
106
36
17
40
70
39
17
33
36
20
63
17
42
45
17
17
1
17
84
60
7
150
143
139
21
122
146
17
122
147
142
50
44
147
21
47
18
147
122
17
130
17
21
17
24
23
32
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
CHASSIS AND ENCLOSURES
KEY PART NO. NO. DESCRIPTION
1 175465 Rail, Frame RH 2 140506 Drawbar, Gt 4 73680700 Nut, Crownlock 7/16-14Unc 5 163976X428 Dash 6 157882 Dash Asm., Lower 7 17720408 Screw, Thd Cut 1/4-20 x 1/2 8 145166 Support, Battery 14 175259X428 Hood Asm., Pnt 15 160568 Lens, Asm Headlight bar 16 121794X Cover, Access 17 17060612 Screw, 3/8-16 x 3/4 18 175289 Grille 19 19131312 Washer 13/32 x 13/16 x 12 Ga. 20 74760616 Bolt, Fin Hex 3/8-16 x 1 21 73680600 Nut, Crownlock 3/8-16 Unc 23 17060616 Screw 3/8-16 x 1 24 145243X428 Footrest, RH 28 145244X428 Footrest, LH 30 145051X014 Saddle 31 161419 Bracket, Supt 1-pc VGT Steering 32 161327 Bracket, Pivot Chassis LH 33 161326 Bracket, Pivot Chassis RH 34 177018 Plate Asm Engine Chassis 35 19111116 Washer 11/32 x 11/16 x 16 Ga. 36 17060512 Screw 5/16-18 x 3/4 37 167286X428 Fender, Pnt. 39 175278 Bracket, Axle Front 42 72140608 Bolt, Carriage 3/8-16 x 1 43 136939 Bracket, Spnsn Front Lh 44 136940 Bracket, Spnsn Front Rh 45 154913 Bracket Asm., Susp Chassis Rh 47 17670608 Screw Thdrol 3/8-16 x 1/2 TYT
KEY PART NO. NO. DESCRIPTION
50 175476 Bracket, Chassis Front 56 154914 Bracket Asm., Susp Chassis Lh 58 175315 Bracket Asm., Fender 60 17060620 Screw Thdrol 3/8-16 x 1-1/4 63 19131614 Washer 13/32 x 1 x 14 Ga. 67 156973 Guide Belt Gear Dr. 68 17490508 Screw, Thd 5/16-18 x 1/2 70 137159 Guide, Belt Mid Span 84 142992 Stop, Over Center Mower 85 144911 Bracket Support Transaxle 86 74760716 Bolt, Fin Hex 7/16-14 Unc x 1 88 10040700 Washer Lock Hvy HLCL Spr. 7/16 90 11050600 Washer, Lock External Tooth 3/8 91 175464 Rail, Frame Lh 106 138776 Bolt 5/16-18 Type TT 122 161464 Screw Hex Wshd 8-18 x 7/8 130 164863 Screw HWHD Hi-Lo #13-16 x 3/4 137 74780616 Bolt Fin Hex 7/16-14 x 1 Gr. 5 138 163975X428 Cupholder YTGT 139 171873 Bolt Shoulder 5/16-18 TT 140 163806 Magnet YTGT 141 163805 Stricker Plate YTGT 142 161897 Bracket Dash RH 143 169847X428 Grille Skirt RH 144 161900 Bracket Dash LH 146 169848X428 Grille Skirt LH 147 164863 Fastener Nutpal 148 164655 Extrusion Bumper 150 161237 Duct Heat Hood
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
33
REPAIR PARTS
GROUND DRIVE
TRACTOR - - MODEL NUMBER PRGT2046A
28
8
39 40
41
17
30
51
9
21
13
27
10
18
14
42
26
35
24
11
34
19
38
25
29
37
16
6
30
117
23
22
52
64
36
6
46
68
37
38
65
53
48
59
57
50
54
6
15
47 48
55
66
23
67
5
60
7
69
3
62
1
61
12
62
63
4
56
34
REPAIR PARTS
GROUND DRIVE
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 9858M1 Key, Woodruff 3 7563R Washer, Thrust, Axle 4 17490508 Screw Thdrol 5/16-18 x 3/4 5 73680600 Nut, Crownlock 3/8-16 6 76020412 Pin, Cotter 7 149176 Wheel, Hub Assembly 8 12000034 Klip, Ring 9 140080 Bolt, Hub 10 142509 Disc, Brake 11 136927 Yoke, Brake Disc 12 73750800 Nutlock 1/2-20 Unf 13 139419 Washer, Special 14 138901 Bushing 15 19131316 Washer 13/32 x 13/16 x 16 Ga. 16 143012 Set, Screw 1/4-28 x 3/4 17 126909X Spring 18 137104 Lever, Brake 19 136926 Cam, Brake Disc 21 23260412 Screw, Flat Head 1/4-28 x 3/4 22 633A109 Gearshift, Lever Assembly 23 106932X Knob 24 136925 Support, Puck Brake 25 136923 Puck, Brake Top 26 137552 Spring, Return 27 17490528 Screw, Hex Wsh Thd.
5/16-18 x 1-3/4 28 73350600 Nut, Hex Jam 3/8-16 29 137213 Brake, Rod 30 19131616 Washer 13/32 x 1 x 16 Ga. 34 71673 Cap, Plunger 35 137648 Rod, Parking Brake 36 149412 Spring, Drive Ground
KEY PART NO. NO. DESCRIPTION
37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 38 150035 Nyliner 39 74321016 Screw, Fin. #10-24 x 1 40 5304J Actuator, Interlock Switch 41 73931000 Nut Centerlock 10-24-Umc 42 8883R Cover, Pedal 46 145170 Retainer, Spring 47 138228 Clutch Rod 48 72110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 50 131494 Pulley, Idler, Flat 51 73800600 Nut, Crownlock 3/8-16 UNC 52 139123 Pulley, Idler, Grooved 53 207J Washer, Hardened 54 161590 Clutch, Arm Assembly 55 105706X Bearing, Idler 56 137153 V-Belt 57 141756 Bracket, Shift Rod, Hi-Lo 59 122253X Shift Rod, Hi-Lo 60 122268X Spring Clip, Connecting Link 61 137524 Pulley, Transaxle 62 10040700 Washer, Lock 7/16 63 74760720 Bolt, Fin Hex 7/16-14 x 1-1/4 64 154752 Shaft, Clutch/Brake Pedal 65 67609 Bolt, Shoulder 66 140296 Washer, Hardened 67 19131312 Washer, Flat 68 5142H Pin, Roll 69 136327 Hub, Cover 117 73900600 Nut, Lock Flg. 3/8-16 Unc
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
35
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
STEERING ASSEMBLY
34
33
32
26
25
14
45
1
44
21
20
23
22
31
41
6
27
9
8
7
2
6
6
4
14
15
14
8
6
29
14
36
17
14
15
37
10
38
11
14
3
9
8
12
14
15
13
13
7
3
6 6
5
7
8
42
18
15 14
14
19
28
27
6
16
35
36
REPAIR PARTS
STEERING ASSEMBLY
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 159944X428 Wheel, Steering 2 137094 Axle Asm., Front 3 6855M Fitting, Grease 4 161849 Spindle Asm, LH 5 161848 Spindle Asm., RH 6 6266H Bearing, Race Thrust Harden 7 121748X Washer 25/32 x 1-5/8 x 16 Ga. 8 12000029 Ring, Klip #T5304-75 9 121232X Cap, Spindle 10 74781044 Bolt, Fin Hex 5/8-11 x 2-3/4 11 136518 Spacer, Brg. Axle Front 12 73901000 Nut, Lock Flange 5/8-11 Unc 13 121749X Washer 25/32 x 1-1/4 x 16 Ga. 14 10040600 Washer, Lock Hvy Hlcl Spr 3/8 15 7810H Nut Lock Center 3/8-24 Unf 16 145103 Shaft Asm., Steering 17 176584 Rod Tie Service 18 137155 Draglink, Ball Joint Solid Vgt 19 156011 Support Asm., Steering Vgt 20 163887X428 Boot Steering Stealth GTYT 21 159945 Adapter, Wheel Steering 22 155105 Bushing, Strg. 23 152927 Screw 25 74780616 Bolt, Fin Hex 3/8-16 x 1 Gr. 5 26 159946X428 Insert Cap Strg WH 27 3366R Bearing, Col. Strg. 28 17000612 Screw Hexwsh thdr 3/8-16 x 3/4 29 104239X Bearing, Flange 31 138136 Bushing, Nyliner Snap 32 19111610 Washer 11/32 x 1 x 10 Ga. 33 10040500 Washer, Lock Hvy Hlcl Spr 5/16 34 74780512 Bolt, Hex Hd 5/16-18 x 3/4 35 138059 Gear, Sector Steering 36 176585 Tie Rod 37 73360600 Jam Nut RH Thread 38 109850X Joint Asm. Ball RH Thread 41 155246 Bracket Switch Interlock Vgt 97 42 17490508 Screw Thdrol 5/16-18 x 1/2 Tyt 44 160135X428 Extension Steering 45 19132411 Washer 13/32 x 1-1/2 x 11 Ga.
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
37
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
ENGINE
22
25
21
20
1
69
45
84
24
84
12
11
74
82
35
79
81
83
62
70
71
2
16
18
26
15
27
37
17
37
28
47
39
10
40
41
42
43
9
29
8
SPARK ARRESTER KIT
38
REPAIR PARTS
ENGINE
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 - - - - - - - Engine Briggs Model # 407777 2 149723 Muffler 8 121361X Pulley V-Idler 9 150828 Keeper Asm Belt Engine Vgt 96 10 175287 Bushing 11 170056 Clutch Electric 12 143996 Pulley Engine Grnd Drive 15 151346 Tank Fuel Rear 3.50 YT/GT 16 109227X Pad Spacer 17 106082X Pad Spacer 18 140527 Cap Asm Fuel Top Vent N/Lany 20 164067 Control Throttle 21 164863 Screw HWHD Hi-Lo #13-16 x 3/4 22 164068 Control Choke 24 11050600 Lockwasher Ext Tooth 3/8 25 73920600 Nut Keps 3/8-24 UNF 26 3645J Bushing 27 139277 Stem Tank Fuel 28 7834R Fuel Line 29 137180 Spark Arrester Kit 35 10040500 Washer Lock Hvy HLCL Spr. 5/16 37 123487X Clamp Hose 39 17490636 Screw 3/8 - 16 x 2-1/4 UNC TT 40 17490664 Screw 3/8 - 16 x 4 UNC TT 41 126197X Washer 1-1/2 OD X 15/32 ID X .250 42 10040700 Washer Lock 7/16 43 173937 Bolt Hex 7/16-20 x 4 Gr. 5-1.5 Thr. 45 73510400 Nut Keps Hex 1/4-20 Unc 47 175288 Bushing 62 146629 Shield Heat Muffler 69 165391 Gasket Muffler 70 176069 Tube Exhaust LH 71 176070 Tube Exhaust RH 74 162295 Elbow Street Brass 79 71070512 Screw Hex Hd Cap 5/16-18 x 3/4 81 148456 Tube Drain Oil Easy 82 148315 Plug Oil Drain Easy 83 171877 Bolt 5/16-18 Unc x 3/4 w/Sems 84 17490624 Screw Thdrol 3/8-16 x 1-1/2
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
39
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
SEAT ASSEMBLY
1
20
14
16
15
13
17
12
19
18
8
10
7
4
5
6
5
22
20
8
7
2
KEY PART NO. NO. DESCRIPTION
1 171684 Seat 2 140551 Bracket, Pivot Seat 3 140675 Strap, Fender Asm. 4 127018X Bolt, Shoulder 5/16-18 x .62 5 145006 Clip, Push-In Hinged 6 73800600 Nut, Lock Hex w/Ins. 3/8-16 Unc 7 124181X Spring, Seat Cprsn. 8 171877 Bolt 5/16-18 UNC x 3/4 w/Sems 10 174894 Pan, Seat 12 121246X Bracket, Mounting Switch 13 121248X Bushing, Snap
21
3
KEY PART NO. NO. DESCRIPTION
14 72050412 Bolt, Carriage 1/4-20 x 1-1/2 15 121249X Spacer, Split 16 123740X Spring, Cprsn. 17 123976X Nut, Lock 1/4 Lg. Flg. Gr. 5 18 19171912 Washer 17/32 x 1-3/16 x 12 Ga. 19 166369 Knob, Seat 20 124238X Cap, Spring Seat Blk 21 171852 Bolt 5/16-18 Unc-2A 22 73800500 Nut, Crownlock 5/16-18
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
40
REPAIR PARTS
DECALS
9
15
TRACTOR - - MODEL NUMBER PRGT2046A
3
5
5
12
4
10
29
29
2 11
14
KEY PART NO. NO. DESCRIPTION
1 176674 Decal, Dash 2 170851 Decal, Engine 3 176272 Decal, Hood, RH 4 176273 Decal, Hood, LH 5 176652 Decal, Hood Side PNL 9 172740 Decal, Fender 10 157140 Decal, Danger 11 101892X Decal, Clutch/Brake 14 160397 Decal, V-Belt Schematic 15 172743 Decal, Ins. Whl. Strg.
19
16
23
1
23
KEY PART NO. NO. DESCRIPTION
16 170563 Decal, Housing Mower, Warning 19 145005 Decal, Battery 23 106202X Reflector, Taillight 29 176650 Decal, Fender 30 172272 Decal, Replacement Parts
- - 138311 Decal, Handle Lift (Lift Handle)
- - 133671 Pad Footrest
- - 177271 Manual, Owner's (English)
- - 177272 Manual, Owner's (French)
WHEELS & TIRES
1
2
6
12
11
KEY PART NO. NO. DESCRIPTION
1 59192 Cap, Valve, Tire 2 65139 Stem, Valve
3
4
7
10
5
9
8
3 106228X427 Rim Assembly, Front 4 8134H Tube, Front (Service Item Only) 5 106230X Tire, Front 6 2 78 H Fitting, Grease (Front Wheel nly) 7 9040H Bearing, Flange (Front Wheel Only) 8 104757X Cap, Axle (Front Wheel Only) 9 105588X Tire, Rear 10 7154J Tube, Rear (Service Item Only) 11 106277X427 Rim Assembly, Rear 12 6856M Fitting, Grease
- - 144334 Sealant, Tire (10 oz. Tube) NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
REPAIR PARTS
LIFT ASSEMBLY
TRACTOR - - MODEL NUMBER PRGT2046A
11
13
39
40
42
42
43
11
23
23
38
12
35
73
34
7
31
32
30
70
29
4
5
5
4
2
26
12
25
24
72
33
12
8
9
10
1
3
6
16
23
23
14 41
14 41
13
12
22
21
20
19
18
73
15
42
REPAIR PARTS
LIFT ASSEMBLY
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 121006X Rod Asm., Lever 2 159187 Shaft Asm., Lift Vgt 3 159189 Lever Asm., Lift Rh 4 12000022 E-Ring Truarc #5133-87 5 19292016 Washer 29/32 x 1-1/4 x 16 Ga. 6 71110624 Bolt, Fin Hex 3/8-16 x 1-1/2 7 125631X Grip, Handle Fluted 8 170770 Button, Plunger 9 122364X Plunger, Lever Lift 10 2876H Spring 2-1/8" 11 146704 Link Lift 12 163552 Retainer, Spring 13 139868 Arm, Suspension Vgt 14 169865 Bearing, Pvt. Lift Tapered 15 73680600 Nut, Crownlock 3/8-16 Unc 16 674A247 Spring Asm., Assist Lift 17 73350600 Nut, Hex Jam 3/8-16 Unc 18 143363 Bracket, Spring Assist 19 19131316 Washer 13/32 x 13/16 x 16 Ga. 20 5328J Bolt, Adjust Spring Assist 21 74760616 Bolt, Fin Hex 3/8-16 x 1 22 127218 Link, Front 23 4939M Retainer, Spring 24 73350800 Nut, Jam Hex 1/2-13 Unc 25 130171 Trunnion 26 73800800 Nut, Lock W/Wsh 1/2-13 Unc 29 150233 Trunnion Inf. Height 30 110807X Nut, Special 31 19131016 Washer 13/32 x 5/8 x 16 Ga. 32 137150 Spring, Compression Inf Hgt 33 76020308 Pin, Cotter 3/32 x 1/2 34 137167 Rod, Adj Lift 35 138057 Knob, Inf 3/8-16 Unc 38 155097 Pointer, Height Indicator 39 123935X Plug, Hole 40 17060516 Screw 5/16-18 x 3/4 41 73540600 Nut, Crownlock 3/8-24 42 19112410 Washer 11/32 x 1-1/2 x 10 Ga. 43 123934X Scale, Indicator Height 70 145212 Nut, Hexflange Lock 72 110452X Nut, Push Phos & Oil 73 73350600 Nut Hex Jam 3/8-16 Unc
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
43
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A

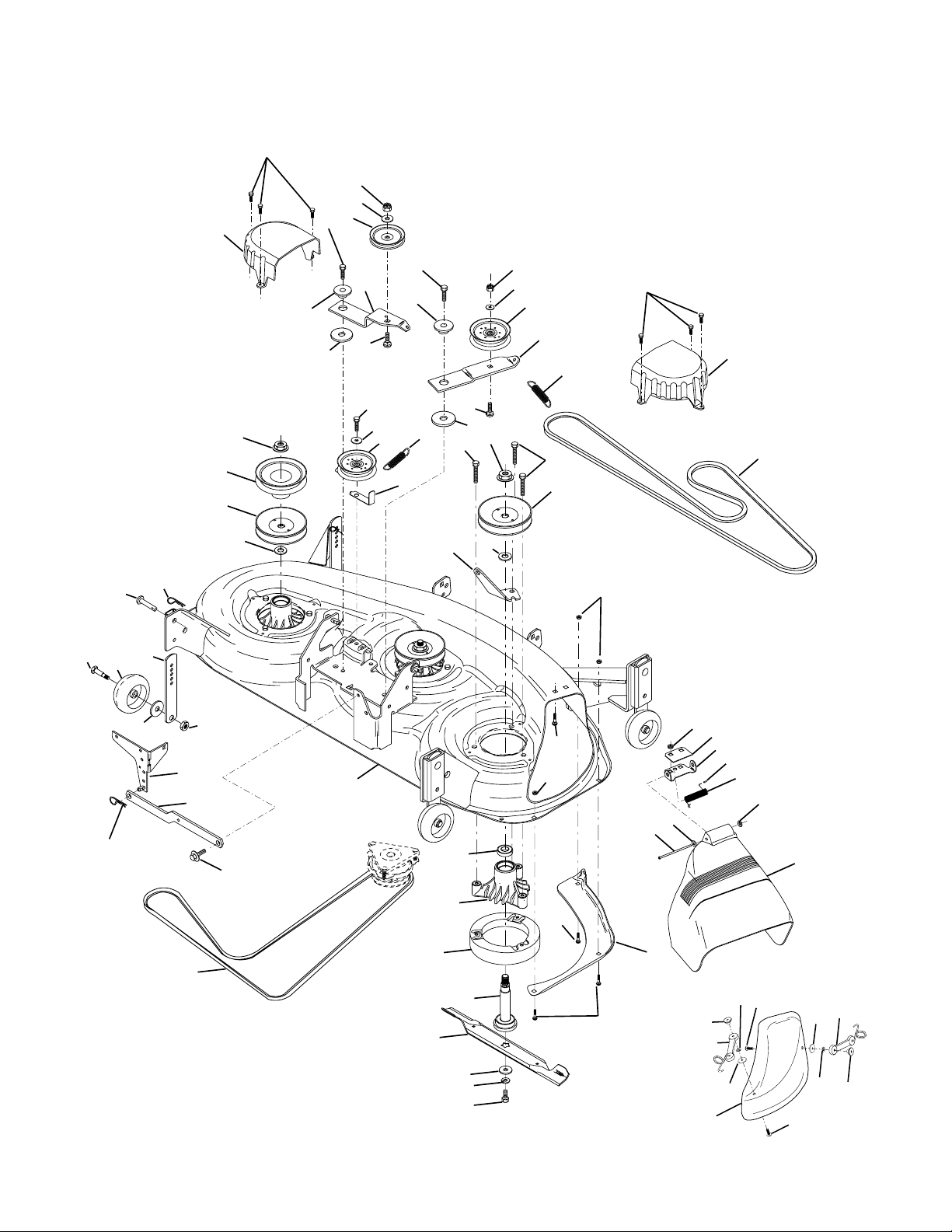

MOWER DECK
45
46
41
49
36
127
116
57
117
56
44
31
33
49
36
37
43
30
46
45
40
47
32
21
41
126
42
50
44
33
39
32
31
5
35
72
52
38
42
40
50
30
34
48
118
18
3
1
6
15
19
14
16
13
11
10
9 8
21
29
18
18
119
5
20
28
21
106
105
101
22
23
104
24
103
25
102
26
102
27
104
103
105
106
44
REPAIR PARTS
MOWER DECK
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 156833 Deck Weldment 2 138457 Bracket Asm., Sway Bar 5 4939M Retainer Spring 6 130832 Arm, Suspension, Rear (Sway Bar) 8 850857 Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 9 10030600 Washer, Lock Hvy., Unplated 3/8 10 140296 Washer, Hard Blade, Mower Vented 11 176084 Blade, Hi Performance
- - 152443 Blade, Mulching 13 137553 Shaft Asm. w/Lower Bearing
(Includes Key No. 12) 14 137152 Housing, Mandrel 15 110485X Bearing, Ball, Mandrel 16 140329 Stripper, Mower Round 18 72140505 Bolt, Carriage 5/16-18 x 5/8 19 132827 Bolt, Hex Head, Shoulder 5/16-18 20 145055 Baffle, Vortex Mower 46" 21 73680500 Nut, Crownlock 5/16-18 UNC 22 134753X421 Stiffiner, Bracket 23 131267 Bracket, Deflector 24 105304X Cap, Sleeve 25 149287 Spring, Torsion, Deflector 26 110452X Nut, Push 27 166883X428 Deflector Clipping 46" Blk 28 19111016 Washer 11/32 x 5/8 x 16 Ga. 29 131491 Rod, Hinge 30 157722 Screw, Thdroll Wsh Hd 31 129963 Washer, Spacer Mower Vented 32 173434 Pulley, Mandrel 33 137266 Nut, Flg. Top Lock Cntr. 9/16 34 144945 Anchor, Spring Deck 46" 35 17490628 Screw, Thdroll 3/8-16 x 1-3/4 Tytt 36 19131316 Washer 13/32 x 13/16 x 16 Ga. 37 173438 Pulley, Idler, Flat 38 173900 Keeper, Belt, Idler
KEY PART NO. NO. DESCRIPTION
39 173899 Pulley, Idler, Driven 40 137273 Spring, Secondary 44/46/50 Vent 41 17060620 Screw, 3/8-16 x 1-1/4 Tytt 42 122052X Spacer, Retainer 43 144949 Arm, Idler Secondary 44 133943 Washer, Hardened 45 145059 Cover, Mandrel Deck 46 137729 Screw, Thdroll. 1/4-20 x 5/8 47 144959 V-Belt, Mower, Secondary 48 148763 V-Belt, Mower, Primary 49 73680600 Nut, Crownlock 3/8-16 UNC 50 72110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 52 173901 Pulley Idler 46 Pri Drive 56 155986 Bar Adjusting Guage Wheel 57 156941 Pin Head Rivet 72 19131616 Washer 13/32 x 1 x 16 Ga. 101 145579 Cover Mulcher 102 71081010 Screw Pan Head Phillip 10-24 x 5/8 103 70071000 Washer Lock #10 104 19061216 Washer #10 105 160793 Latch Asm Mulch/Bagger 106 2029J Nut Weld 116 137644 Bolt, Shoulder 117 133957 Gauge Wheel, Wide 118 73930600 Nut, Centerlock 3/8-16 UNC 119 19121414 Washer 3/8 x 7/8 x 14 Ga. 126 144948 Arm, Idler, Primary Deck 46" 127 173902 Pulley Idler V-Gr. Plated 4.25
- - 173559 Deck Complete (Std. Deck-Order separately mulcher plate and gauge wheel components Key Nos. 101-106 and 116-118)
- - 143651 Mandrel Asm. 44"/50" service (Includes Key Nos. 8-10, 13-15, 31 and 33)
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
45
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A

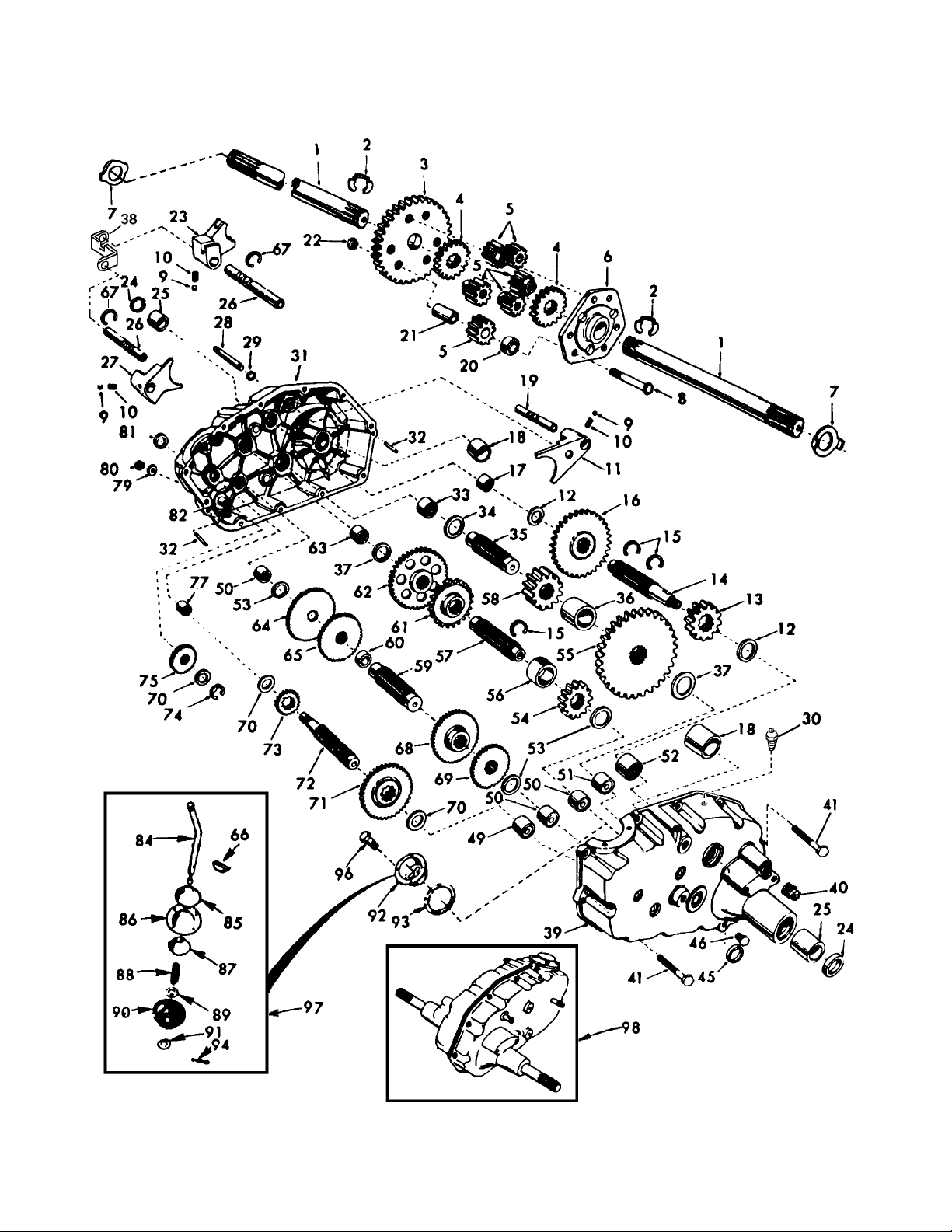

TRANSAXLE
46
REPAIR PARTS
TRANSAXLE
TRACTOR - - MODEL NUMBER PRGT2046A
KEY PART NO. NO. DESCRIPTION
1 4197R Axle Shaft 2 12000034 Retaining Ring 3 4199R Final Drive Gear 4 4216R Differential Gear 5 4215R Differential Pinion 6 4217R Differential Carrier 7 174728 Axle Thrust Washer 8 74020652 Bolt, Hex Head 3/8-24 x 3-1/4
(1" Thread Length) 9 7392M Steel Ball 10 137261 Spring Shift Fork Detent 11 4985R Shift Fork, High-Low Range 12 6266H Thrust Bearing Race 13 4212R 4th Reduction Pinion 14 137125 Shaft, Brake 15 6276H Snap Ring, Crescent Type 16 633A63 High-Low Range Gears 17 8118M Needle Bearing 18 8740H1 Sintered Iron Bearing 19 122238X Shift Fork Shaft, High-Low Range 20 4218R Differential Pinion Spacer 21 6252H1 Differential Pinion Bushing 22 7810H Gripco Centerlock Nut 3/8-24 23 6262H Shift Fork, R.H. 24 7393R Oil Seal 25 992R1 Sintered Iron Bearing 26 139111 Shift Fork Shaft 27 4986R Shift Fork, L.H. 28 122254X Shift Shaft, High-Low Range 29 6269H Oil Seal 30 5855H Pressure Relief Valve 31 174731 Gearcase, Reverse Idler Shaft
and Bearings, R.H. (Includes Key
No.s 17,18, 25, 33, 50, 3, 77 and
82) 32 6277H Dowel Pin 33 4225R Needle Bearing 34 7396H Thrust Bearing Race 35 4198R 4th Reduction Gear Shaft 36 4200R 4th Reduction Gear Spacer 37 7395H Thrust Bearing Race 38 160789 Gate, Lower, Shift 39 174729 Gearcase and Bearings, L.H.
(Includes Key Numbers 18, 25,
49, 50 (2), 51 and 52) 40 13320400 Pipe Plug 1/2-14 N.P.T. 41 17580520 Bolt, Hex 5/16-18 UNC x 1-1/4 45 6271H Oil Seal 46 13060200 Pipe Plug 1/4-18 N.P.T. 49 4895H Needle Bearlng 50 4222R Needle Bearing 51 1529R Needle Bearing
KEY PART NO. NO. DESCRIPTION
52 8119M Needle Bearing 53 4220R Thrust Bearing Race 54 4209R 3rd Reduction Pinion, Low 55 4213R 4th Reduction Gear 56 4442R 3rd Reduction Pinion Spacer 57 4195R 2nd Reduction Gear Shaft 58 4214R Final Drive Pinion 59 4194R 1st Reduction Gear Shaft 60 7528R 1st Reduction Shaft Spacer 61 4208R 3rd Reduction Plnion Hlgh 62 4207R 2nd Reduction Gear 63 7398H Needle Bearlng 64 4203R Low Speed Gear and 2nd
Reductlon Pinion Cluster 65 4204R Reverse Gear 66 2898J Key, Hi-Pro 1/8 x 17/32 67 12000033 Klip Ring 68 4205R Intermediate Speed Gear 69 4206R High Speed Gear 70 1370H Thrust Bearing Race 71 633A69 Intermediate and High Speed
Cluster Pinions 72 139120 Input Shaft 73 4201R Low Speed Pinion 74 12000008 E-Ring 75 1153R Reverse Idler Gear 77 6803J Needle Bearing 79 1167R Sealing Washer 80 73360700 Nut, Hex, Jam 7/16-20 81 6270H Oil Seal 82 136984 Reverse Idler Shaft 84 5384J Gearshift Lever, Bent 85 2978J Gearshift Cap 86 633A85 Gearshift Ball Cover and Pin 87 8739H1 Shift Lever Guide Ball, Keyed 88 4924H Spring 89 19151516 Washer 15/32 x 15/16 x 16 Ga. 90 110542X Shift Mechanism Seal 91 19181511 Washer 9/16 x 15/16 x 12 Gauge 9 2 75J Gearshift Gate and
Reinforcement 93 6274H Shift Ball Cover Gasket 94 76020412 Cotter Pin 1/8 x 3/4 96 159783 Screw, Hex, Washer, HD. 97 633A109 Gearshift Lever Assembly 98 174742 Transaxle, 6 Speed,
Complete Assembly NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
47
