Page 1

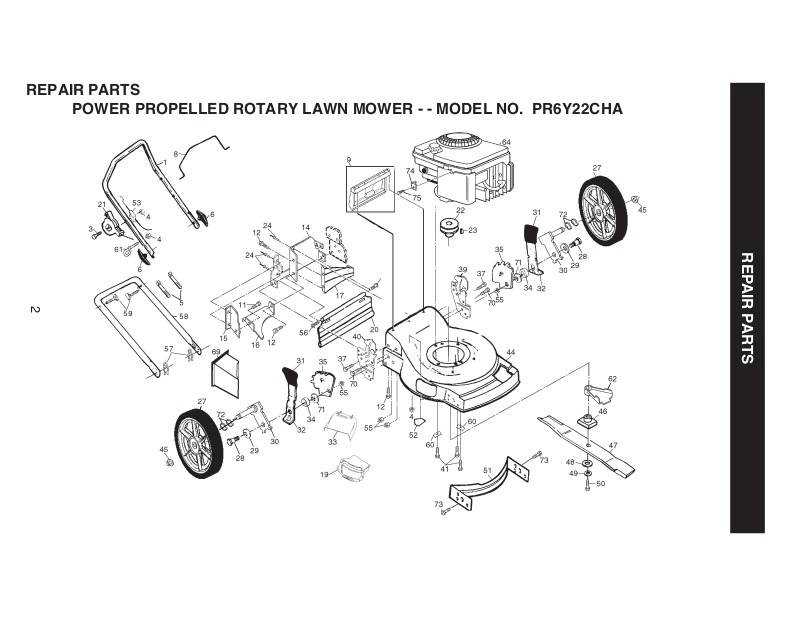

REPAIR PARTS
POWER PROPELLED ROTARY LAWN MOWER - - MODEL NO. PR6Y22CHA
2
REPAIR PARTS
Page 2
REPAIR PARTS
POWER PROPELLED ROTARY LAWN MOWER - - MODEL NO. PR6Y22CHA
KEY PART
NO. NO. DESCRIPTION
1 166862X479 Upper Handle
3 144929 Hex Washer Head Screw 1/4-20 x 2-1/8
4 63601 Locknut 1/4-20
5 66426 Wire Tie
6 170146 Handle Knob
8 170287 Control Bar
9 151023 Rear Door Kit
11 150050 Self Tapping Screw #10-24 x 5/8
12 54583 Hex Tapping Screw w/Sems 1/4-20 x 1/2
14 156380X479 Back Plate
15 700365X479 Side Baffle
16 133190X479 Discharge Baffle
17 133040X479 Rear Baffle
19 148195 Combi-cut Door
3
20 140540 Rear Skirt
21 173489 Throttle Control
22 84596 Engine Pulley
23 87677 Hi-Pro Key #505
24 128415 Pop Rivet
27 170258 Wheel
28 142748 Shoulder Bolt 3/8-16 x 1-3/8
29 61651 Spring Washer
30 750913X004 Axle Arm Assembly
31 170143 Selector Knob
32 700331X004 Selector Spring
33 145285 Clip-on Discharge Deflector
34 146630 Spacer
35 700325X007 Wheel Adjusting Bracket
37 150078 Thread Cutting Screw w/Sems 5/16-18 x
3/4
39 161814X479 Handle Bracket Assembly (Left)
40 161812X479 Handle Bracket Assembly (Right)
41 150406 Hex Head Thread Rolling Screw 3/8-16 x
KEY PART
NO. NO. DESCRIPTION
1-1/8
44 172287 Lawn Mower Housing (Incl. Key Nos. 14, 15, 51 & 52)
45 83923 Flanged Locknut 3/8-16
46 851514 Blade Adapter
47 141114 Blade 22"
48 851074 Hardened Washer
49 850263 Helical Washer
50 851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
51 170557 Front Baffle Kit
52 107339X Danger Decal
53 130861 Cable
55 751592 Locknut 3/8-16
56 88652 Hinge Screw 1/4-20 x 1-1/4
57 51793 Hairpin Cotter
58 151721X479 Lower Handle
59 131959 Handle Bolt
60 851201X004 Washer
61 132001 Rope Guide
62 134612 Debris Shield
64 - - - - - - Engine-Briggs and Stratton 12H802
Order parts from engine manufacturer
69 166649 Mulcher Plug
70 74760612 Bolt
71 88348 Washer
72 57143 Wave Washer
73 17600406 Screw Hx Serrated 1/4 x 20.TT
74 111190X Clamp
75 83816 Screw
- - 172787 Operator's Manual (English)
- - 172788 Operator's Manual (French)
- - 162300 Warning Decal (Not Shown)
- - 172289 Repair Parts Manual
Page 3
REPAIR PARTS
POWER PROPELLED ROTARY LAWN MOWER - - MODEL NO. PR6Y22CHA
4
Page 4
REPAIR PARTS
POWER PROPELLED ROTARY LAWN MOWER - - MODEL NO. PR6Y22CHA
KEY PART
NO. NO. DESCRIPTION
1 170296 Control Cable Assembly
3 145212 Flanged Locknut 3/8-16
4 158755 Hex Washer Head Screw 1/4-20 x 2.12
5 146527 V-Belt
6 150495 Spring Retainer
8 77400 Hubcap
11 170263 Wheel & Tire Assembly
12 12000058 E-Ring
13 137054 Pinion
5
14 88080 Dust Cover
16 67725 Washer 1/2 x 1-1/2 x .134
18 170143 Selector Knob
26 146072 Pan Head Tapping Screw #10-24 x 2-
3/4
KEY PART
NO. NO. DESCRIPTION
27 149746 Pan Head Screw #10-24 x 1- 3/4
28 170151 Drive Cover
31 132010 Hex Flange Nut
32 137052 Drive Pulley
35 172291 Wheel Adjuster Assembly (Left)
36 702511 Gear Case Assembly
37 137090 Spring
38 63601 Locknut 1/4-20
40 75192 Spring
41 172290 Wheel Adjuster Assembly (Right)
53 149555 Frame Assembly
54 170449 Grass Catcher
55 86012 Driveshaft Cover
60 751152 Nut
Page 5
REPAIR PARTS
POWER PROPELLED ROTARY LAWN MOWER MODEL NO. PR6Y22CHA
GEAR CASE ASSEMBLYPART NUMBER 702511
KEY PART
NO. NO. DESCRIPTION
1 17490416 Tapping Screw 1/4-20 x
1-1/4
2 137055X004 Engagement Bracket
3 137053 Shifter
4 57072 Seal
6 48373 Gear Case Halves Kit
(Includes Key Nos. 4
and 7)
7 77881 Bearing
8 137051 Worm Shaft
KEY PART
NO. NO. DESCRIPTION
9 137074 Drive Shaft
10 57079 Hardened Washer
11 131484 Clutch Yoke
12 700343 Bushing
13 86447 Plug
14 137050 Helical Gear
15 750436X Clutch Jaw
16 750369 Grease
17 12000003 E-Ring
18 850848 Hi-Pro Key
19 81585X004 Spring Bracket
NOTE: All component dimensions given
in U.S. inches. 1 inch = 25.4 mm
6
