AYP PR65Y21CA User Manual

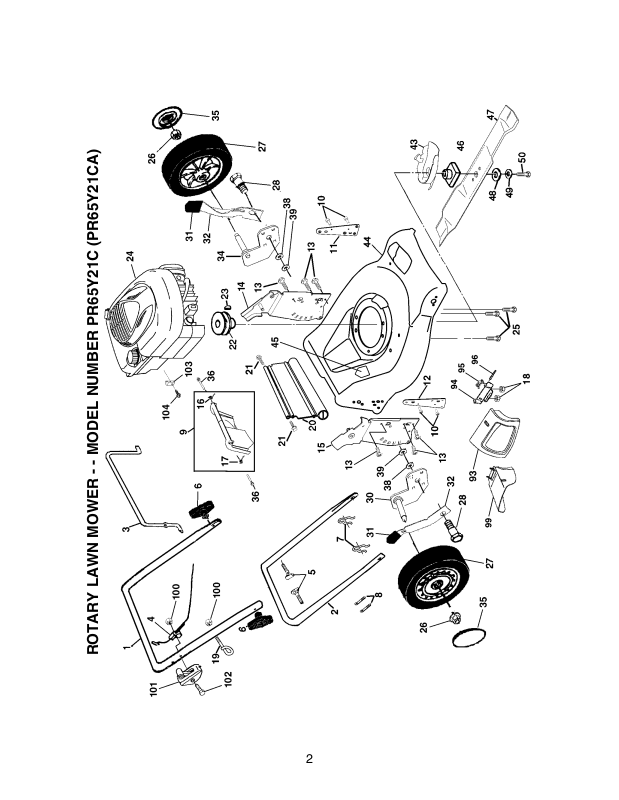

ROTARY LAWN MOWER - - MODEL NUMBER PR65Y21C (PR65Y21CA)

2

32 175060X004 Selector Spring

34 165762X004 Axle Arm Assembly LR

35 180660 Hubcap

36 165912 Bolt

38 176185 Washer

39 176235 Push Nut

43 175083 Bottom Belt Cover

44 176710 Lawn Mower Housing

45 107339X Danger Decal

46 851514 Blade Adapter

47 175064 Blade 21"

48 851074 Hardened Washer

49 850263 Helical Washer 3/8-24 x 1-3/8 Gr. 8

50 851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

93 175066 Mulcher Door

94 175735 Hinge Bracket

95 175285 Spring

96 175650 Rod, Hinge

99 175071 Discharge Deflector

100 132004 Nut, Hex

101 170294 Throttle Control

102 144929 Screw

103 111190X Clamp

104 83816 Screw

- - 162300 Warning Decal (Not Shown)

- - 172782 Operator's Manual, English

- - 172783 Operator’s Manual, French

- - 181872 Replacement Parts Manual, English/French

NOTE: All component dimensions given in U.S. inches.

KEY PART

NO. NO. DESCRIPTION

(order parts from engine maufacturer)

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PR65Y21C (PR65Y21CA)

KEY PART

NO. NO. DESCRIPTION

1 166862X479 Upper Handle

2 151721X479 Lower Handle

3 170287 Control Bar

4 133107 Engine Zone Control Cable

5 131959 Handle Bolt

6 170146 Handle Knob

7 51793 Hairpin Cotter

8 66426 Wire Tie

9 180479 Rear Door Kit (Incl. Key #16 & 17)

10 128415 Pop Rivet

11 175069X479 Support Bracket LH

12 175070X479 Support Bracket RH

13 17060410 Screw 14-20 x 5/8

14 175082X479 Handle Bracket Assembly (Left)

15 175081X479 Handle Bracket Assembly (Right)

16 180071 Spring LH

17 180072 Spring RH

18 63601 Keps Locknut 1/4-20

19 179585 Rope Guide

20 178398 Rear Skirt

21 88652 Hinge Screw 1/4-20 x 1-1/4

22 84596 Engine Pulley

23 87677 Hi-Pro Key #505

3

24 - - - Engine, Briggs & Stratton, Model No. 123K02

25 150406 Hex Head Thread Rolling Srew 3/8-16 x 1-1/8

26 83923 Hex Flange Nut

27 167628 Wheel

28 175231 Shoulder Bolt

30 165761X004 Axle Arm Assembly RR

31 170143 Selector Knob

ROTARY LAWN MOWER - - MODEL NUMBER PR65Y21C (PR65Y21CA)

4

KEY PART

NO. NO. DESCRIPTION

28 181466 Dive Cover

31 132010 Hex Flange Nut

32 137052 Drive Pulley

35 172291 Wheel Adjuster Assembly (Left)

36 175258 Gear Case Assembly

37 137090 Spring

38 63601 Locknut 1/4-20

40 75192 Spring

41 172290 Wheel Adjuster Assembly (Right)

54 181370 Grassbag Assembly

55 175739 Driveshaft Cover

57 175058 Frame

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PR65Y21C (PR65Y21CA)

1 174318 Control Cable Assembly

3 751152 Locknut #10-24

4 158755 Hex Washer Head Screw 1/4-20 x 2.12

5 175436 V-Belt

6 150495 Spring Retainer

8 180660 Hubcap

9 145212 Locknut

11 180767 Wheel & Tire Assembly

12 12000058 E-Ring

13 137054 Pinion

14 180504 Dust Cover

15 88118 Felt Washer

16 67725 Washer 1/2 x 1-1/2 x .134

18 170143 Selector Knob

KEY PART

NO. NO. DESCRIPTION

5

26 175262 Pan Head Tapping Screw #10-24 x 2-3/4

ROTARY LAWN MOWER - - MODEL NUMBER PR65Y21C

(PR65Y21CA)

GEARCASE ASSEMBLY - - PART NUMBER 175258

KEY PART
NO. NO. DESCRIPTION

1 17490416 Tapping Screw 1/4-20 x 1-1/4
2 175248X004 Engagement Bracket
3 137053 Shifter
4 57072 Seal
6 48373 Gear Case Halves Kit

7 77881 Bearing
8 137051 Worm Shaft
9 175257 Drive Shaft
10 57079 Hardened Washer
11 131484 Clutch Yoke
12 700343 Bushing
13 86447 Plug
14 137050 Helical Gear
15 750436X Clutch Jaw
16 750369 Grease
17 12000003 E-Ring
18 850848 Hi-Pro Key
19 81585X004 Spring Bracket

NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

(Includes Key Numbers 4 and 7)

6
