AYP PR55N22SHA RP Parts List

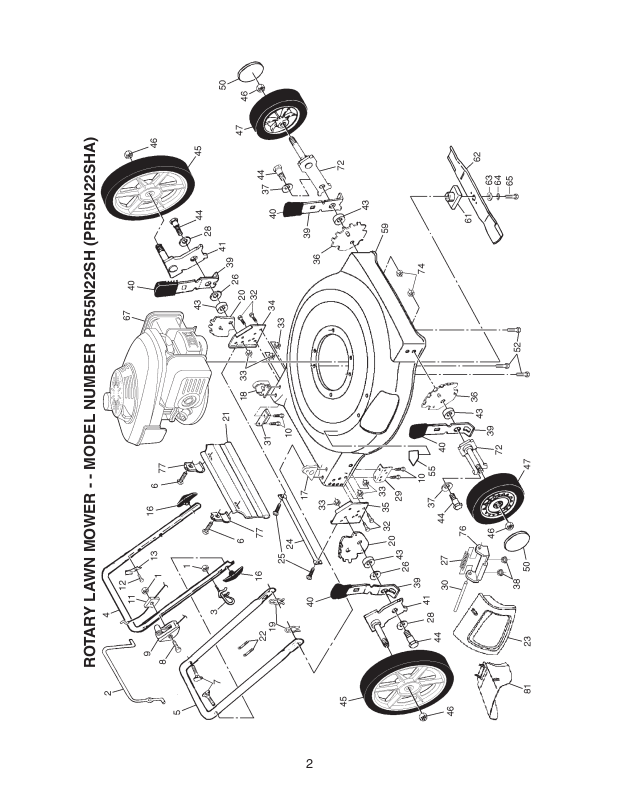

ROTARY LAWN MOWER - - MODEL NUMBER PR55N22SH (PR55N22SHA)

2

KEY PART

NO. NO. DESCRIPTION

39 700331X004 Selector Spring

37 62335 Washer, Belleville 1/2

38 73800400 Nut, Hex 1/4-20

40 170143 Selector Knob

41 180413X004 Axle Arm Assembly, Rear

43 146630 Spacer

44 142748 Shoulder Bolt

45 181383 Wheel Assembly, Rear

46 83923 Locknut 3/8-16

47 170262 Wheel Assembly, Front

50 77400 Hubcap

52 150406 Hex Head Thread Rolling Screw 3/8-16 x 1

55 107339X Danger Decal

59 190762 Kit, Mower Housing (Includes Key Number 55)

61 184590 Blade Adapter

62 152202 22" Blade

63 851074 Hardened Washer

64 850263 Helical Lockwasher 3/8

65 851084 Screw, Hex Head 3/8-24 x 1-3/8 Grade 8

67 - - - Engine, Honda, Model Number GCV160

72 145935X004 Axle Arm Assembly, Front

74 751592 Nut, Hex

(For engine service and replacement parts,

call Honda at 1-800-426-7701)

76 154132 Bracket, Mulcher Door

77 87584X004 Retaining Bracket, Rear Skirt

- - 162300 Warning Decal (not shown)

- - 172782 Operator’s Manual, English

81 176509 Discharge Defl ector

- - 172783 Operator’s Manual, French

- - 188966 Repair Parts Manual, English / French

ROTARY LAWN MOWER - - MODEL NUMBER PR55N22SH (PR55N22SHA)

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 132004 Locknut 1/4-20

2 131696 Control Bar

3 179585 Rope Guide

4 166860X479 Upper Handle

5 151721X479 Lower Handle

11 133107 Engine Zone Control Cable

12 750634 Hex Washer Head Screw #10-24 x 1/2

13 850733X004 Up-Stop Bracket

6 750097 Screw, Tapping #10-24 x 3/4

7 131959 Handle Bolt 5/16-18

8 183365 Hex Washer Head Screw 1/4-20 x 2-1/8

9 187543 Choke Control

10 149741 Screw 5/16-18 x 3/4

16 136376 Handle Knob

17 170345X479 Handle Bracket, RH

18 170346X479 Handle Bracket, LH

3

19 51793 Hairpin Cotter

21 189008 Rear Skirt

22 66426 Wire Tie

20 700325X007 Bracket, Wheel Adjusting, Rear

23 151889 Mulcher Door

24 165175X479 Rod, Support

27 152124 Torsion Spring

25 54583 Screw

26 88348 Washer, Flat 3/8

28 61651 Washer, Spring

30 147286 Hinge Rod

29 153350X479 Support, Handle Bracket, RH

31 153282X479 Support, Handle Bracket, LH

33 751592 Locknut 3/8-16

34 700168X479 Bracket, Support, LH

35 700166X479 Bracket, Support, RH

32 74760612 Bolt 3/8-16 x 3/4

36 700325X007 Bracket, Wheel Adjusting, Front
