AYP PR1742STE-1 User Manual

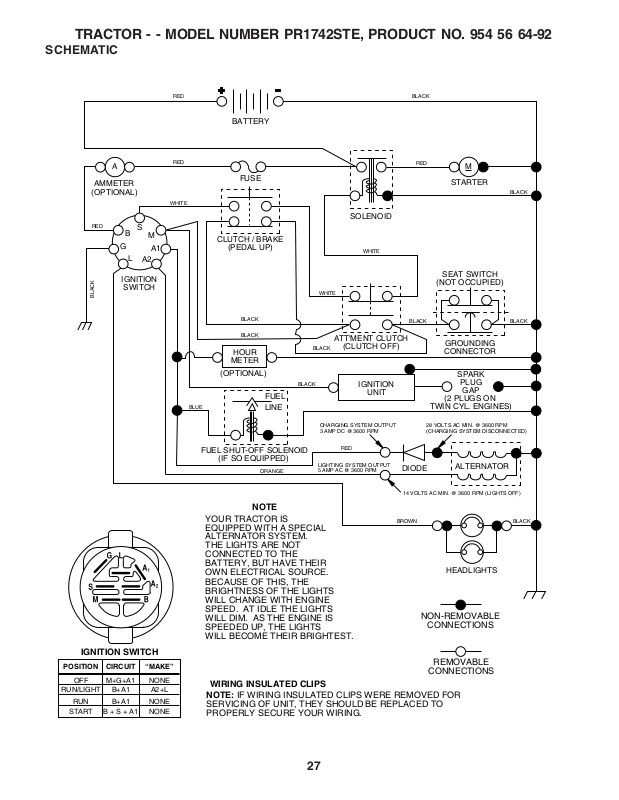

TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GROUNDING
CONNECTOR
SPARK
PLUG
(2 PLUGS ON
TWIN CYL. ENGINES)
BLACK
GAP
BLUE
BLACK
BLACK
HOUR
METER
(OPTIONAL)
FUEL
LINE
BLACK
WHITE
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
IGNITION
UNIT
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
27
28
29
26
24
42
43
27
27
25
41
27
27
40
33
90
30
REPAIR PARTS
TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
ELECTRICAL
22
21
8
16
16
D
.C
. A
M
P
E
R
E
S
52
45
27
2
1
28
REPAIR PARTS
TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery 12 Volt 28 Amp
2 74760412 Bolt Hex Hd 1/4-20unc X 3/4
8 176689 Battery Box
16 176138 Switch Interlock Push-In
21 175685 Harness Socket Light
22 4152J Bulb, Light # 1156
24 4799J Cable Battery
25 146147 Cable Battery 6 Ga Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 Unc
28 4207J Cable Ground 6ga 12 black
29 121305X Switch Plunger Nc Gray
30 175566 Switch Ign
33 140401 Key Ign Molded Generic
40 179720 Harness Ign
41 71110408 Bolt Fin Hex 1/4-20uncx 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Loop
90 180449 Cover Terminal
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
29
REPAIR PARTS
TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
CHASSIS AND ENCLOSURES
212
17
159
26
30
25
31
3
24
18
12
24
25
26
5
5
53
51
52
55
58
57
29
28
208
208
9
208
11
3
115
114
2
207
26
3
35
33
3
142
211
10
142
3
64
37
3
3
3
54
219
20
145
37
23
219
1
13
208
206
14
3
38
35
14
34
26
30
REPAIR PARTS
TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16x.75
5 155272 Bumper Hood/Dash
9 168337X012 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
12 145660 Cl ip Tinnerman
13 172106 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x 1-1/4
17 159639X428 Hood LT/PL
18 126938X Bumper Hood
20 180679 Plate Mtg Battery Fuel Tank Fr
23 124028X Bushing
24 74780616 Bolt Fin Hex 3/8-16 x 1 Gr 5
25 19131312 Washer 13/32 X 13/16 X 12 Ga
26 73800600 Nut Lock Hex W/Ins 3/8-16 Unc
28 179844 Grille LT/PL
29 170472X599 Lens LT/PL
30 169470X428 Fender Footrest STLT Pnt
31 136619 Bracket Support Fender
33 179716X428 Footrest Pnt Lh
34 179717X428 Footrest Pnt Rh
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 17490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 175710 Bracket Asm. Pivot Mower Rear
51 73800400 Nut Lock Hex W/Ins 1/4-20
52 19091416 Washer 9/32 x 7/8 x 16 Ga.
53 144697 Bracjet Grukke Lh
54 161464 Screw Hex Wshd 8-18 x 7/8
55 144696 Bracket Grille Rh
57 74780412 Bolt Hex 1/4-20 x 3/4
58 150127 Duct Air
64 154798 Dash Lower STLT
114 158112 Keeper Belt Rear Lh
115 17060620 Screw 3/8-16 x 1-1/4
142 175702 Plate Reinforcement STLT
145 156524 Rod Pivot Chassis/Hood
159 169473X428 Cupholder
206 170165 Bolt Shoulder 5/16-18
207 17670508 Screw Thdrol 5/16-18 x 1/2
208 17670608 Screw Thdrol 3/8-16 x 1/2
211 145212 Nut Hex Flange Lock
212 156229 Insert Lens Reflect P/L LT
219 17000512 Screw 5/16-18 x 3/4
- - 5479J Plug Btn Blk .359
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
REPAIR PARTS
TRACTOR - - MODEL NUMBER PR1742STE, PRODUCT NO. 954 56 64-92
DRIVE
57
13
84
90
16
14
112
77
197
85
11
52
80
85
30
32
89
81
10
8
170
21
51
63
212
59
159
14
51
82
158
162
83
165
156
5
18
6
62
161
198
169
18
4
3
6
79
6
164
163
113
32
30
52
168
166
35
61
56
41
38
39
37
36
34
66
65
64
50
27
49
47
120
70
116
55
202
150
48
151
51
145
96
26
25
24
19
26
26
2
77
1
75
74
78
76
29
28
22
26
27
36
35
53
32
