PPRT8K (1995) Page 1 of 14
DECALS
PPRT8K (1995) Page 2 of 14
DECALS
Ref # Part Number Qty Description
1 532144184 Decal, Logo
2 532144183 Decal, Logo
3 532145628 Decal, Logo
4 532139385 Decal, Instruction, Tilling
5 532110614 Decal, Hand Placement
6 532139044 Decal, Shift Indicator
7 532110612 Decal, Caution
8 532120076 Decal, Warning, Rotating Tines
9 532271636 Decal, Briggs & Statton
10 532127630 Decal, Grille/Bumper
532145727 Manual, Owner's(English)
532145728 Manual, Owner's(French)
PPRT8K (1995) Page 3 of 14
HANDLE ASSEMBLY
PPRT8K (1995) Page 4 of 14
HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 871191008 Screw, Pan Hd. #10-24 UNC
2 532126951 Panel, Control
3 532104164 Tie, Cable
4 532124797 Grip, Handle
5 532124788 Clip, Hairpin
6 532081328 Bolt, Shoulder
7 532109335 Handle, Shift
8 532109313 Grommet, Rubber
9 532138400 Rod, Shift
10 872110608 Bolt, Carriage 3/8-16 x 1
11 532109229 Lock, Handle
12 873930600 Nut, Centerlock 3/8-16
13 819131611 Washer 13/32 x 1 x 11 Ga.
14 532109228 Lever, Lock, Handle
15 532127013 Handle
16 810040400 Washer, Lock 1/4
17 873220400 Nut, Hex 1/4-20
18 873731000 Nut, Keps #10-24 UNC
19 532101251 Cable, Clutch
20 532009484 Clip
21 532086777 Screw, Hex Washer Hd. Slotted #10-24 x 1/2
22 532102604 Grip, Bar, Control
23 532102744 Clamp, Bar, Control
24 532105216 Bar Assembly, Control
25 532138305 Control, Throttle
26 872140404 Bolt, Carriage 1/4-20 UNC x 1/2
27 532140528 Grip, Handle
28 532138283 Lock, Handle
PPRT8K (1995) Page 5 of 14
MAINFRAME, LEFT SIDE
PPRT8K (1995) Page 6 of 14
MAINFRAME, LEFT SIDE
Ref # Part Number Qty Description
1 532106160 O-Ring
2 810040600 Washer, Lock 3/8
3 873220600 Nut, Hex 3/8-16
4 874930572 Bolt, Hex Head 5/16-18 x 4-1/2
5 532124963 Pin, Roll
6 532110111 Lever, Shift
7 872110404 Bolt, Carriage 1/4-20 x 1/2 Grade 5
8 532008700 Plate, Shift Indicator
9 532086777 Screw, Hex Washer Head, Slotted #10-24 x 1/2
10 532009484 Clip
11 810040400 Washer, Lock 1/4
12 873220400 Nut, Hex 1/4-20
13 823230506 Screw, Set, Hex 5/16-18 x 3/8
14 532008382 Spacer, Split
15 819111116 Washer 11/32 x 11/16 x 16 Gauge
16 532100473 Sheave, Transmission
17 873220500 Nut, Hex 5/16-18
18 532008381 Spacer
19 532002649 Key, Square 3/16 x 1-1/8
20 532004914 Key, Square
21 532139155 Spacer, Split .523 x .718 x 2
22 532104214 Nut, Cap 5/16-18
23 532005015 Tire
532005014 Rim
532124718 Tire Valve
24 532004929 Rivet, Drilled
25 532124961 Clip, Hairpin
26 532144565 Guard, Belt
27 532138399 V-Belt
28 532104680 Pulley, Idler
29 812000032 Ring, Klip
30 532105611 Bracket, Idler
31 874770844 Bolt, Hex Head 1/2-20 x 2-3/4
32 532139401 Shaft, Idler Arm
33 819171616 Washer
34 532004368 Sheave, Engine
35 532140062 Cap, Plunger
PPRT8K (1995) Page 7 of 14
MAINFRAME, RIGHT SIDE
PPRT8K (1995) Page 8 of 14
MAINFRAME, RIGHT SIDE
Ref # Part Number Qty Description
1 532138402 Bumper
2 873680500 Nut, Crownlock 5/16-18
3 810040500 Washer Lock Hvy Hlcl Spr 5/16
4 874760528 Bolt, Hex 5/16-18 x 1-3/4
5 532138669 Bracket, Engine
6 874760616 Bolt, Hex Head 3/8-16 x 1
7 532008450 Counter Weight, R.H.
8 810040600 Washer, Lock 3/8
9 873220600 Nut, Hex 3/8-16
10 872140608 Bolt, Carriage 3/8-16 x 1
11 532124961 Clip, Hairpin
12 532004929 Rivet, Drilled
13 532005015 Tire
532005014 Rim
532124718 Tire Valve
14 872470636 Bolt, Carriage 3/8-16 x 4-1/2
15 874760672 Bolt, Hex Head 3/8-16 x 4-1/2
16 532104164 Tie, Cable
PPRT8K (1995) Page 9 of 14

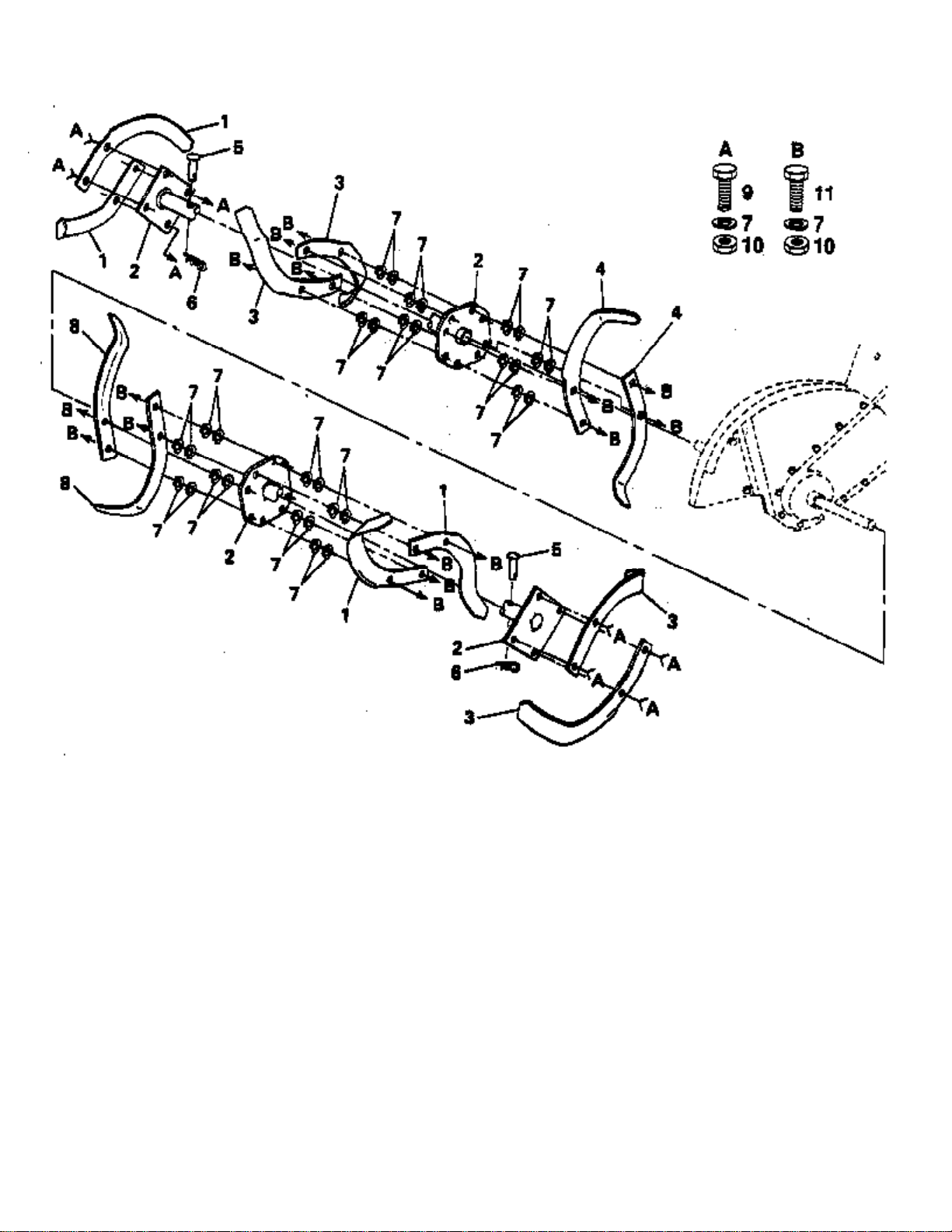

TINE ASSEMBLY
PPRT8K (1995) Page 10 of 14
TINE ASSEMBLY
Ref # Part Number Qty Description
1 532006556 Tine, L.H., 14"
2 532100445 Hub Assembly
3 532006557 Tine, R.H., 14"
4 532101194 Tine, L.H., 14"
5 532004929 Rivet, Panhead
6 532124660 Clip, Hairpin
7 810040600 Washer, Lock 3/8
8 532101193 Tine, R.H., 14"
9 874610616 Bolt, Hex Head 3/8-24 x 1
10 873610600 Nut, Hex 3/8-24
11 874610624 Bolt, Hex Head 3/8-24 x 1-1/2
PPRT8K (1995) Page 11 of 14

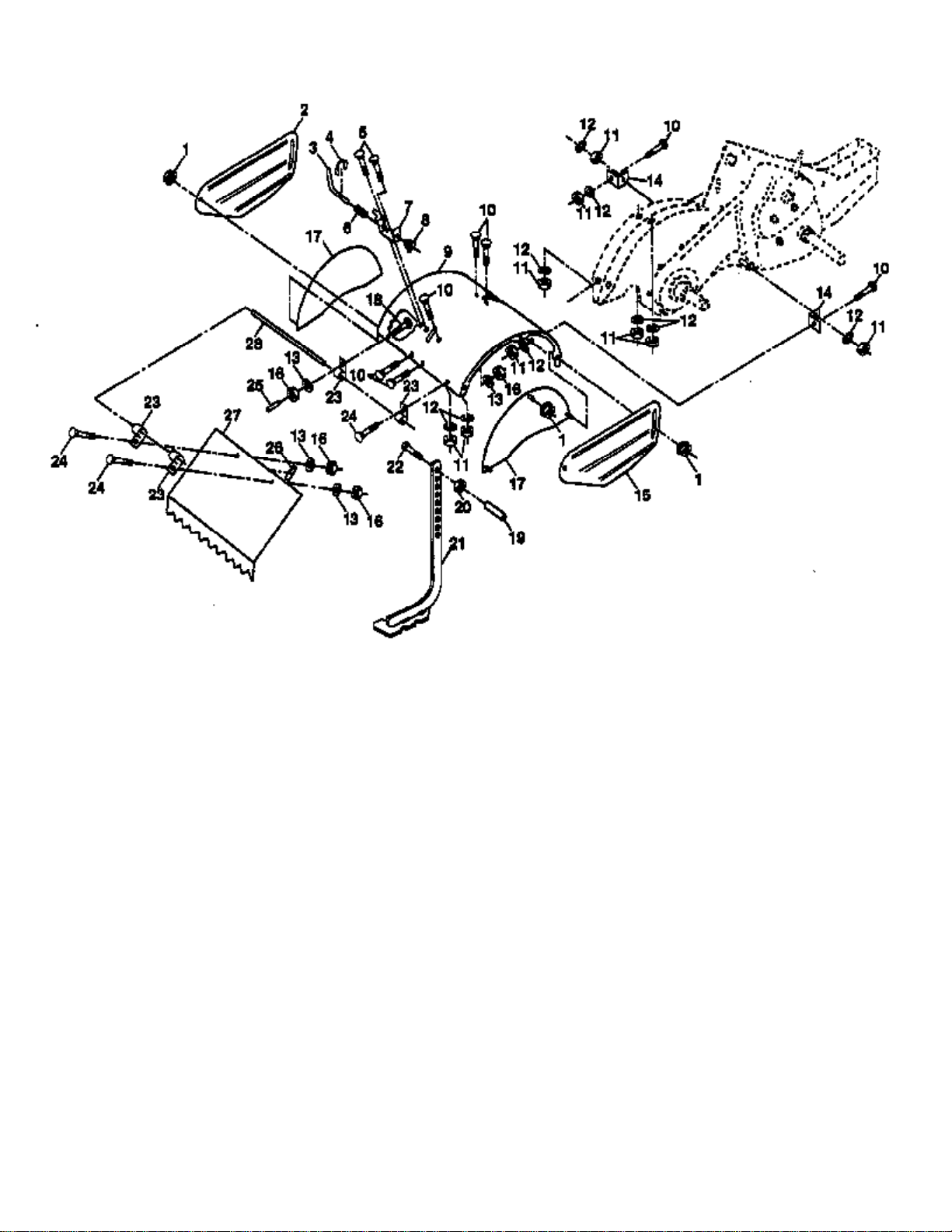

TINE SHIELD
PPRT8K (1995) Page 12 of 14
TINE SHIELD
Ref # Part Number Qty Description
1 898000129 Nut, Flange 5/16-18
2 532108711 Shield, Side, Outer, L.H.
3 532008393 Pin, Depth Stake
4 812000036 Ring, Klip
5 872140508 Bolt, Carriage 5/16-18 x 1
6 532008394 Spring
7 532008392 Bracket, Latch
8 532109230 Spring, Depth Stake
9 532144566 Shield, Tine
10 872140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
11 873220500 Nut, Hex 5/16-18
12 810040500 Washer, Lock 5/16
13 810040400 Washer, Lock 1/4
14 532008386 Bracket, Shield Tine
15 532108710 Shield, Side, Outer R.H.
16 873220400 Nut, Fin, Hex, 1/4-20
17 532144568 Shield, Side
18 872040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
19 532102701 Grip
20 873220600 Nut, Hex 3/8-16
21 532138420 Stake, Depth
22 874930632 Bolt, Hex 3/8-16 x 2
23 532004440 Hinge
24 872140408 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25 532124717 Cap, Vinyl
26 532109227 Pad, Idler
27 532144567 Shield, Leveling
28 532138609 Pin, Hinge
PPRT8K (1995) Page 13 of 14
TRANSMISSION
PPRT8K (1995) Page 14 of 14
TRANSMISSION
Ref # Part Number Qty Description
0 532142477 Transmission Assembly
1 532106179 Gearcase Assembly, R.H., with Bearing (Includes Key No.
18)
2 532008370 Bolt, Upset
3 532008547 Gear, Reverse
4 532008546 Gear, Cluster, Red., 1st and 2nd
5 532100413 Bearing, Needle
6 532144564 Sprocket Assembly, Tine
7 532144563 Sprocket Assembly with Bearings (Includes Key #6 & two of
Key #5)
8 532004358 Washer
9 532008358 Shaft, Reduction, 1st
10 532008371 Chain, Roller, 60P
11 532100371 Spring, Shift, Fork
12 532124697 Ball, Steel
13 532008353 Fork, Shift
14 532008354 Shaft, Shift
15 812000039 Klip Ring
16 532102136 Washer, Seal
17 532001370 Race, Bearing, Thrust, 5/8 I.D.
18 532124792 Bearing, Needle
19 532100724 Shaft, Input
21 532105378 Shaft Assembly, Tine
22 532106181 Spacer 1.008 x 1-3/4 x .645
23 532008359 Pinion, Input
24 532005020 Bearing, Needle
25 532008372 Gasket, Gearcase
26 532106389 Spacer .765 I.D. x 1.12 x 5/8
27 532100433 Gear, Cluster, Red., 2nd and 3rd
28 532008357 Gear, Reverse Idler
29 532144562 Gear Assembly, Reverse Idler (Includes Key Numbers 28
and 30)
30 532006803 Bearing, Needle
31 812000040 Klip Ring
32 532008356 Shaft, Reverse Idler
33 532100016 Shaft, Reduction, 2nd
34 532106392 Spacer .765 I.D. x 1-1/8 x 1-3/8
35 532106394 Spacer, Ground Drive, L.H.
36 532100436 Shaft Assembly, Ground
37 532142145 Arm Assembly, Shift
38 532106393 Spacer, Ground Drive, R.H.
39 532124698 Seal, Oil
40 532140576 Seal, Ring, Rubber
41 532009672 Cup, Formed
42 810040700 Washer, Lock 7/16
43 873610700 Nut, Hex 7/16-20
44 532109331 Gearcase Assembly, L.H., with Bearing (Includes Key
Number 24)
45 874780512 Bolt, Hex Head 5/16-18 x 3/4
46 810040500 Washer, Lock 5/16
47 873220500 Nut, Hex Head 5/16-18
48 532100107 Screw, Whiz-Lock 5/16-18 x 4
49 532106391 Spacer .765 I.D. x 1.12 x 3/4
50 532102144 Ring, Spiral
532006066 Grease, Plastilub Number 1
