PPFT3C (1999 & Before) Page 1 of 24
3 HP 17'' BELT GUARD/PULLEY ASSY
PPFT3C (1999 & Before) Page 2 of 24
3 HP 17'' BELT GUARD/PULLEY ASSY
Ref # Part Number Qty Description
1 823230506 SCREW, SET FORGED SOCKET, HEADLESS 5/16-18X3/8
2 532130811 ENGINE PULLEY
3 532122955 SUB= 122955X
4 872140404 BOLT, CARRIAGE 1/4-20X3/4
5 874770812 BOLT, HEX 1/2-20X3/4
6 532121463 SUB= 121463X
7 532104213 SUB= 104213X
8 819091016 WASHER 9/32 X 5/8 X 16 GA.
9 532125342 SUB= 131157X421
10 532109227 SUB= 109227X
11 872140406 BOLT, CARRIAGE 1/4-20 X 3/4
12 532009179 SUB= TH3H390
13 532002649 SUB= 2649M
14 532009174 SUB= 9174R
15 532132213 BELT GUARD BOLT
16 812000036 RING, KLIP
17 873350600 NUT HEX JAM 3/8-16 UNC
18 532009178 SUB= 75673
19 532124688 SUB= 674A30
20 874760620 BOLT, HEX 3/8-16 X 1-1/4
21 532106968 SUB= 106968X
22 532105358 SUB= 105358X
23 810040400 WASHER, LOCK 1/4
24 873220400 NUT, HEX 1/4-20
25 873350500 NUT, HEX, JAM 5/16-18
26 873800400 NUT LOCK HEX W/INS 1/4-20
PPFT3C (1999 & Before) Page 3 of 24
3 HP 17'' TILLER DECALS
PPFT3C (1999 & Before) Page 4 of 24
3 HP 17'' TILLER DECALS
Ref # Part Number Qty Description
1 532134240 DECAL.PANEL.CNTRL
2 532132834 DECAL
3 532132833 NLA
4 532110613 SUB= 110613X
5 532110614 SUB= 110614X
6 532110612 SUB= 110612X
7 532126230 SUB= 126230X
8 532120076 SUB= 120075X
532144002 MANUAL.O.PPFT3C.E
532144033 MANUAL.O.PPFT3C.F
PPFT3C (1999 & Before) Page 5 of 24
3 HP 17'' TILLER HANDLE ASSEMBLY
PPFT3C (1999 & Before) Page 6 of 24
3 HP 17'' TILLER HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 532125461 SUB= 137176X421
2 872140512 BOLT, CARRIAGE
3 873680500 LOCKNUT, CROWN 5/16-18
4 819111116 WASHER 11/32 X 11/16 X 16 GA.
5 532144539 SUB= 154127
6 532140536 SUB= 140536
7 874760524 BOLT, HEX 5/16-18 X 1-1/2
8 532003069 SUB= 3069J
9 532124797 SUB= 8206H
10 532124949 SUB= 68478
11 532003067 SUB= 100382K
12 532003070 SUB= 3070J
13 819121414 WASHER 3/8 X 7/8 X 14 GA.
14 532136376 SUB= 136376
15 532000471 SUB= 471J
16 810040500 WASHER, LOCK
17 873220500 NUT, HEX
18 898000129 NUT, FLANGED
19 872140506 BOLT, CARRIAGE
20 532125462 SUB= 9209R421
21 872110510 BOLT
22 532144540 SUB= 159764
23 819131312 WASHER
PPFT3C (1999 & Before) Page 7 of 24
3 HP 17'' TILLER TINE ASSEMBLY
PPFT3C (1999 & Before) Page 8 of 24
3 HP 17'' TILLER TINE ASSEMBLY
Ref # Part Number Qty Description
1 532106860 SUB= 106860X
2 532124961 SUB= 4921H
3 532106858 SUB= 106858X
4 532106857 SUB= 106857X
5 532106859 SUB= 106859X
6 532009194 SUB= 9194R
PPFT3C (1999 & Before) Page 9 of 24
3 HP 17'' TILLER TRANSMISSION
PPFT3C (1999 & Before) Page 10 of 24
3 HP 17'' TILLER TRANSMISSION
Ref # Part Number Qty Description
1 874610412 BOLT, HEX 1/4-28 X 3/4 GR. 5
2 810040400 WASHER, LOCK 1/4
3 819092016 WASHER 9/32 X 1-1/4 X 16 GA.
4 819091412 WASHER 9/32 X 7/8 X 12 GA.
5 874760544 BOLT, HEX 5/16-18 X 2-3/4
6 532125357 SUB= 2606J421
7 532009173 SUB= 9173R
8 532125358 SUB= 132212X421
9 810040500 WASHER, LOCK
10 873220500 NUT, HEX
11 819131311 WASHER 13/32 X 13/16 X 11 GA.
13 873800600 LOCKNUT
14 532105391 SUB= 105391X
15 873510500 NUT, KEPS 5/16-18
16 874780652 BOLT, HEX 3/8-16 X 3-1/4
17 874760524 BOLT, HEX 5/16-18 X 1-1/2
18 CHECK WITH SUPPLIER
PPFT3C (1999 & Before) Page 11 of 24
3 HP 17'' WHEEL/DEPTH STAKE ASSEMBLY
PPFT3C (1999 & Before) Page 12 of 24
3 HP 17'' WHEEL/DEPTH STAKE ASSEMBLY
Ref # Part Number Qty Description
1 874760520 BOLT, HEX 5/16-18 X 1-1/4
2 873220500 NUT, HEX
3 810040500 WASHER, LOCK
4 819121414 WASHER 3/8 X 7/8 X 14 GA.
5 532124961 SUB= 4921H
6 874780628 BOLT, FIN, HEX 3/8-16 X 1-3/4
7 532000318 SUB= 318J
8 532144541 SUB= 9193R500
9 873800600 LOCKNUT
10 532009551 SUB= 9551R
11 532000317 SUB= 317J500
12 874760512 BOLT, HEX 5/16-18 X 3/4
13 532000325 SUB= 325J
14 532121117 SUB= 121117X
15 532009186 SUB= STD333760
16 819131311 WASHER 13/32 X 13/16 X 11 GA.
17 532144538 SUB= 9193R500
18 873680600 NUT, CROWNLOCK 3/8-16
19 873800500 LOCKNUT
PPFT3C (1999 & Before) Page 13 of 24

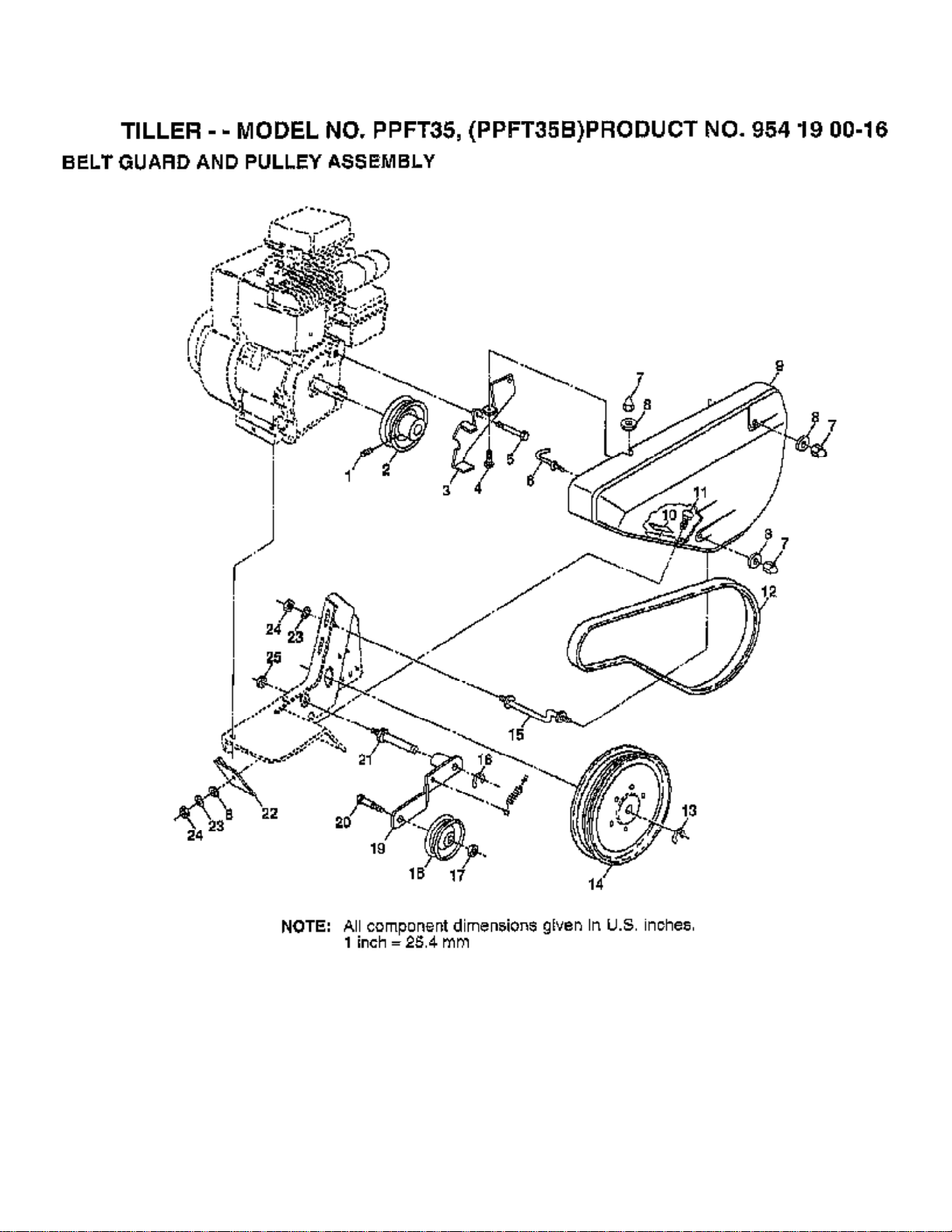

TILLER BELT GUARD/PULLEY ASSY
PPFT3C (1999 & Before) Page 14 of 24
TILLER BELT GUARD/PULLEY ASSY
Ref # Part Number Qty Description
1 23230506 SET SCREW
2 130811 SUB= 532130811
3 122955X BRKT ASSY
4 72140404 BOLT
5 74610812 BOLT.HEX.HEAD
6 121463X KEEPER BELT
7 104213X NUT-CAP TI
8 19091016 WASHER
9 131157X505 BELT GUARD
10 109227X PAD IDLER TI
11 72140406 BOLT T
12 9179R SUB= TH3H390
13 12000028 SUB= 2267J
14 151939 PULLEY.TRANSMISSN
15 132213 SUB= 532132213
16 12000036 KLIP RING TI
17 73350600 NUT
18 161806 "PULLEY,IDLER"
19 162290 "ARM, IDLER"
20 74760620 SUB= 74780620
21 106968X SHAFT IDLER TI
22 105358X SHIELD-DIRT TI
23 10040400 LOCKWASHER
24 73220400 SUB= 50675
25 73350500 JAM NUT TI
PPFT3C (1999 & Before) Page 15 of 24
TILLER DECALS
PPFT3C (1999 & Before) Page 16 of 24
TILLER DECALS
Ref # Part Number Qty Description
1 162682 DECAL.LOGO.CONTROL
2 162681 DECAL.HP.CONTROL
3 162680 DECAL.LOGO
4 110613 DECAL, TINE CONTROL
5 110614 DECAL HAND PLACEMENT
6 162384 DECAL.CAUTION
7 120076 DECAL WARNING ROTATING TINES
8 150496 RETAINER-SPRING
9 273199 DECAL-BRIGGS AND STRATTON
10 273603 DECAL-SPEED CONTROL
11 273714 DECAL-3.5 HP
162798 MANUAL.O.PPFT35B
162799 MANUAL.O.PPFT35B
PPFT3C (1999 & Before) Page 17 of 24
TILLER HANDLE ASSEMBLY
PPFT3C (1999 & Before) Page 18 of 24
TILLER HANDLE ASSEMBLY
Ref # Part Number Qty Description
1 137176X505 HANDLE BRKT
2 72140512 BOLT
3 73680500 SUB= 73690500
4 19111116 WASHER
5 151473 HANDLE LH
6 9266R SUB= 624A78
7 74760524 BOLT.HEX.5/16-1.5
8 3069J SUB= 164937
9 8206H GRIP T
11 3067J SUB= 100382K
12 3070J SPRING EXT TI
13 19121414 WASHER
14 74760516 SUB= 77394
15 74760512 BOLT
16 10040500 LOCKWASHER
17 73220500 NUT.HEX.5/16-18
18 98000129 NUT
19 72140506 BOLT
20 9209R505 PANEL. HANDLE
22 151474 HANDLE RH
23 19131312 WASHER
PPFT3C (1999 & Before) Page 19 of 24
TILLER TINE ASSEMBLY
PPFT3C (1999 & Before) Page 20 of 24
TILLER TINE ASSEMBLY
Ref # Part Number Qty Description
1 106860X TINE ASSY RH
2 4921H SPRING.RETAINER
3 106858X TINE ASSY RH
4 106857X TINE INN LH TI
5 106859X TINE ASS'Y LH
6 9194R DRILLED RIVET RT
PPFT3C (1999 & Before) Page 21 of 24
TILLER TRANSMISSION
PPFT3C (1999 & Before) Page 22 of 24
TILLER TRANSMISSION
Ref # Part Number Qty Description
1 74610412 BOLT
2 10040400 LOCKWASHER
3 19092016 WASHER
4 19091412 WASHER
5 74760544 SUB= 74780544
6 2606J505 ENGINE BRKT RH
7 9173R SPLIT SPACER RT
8 132212X505 ENGINE BRKT LH
9 10040500 LOCKWASHER
10 73220500 NUT.HEX.5/16-18
11 19131311 WASHER
13 73800600 NUT
14 151937 SUB= 165810
15 73510500 NUT
16 74780652 BOLT HEX 3/8-16
17 74760524 BOLT.HEX.5/16-1.5
18 CHECK WITH SUPPLIER
PPFT3C (1999 & Before) Page 23 of 24
TILLER WHEEL/DEPTH STAKE ASSY
PPFT3C (1999 & Before) Page 24 of 24
TILLER WHEEL/DEPTH STAKE ASSY
Ref # Part Number Qty Description
1 74760520 BOLT
2 73220500 NUT.HEX.5/16-18
3 10040500 LOCKWASHER
4 19121414 WASHER
5 4921H SPRING.RETAINER
6 74780628 BOLT
7 318J STAKE.SUPT.TILLER
8 9193R SUB= 9193R500
9 73800600 NUT
10 9551R DRILLED RIVET RT
11 317J SUB= 317J500
12 74760512 BOLT
13 325J STAKE SPRING CT
14 121117X BOLT SHOULDER
15 127858 WHEEL TI
16 19131311 WASHER
17 9189R SUB= 674H4
18 73680600 SUB= 73690600
19 73800500 NUT
20 74760524 BOLT.HEX.5/16-1.5
